Dacor
Gas Range

Model # ER30GSCHLPH Official Dacor gas range

Here are the diagrams and repair parts for Official Dacor ER30GSCHLPH gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

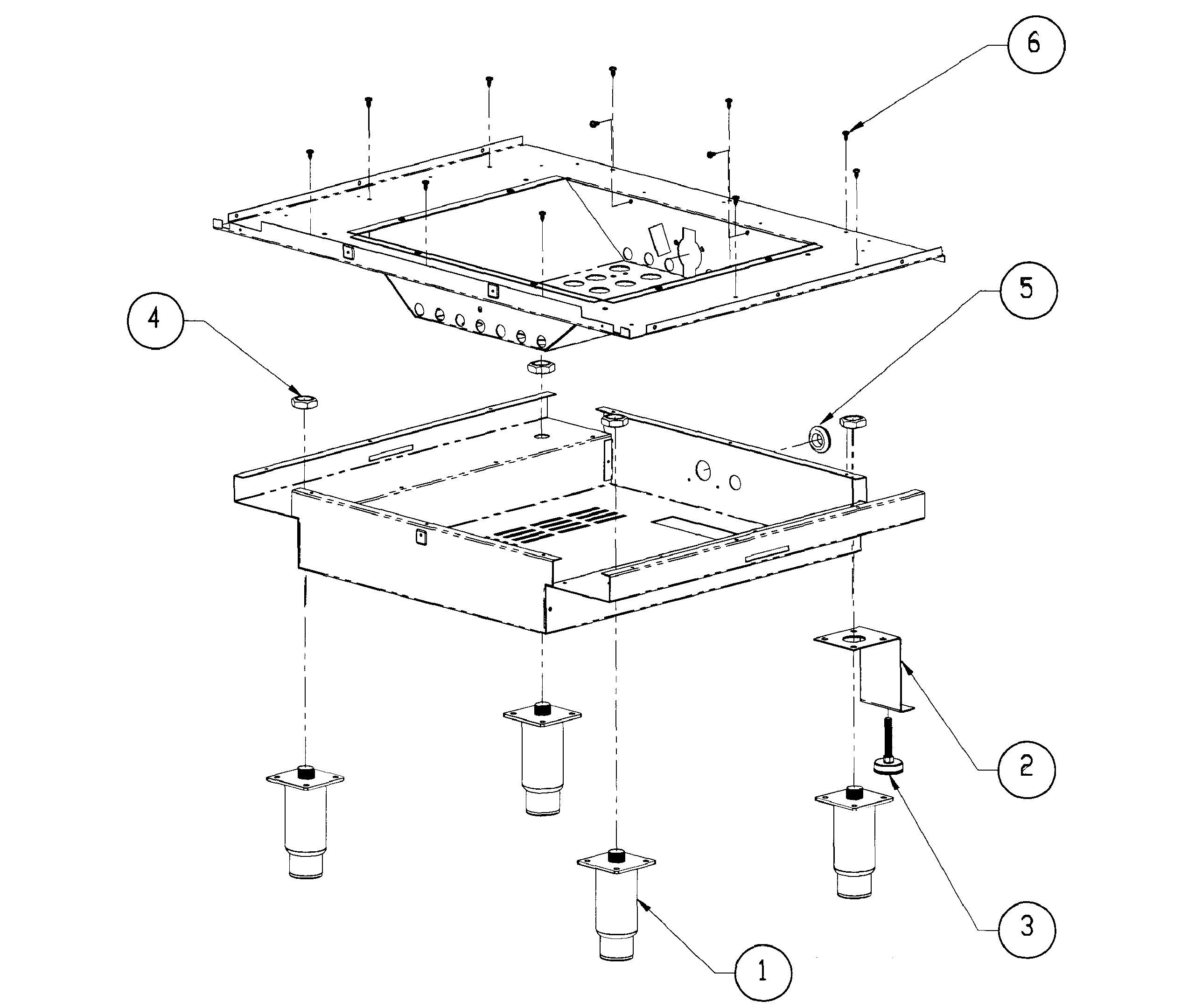

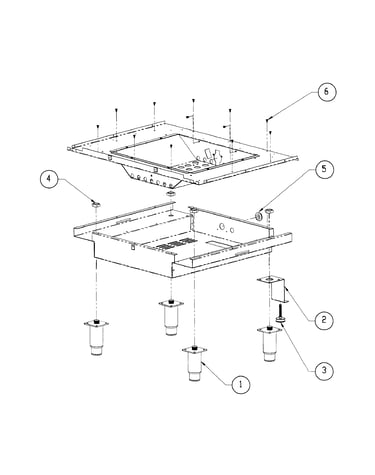

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Nut 83308
#13

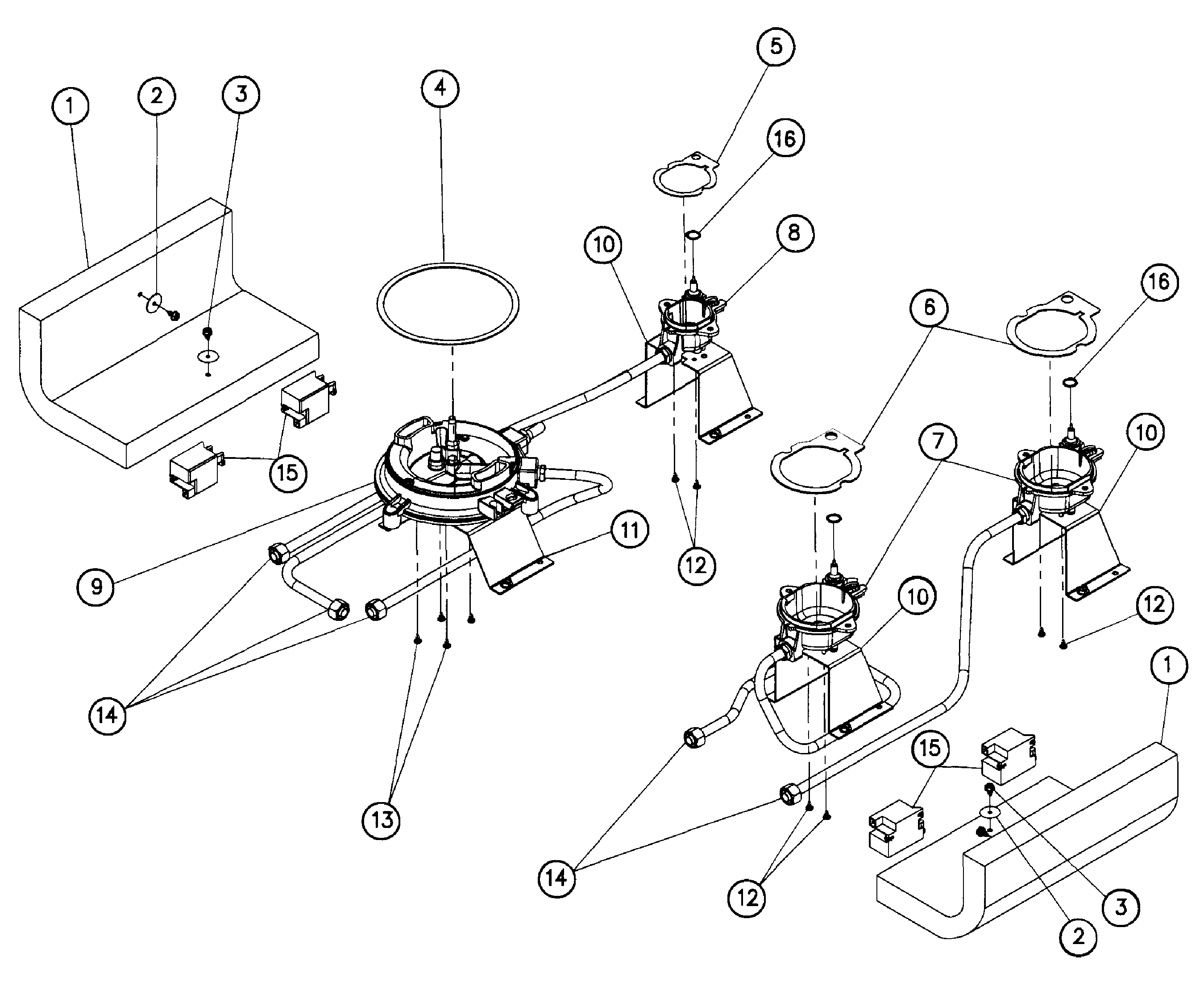

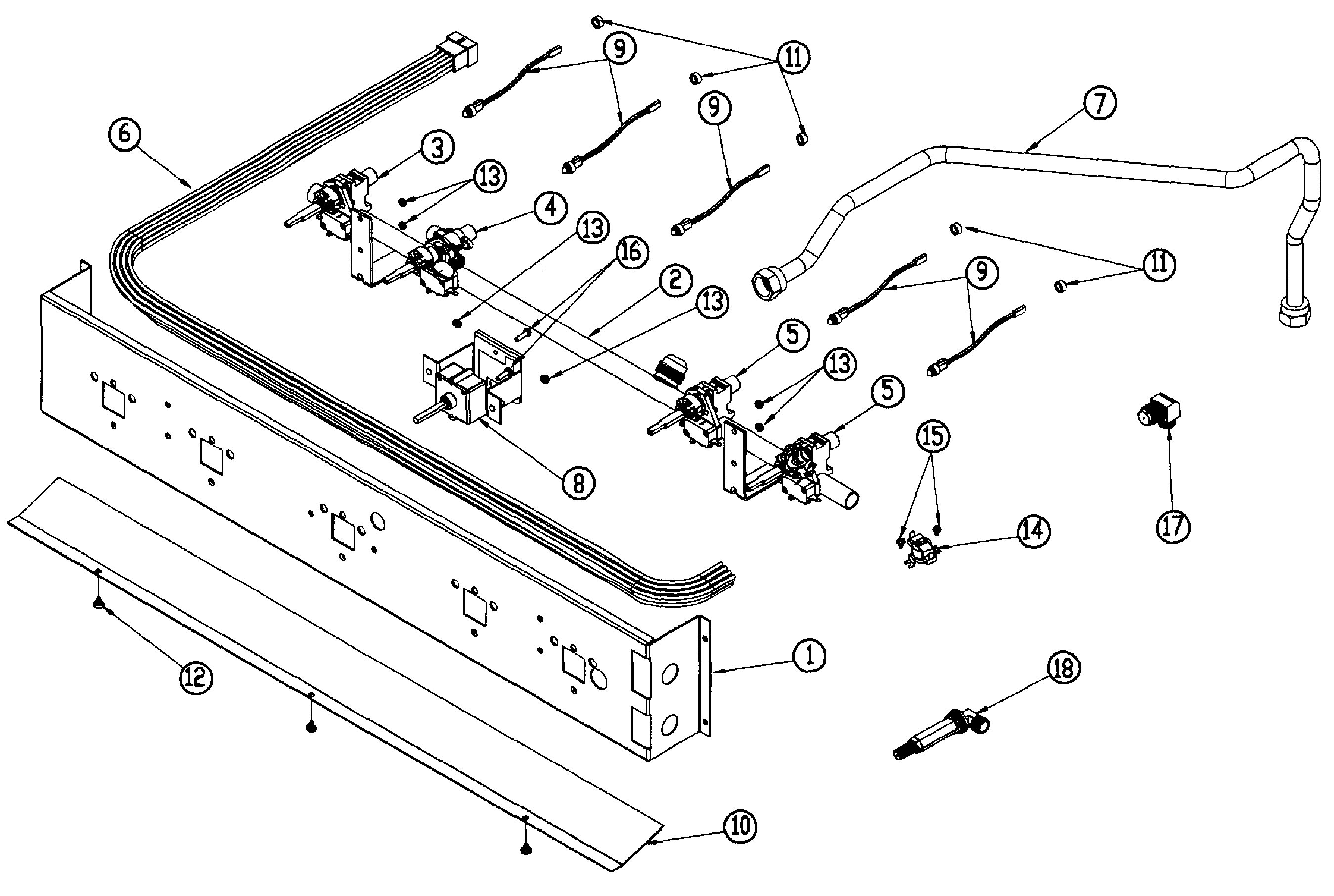

Manifold diagram

Nut

Part #83308

This item is not returnable
$2.16
In Stock
Range Surface Burner Cap 102593
#9

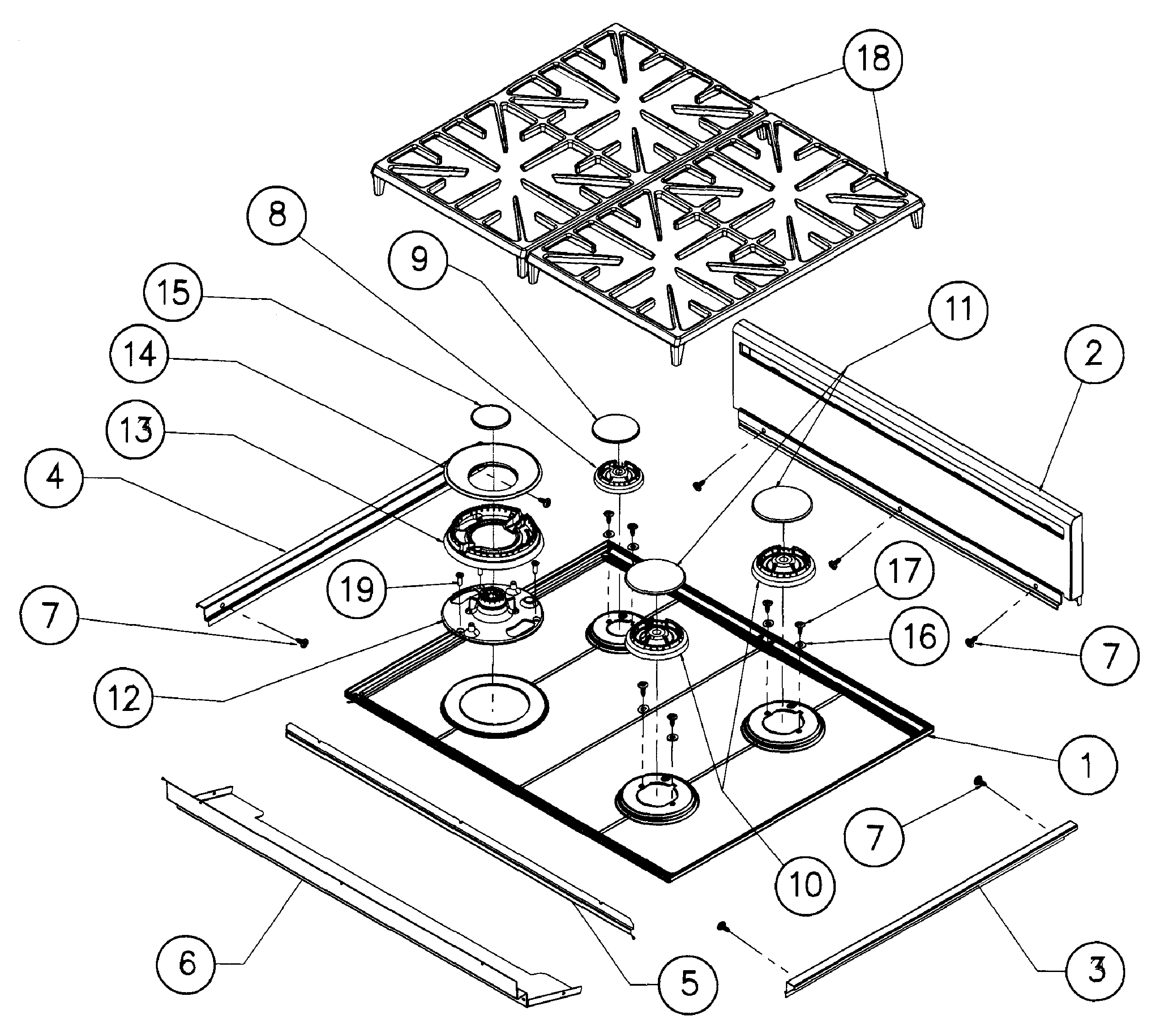

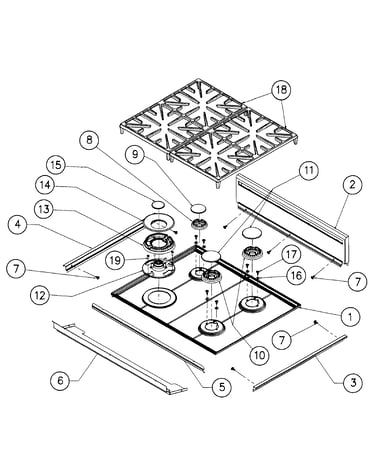

Grates diagram

Range surface burner cap

Part #102593

$9.99
In Stock
Cooktop Dual Valve 103659
#7

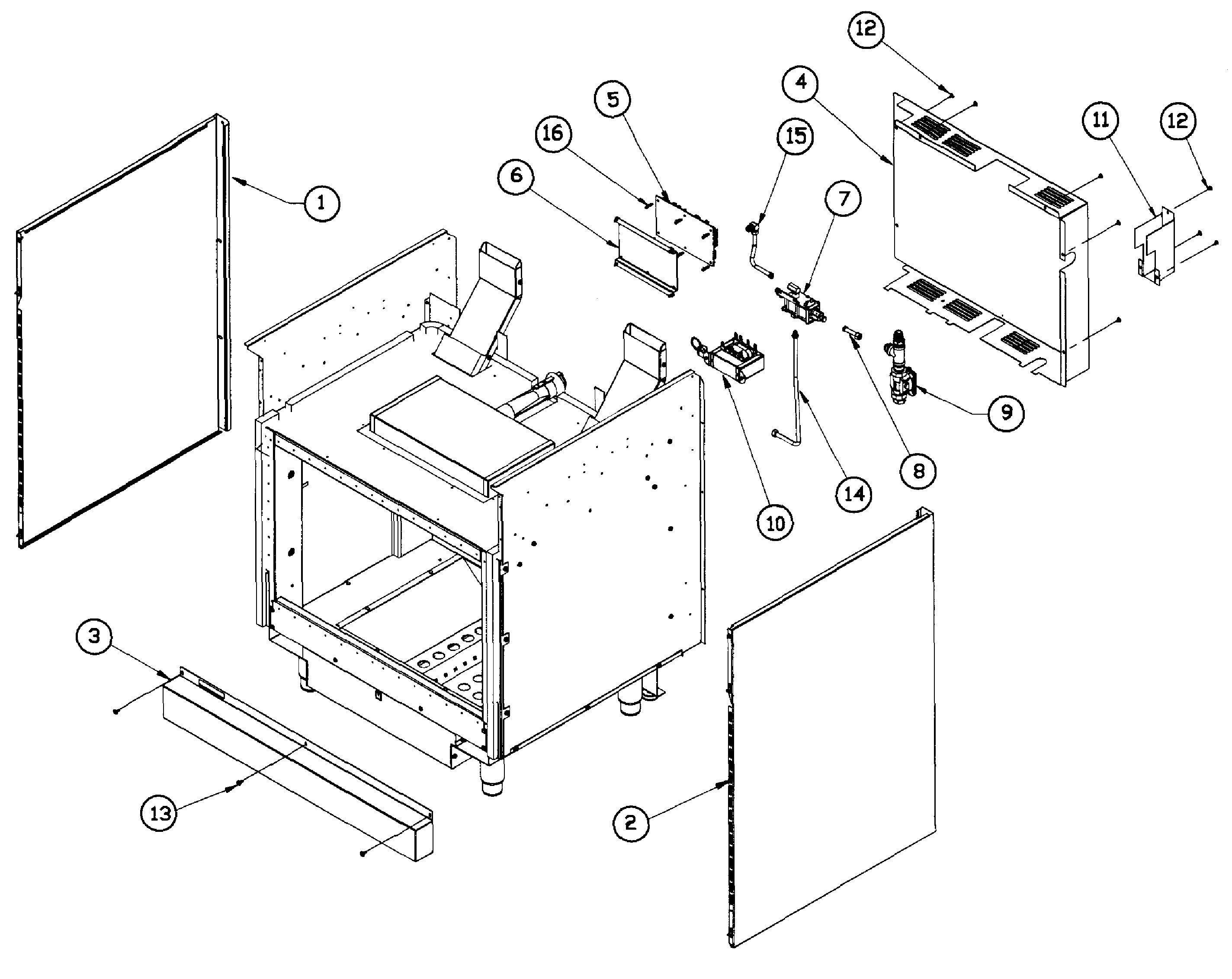

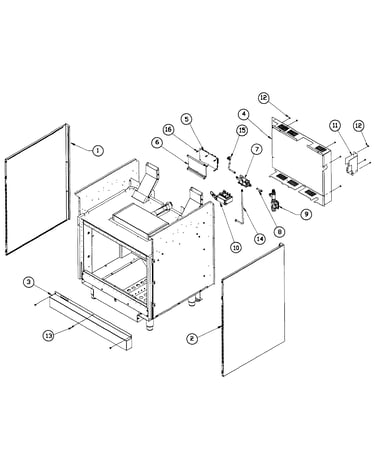

Cabinet diagram

Cooktop dual valve

Part #103659

$119.99
In Stock
Screw 83023
Screw

Part #83023

This item is not returnable
$2.16
In Stock
Appliance Screw, #8 X 3/8-in 83263
Appliance screw, #8 x 3/8-in

Part #83263

This item is not returnable
$2.16
Back Order
Tube,5/16 103666
#14

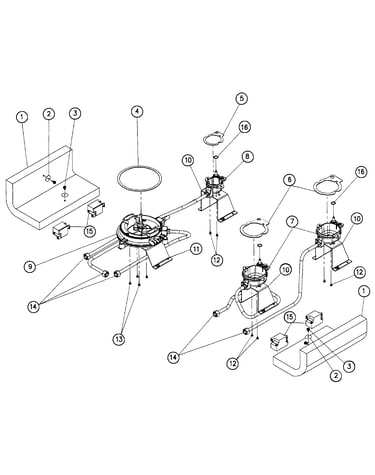

Burners diagram

Tube,5/16

Part #103666

$31.49
In Stock
Range Oven Light Assembly 92398
#5

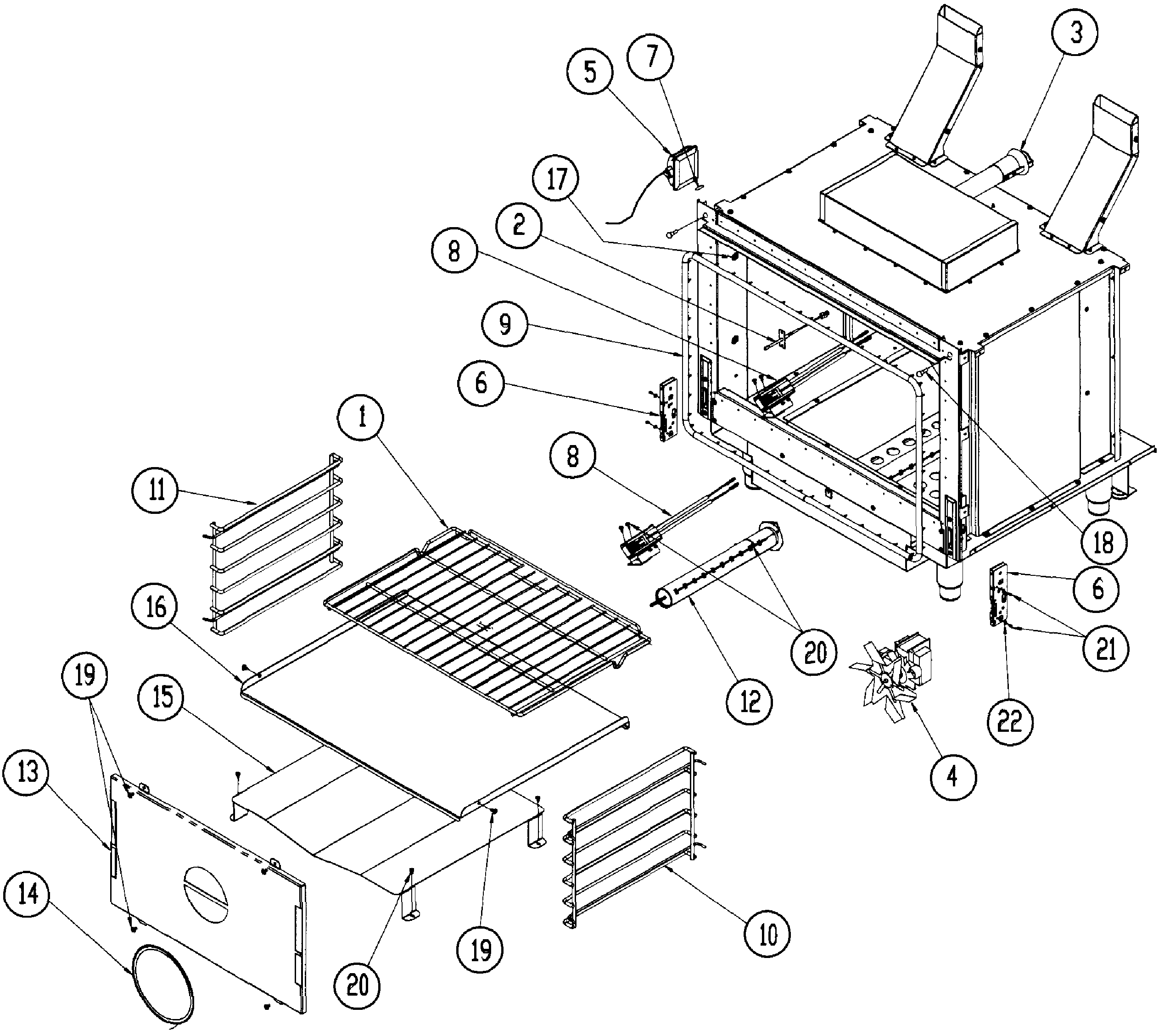

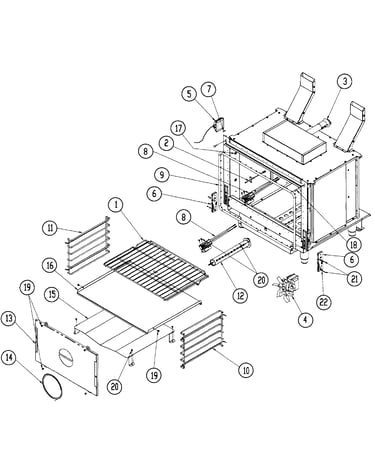

Oven diagram

Range oven light assembly

Part #92398

The manufacturer no longer makes this part, and there's no substitute part

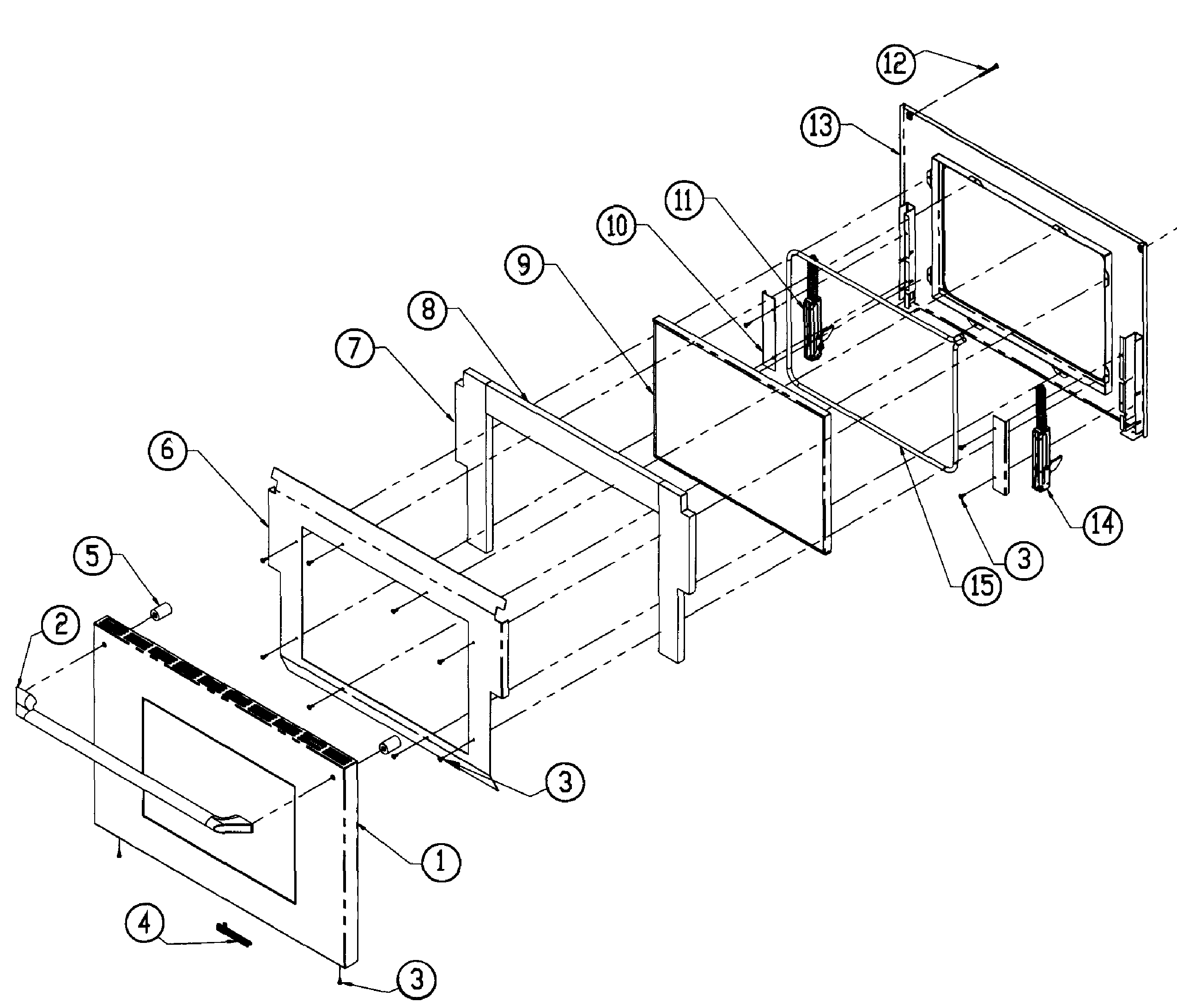

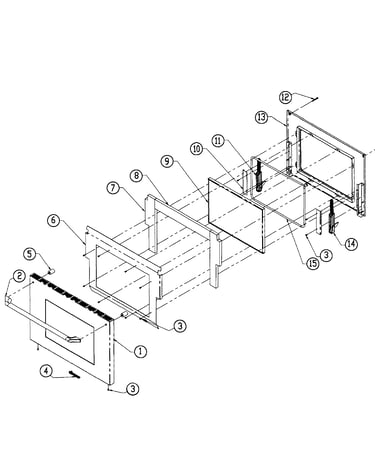

Range Oven Door Hinge Receiver 72348
#6

Oven diagram

Range oven door hinge receiver

Part #72348

The manufacturer no longer makes this part, and there's no substitute part

Range Light Transformer 62808
#10

Cabinet diagram

Range light transformer

Part #62808

The manufacturer no longer makes this part, and there's no substitute part

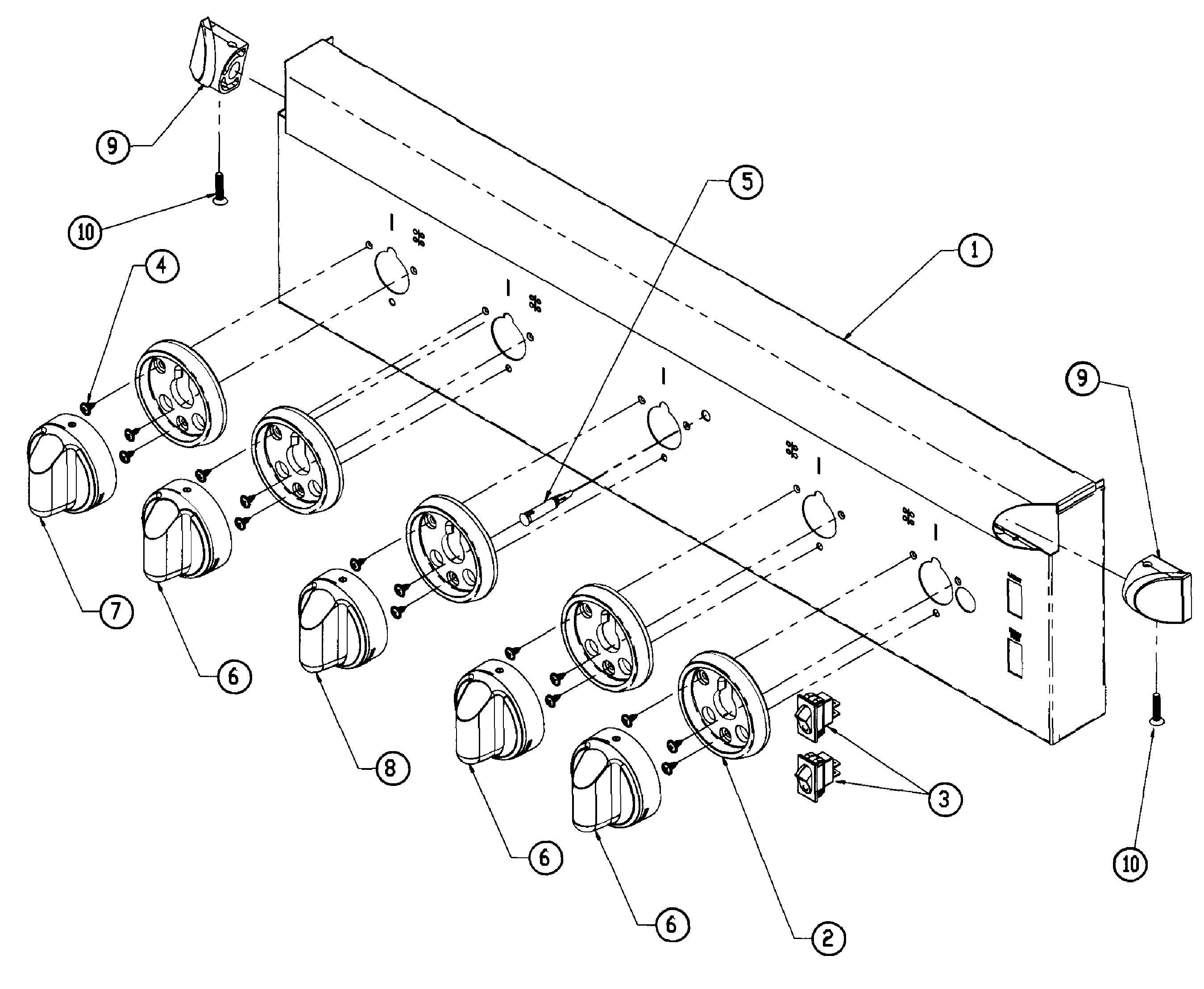

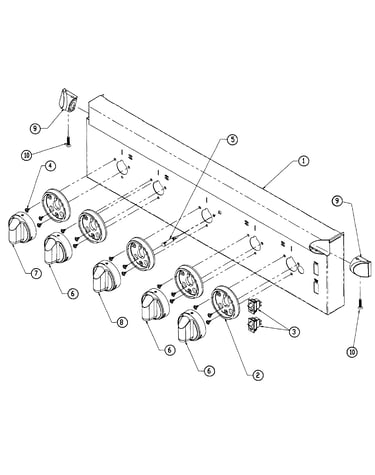

Temperature Selector 103564
#8

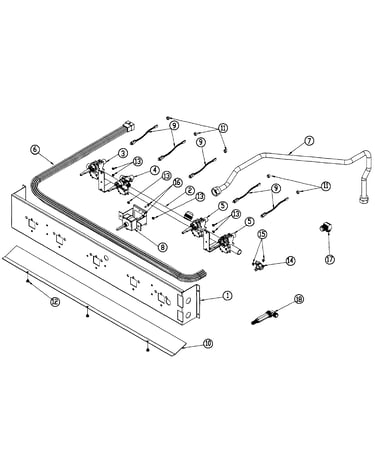

Manifold diagram

Temperature selector

Part #103564

The manufacturer no longer makes this part, and there's no substitute part
