Craftsman
Front-Engine Lawn Tractor

Model # 502256140 Official Craftsman garden tractor

Here are the diagrams and repair parts for Official Craftsman 502256140 garden tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 226 parts  |
Housing 20551
#51

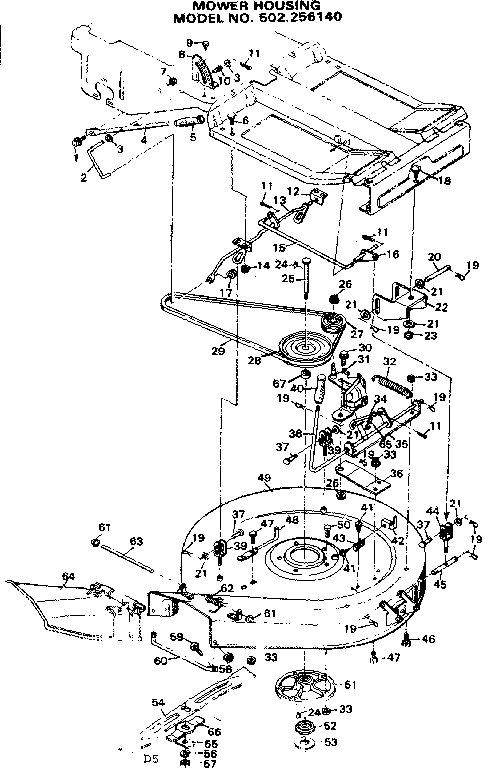

Mower housing diagram

Housing

Part #20551

Replaced by #492574MA

?
Manufacturer substitution
This part replaces 20551. Substitute parts can look different from the original.
$68.99 |
8% OFF Phone Price : $74.99
In Stock
Fuse Holder 407058
#18A

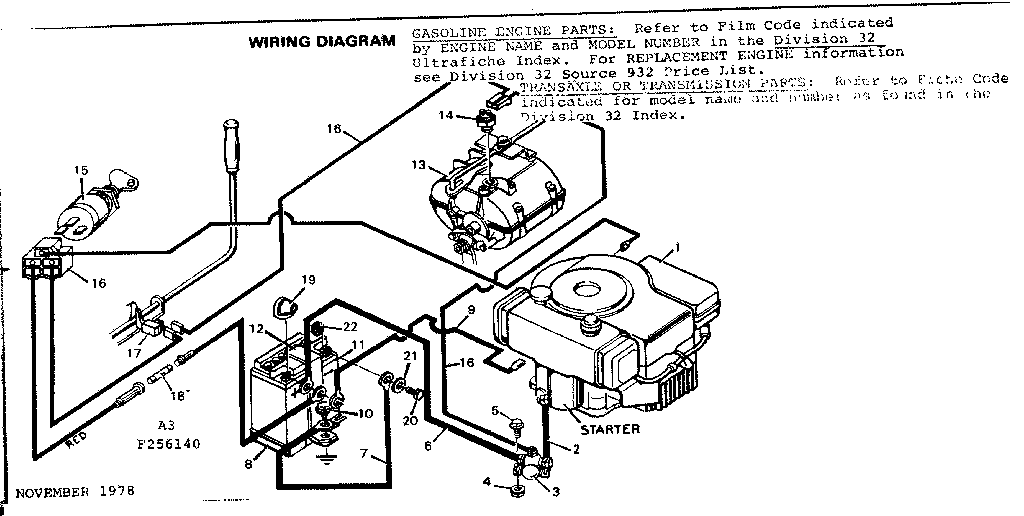

Wiring diagram diagram

Fuse holder

Part #407058

Replaced by #407078MA

?
Manufacturer substitution
This part replaces 407058. Substitute parts can look different from the original.
$29.53 |
17% OFF Phone Price : $35.53
In Stock
Lock Nut 15X84
#26

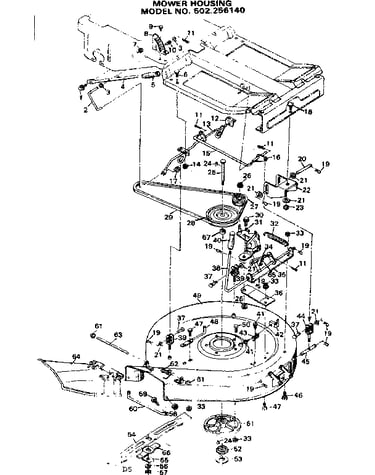

Mower housing diagram

Lock nut

Part #15X84

Replaced by #703893

?
Manufacturer substitution
This part replaces 15X84. Substitute parts can look different from the original.
This item is not returnable
$11.29 |
15% OFF Phone Price : $13.29
In Stock
Spacer 24533Z
#67

Mower housing diagram

Spacer

Part #24533Z

Replaced by #91925MA

?
Manufacturer substitution
This part replaces 24533Z. Substitute parts can look different from the original.
$22.54
In Stock
Switch Key 21064PA
#15

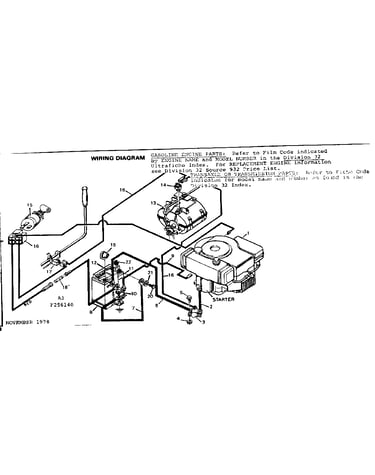

Wiring diagram diagram

Switch key

Part #21064PA

Replaced by #421064MA

?
Manufacturer substitution
This part replaces 21064PA. Substitute parts can look different from the original.
$43.79 |
12% OFF Phone Price : $49.79
In Stock
Push-on-cap 28X23
#61

Mower housing diagram

Push-on-cap

Part #28X23

Replaced by #703948

?
Manufacturer substitution
This part replaces 28X23. Substitute parts can look different from the original.
This item is not returnable
$7.29 |
12% OFF Phone Price : $8.29
In Stock
Torsion Spring 21189
#62

Mower housing diagram

Torsion spring

Part #21189

Replaced by #166X4MA

?
Manufacturer substitution
This part replaces 21189. Substitute parts can look different from the original.
$11.80
In Stock
Solenoid 21261
#3

Wiring diagram diagram

Solenoid

Part #21261

Replaced by #532146154

?
Manufacturer substitution
This part replaces 21261. Substitute parts can look different from the original.
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Jackshaft 24578
#25

Mower housing diagram

Jackshaft

Part #24578

Replaced by #424578MA

?
Manufacturer substitution
This part replaces 24578. Substitute parts can look different from the original.
$62.49 |
9% OFF Phone Price : $68.49
In Stock
Steer Post 20864
#20

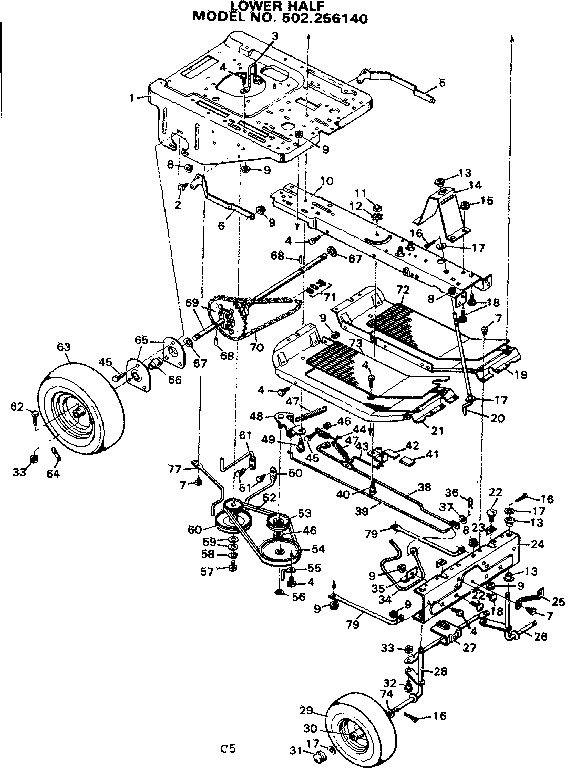

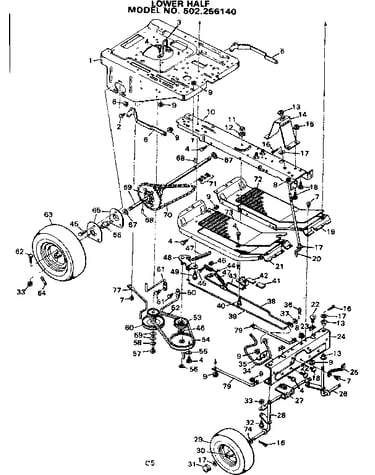

Lower half diagram

Steer post

Part #20864

Replaced by #11X16MA

?
Manufacturer substitution
This part replaces 20864. Substitute parts can look different from the original.
This item is not returnable
$6.91
In Stock
