GE
Gas Range

Model # ZGP486LDR4SS Official GE gas range

Here are the diagrams and repair parts for Official GE ZGP486LDR4SS gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

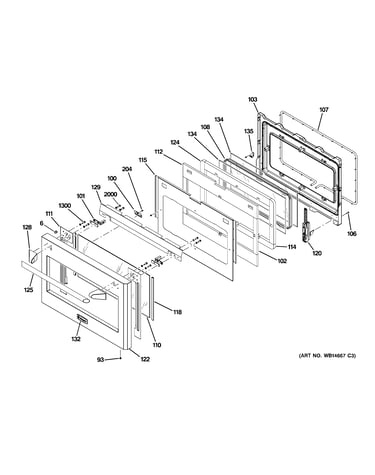

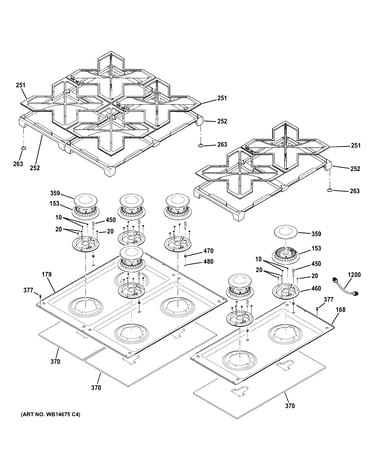

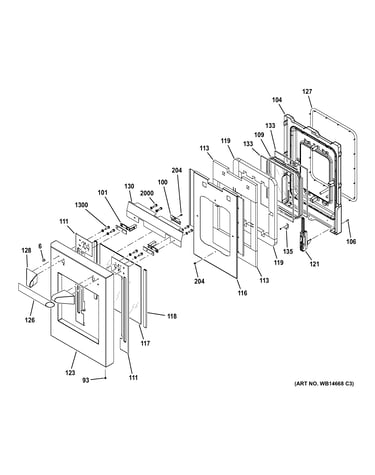

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 254 parts  |
Wall Oven Temperature Sensor WB21T10007
#243

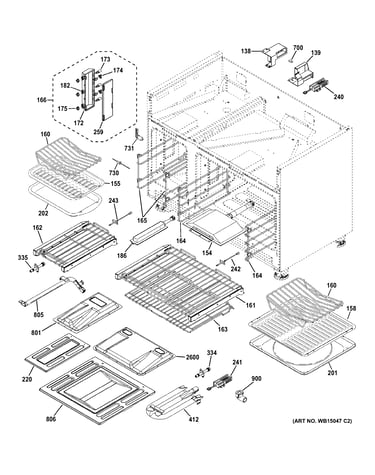

Oven cavity parts diagram

Wall oven temperature sensor

Part #WB21T10007

Replaced by #WB21X22134

?
Manufacturer substitution
This part replaces WB21T10007. Substitute parts can look different from the original.
BEST SELLER
$23.33 |
20% OFF Phone Price : $29.33
In Stock
Range Bake Igniter (replaces Wb13k10040) WB13X25264
#241

Oven cavity parts diagram

Range bake igniter (replaces wb13k10040)

Part #WB13X25264

BEST SELLER
$76.66 |
7% OFF Phone Price : $82.66
In Stock
Range Broil Igniter (replaces Wb13k10020) WB13X25261
#240

Oven cavity parts diagram

Range broil igniter (replaces wb13k10020)

Part #WB13X25261

BEST SELLER
$81.97 |
7% OFF Phone Price : $87.97
In Stock
Range Grill Surface Burner Igniter WB13K10030
#145

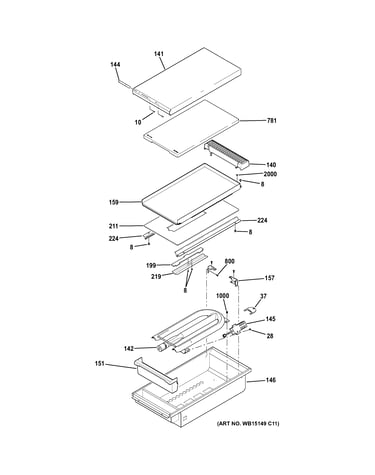

Griddle assembly diagram

Range grill surface burner igniter

Part #WB13K10030

$107.39 |
10% OFF Phone Price : $119.39
In Stock
Encoder Assembly WB24K10081
#70

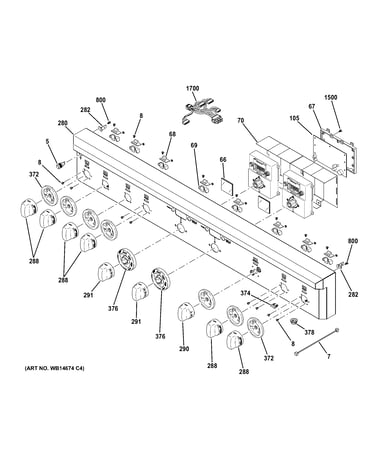

Control panel diagram

Encoder assembly

Part #WB24K10081

$225.65
In Stock
Scr 8 Hd 1/4 WB01K10067
#21

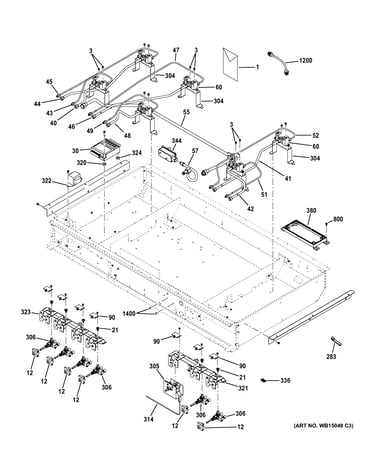

Gas & burner parts diagram

Scr 8 hd 1/4

Part #WB01K10067

This item is not returnable
$7.92 |
11% OFF Phone Price : $8.92
In Stock
Range Ignition Module Transformer WB27K10298
#322

Gas & burner parts diagram

Range ignition module transformer

Part #WB27K10298

$165.01 |
7% OFF Phone Price : $177.01
In Stock
Range Spark Module WB13K10038
#30

Gas & burner parts diagram

Range spark module

Part #WB13K10038

Replaced by #WB13K10031

?
Manufacturer substitution
This part replaces WB13K10038. Substitute parts can look different from the original.
$245.40 |
5% OFF Phone Price : $257.40
In Stock
Refrigerator Door Handle Mounting Screw WR01X10590
#1100

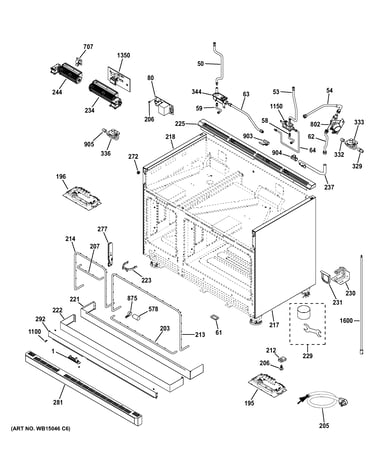

Body parts diagram

Refrigerator door handle mounting screw

Part #WR01X10590

This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Range Convection Fan Motor Start Capacitor WB27T10662
#578

Body parts diagram

Range convection fan motor start capacitor

Part #WB27T10662

$6.51 |
13% OFF Phone Price : $7.51
In Stock
