GE
Upright Freezer

Model # FUM14SVCRWW Official GE freezer

Here are the diagrams and repair parts for Official GE FUM14SVCRWW freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Freezer Dryer Filter WR86X10044
#740

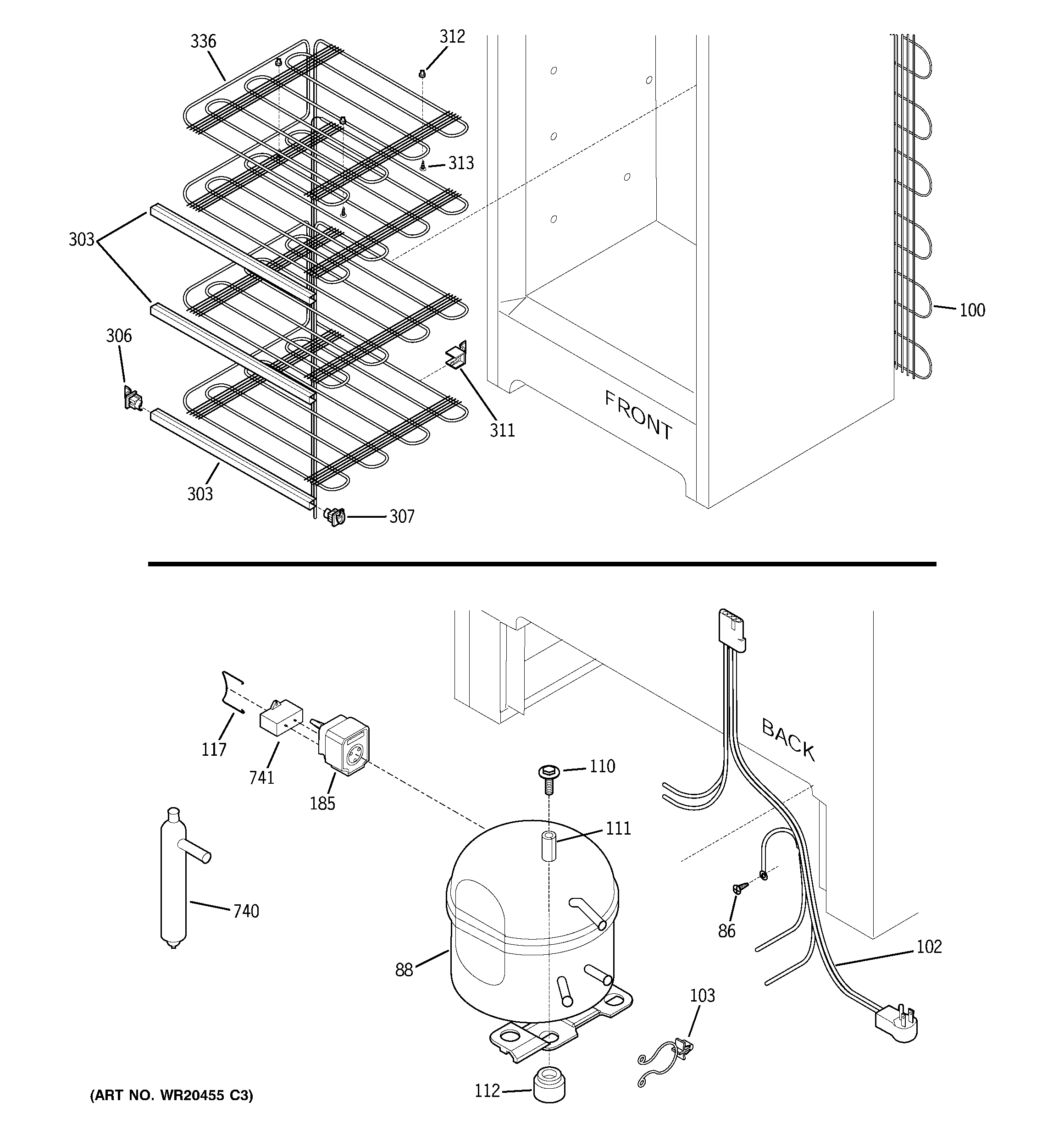

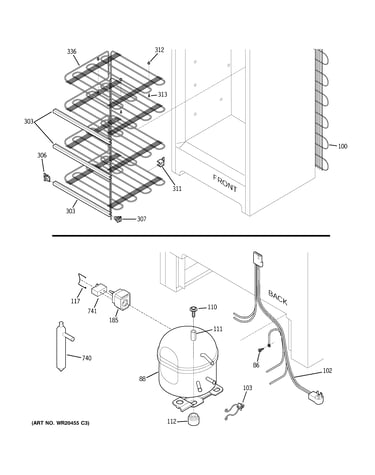

Unit parts diagram

Freezer dryer filter

Part #WR86X10044

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X10044. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Freezer Door Gasket WR24X10011
#8

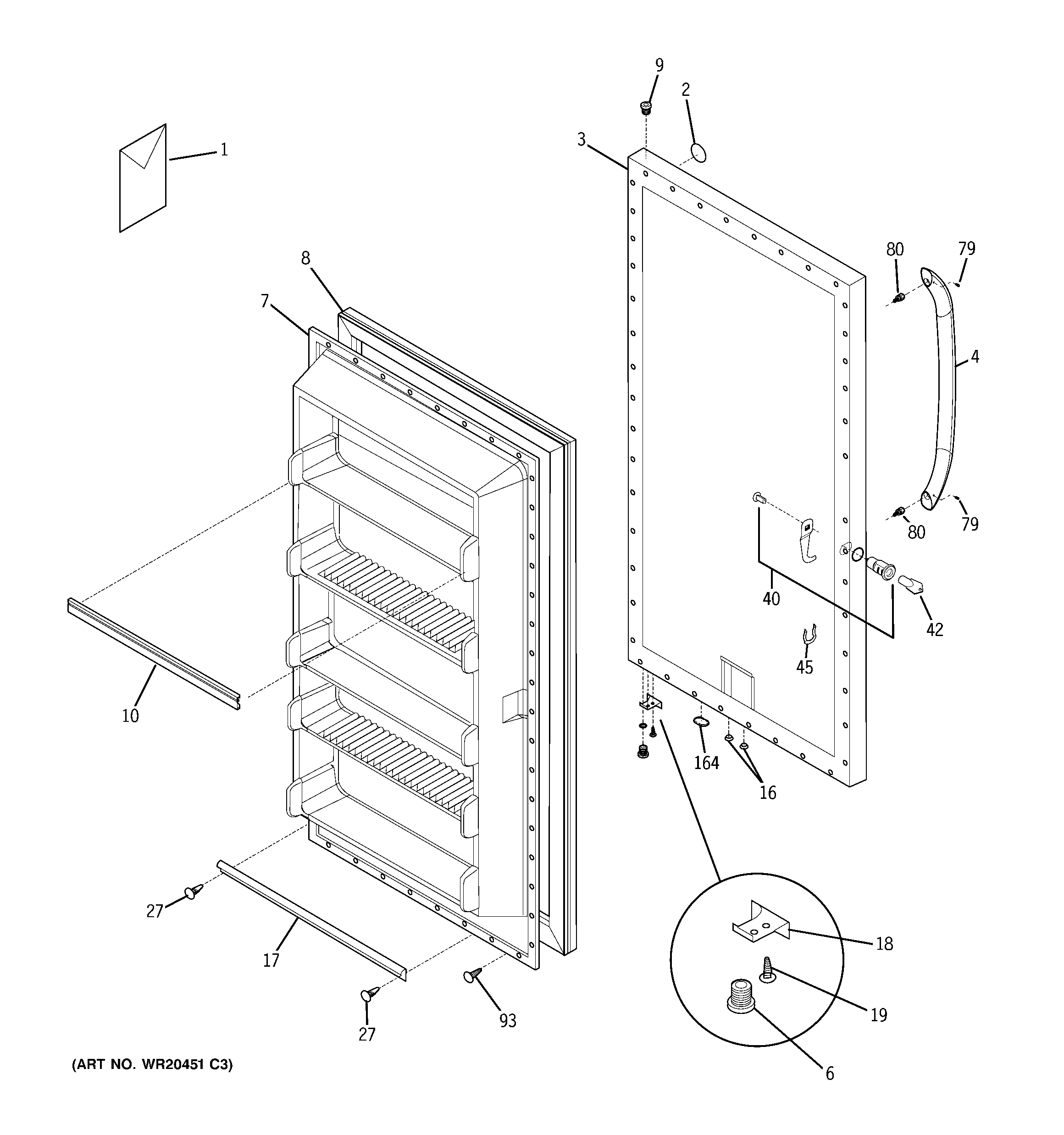

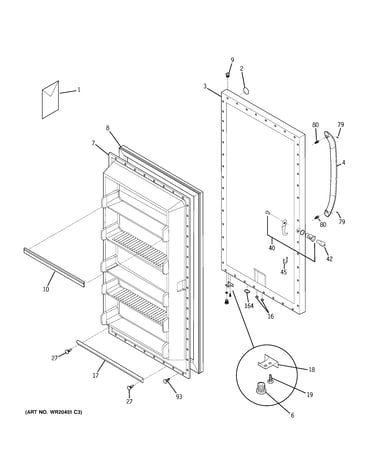

Freezer door diagram

Freezer door gasket

Part #WR24X10011

Replaced by #WR14X27587

?
Manufacturer substitution
This part replaces WR24X10011. Substitute parts can look different from the original.
$213.14
Back Order
Main Harness WR23X10634
#102

Unit parts diagram

Main harness

Part #WR23X10634

$64.87
In Stock
Hinge WR12X10964
#33

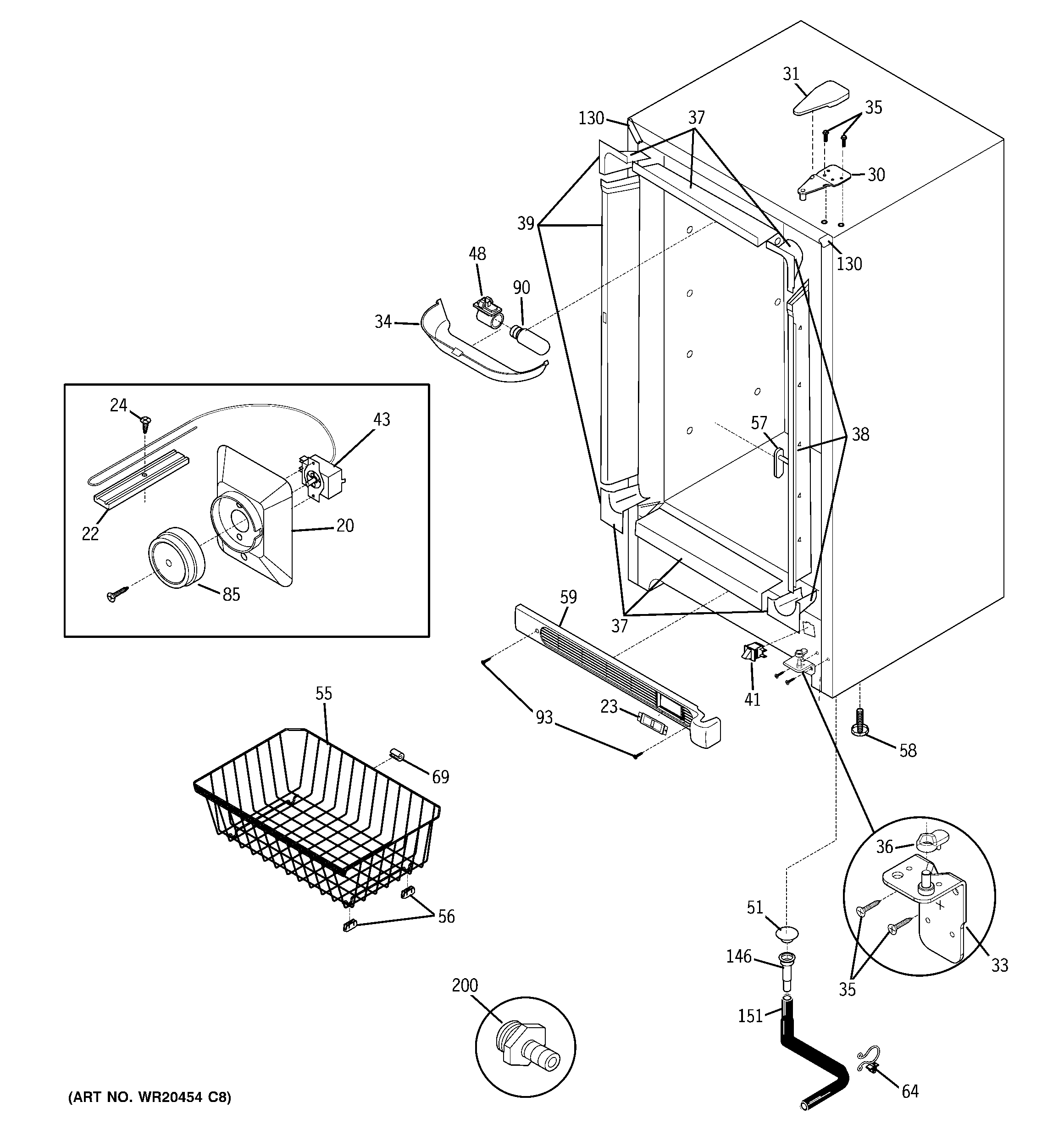

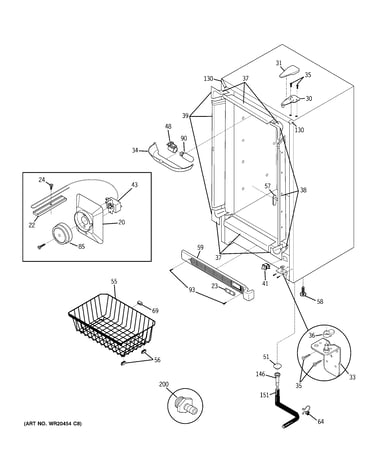

Cabinet diagram

Hinge

Part #WR12X10964

$38.51
In Stock
Clamp Capillary Tube WR02X11441
#22

Cabinet diagram

Clamp capillary tube

Part #WR02X11441

$8.11
In Stock
Clip Control WR02X12032
#117

Unit parts diagram

Clip control

Part #WR02X12032

$15.33
In Stock
Set Screw WR01X10922
#79

Freezer door diagram

Set screw

Part #WR01X10922

$24.59 |
20% OFF Phone Price : $30.59
In Stock
Clip Panel WR01X10916
#27

Freezer door diagram

Clip panel

Part #WR01X10916

This item is not returnable
$6.54
In Stock
Screw,rwhd , WR02X12764
#86

Unit parts diagram

Screw,rwhd ,

Part #WR02X12764

$30.84 |
16% OFF Phone Price : $36.84
In Stock
Spring Clip WR01X10870
#45

Freezer door diagram

Spring clip

Part #WR01X10870

This item is not returnable
$5.00
In Stock
