Model # 65520 Official Craftsman tool chest

Here are the diagrams and repair parts for Official Craftsman 65520 tool chest, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 13 parts  |
Dwr Pull T14861A5
#7

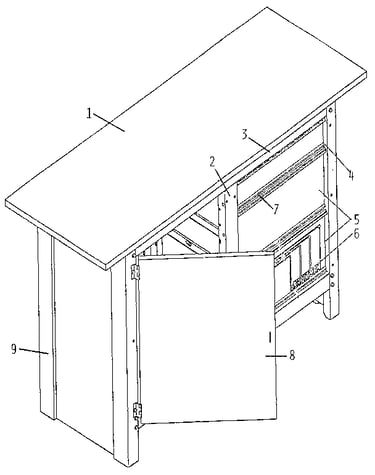

Unit parts diagram

Dwr pull

Part #T14861A5

The manufacturer no longer makes this part, and there's no substitute part

Sears Tool Chest Drawer Slide T14009A1

#NI

All parts diagram

Sears tool chest drawer slide

Part #T14009A1

The manufacturer no longer makes this part, and there's no substitute part

Emblem T16077
#6

Unit parts diagram

Emblem

Part #T16077

The manufacturer no longer makes this part, and there's no substitute part

Door A8306BLK
#8

Unit parts diagram

Door

Part #A8306BLK

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Owner's Manual F405A11

#NI

All parts diagram

Tool chest owner's manual

Part #F405A11

The manufacturer no longer makes this part, and there's no substitute part

Rail T13990CGY
#3

Unit parts diagram

Rail

Part #T13990CGY

The manufacturer no longer makes this part, and there's no substitute part

Drawer T13779GRY
#9

Unit parts diagram

Drawer

Part #T13779GRY

The manufacturer no longer makes this part, and there's no substitute part

Support T13991CGY
#2

Unit parts diagram

Support

Part #T13991CGY

The manufacturer no longer makes this part, and there's no substitute part

Top M7147
#1

Unit parts diagram

Top

Part #M7147

The manufacturer no longer makes this part, and there's no substitute part

Slide Outsde T14068

#NI

All parts diagram

Slide outsde

Part #T14068

The manufacturer no longer makes this part, and there's no substitute part
