Hotpoint
Top-Mount Refrigerator

Model # CTF17GCDR Official Hotpoint refrigerator

Here are the diagrams and repair parts for Official Hotpoint CTF17GCDR refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

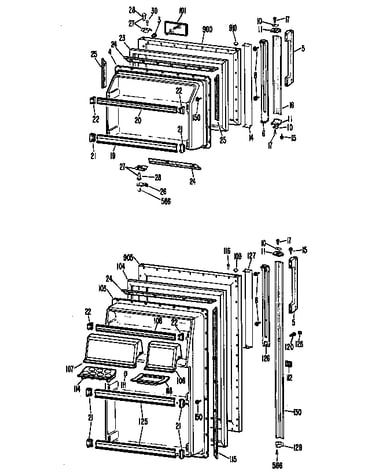

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 233 parts  |
Grommet Tube WR17X1550
#260

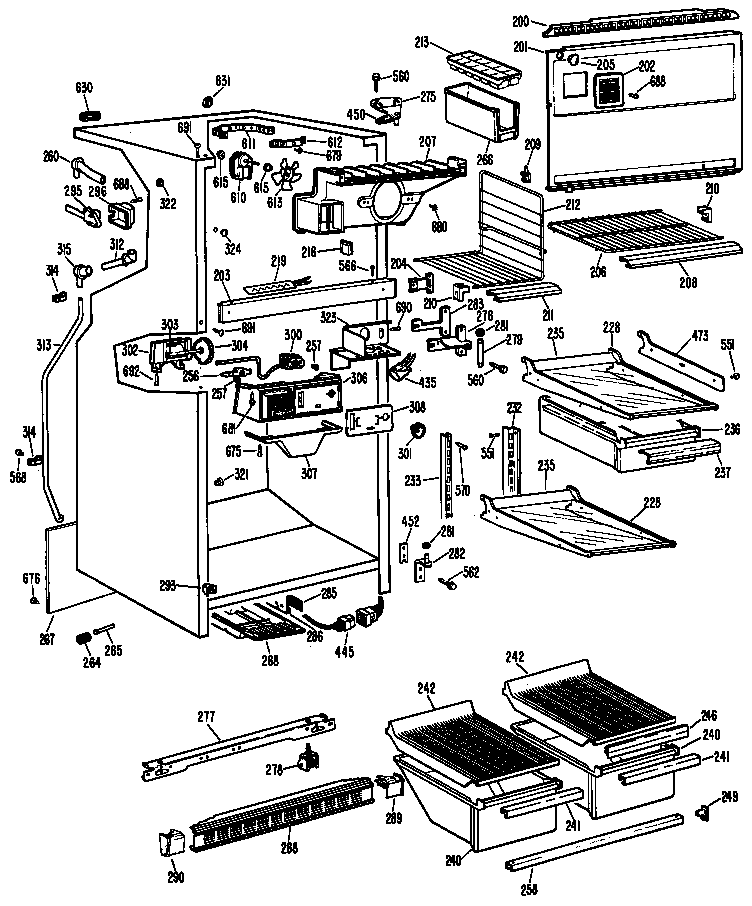

Chassis diagram

Grommet tube

Part #WR17X1550

Replaced by #WR2X8474

?
Manufacturer substitution
This part replaces WR17X1550. Substitute parts can look different from the original.
$10.24 |
16% OFF Phone Price : $12.24
In Stock
Light Switch WR23X193
#609

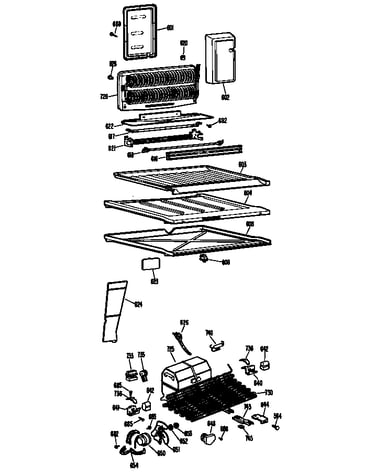

Unit diagram

Light switch

Part #WR23X193

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X193. Substitute parts can look different from the original.
$8.11
In Stock
Power Cord WR23X108
#626B

Unit diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Evaporator Fan Blade WR60X123
#613B

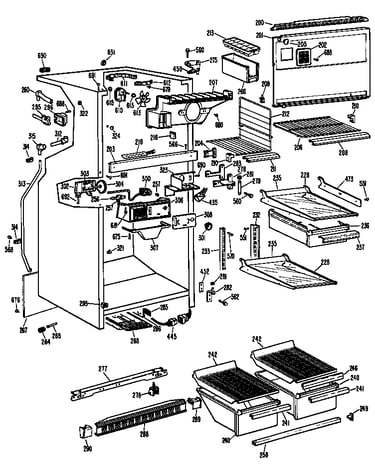

Chassis diagram

Refrigerator evaporator fan blade

Part #WR60X123

$65.59 |
8% OFF Phone Price : $71.59
In Stock
Refrigerator Evaporator Cover Seal WR14X313
Refrigerator evaporator cover seal

Part #WR14X313

$17.31 |
10% OFF Phone Price : $19.31
In Stock
Refrigerator Roller WR2X3594
#264

Chassis diagram

Refrigerator roller

Part #WR2X3594

This item is not returnable
$21.62 |
22% OFF Phone Price : $27.62
In Stock
Refrigerator Cabinet Sealer Plug WR2X4097
#630

Chassis diagram

Refrigerator cabinet sealer plug

Part #WR2X4097

$17.96 |
10% OFF Phone Price : $19.96
In Stock
Refrigerator Screw WR1X1596
#685

Unit diagram

Refrigerator screw

Part #WR1X1596

This item is not returnable
$2.49
In Stock
Screw WR1X1591
#603A

Unit diagram

Screw

Part #WR1X1591

This item is not returnable
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Refrigerator Water Tubing Clip WR1X5278
#626A

Unit diagram

Refrigerator water tubing clip

Part #WR1X5278

$7.57 |
12% OFF Phone Price : $8.57
In Stock
