Model # 303647600 Official Kenmore waffle baker

Here are the diagrams and repair parts for Official Kenmore 303647600 waffle baker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Handle 20291A17
#4

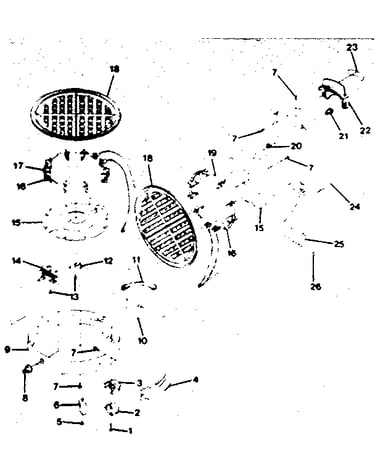

Replacement parts diagram

Handle

Part #20291A17

The manufacturer no longer makes this part, and there's no substitute part

Btm Shell 19597A1B
#9

Replacement parts diagram

Btm shell

Part #19597A1B

The manufacturer no longer makes this part, and there's no substitute part

Screw 13085A1B
#13

Replacement parts diagram

Screw

Part #13085A1B

The manufacturer no longer makes this part, and there's no substitute part

Element Hook 37-18-006
#16

Replacement parts diagram

Element hook

Part #37-18-006

The manufacturer no longer makes this part, and there's no substitute part

Bezel Spring 37-22-010
#20

Replacement parts diagram

Bezel spring

Part #37-22-010

The manufacturer no longer makes this part, and there's no substitute part

Relief 17754A27
#3

Replacement parts diagram

Relief

Part #17754A27

The manufacturer no longer makes this part, and there's no substitute part

Strain 17755A21
#2

Replacement parts diagram

Strain

Part #17755A21

The manufacturer no longer makes this part, and there's no substitute part

Element 17990A23
#17

Replacement parts diagram

Element

Part #17990A23

The manufacturer no longer makes this part, and there's no substitute part

Uppr Hinge 20100A17
#25

Replacement parts diagram

Uppr hinge

Part #20100A17

The manufacturer no longer makes this part, and there's no substitute part

Foot 20292A11
#6

Replacement parts diagram

Foot

Part #20292A11

The manufacturer no longer makes this part, and there's no substitute part
