Fimco
Gas Pressure Washer

Model # 5-85G Official Fimco power washer

Here are the diagrams and repair parts for Official Fimco 5-85G power washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Ring 5108053
#37

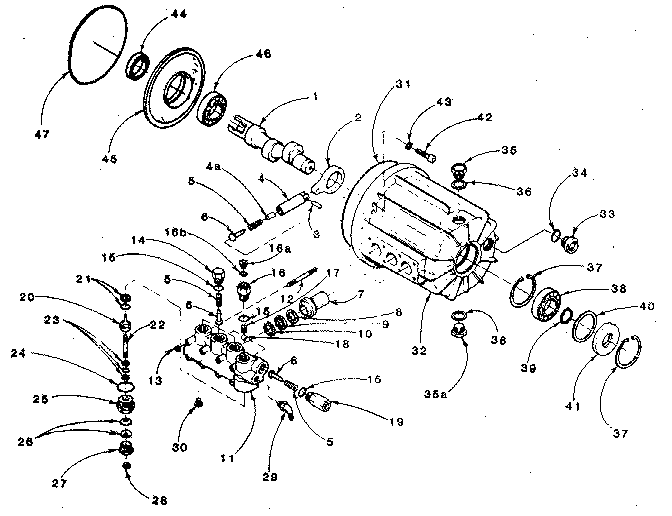

5272237 (p-610) pump diagram

Ring

Part #5108053

The manufacturer no longer makes this part, and there's no substitute part

Engine 5152053
#23

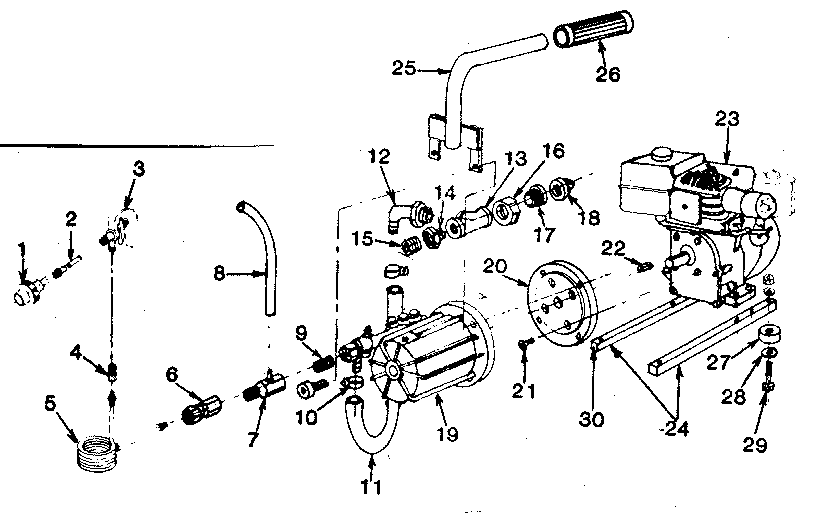

Main frame diagram

Engine

Part #5152053

The manufacturer no longer makes this part, and there's no substitute part

Pump P610 5272237
#19

Main frame diagram

Pump p610

Part #5272237

The manufacturer no longer makes this part, and there's no substitute part

Tec 5010113
#13

Main frame diagram

Tec

Part #5010113

The manufacturer no longer makes this part, and there's no substitute part

Nut 5006197
#28

5272237 (p-610) pump diagram

Nut

Part #5006197

The manufacturer no longer makes this part, and there's no substitute part

Lock Trigger 5166040
#23

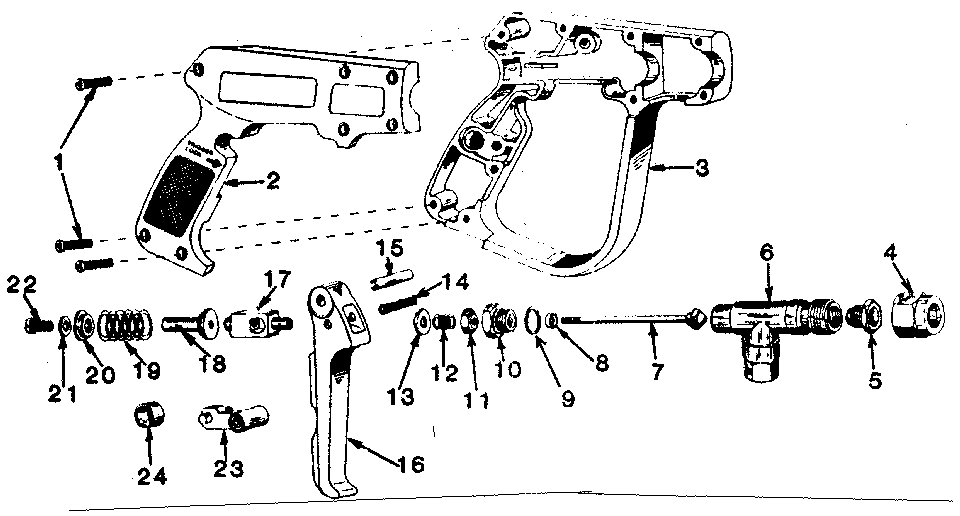

5163029 handgun diagram

Lock trigger

Part #5166040

The manufacturer no longer makes this part, and there's no substitute part

Washer 5016165
#21

5163029 handgun diagram

Washer

Part #5016165

The manufacturer no longer makes this part, and there's no substitute part

Lck Sprng Rg 5166041
#24

5163029 handgun diagram

Lck sprng rg

Part #5166041

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 5101107
#14

5163029 handgun diagram

Roll pin

Part #5101107

The manufacturer no longer makes this part, and there's no substitute part

Stud 5134030
#12

5272237 (p-610) pump diagram

Stud

Part #5134030

The manufacturer no longer makes this part, and there's no substitute part
