Model # VTN600Q Official Thermador vent system

Here are the diagrams and repair parts for Official Thermador VTN600Q vent system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

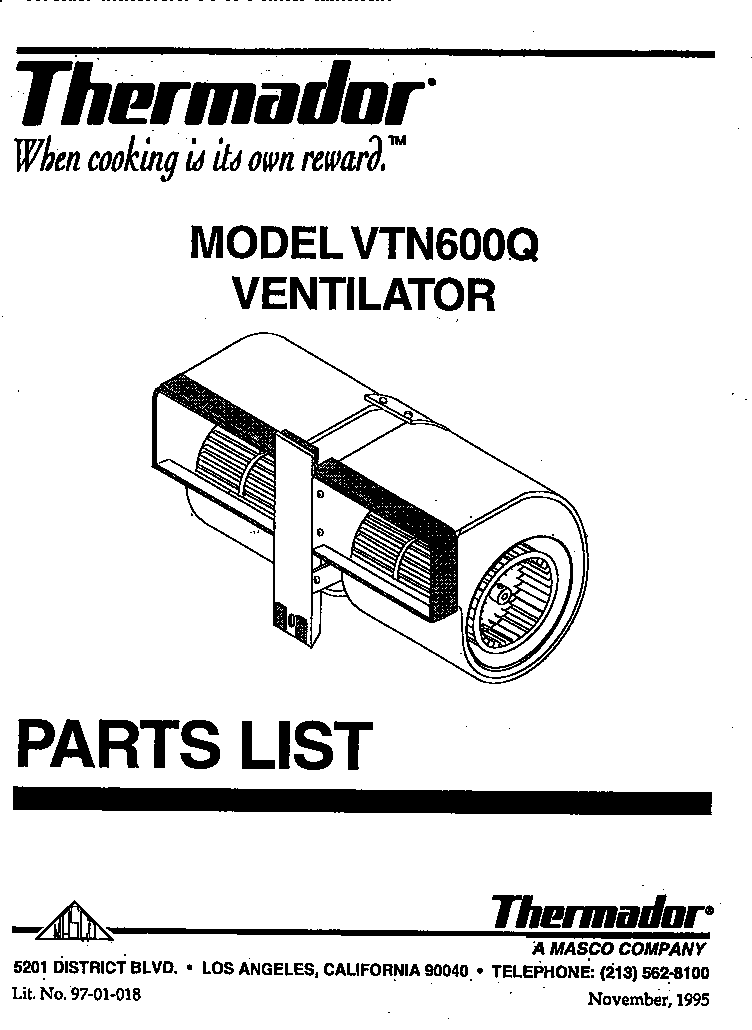

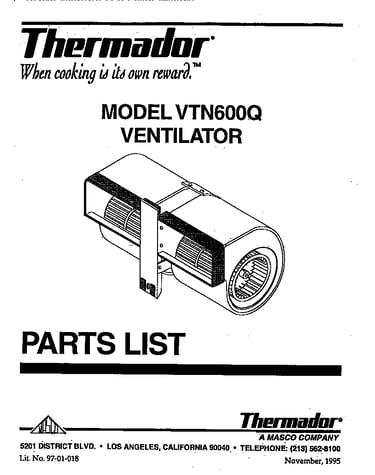

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |
Thermador Strap 19-11-907
#4

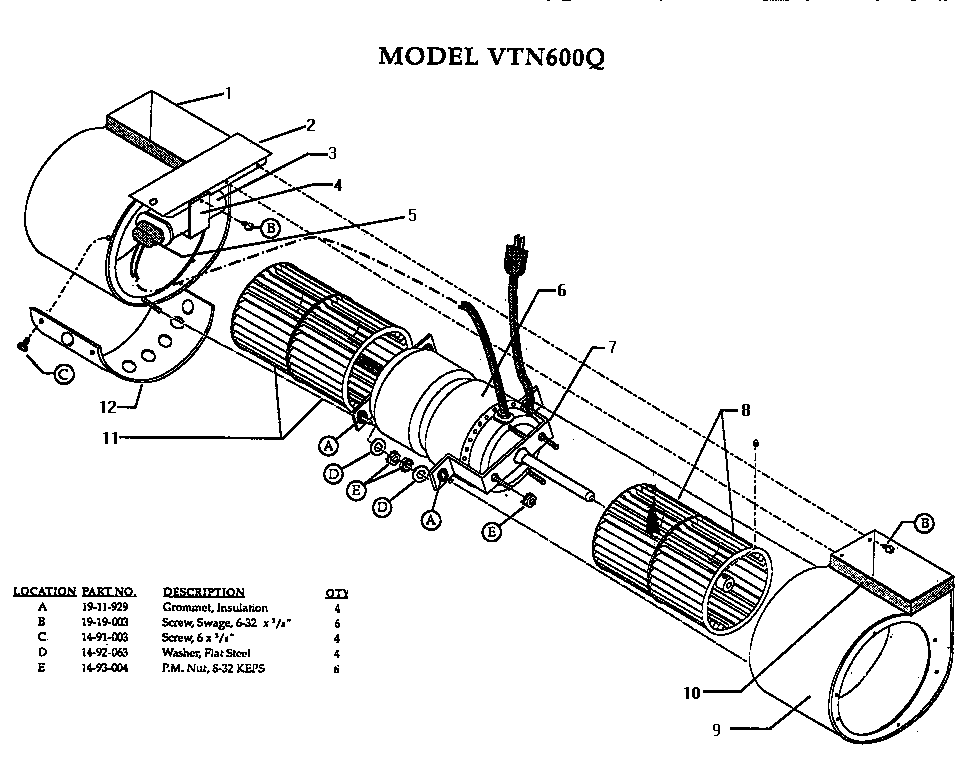

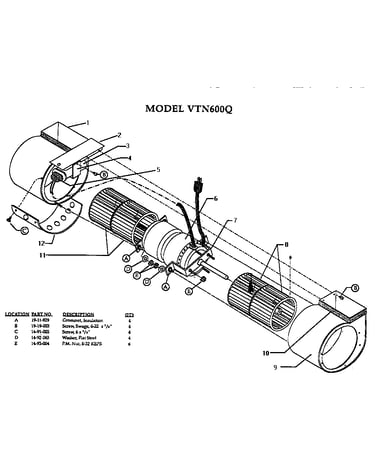

Blower diagram

Thermador strap

Part #19-11-907

This item is not returnable
$2.29
In Stock
Wheel, Blower (ccw) 19-11-850
#8

Blower diagram

Wheel, blower (ccw)

Part #19-11-850

The manufacturer no longer makes this part, and there's no substitute part

Blower Mounting Bracket 19-08-037-01
#2

Blower diagram

Blower mounting bracket

Part #19-08-037-01

The manufacturer no longer makes this part, and there's no substitute part

Blower Housing (r.h.) 19-11-900
#9

Blower diagram

Blower housing (r.h.)

Part #19-11-900

The manufacturer no longer makes this part, and there's no substitute part

Blower Wrapper 19-11-847
#12

Blower diagram

Blower wrapper

Part #19-11-847

The manufacturer no longer makes this part, and there's no substitute part

Wheel, Blower (cw) 19-11-849
#11

Blower diagram

Wheel, blower (cw)

Part #19-11-849

The manufacturer no longer makes this part, and there's no substitute part

Blower Housing (l.h.) 19-11-901
#1

Blower diagram

Blower housing (l.h.)

Part #19-11-901

The manufacturer no longer makes this part, and there's no substitute part

Insulator Kit 35-00-557
#10

Blower diagram

Insulator kit

Part #35-00-557

The manufacturer no longer makes this part, and there's no substitute part

Capacitor, 10 Mfd, 370 Vac 19-11-845
#3

Blower diagram

Capacitor, 10 mfd, 370 vac

Part #19-11-845

The manufacturer no longer makes this part, and there's no substitute part

Motor, 115v, 60 Hz, 1/4hp, 3.4 Amps 19-11-820
#6

Blower diagram

Motor, 115v, 60 hz, 1/4hp, 3.4 amps

Part #19-11-820

The manufacturer no longer makes this part, and there's no substitute part
