White-Westinghouse
Compact Refrigerator

Model # RA186GCF4 Official White-Westinghouse refrigerator - lw30587190

Here are the diagrams and repair parts for Official White-Westinghouse RA186GCF4 refrigerator - lw30587190, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 150 parts  |
Filter Drier G186717
#23

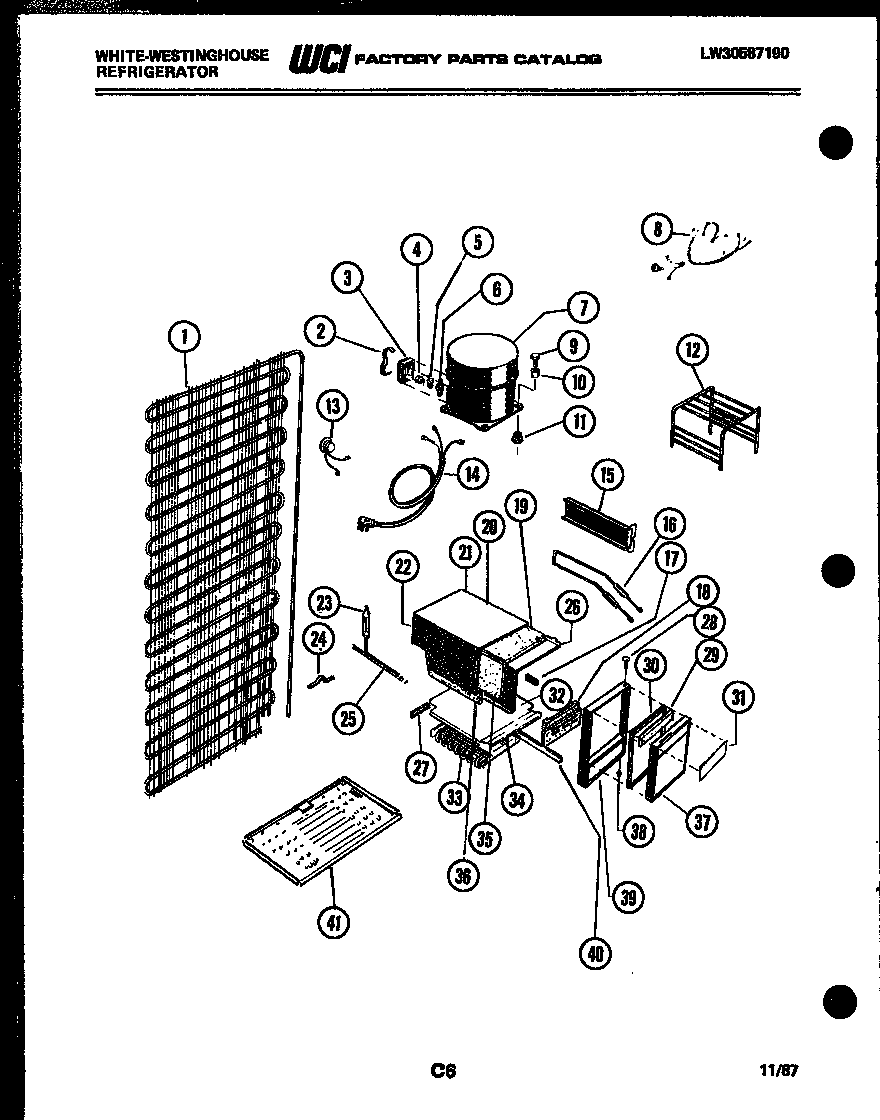

System and automatic defrost parts diagram

Filter drier

Part #G186717

Replaced by #5303305677

?
Manufacturer substitution
This part replaces G186717. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Thermostat G166153
#13

System and automatic defrost parts diagram

Thermostat

Part #G166153

Replaced by #5303917954

?
Manufacturer substitution
This part replaces G166153. Substitute parts can look different from the original.
BEST SELLER
$24.36 |
20% OFF Phone Price : $30.36
In Stock
Ice Tray G156376-01
#40

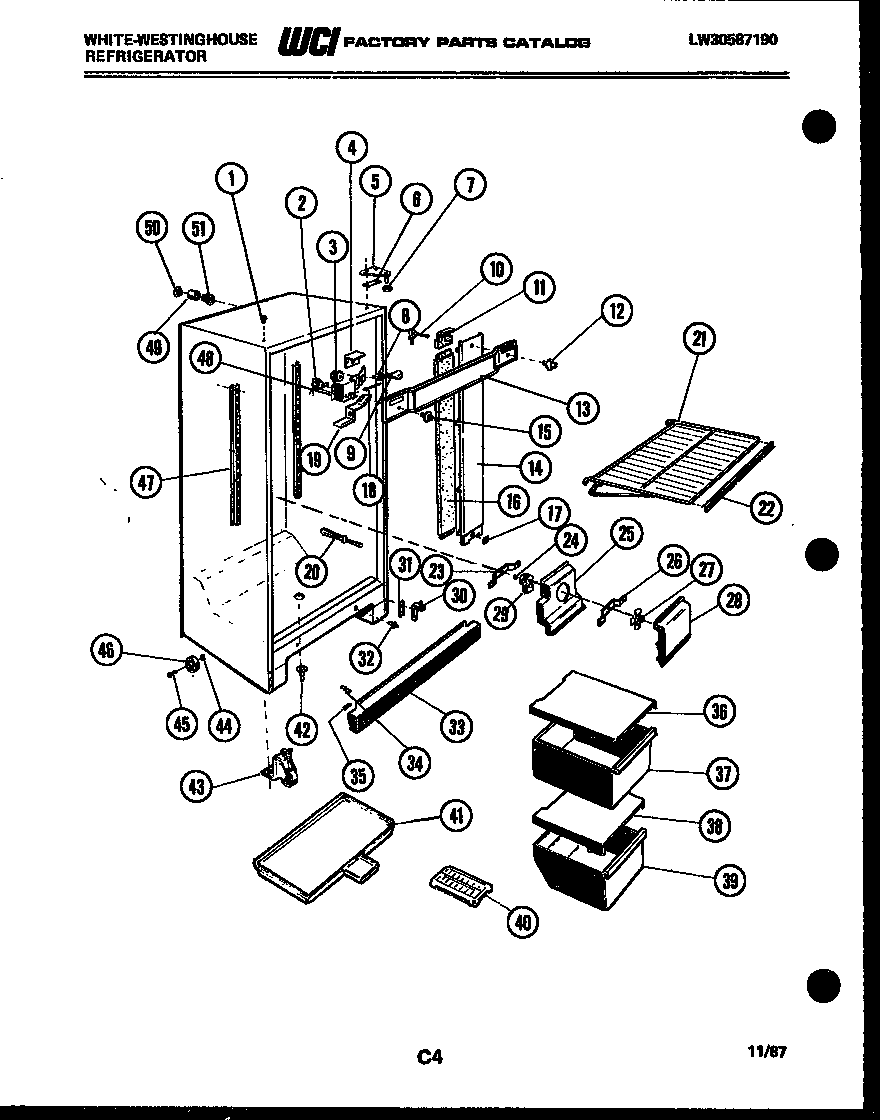

Cabinet parts diagram

Ice tray

Part #G156376-01

Replaced by #215667501

?
Manufacturer substitution
This part replaces G156376-01. Substitute parts can look different from the original.
This item is not returnable
$4.30 |
19% OFF Phone Price : $5.30
In Stock
Light Switch G149762
#32

Cabinet parts diagram

Light switch

Part #G149762

Replaced by #5303289051

?
Manufacturer substitution
This part replaces G149762. Substitute parts can look different from the original.
$25.91
In Stock
Refrigerator Button Plug G162977-01
#3

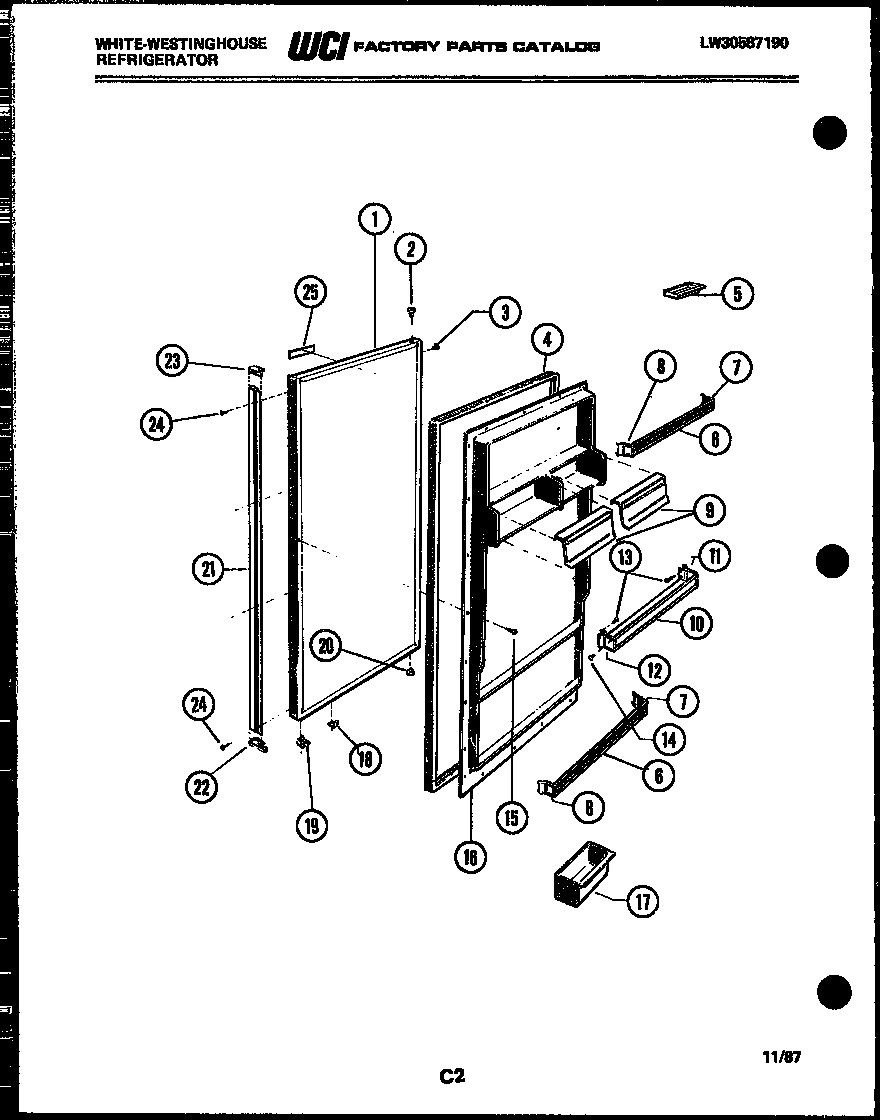

Door parts diagram

Refrigerator button plug

Part #G162977-01

Replaced by #240494001

?
Manufacturer substitution
This part replaces G162977-01. Substitute parts can look different from the original.
This item is not returnable
$19.78 |
9% OFF Phone Price : $21.78
In Stock
Refrigerator Trim G187267-10
#22

Cabinet parts diagram

Refrigerator trim

Part #G187267-10

This item is not returnable
$2.88
In Stock
Refrigerator Magnet G171003
#17

System and automatic defrost parts diagram

Refrigerator magnet

Part #G171003

Replaced by #08008766

?
Manufacturer substitution
This part replaces G171003. Substitute parts can look different from the original.
This item is not returnable
$4.49
In Stock
Outer Ferrule G174734
#51

Cabinet parts diagram

Outer ferrule

Part #G174734

Replaced by #5303001287

?
Manufacturer substitution
This part replaces G174734. Substitute parts can look different from the original.
$9.89
In Stock
Evaporator Motor G158289
#29

Cabinet parts diagram

Evaporator motor

Part #G158289

Replaced by #5300158289

?
Manufacturer substitution
This part replaces G158289. Substitute parts can look different from the original.
$88.69 |
6% OFF Phone Price : $94.69
In Stock
Refrigerator Block G170779
#27

System and automatic defrost parts diagram

Refrigerator block

Part #G170779

Replaced by #5300170779

?
Manufacturer substitution
This part replaces G170779. Substitute parts can look different from the original.
This item is not returnable
$2.29
In Stock
