Top-Mount Refrigerator

Model # HTS18XBSERWW Official Hotpoint refrigerator - s series

Here are the diagrams and repair parts for Official Hotpoint HTS18XBSERWW refrigerator - s series, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
HTS18XBSERWW Refrigerators
Refrigerator Filter Dryer WR86X10010
#740

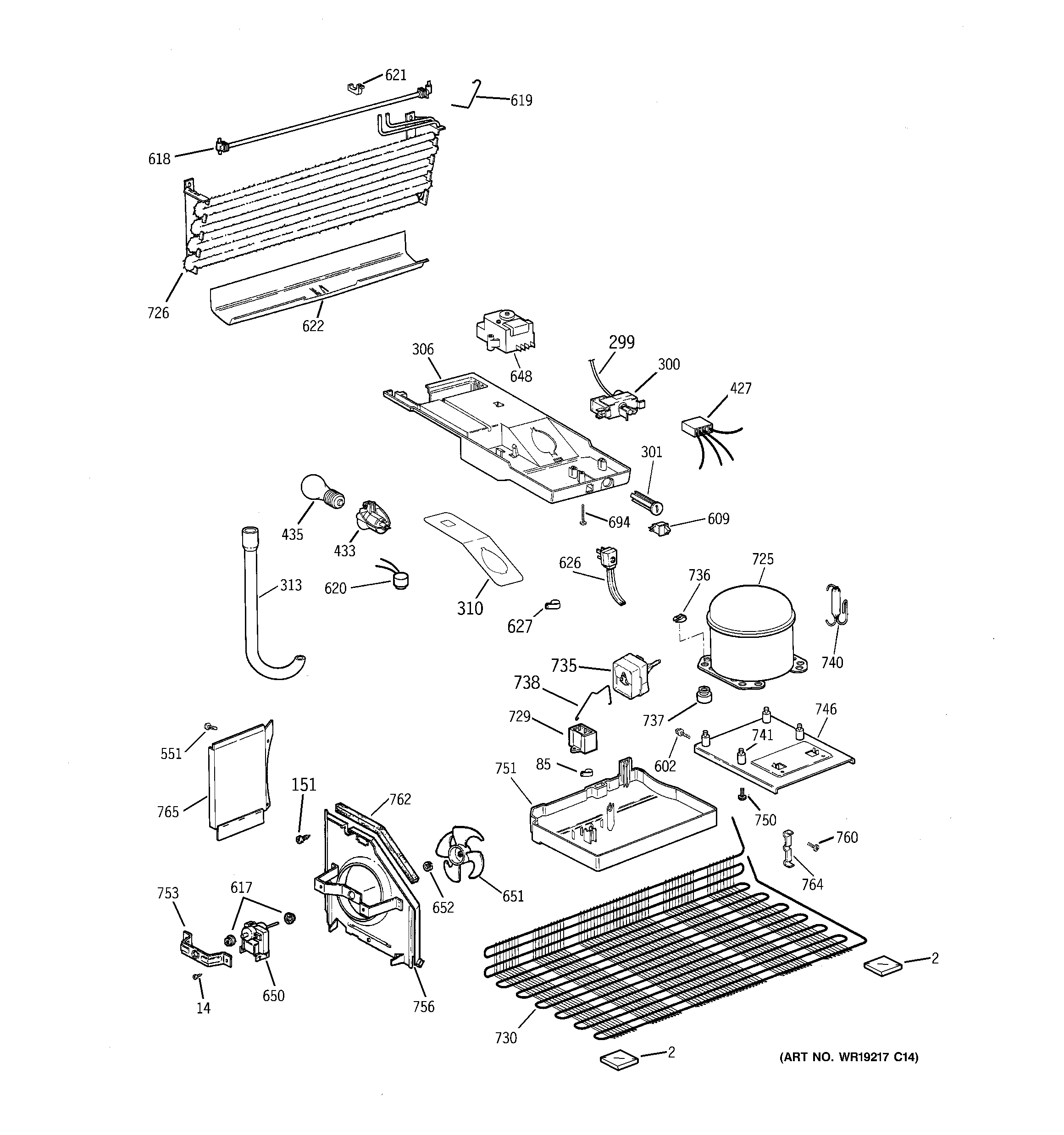

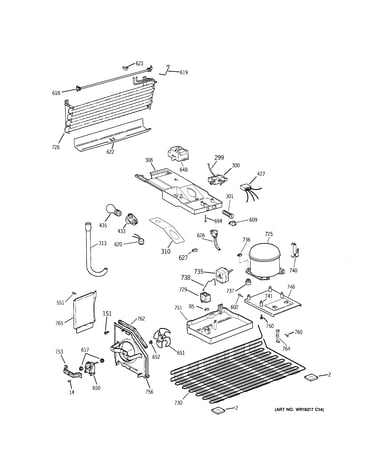

Unit parts diagram

Refrigerator filter dryer

Part #WR86X10010

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X10010. Substitute parts can look different from the original.
BEST SELLER
$74.11 |
7% OFF Phone Price : $80.11
In Stock
G.e. Appliance Light Bulb, 40-watt (replaces -2pk, 60a, 60a15rvl, Std398091, Wr02x12328, Wx12x1510) 40A15
#435

Unit parts diagram

G.e. appliance light bulb, 40-watt (replaces -2pk, 60a, 60a15rvl, std398091, wr02x12328, wx12x1510)

Part #40A15

1.72 (18)
BEST SELLER
$17.23 |
10% OFF Phone Price : $19.23
In Stock
Refrigerator Evaporator Fan Motor WR60X10141
#610

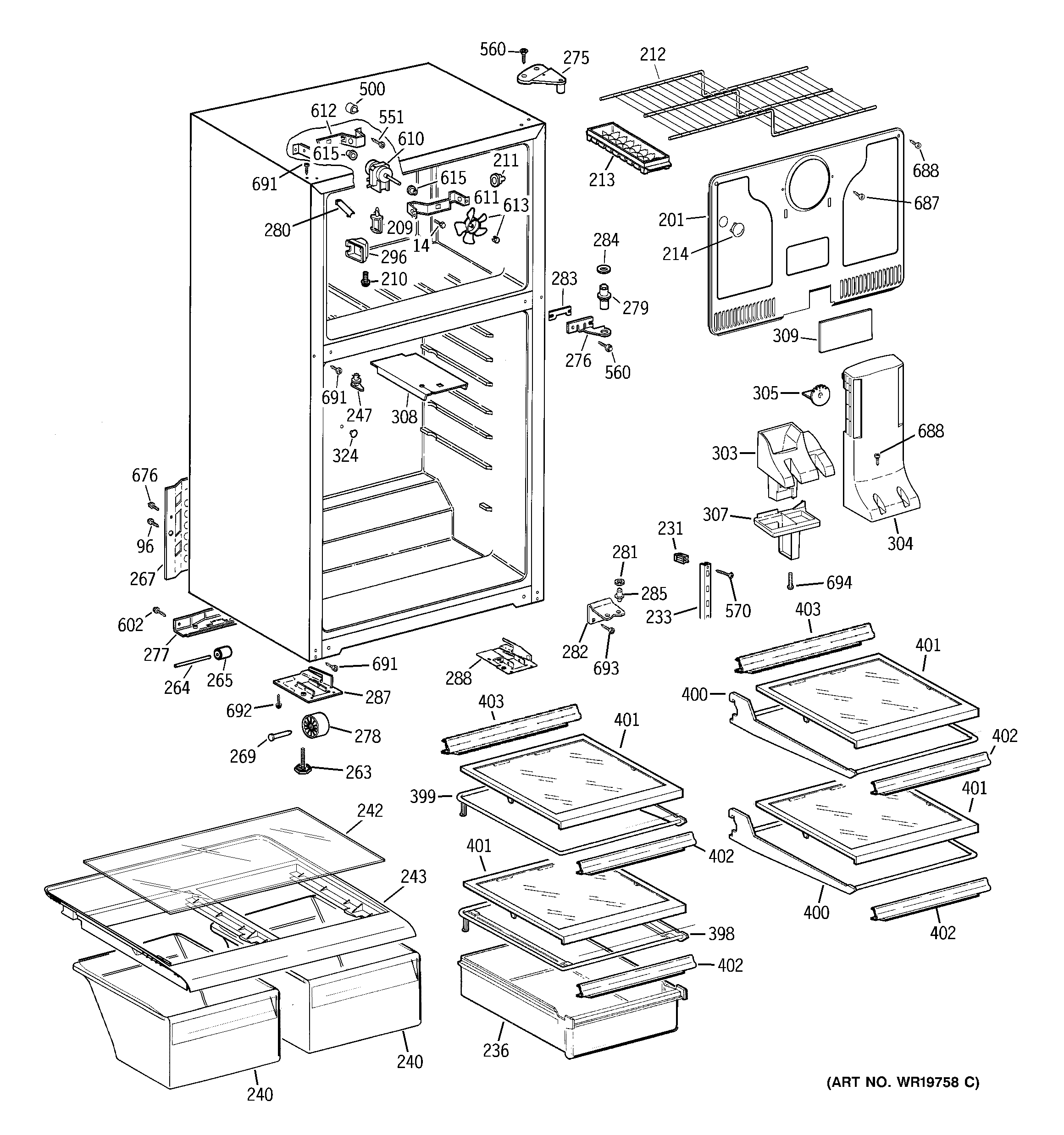

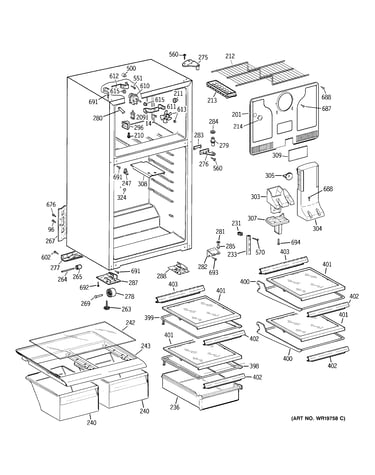

Cabinet diagram

Refrigerator evaporator fan motor

Part #WR60X10141

Replaced by #WR60X31522

?
Manufacturer substitution
This part replaces WR60X10141. Substitute parts can look different from the original.
BEST SELLER
$71.85 |
8% OFF Phone Price : $77.85
In Stock
Condenser Fan Blade WR60X10088
#651

Unit parts diagram

Condenser fan blade

Part #WR60X10088

Replaced by #WR60X10207

?
Manufacturer substitution
This part replaces WR60X10088. Substitute parts can look different from the original.
5 (2)
BEST SELLER
This item is not returnable
$10.51 |
16% OFF Phone Price : $12.51
In Stock
Refrigerator Evaporator Fan Motor Grommet (replaces Wr02x12008) WR02X10519
#615

Cabinet diagram

Refrigerator evaporator fan motor grommet (replaces wr02x12008)

Part #WR02X10519

Replaced by #WR02X12008

?
Manufacturer substitution
This part replaces WR02X10519. Substitute parts can look different from the original.
BEST SELLER
$37.63
In Stock
Refrigerator Door Hinge Nylon Washer WR01X10146
#281

Cabinet diagram

Refrigerator door hinge nylon washer

Part #WR01X10146

Replaced by #WR01X27364

?
Manufacturer substitution
This part replaces WR01X10146. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.40 |
12% OFF Phone Price : $8.40
In Stock
Refrigerator Defrost Timer WR09X10049
#648

Unit parts diagram

Refrigerator defrost timer

Part #WR09X10049

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Temperature WR09X10027
#300

Unit parts diagram

Refrigerator temperature

Part #WR09X10027

Replaced by #WR09X20002

?
Manufacturer substitution
This part replaces WR09X10027. Substitute parts can look different from the original.
3 (1)
$65.46 |
8% OFF Phone Price : $71.46
In Stock
Refrigerator Light Switch WR23X10143
#609

Unit parts diagram

Refrigerator light switch

Part #WR23X10143

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Dairy Door WR22X0503
#106

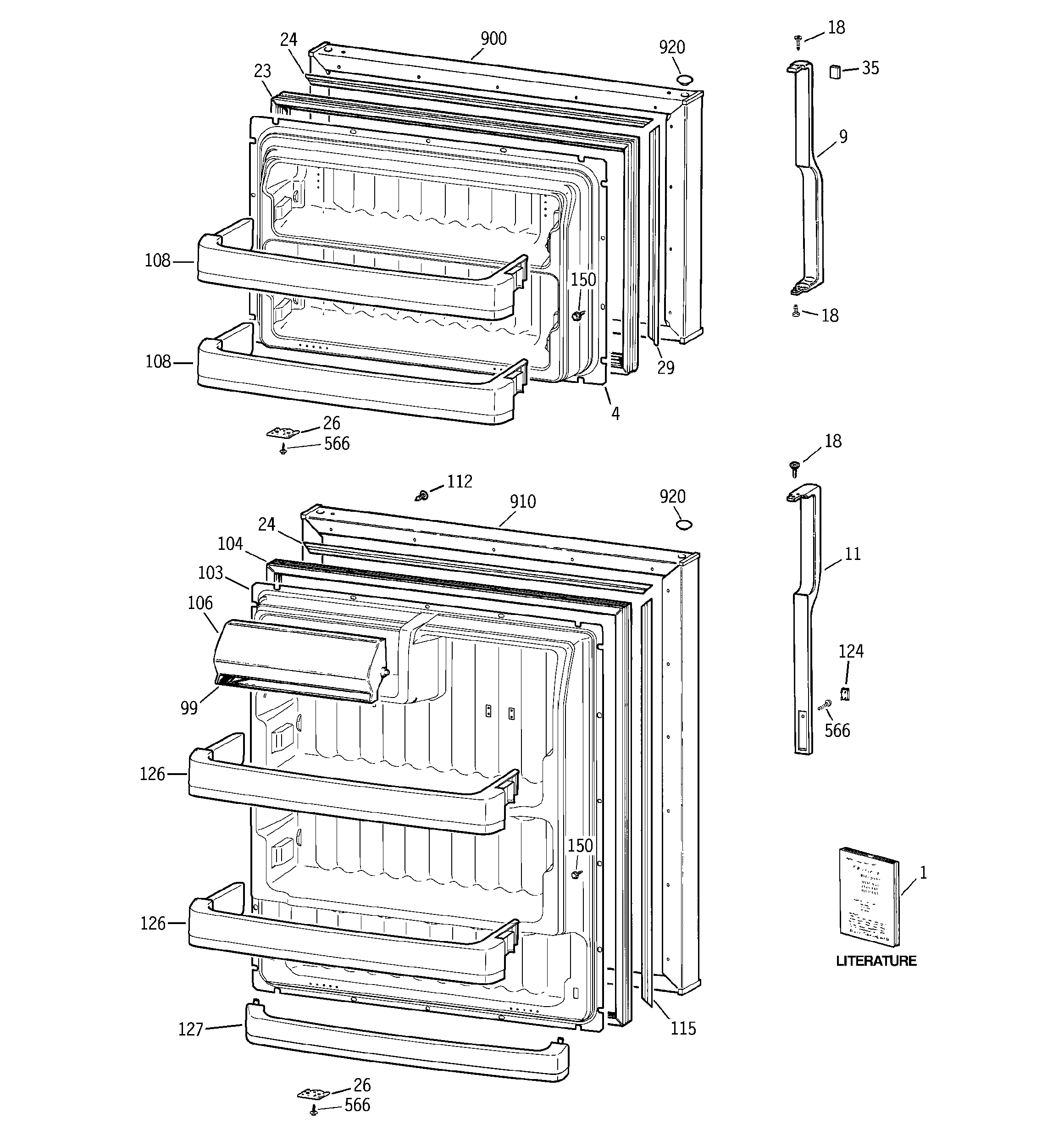

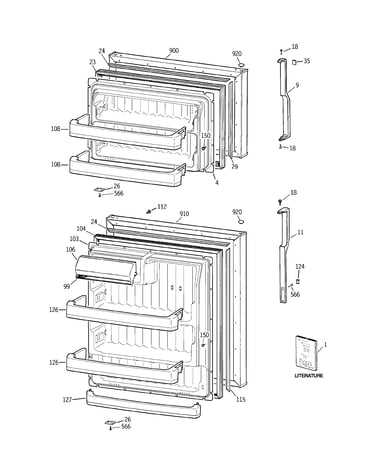

Doors diagram

Refrigerator dairy door

Part #WR22X0503

Replaced by #WR22X10068

?
Manufacturer substitution
This part replaces WR22X0503. Substitute parts can look different from the original.
5 (2)
This item is not returnable
$29.05 |
17% OFF Phone Price : $35.05
