Model # 315114851 Official Craftsman drill

Here are the diagrams and repair parts for Official Craftsman 315114851 drill, as well as links to manuals and error code tables, if available.

By Schematic

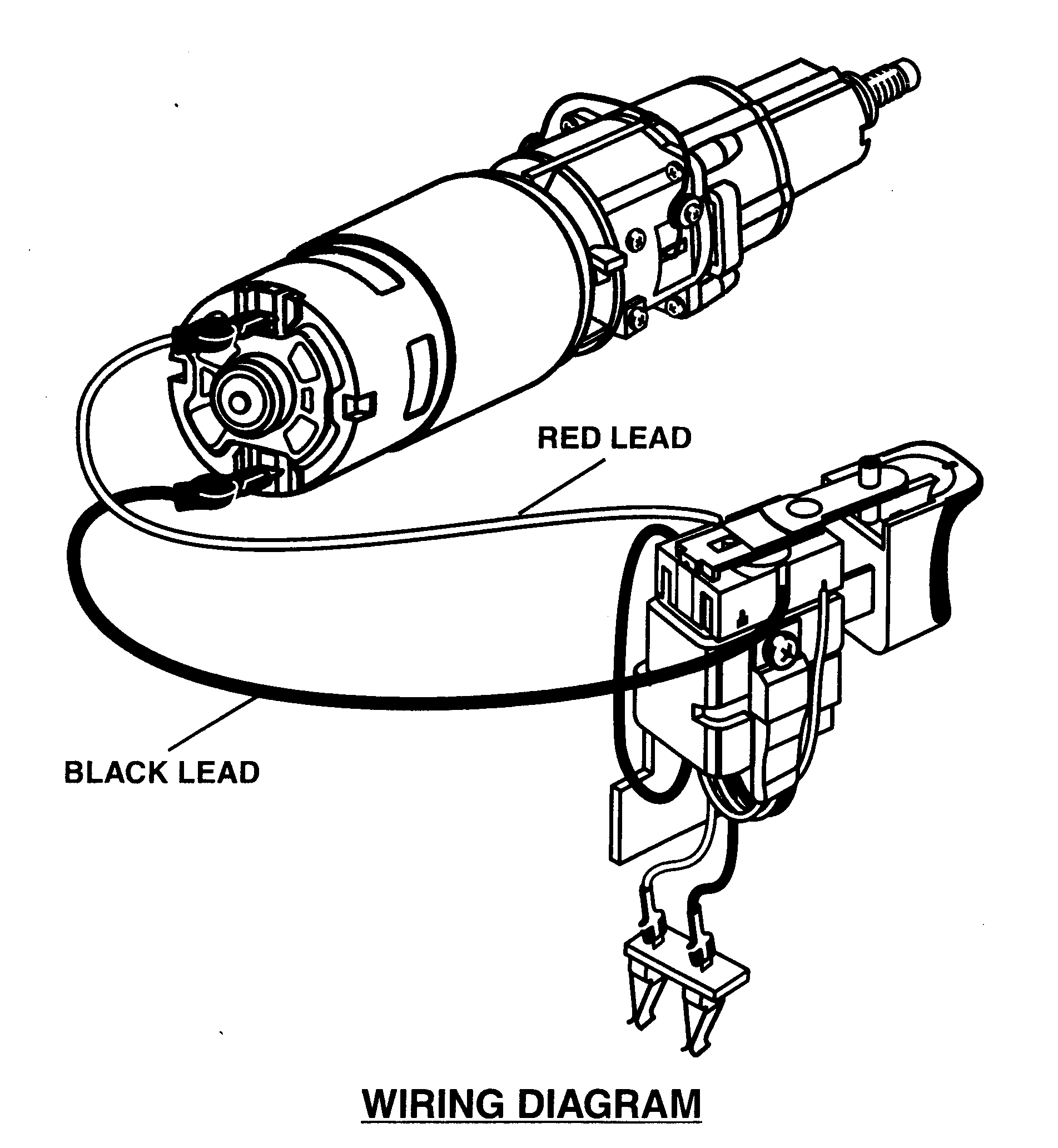

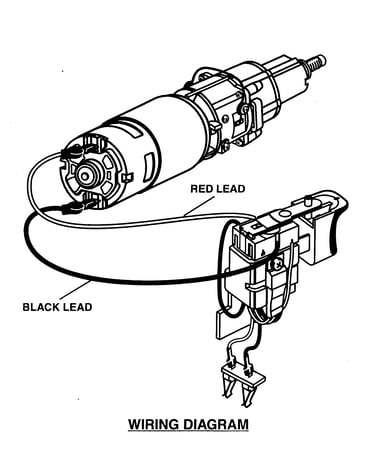

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for315114851 Power Tools

  • Logo Plate 940203007
    #NI

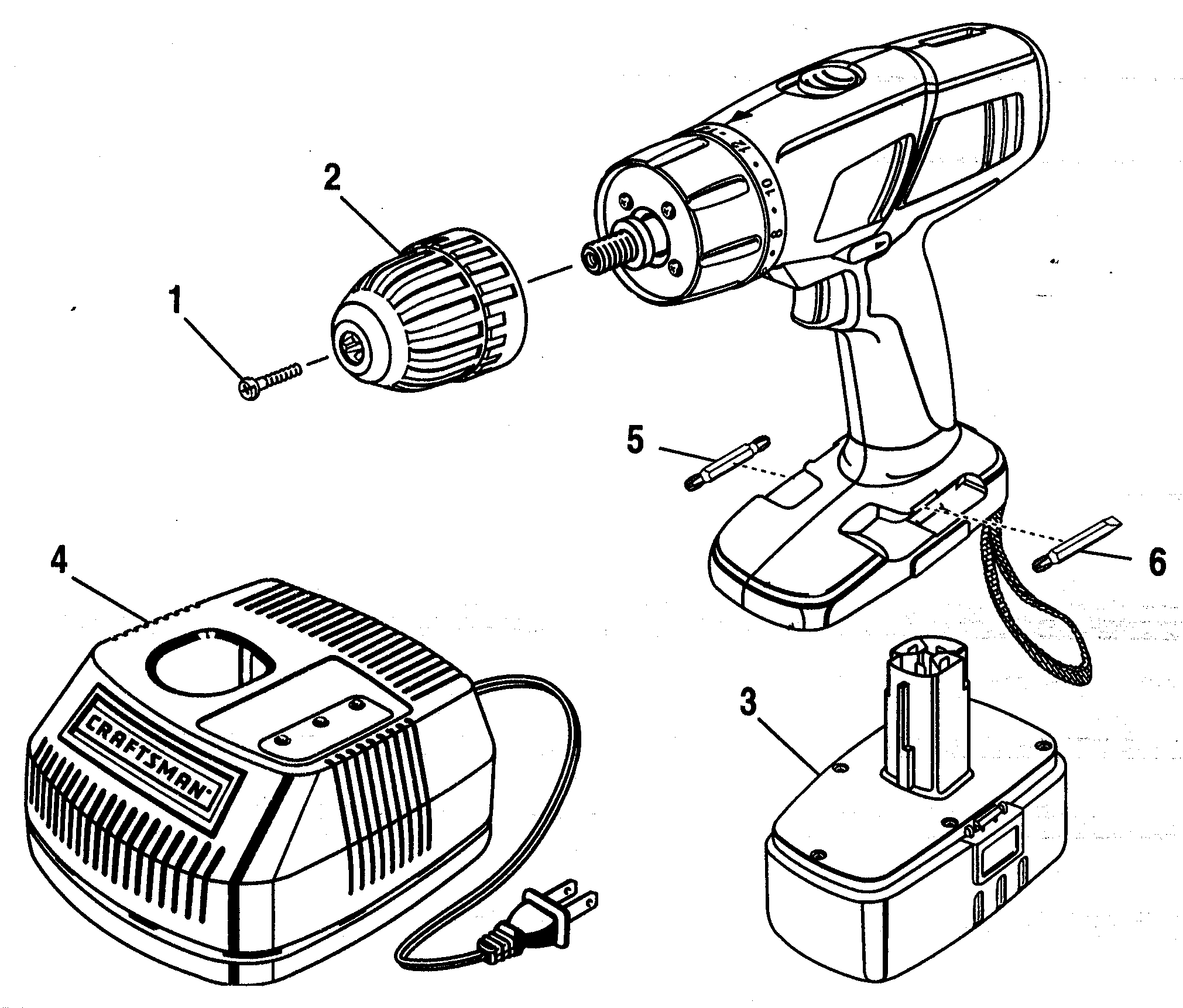

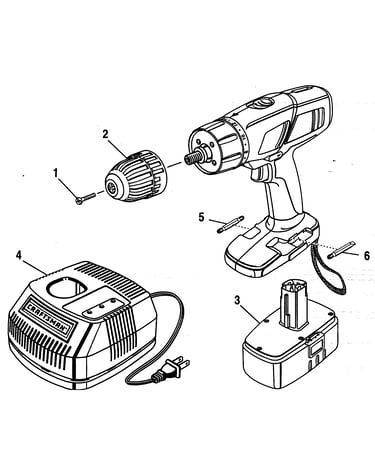

    Drill diagram

    Logo plate

    Part #940203007

    The manufacturer no longer makes this part, and there's no substitute part

  • Clutch Cap 300155042
    #8

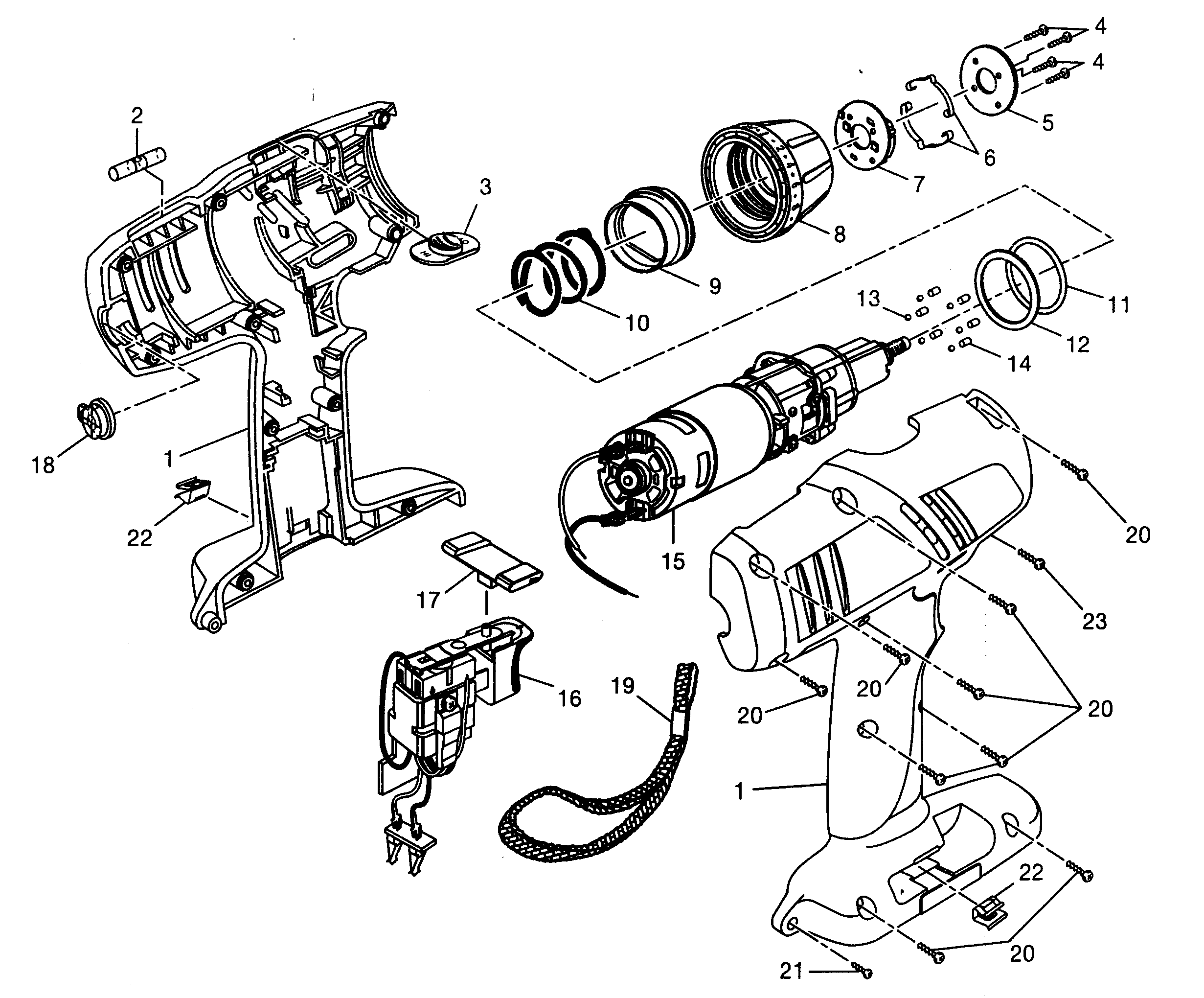

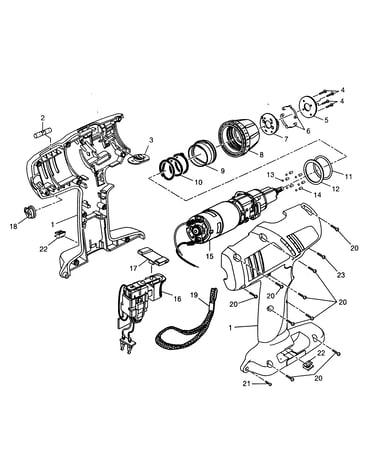

    Housing assy diagram

    Clutch cap

    Part #300155042

    The manufacturer no longer makes this part, and there's no substitute part

  • Switch Assembly 270018074
    #16

    Housing assy diagram

    Switch assembly

    Part #270018074

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw 6622306
    #23

    Housing assy diagram

    Screw

    Part #6622306

    The manufacturer no longer makes this part, and there's no substitute part

  • Forward And Reverse Button 370340008
    #17

    Housing assy diagram

    Forward and reverse button

    Part #370340008

    The manufacturer no longer makes this part, and there's no substitute part

  • Drill Level 3000909
    #2

    Housing assy diagram

    Drill level

    Part #3000909

    The manufacturer no longer makes this part, and there's no substitute part

  • Button 370352005
    #3

    Housing assy diagram

    Button

    Part #370352005

    The manufacturer no longer makes this part, and there's no substitute part

  • Washer 6901103
    #11

    Housing assy diagram

    Washer

    Part #6901103

    The manufacturer no longer makes this part, and there's no substitute part

  • Drill Screw, M3 X 20 6620311
    #4

    Housing assy diagram

    Drill screw, m3 x 20

    Part #6620311

    The manufacturer no longer makes this part, and there's no substitute part

  • Level Rear 300480006
    #18

    Housing assy diagram

    Level rear

    Part #300480006

    The manufacturer no longer makes this part, and there's no substitute part
