GE
Upright Freezer

Model # FUF17SVCRWW Official GE freezer

Here are the diagrams and repair parts for Official GE FUF17SVCRWW freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Freezer Dryer Filter WR86X10044
#740

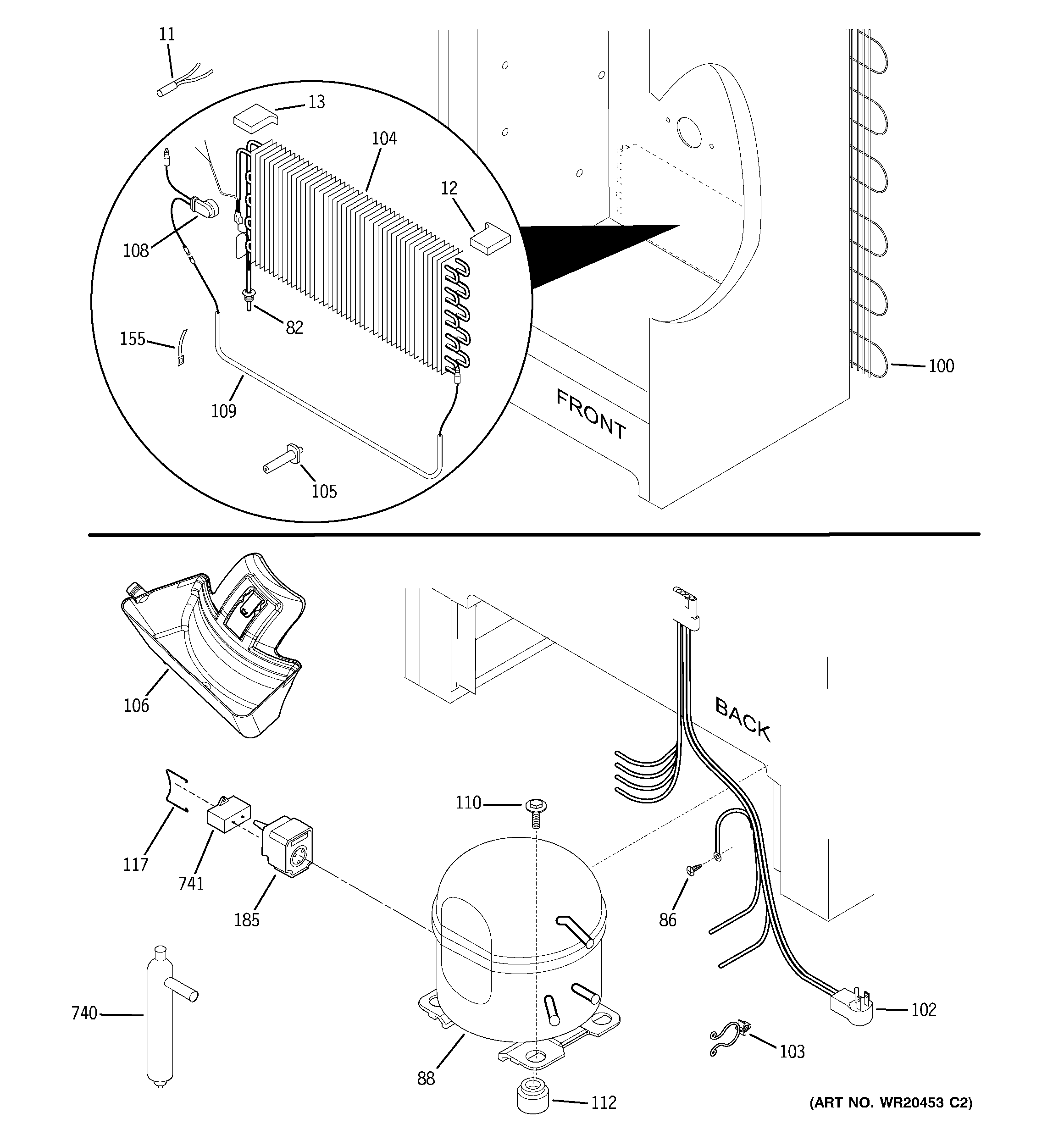

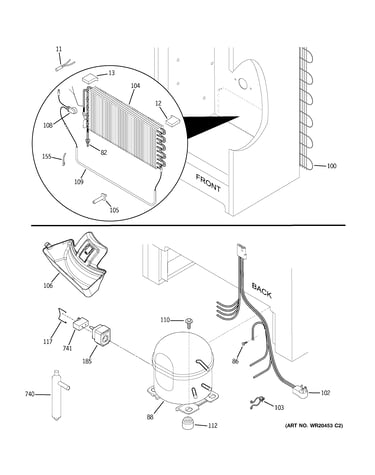

Unit parts diagram

Freezer dryer filter

Part #WR86X10044

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X10044. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Control Ez S WR55X10904
#152

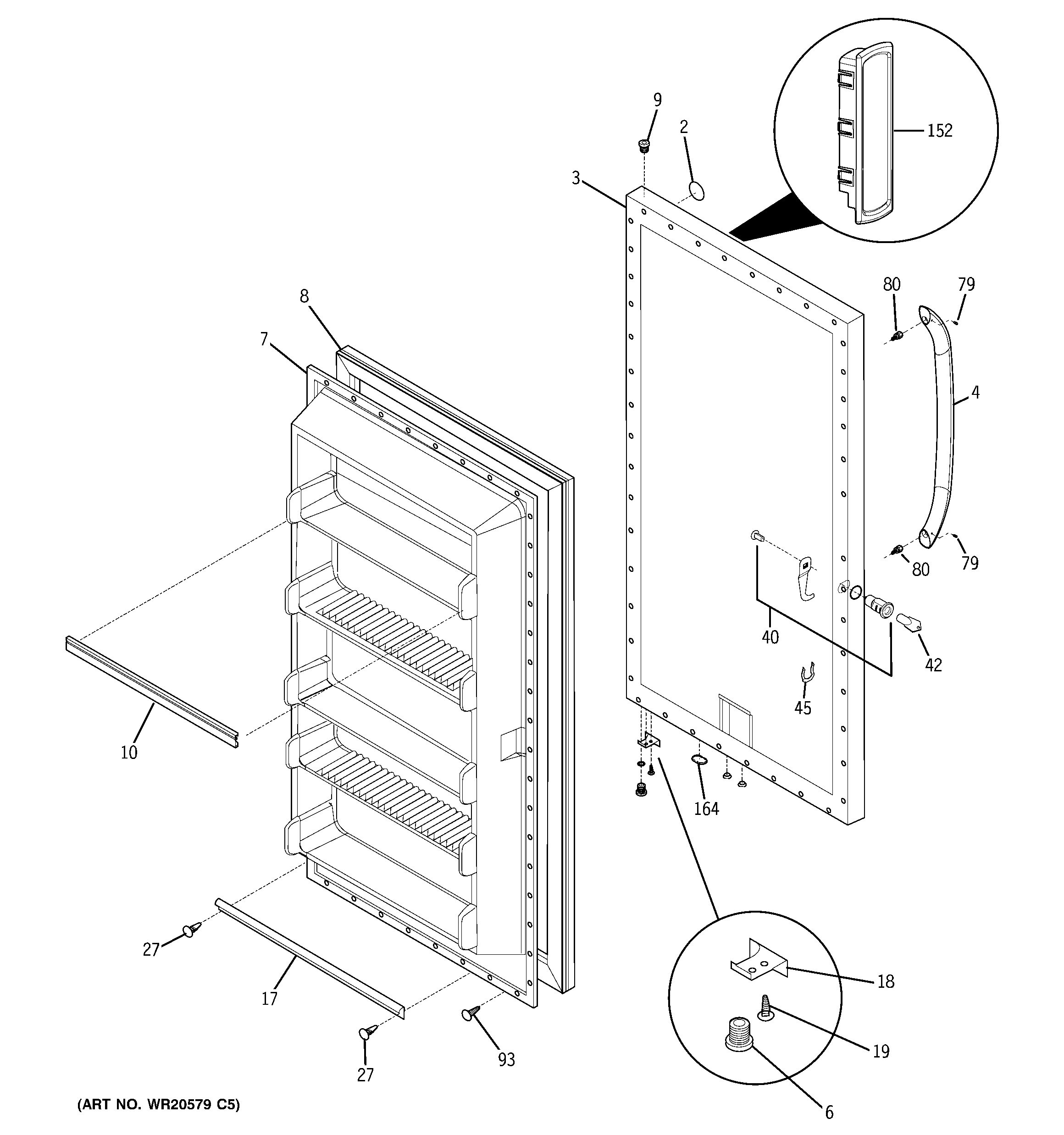

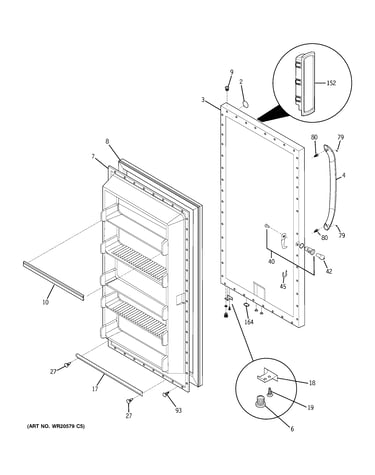

Freezer door diagram

Control ez s

Part #WR55X10904

Replaced by #WR55X11084

?
Manufacturer substitution
This part replaces WR55X10904. Substitute parts can look different from the original.
$173.60 |
6% OFF Phone Price : $185.60
In Stock
Freezer Door Gasket WR24X10009
#8

Freezer door diagram

Freezer door gasket

Part #WR24X10009

Replaced by #WR14X28402

?
Manufacturer substitution
This part replaces WR24X10009. Substitute parts can look different from the original.
$217.77
In Stock
Adjustment Foot WR02X9485
#58

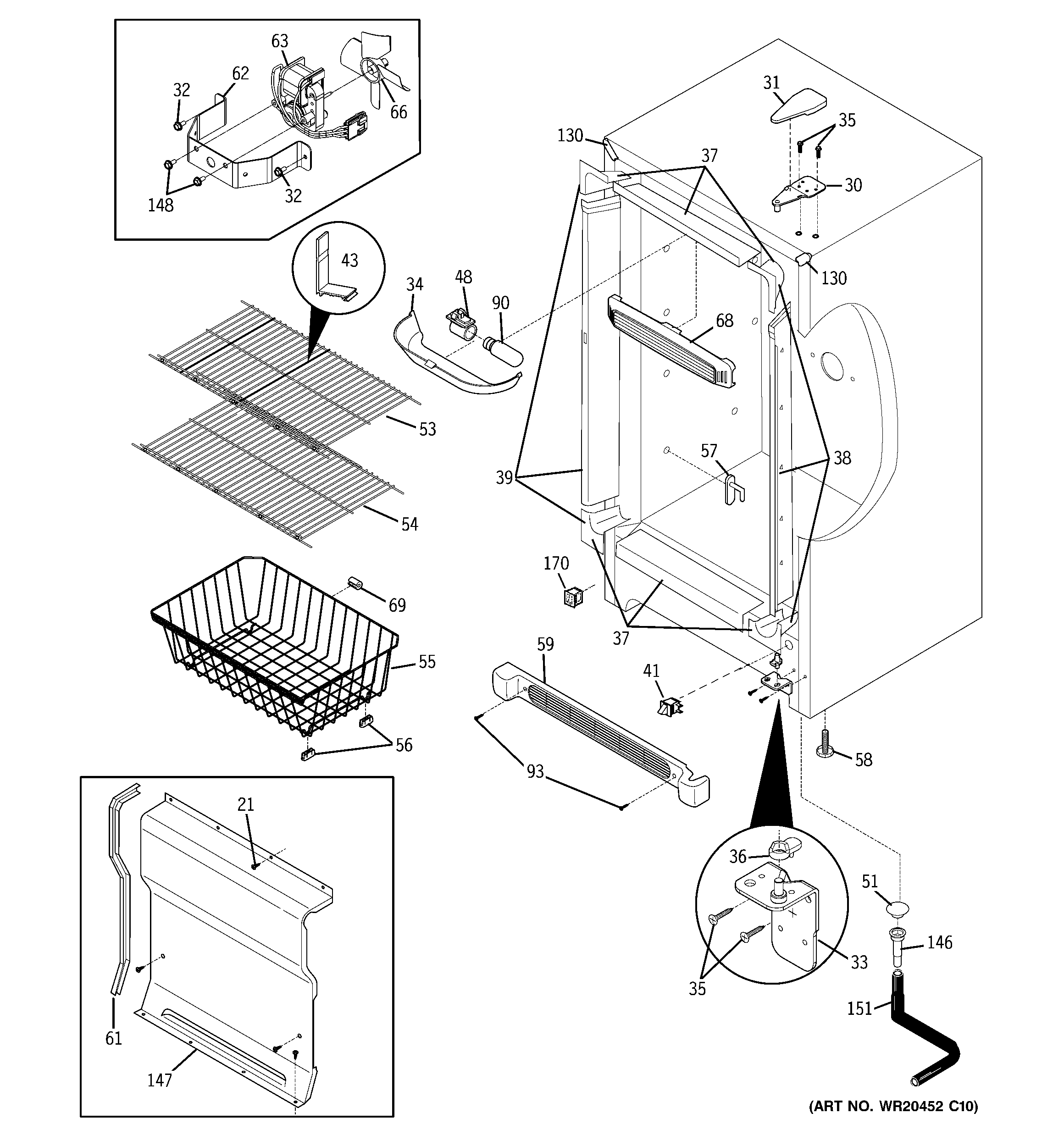

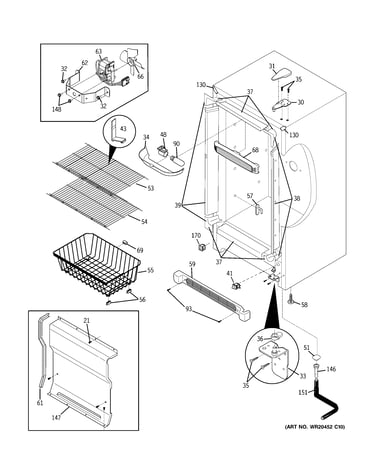

Cabinet diagram
