Kenmore
Laundry Center

Model # 41771712511 Official Kenmore stacked laundry center

Here are the diagrams and repair parts for Official Kenmore 41771712511 stacked laundry center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

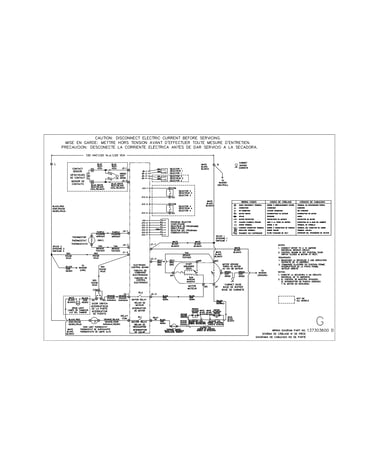

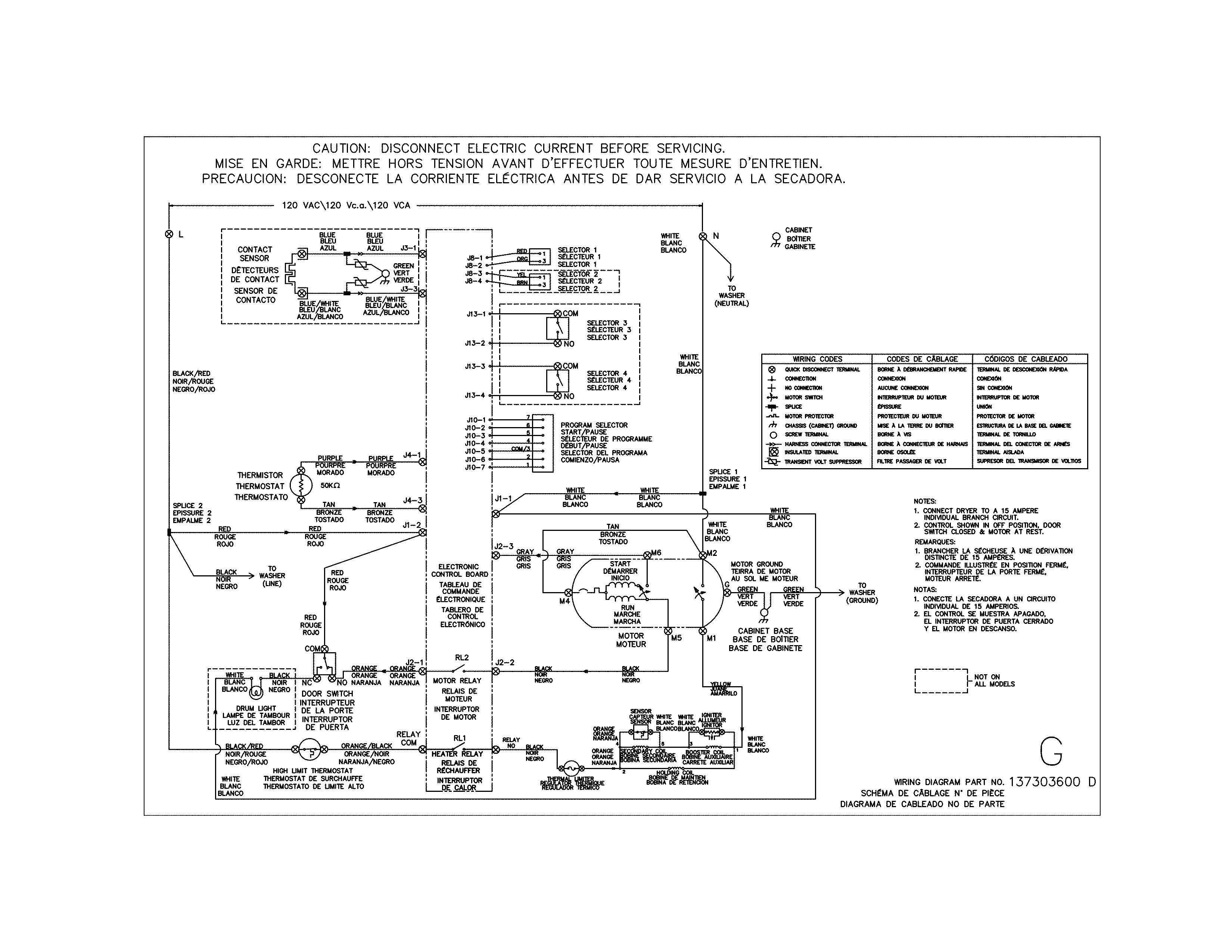

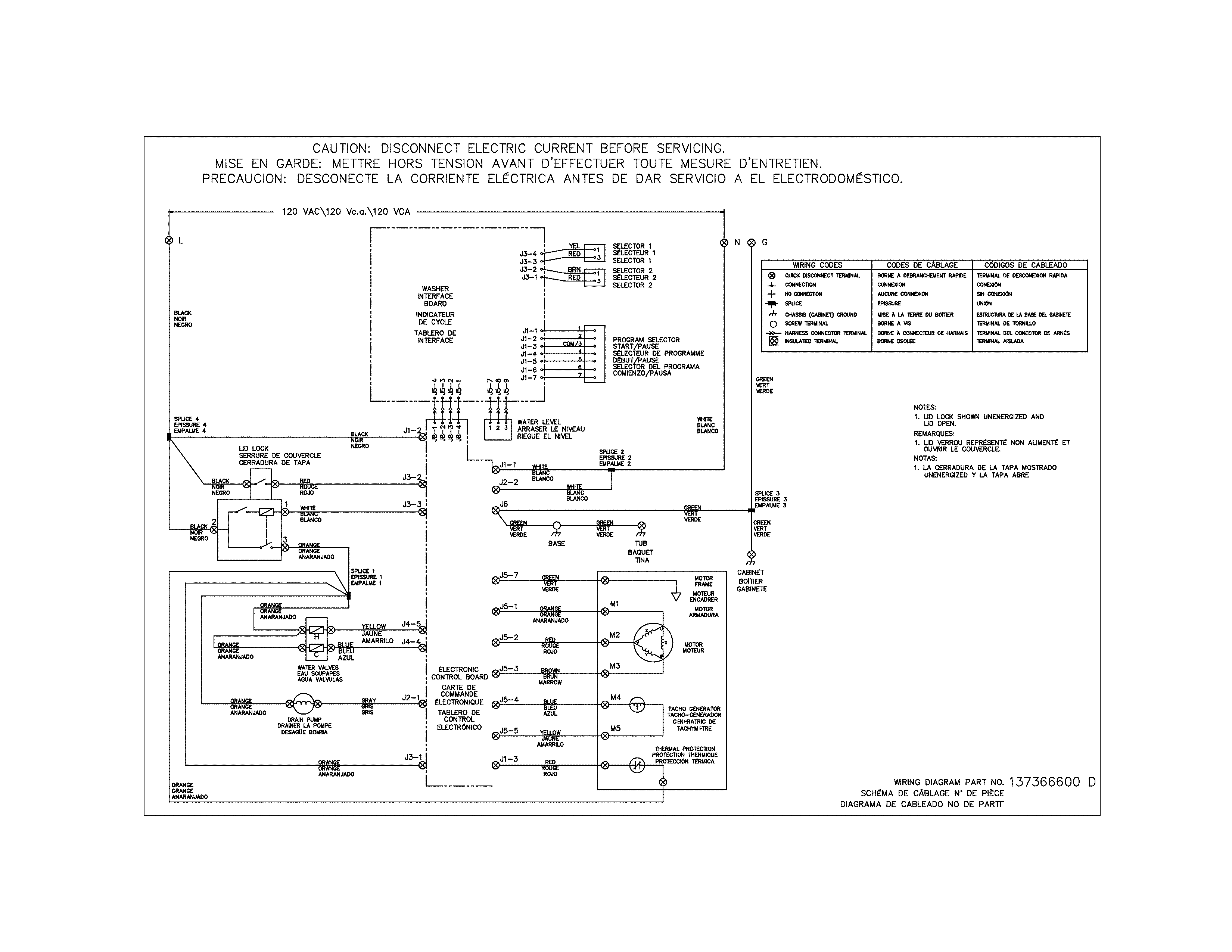

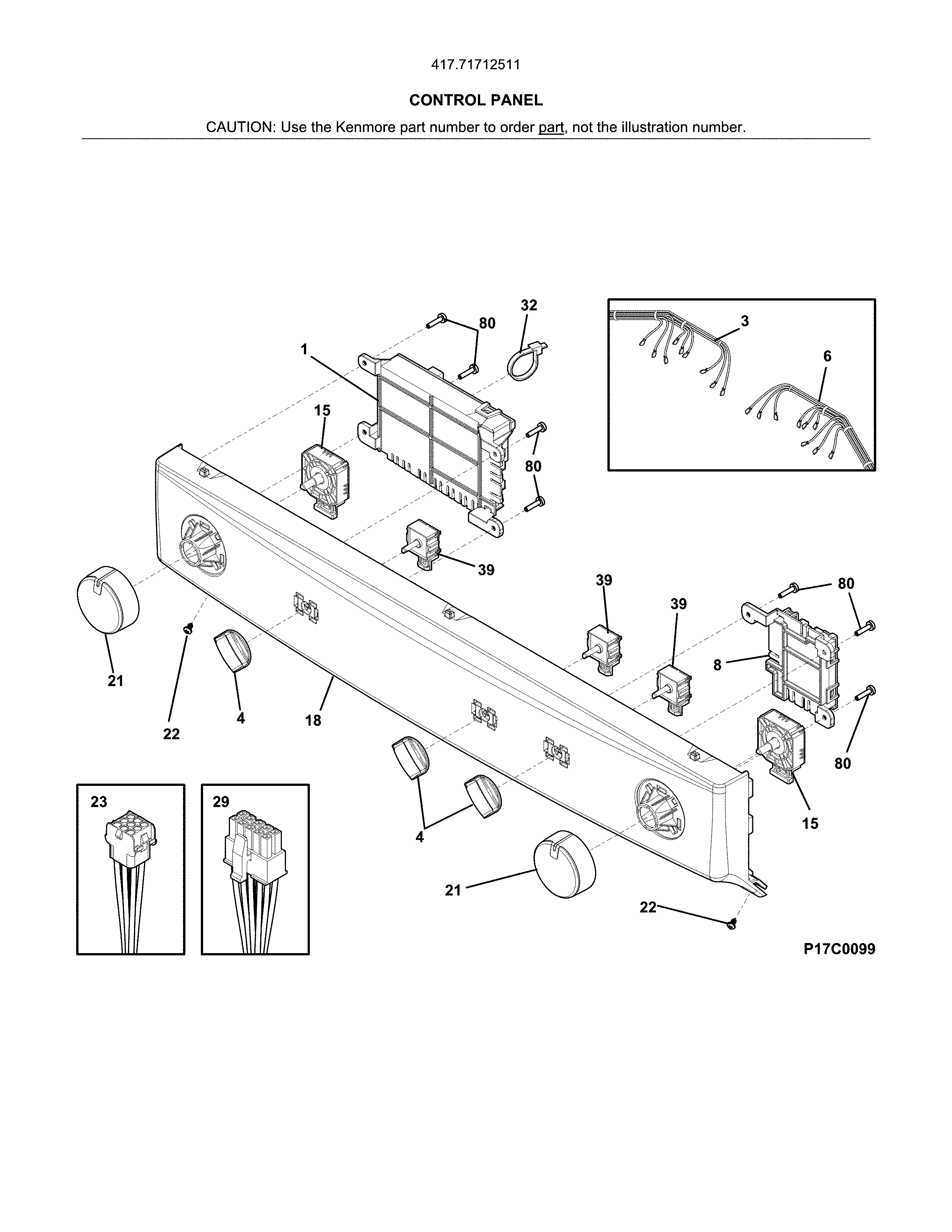

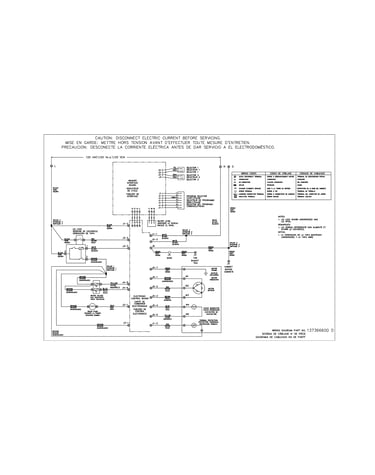

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 169 parts  |
Dryer Drum Bearing (replaces 5303281008, Q000143951, Wq143951) 131825900
#12

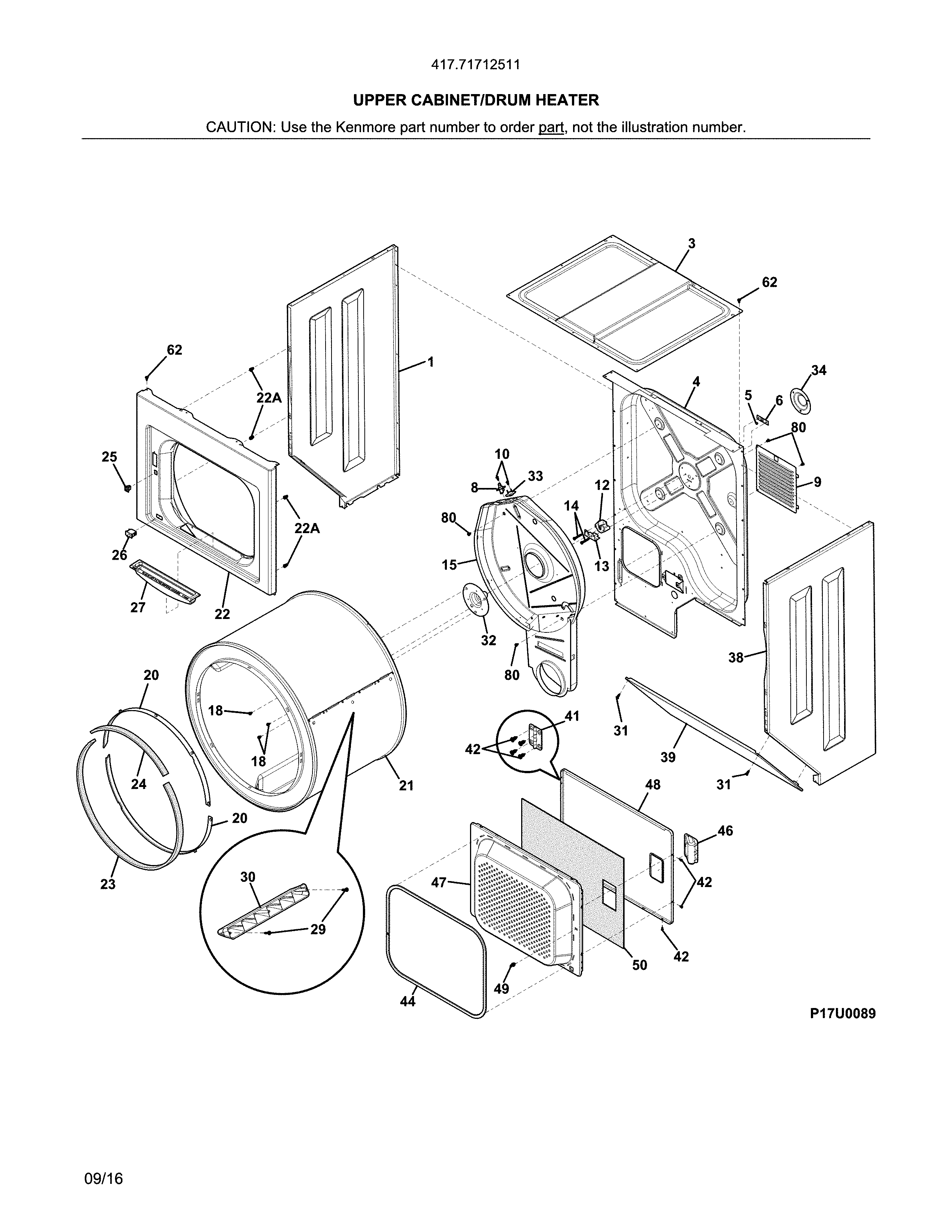

Upper cabinet/drum heater diagram

Dryer drum bearing (replaces 5303281008, q000143951, wq143951)

Part #131825900

BEST SELLER
$7.31 |
12% OFF Phone Price : $8.31
In Stock
Dryer Idler Assembly 131863100
#23

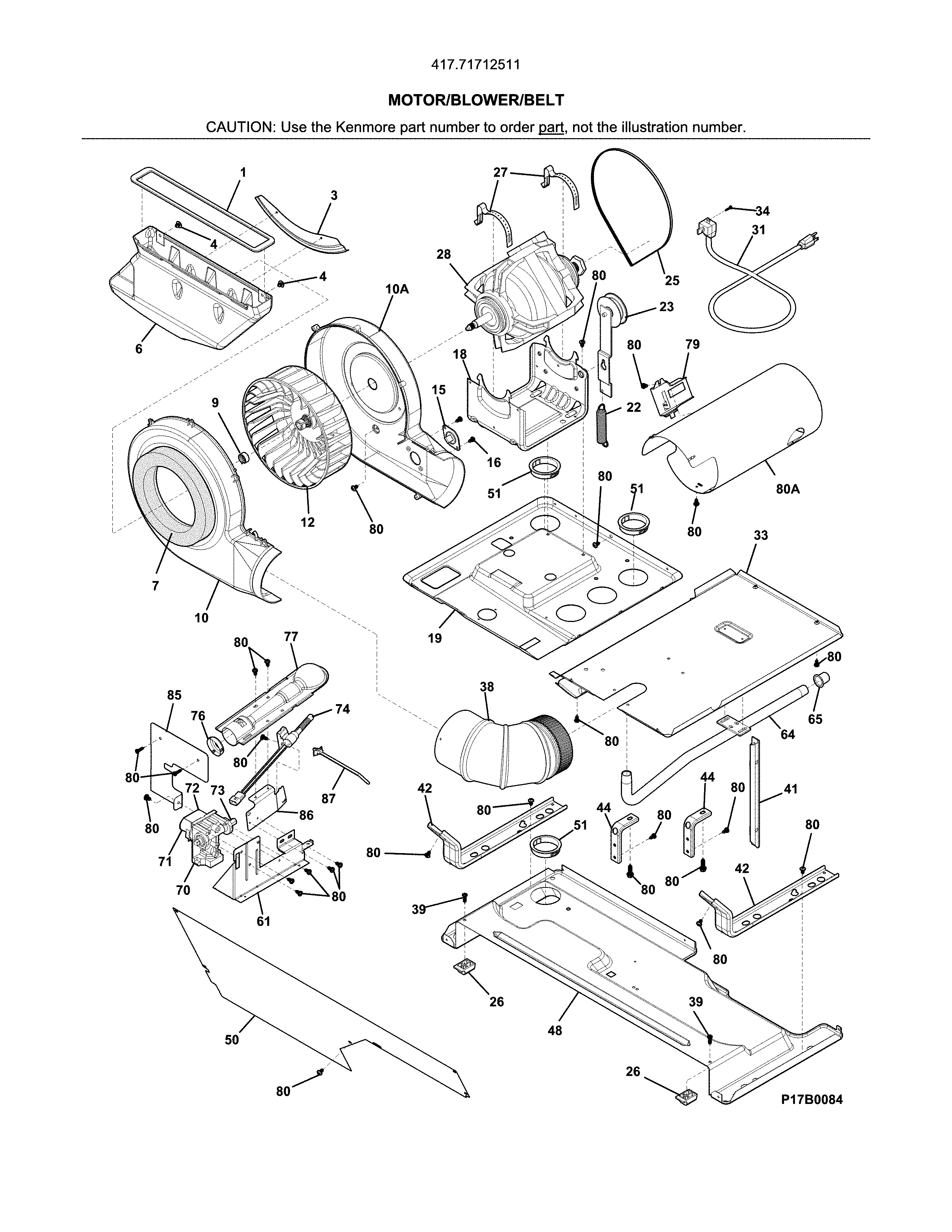

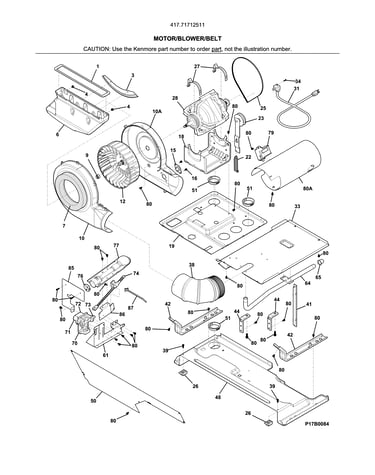

Motor/blower/belt diagram

Dryer idler assembly

Part #131863100

Replaced by #5304507499

?
Manufacturer substitution
This part replaces 131863100. Substitute parts can look different from the original.
BEST SELLER
$30.58 |
16% OFF Phone Price : $36.58
In Stock
Dryer Inlet Thermal Limiter (replaces 137060800, 7137032600) 137032600
#8

Upper cabinet/drum heater diagram

Dryer inlet thermal limiter (replaces 137060800, 7137032600)

Part #137032600

BEST SELLER
$53.76 |
10% OFF Phone Price : $59.76
In Stock
Dryer Drum Belt 137292700
#25

Motor/blower/belt diagram

Dryer drum belt

Part #137292700

BEST SELLER
$20.50 |
23% OFF Phone Price : $26.50
In Stock
Dryer Lint Screen 131359602
#27

Upper cabinet/drum heater diagram

Dryer lint screen

Part #131359602

Replaced by #5304516871

?
Manufacturer substitution
This part replaces 131359602. Substitute parts can look different from the original.
BEST SELLER
$39.98 |
13% OFF Phone Price : $45.98
In Stock
Laundry Center Washer Drain Pump 5304500535
#36

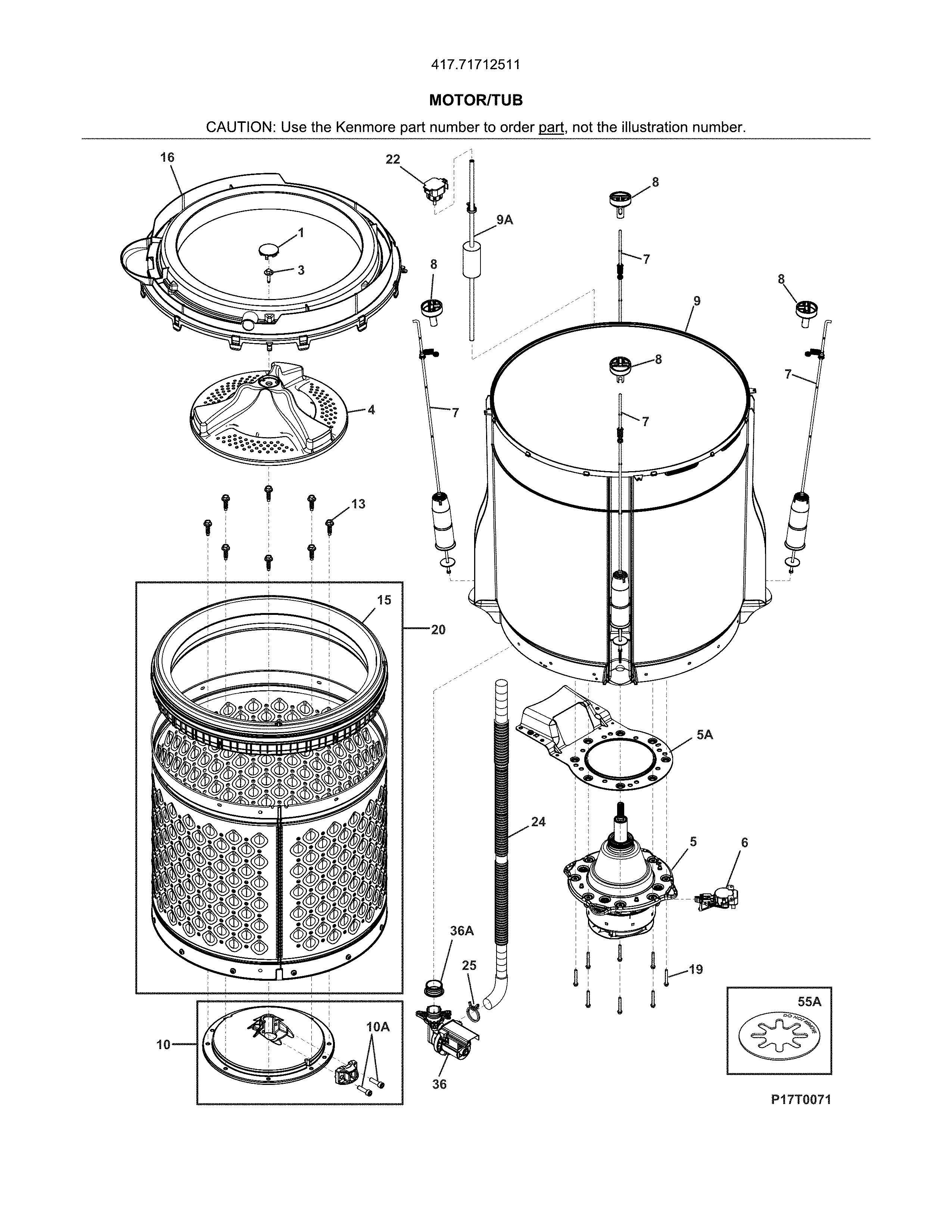

Motor/tub diagram

Laundry center washer drain pump

Part #5304500535

Replaced by #5304524452

?
Manufacturer substitution
This part replaces 5304500535. Substitute parts can look different from the original.
BEST SELLER
$137.70 |
8% OFF Phone Price : $149.70
In Stock
Electrolux Dryer Blower Wheel (replaces 5303212513) 131476300
#12

Motor/blower/belt diagram

Electrolux dryer blower wheel (replaces 5303212513)

Part #131476300

BEST SELLER
$46.20 |
11% OFF Phone Price : $52.20
In Stock
Crosley Laundry Center Washer Lid Lock 137353302
#50

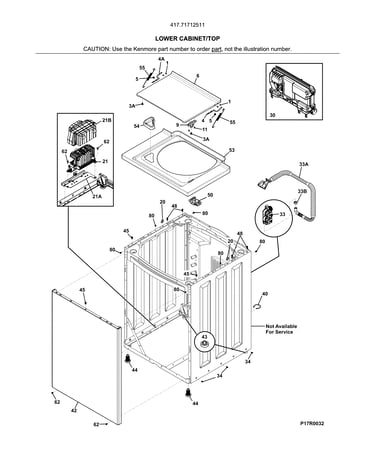

Lower cabinet/top diagram

Crosley laundry center washer lid lock

Part #137353302

BEST SELLER
$70.17 |
8% OFF Phone Price : $76.17
In Stock
Laundry Center Washer Electronic Control Board 5304500489
#30

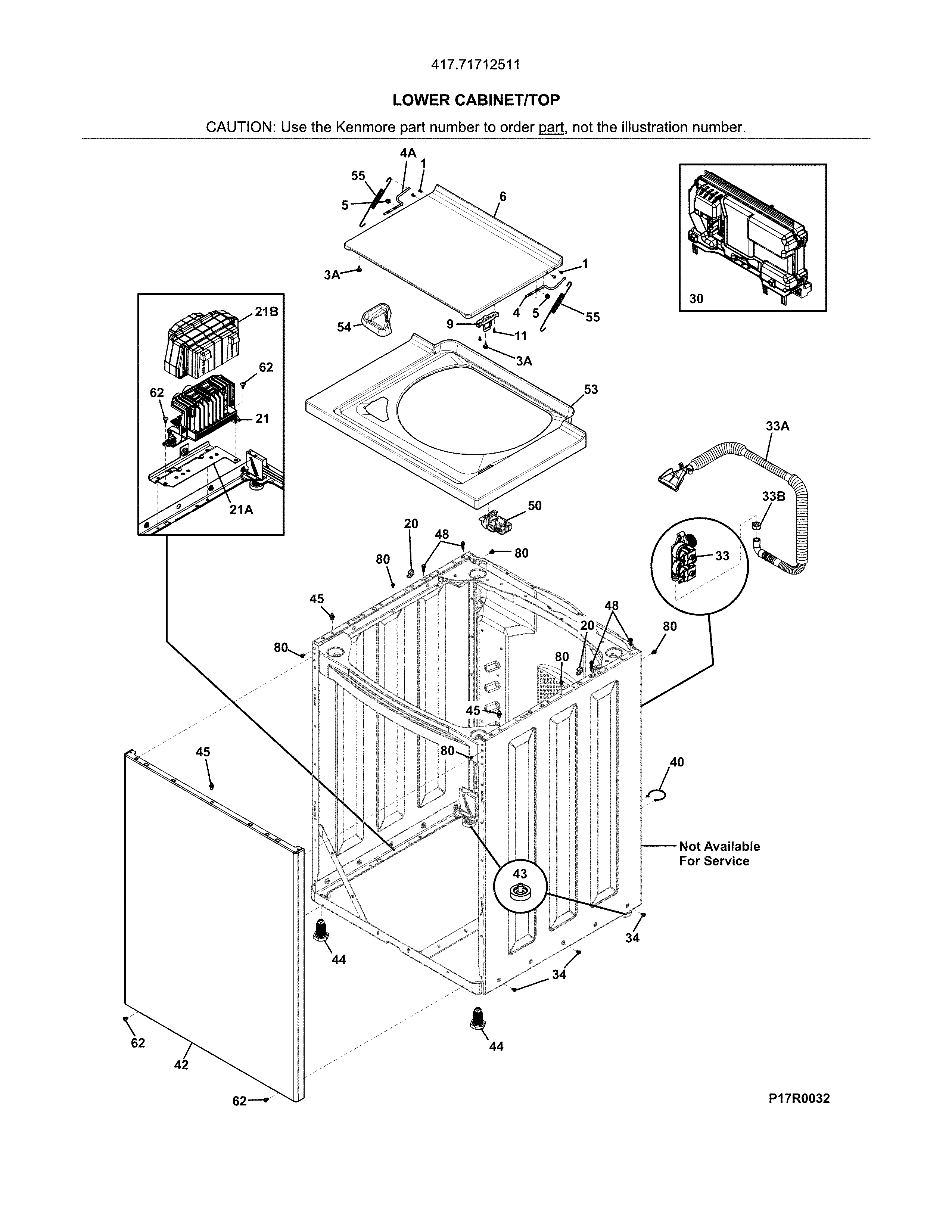

Lower cabinet/top diagram

Laundry center washer electronic control board

Part #5304500489

Replaced by #5304511966

?
Manufacturer substitution
This part replaces 5304500489. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$171.79 |
7% OFF Phone Price : $183.79
In Stock
Lower Felt 134134700
#23

Upper cabinet/drum heater diagram

Lower felt

Part #134134700

Replaced by #5303937183

?
Manufacturer substitution
This part replaces 134134700. Substitute parts can look different from the original.
BEST SELLER
$18.93 |
10% OFF Phone Price : $20.93
In Stock
