Craftsman
Gas Walk-Behind Mower

Model # 917251010 Official Craftsman 36" rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917251010 36" rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Ret Spring 4939M
#31

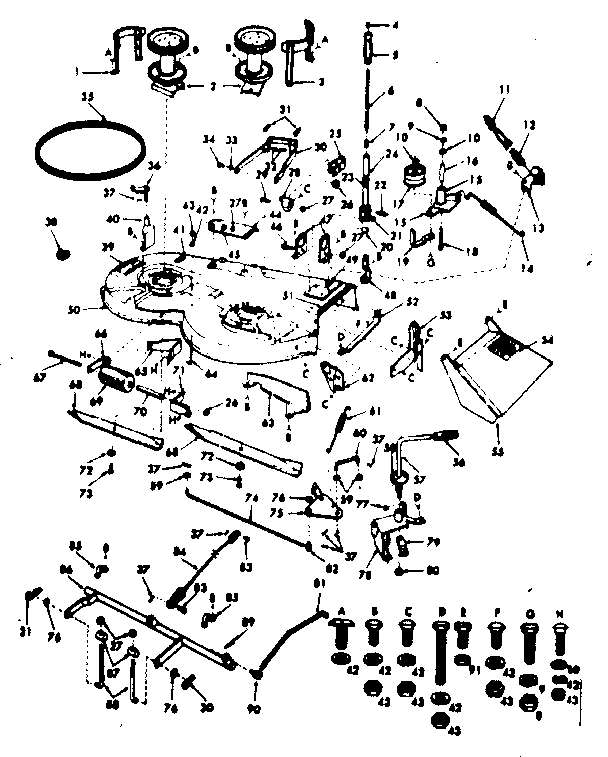

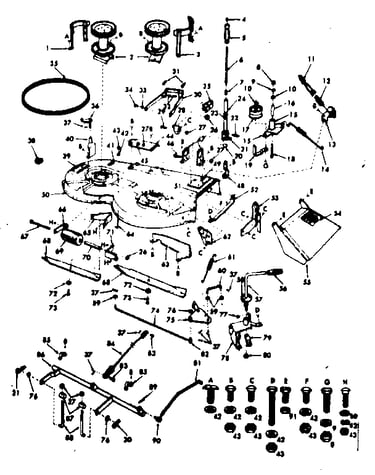

Replacement parts diagram

Ret spring

Part #4939M

Replaced by #532003146

?
Manufacturer substitution
This part replaces 4939M. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.02 |
20% OFF Phone Price : $5.02
In Stock
Gripco Nut 1685H
#91

Replacement parts diagram

Gripco nut

Part #1685H

The manufacturer no longer makes this part, and there's no substitute part

V-belt 3541R
#35

Replacement parts diagram

V-belt

Part #3541R

Replaced by #583774401

?
Manufacturer substitution
This part replaces 3541R. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$53.31
In Stock
Cotter Pin 2506P
#89

Replacement parts diagram

Cotter pin

Part #2506P

The manufacturer no longer makes this part, and there's no substitute part

Plungr Cvr 3252R
#4

Replacement parts diagram

Plungr cvr

Part #3252R

Replaced by #532071673

?
Manufacturer substitution
This part replaces 3252R. Substitute parts can look different from the original.
$8.54
In Stock
Rivet Pin 2292R
#83

Replacement parts diagram

Rivet pin

Part #2292R

The manufacturer no longer makes this part, and there's no substitute part

Snubbr Rod 3177R
#60

Replacement parts diagram

Snubbr rod

Part #3177R

The manufacturer no longer makes this part, and there's no substitute part

Snubbr Trun 3189R
#82

Replacement parts diagram

Snubbr trun

Part #3189R

The manufacturer no longer makes this part, and there's no substitute part

Adjustment Screw 3181R
#88

Replacement parts diagram

Adjustment screw

Part #3181R

The manufacturer no longer makes this part, and there's no substitute part

Bushing 3207R
#70

Replacement parts diagram

Bushing

Part #3207R

The manufacturer no longer makes this part, and there's no substitute part
