Model # WWP1180GAW Official GE washer

Here are the diagrams and repair parts for Official GE WWP1180GAW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

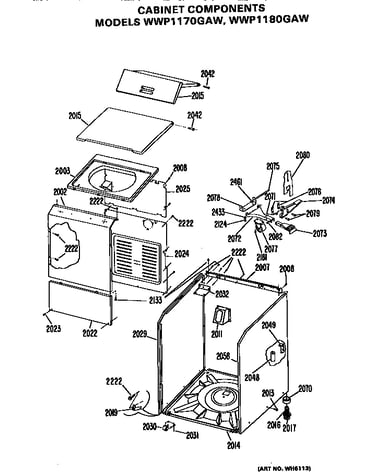

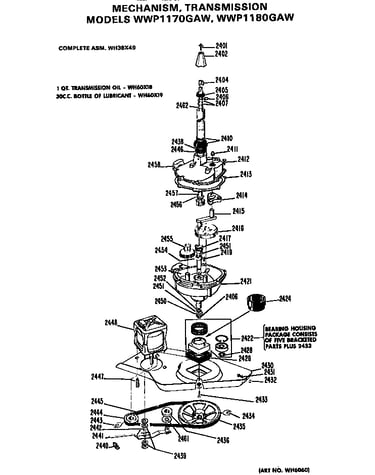

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 171 parts  |
Washer Hose Clamp Kit WH1X2036

#790

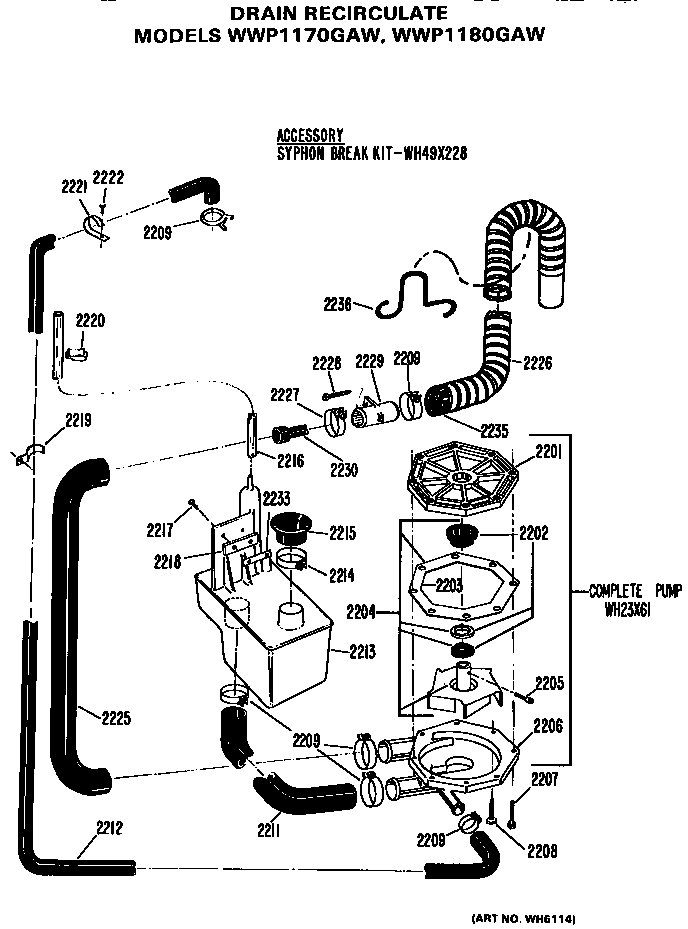

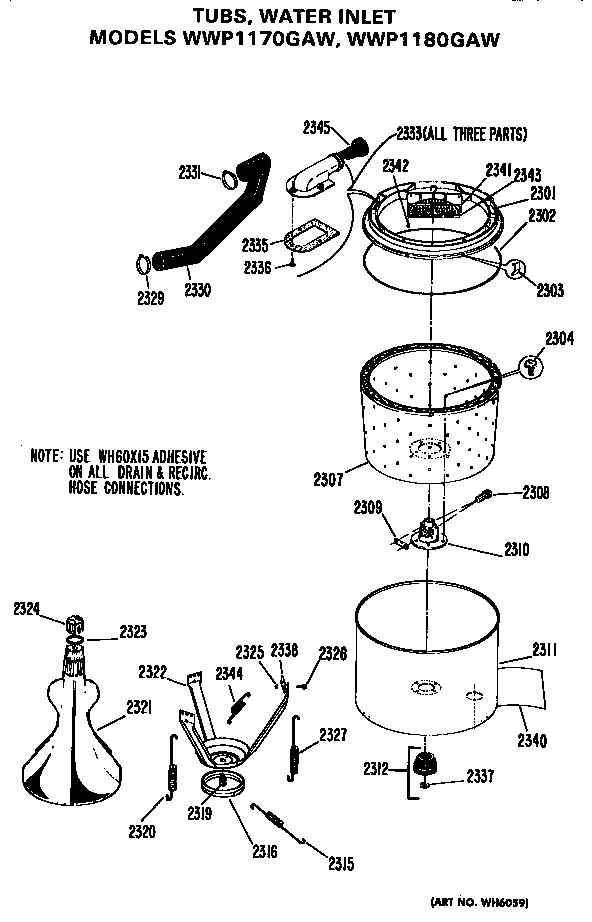

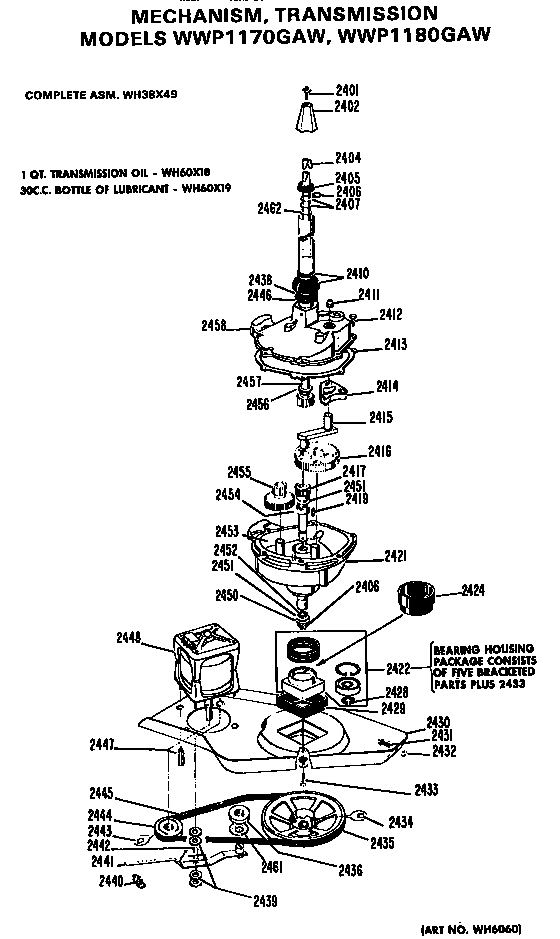

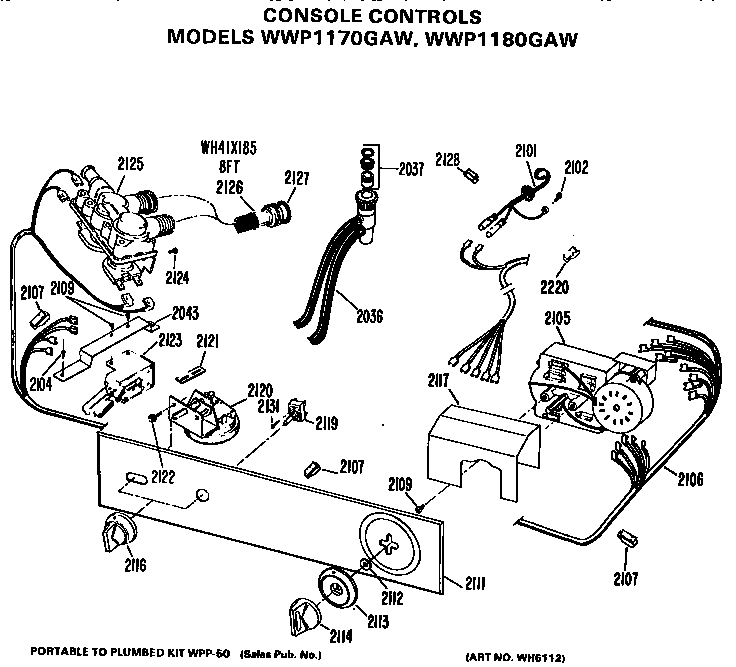

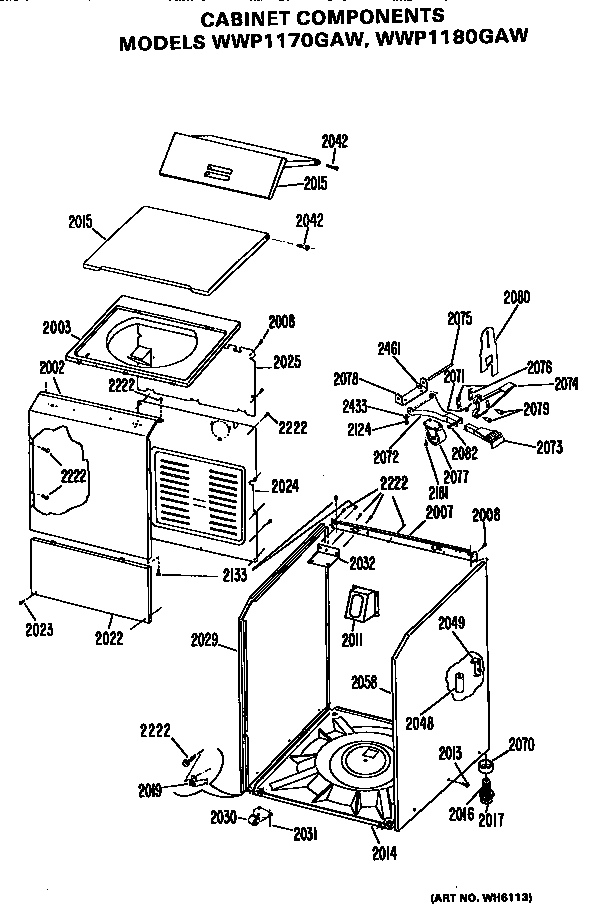

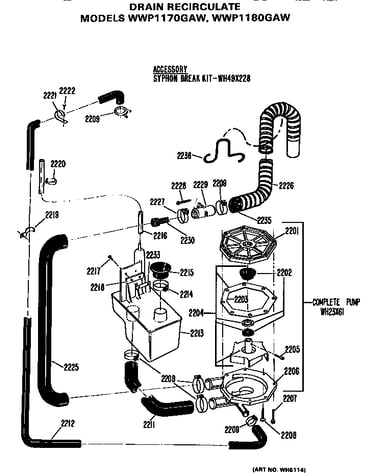

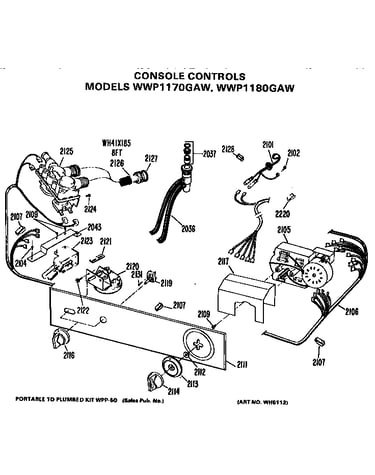

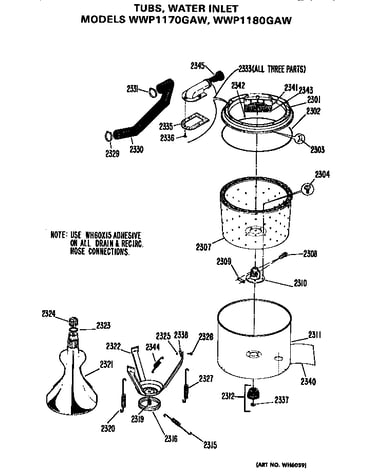

All parts diagram

Washer hose clamp kit

Part #WH1X2036

$11.59 |
15% OFF Phone Price : $13.59
In Stock
Spacr Lev WH1X2520

#2070

All parts diagram

Spacr lev

Part #WH1X2520

$8.99
In Stock
Felt Washer WH2X1029

#2446

All parts diagram

Felt washer

Part #WH2X1029

This item is not returnable
$2.49
In Stock
Speed Nut WH2X978

#2019

All parts diagram

Speed nut

Part #WH2X978

This item is not returnable
$2.49
In Stock
Snap Ring WH1X2321

#2428

All parts diagram

Snap ring

Part #WH1X2321

This item is not returnable
$2.49
In Stock
Use And Care Guide 49-9519

#LITR

All parts diagram

Use and care guide

Part #49-9519

Replaced by #49-9692

?
Manufacturer substitution
This part replaces 49-9519. Substitute parts can look different from the original.
$8.49
In Stock
In.hose 4 WH41X58

#808

All parts diagram

In.hose 4

Part #WH41X58

Replaced by #WH41X10207

?
Manufacturer substitution
This part replaces WH41X58. Substitute parts can look different from the original.
This item is not returnable
$22.73 |
21% OFF Phone Price : $28.73
In Stock
Washer WH2X42

#807

All parts diagram

Washer

Part #WH2X42

Replaced by #WH2X42D

?
Manufacturer substitution
This part replaces WH2X42. Substitute parts can look different from the original.
$8.11
In Stock
Pan WH46X234

#2025

All parts diagram

Pan

Part #WH46X234

The manufacturer no longer makes this part, and there's no substitute part

Capacitor Bracket WH16X476

#2049

All parts diagram

Capacitor bracket

Part #WH16X476

The manufacturer no longer makes this part, and there's no substitute part
