Model # 2537740892 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 2537740892 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Grommet 126340
#10

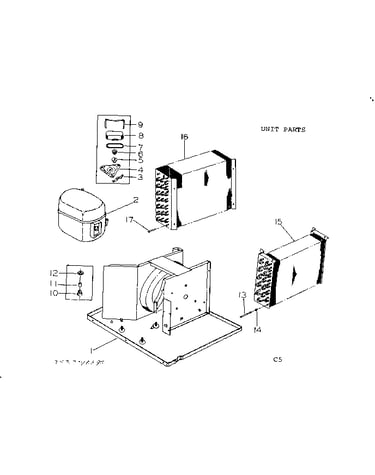

Unit parts diagram

Grommet

Part #126340

Replaced by #218513300

?
Manufacturer substitution
This part replaces 126340. Substitute parts can look different from the original.
$36.56 |
14% OFF Phone Price : $42.56
In Stock
Flange Nut 156927
#12

Unit parts diagram

Flange nut

Part #156927

The manufacturer no longer makes this part, and there's no substitute part

Cab Shell 500853
#1

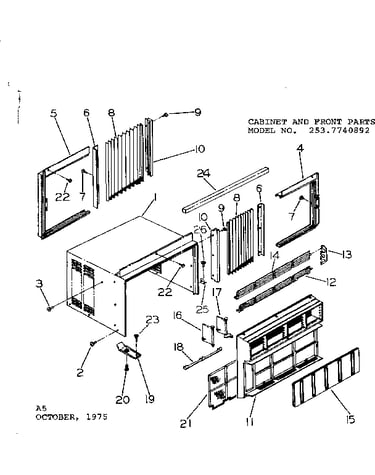

Cabinet and front parts diagram

Cab shell

Part #500853

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Housing 131386
#10

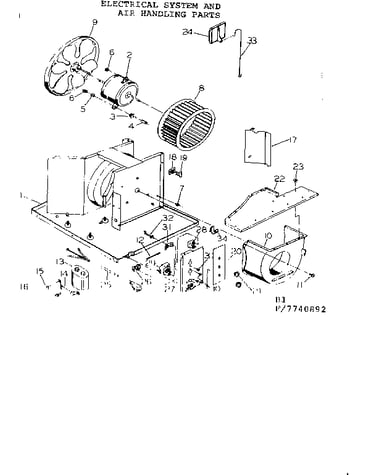

Elec system & air hndlg parts diagram

Air conditioner blower housing

Part #131386

The manufacturer no longer makes this part, and there's no substitute part

Condenser 159768
#16

Unit parts diagram

Condenser

Part #159768

The manufacturer no longer makes this part, and there's no substitute part

Screw 501784
#16

Elec system & air hndlg parts diagram

Screw

Part #501784

The manufacturer no longer makes this part, and there's no substitute part

Seal 145337-01
#24

Cabinet and front parts diagram

Seal

Part #145337-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 99573
#20

Cabinet and front parts diagram

Screw

Part #99573

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 158554
#15

Unit parts diagram

Evaporator

Part #158554

The manufacturer no longer makes this part, and there's no substitute part

Cover 145194
#8

Unit parts diagram

Cover

Part #145194

The manufacturer no longer makes this part, and there's no substitute part
