Model # SWTT20LM Official Speed Queen commercial washer

Here are the diagrams and repair parts for Official Speed Queen SWTT20LM commercial washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

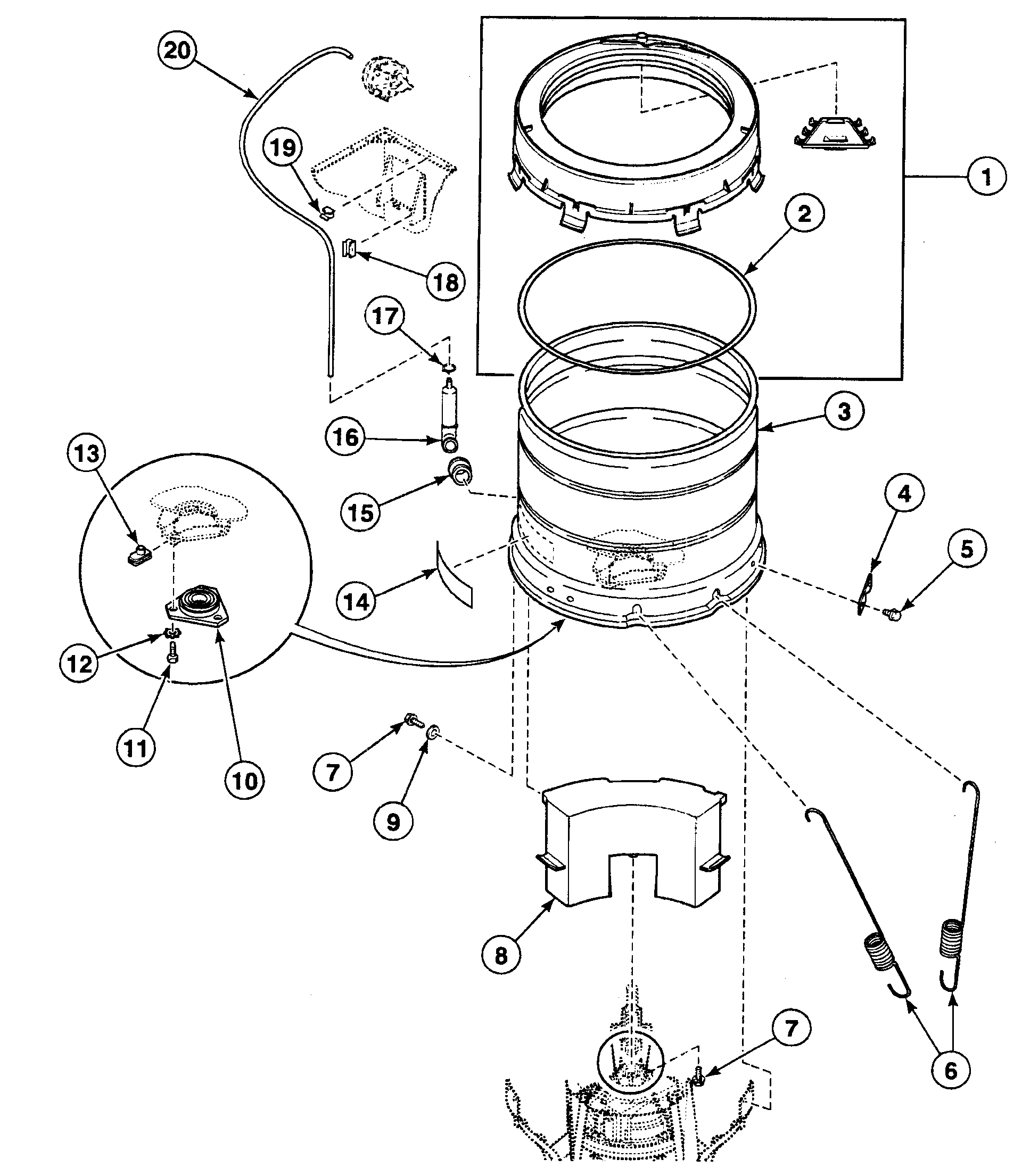

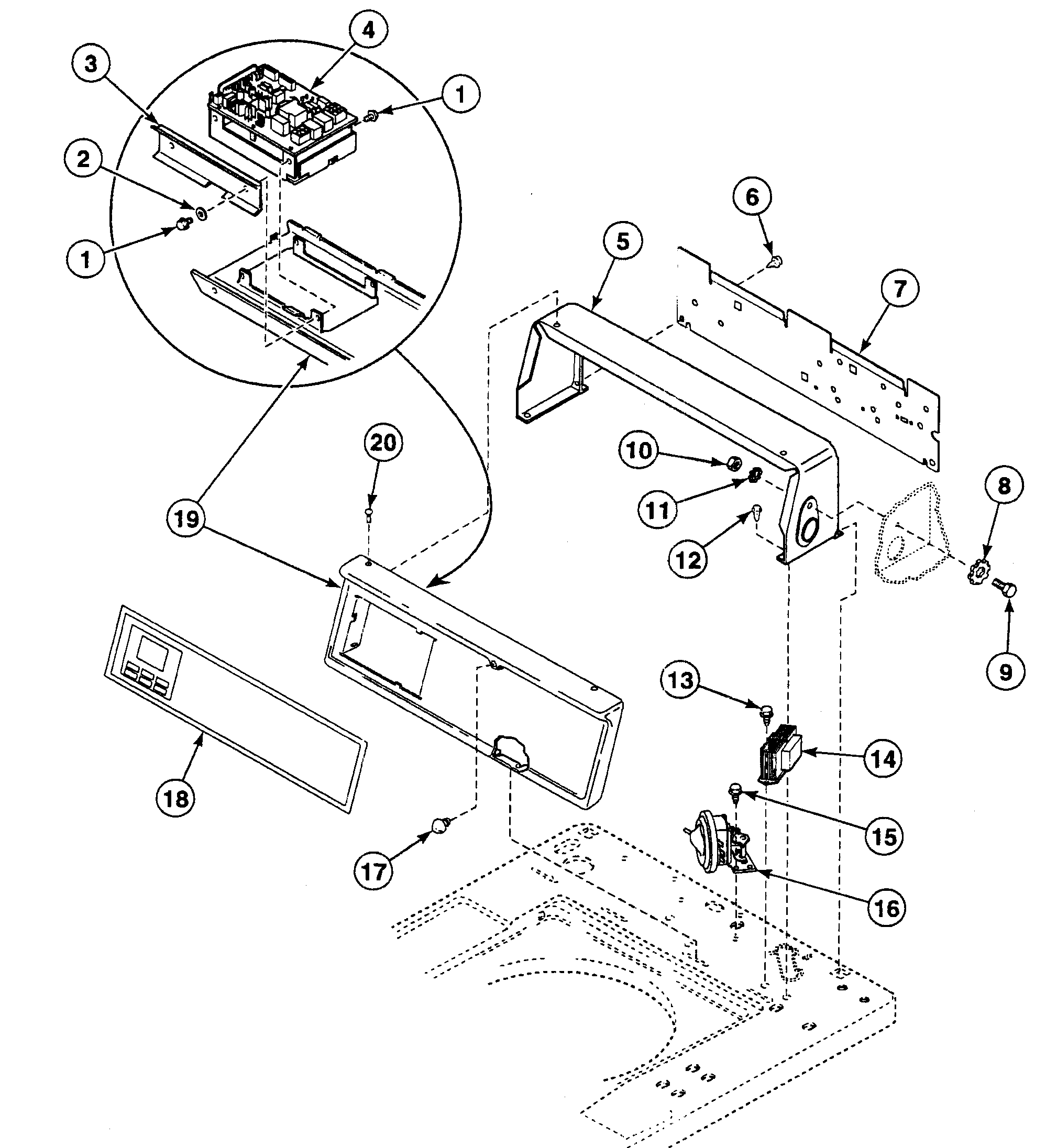

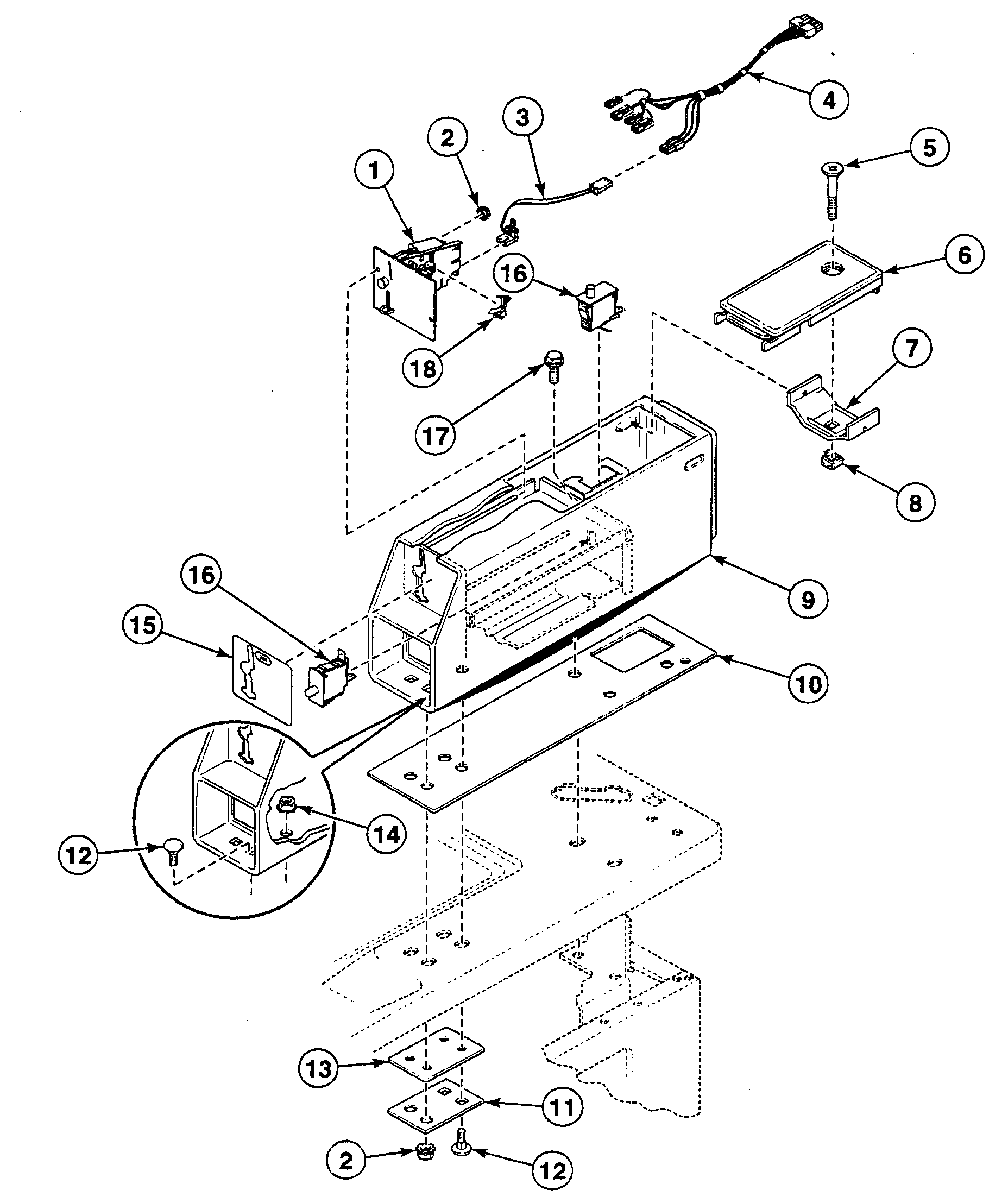

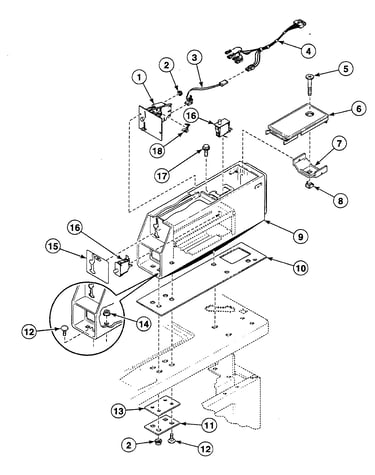

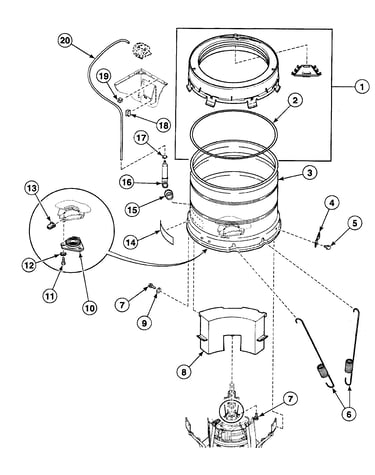

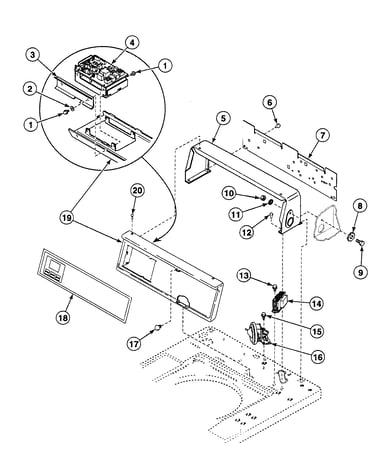

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 277 parts  |
Screw 503688
#6

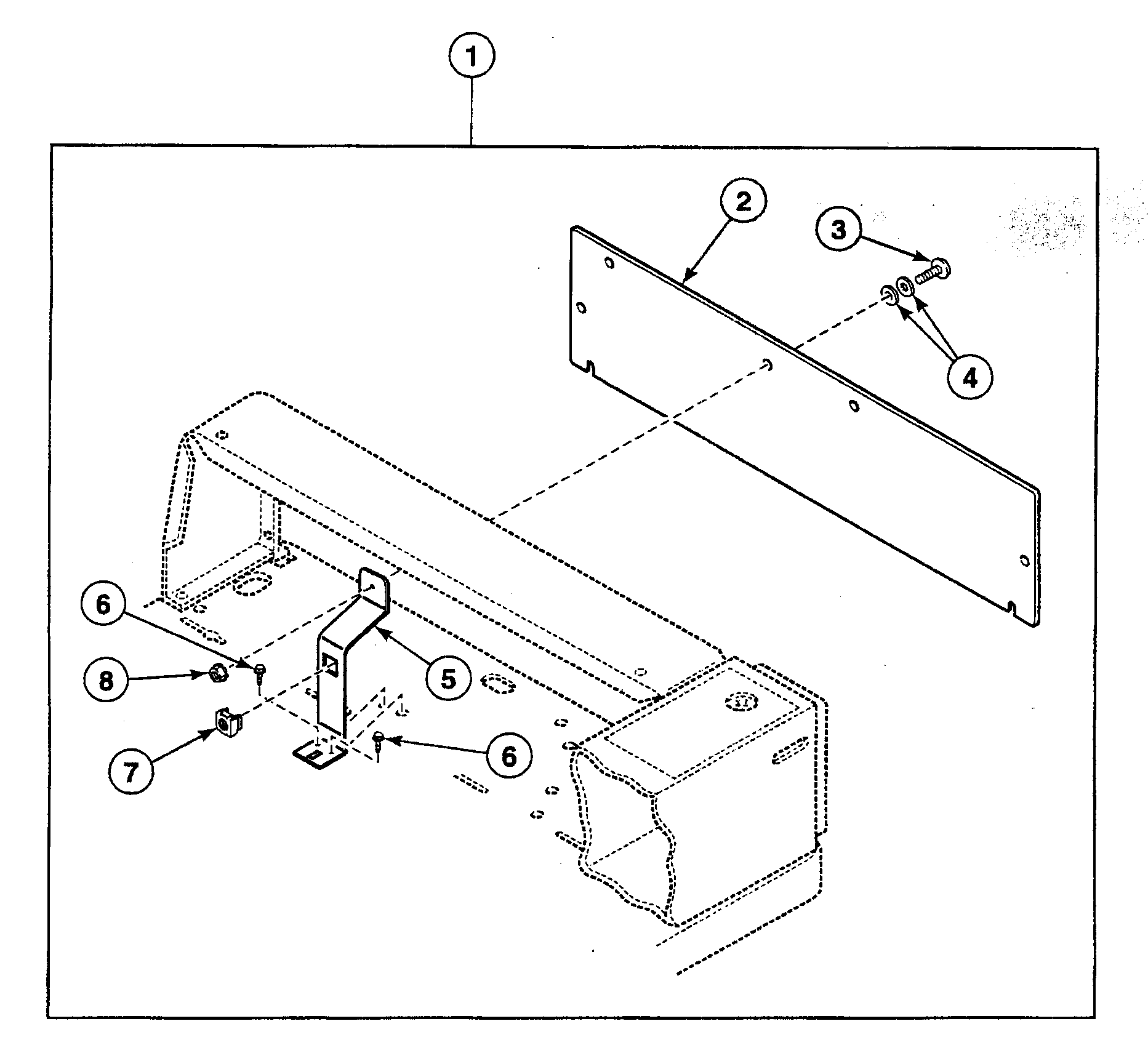

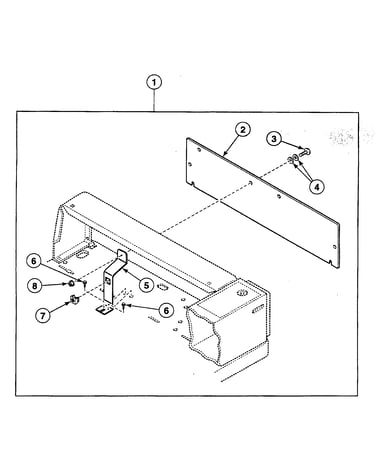

Security kit diagram

Screw

Part #503688

Replaced by #WP3390631

?
Manufacturer substitution
This part replaces 503688. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Washer Drain Pump 201566P
#17

Motor assy diagram

Washer drain pump

Part #201566P

$57.42
In Stock
Washer Drive Motor 38034P
#3

Motor assy diagram

Washer drive motor

Part #38034P

The manufacturer no longer makes this part, and there's no substitute part

Ring Assembly 39837
#1A

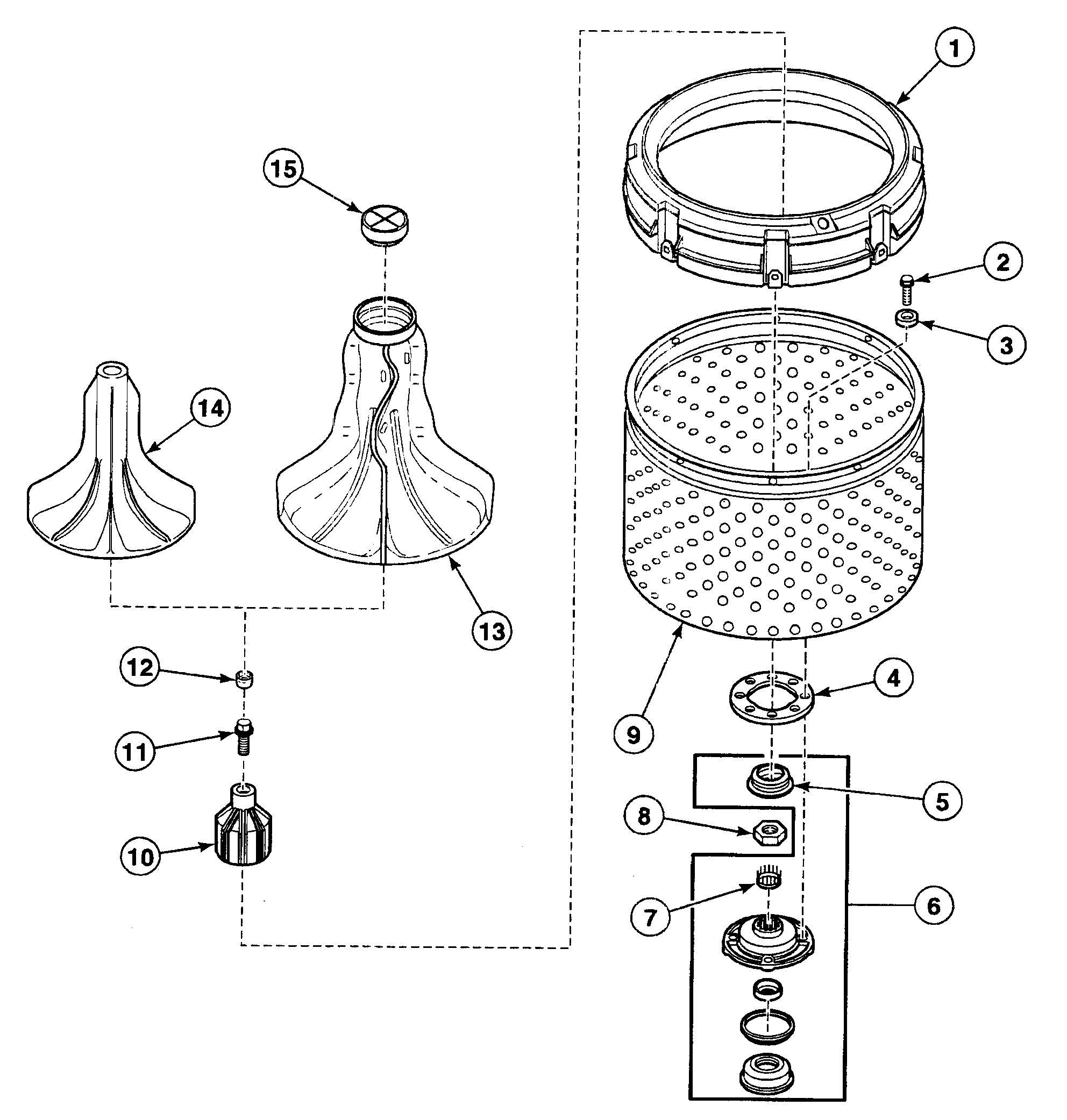

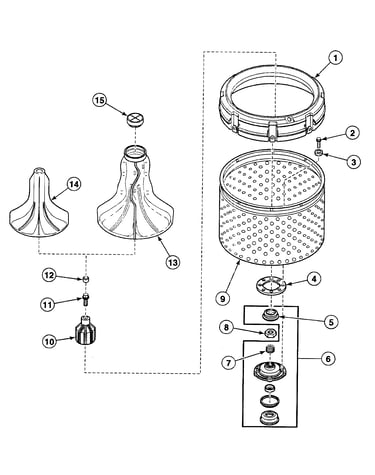

Agitator diagram

Ring assembly

Part #39837

The manufacturer no longer makes this part, and there's no substitute part

Washer Agitator Screw And O-ring 39432
#11

Agitator diagram

Washer agitator screw and o-ring

Part #39432

The manufacturer no longer makes this part, and there's no substitute part

Washer Drive Block 39508P
#10

Agitator diagram

Washer drive block

Part #39508P

$50.82
In Stock
Washer Start Capacitor 37377
#26

Motor assy diagram

Washer start capacitor

Part #37377

The manufacturer no longer makes this part, and there's no substitute part

Screw 35369
Screw

Part #35369

This item is not returnable
$4.91
In Stock
Hose Clamp 36801
#14

Valve assy diagram

Hose clamp

Part #36801

This item is not returnable
$5.89
In Stock
Washer 37772
#28

Motor assy diagram

Washer

Part #37772

This item is not returnable
$2.16
In Stock
