Kenmore Elite
Electric Cooktop

Model # 79044289700 Official Kenmore Elite electric cooktop

Here are the diagrams and repair parts for Official Kenmore Elite 79044289700 electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

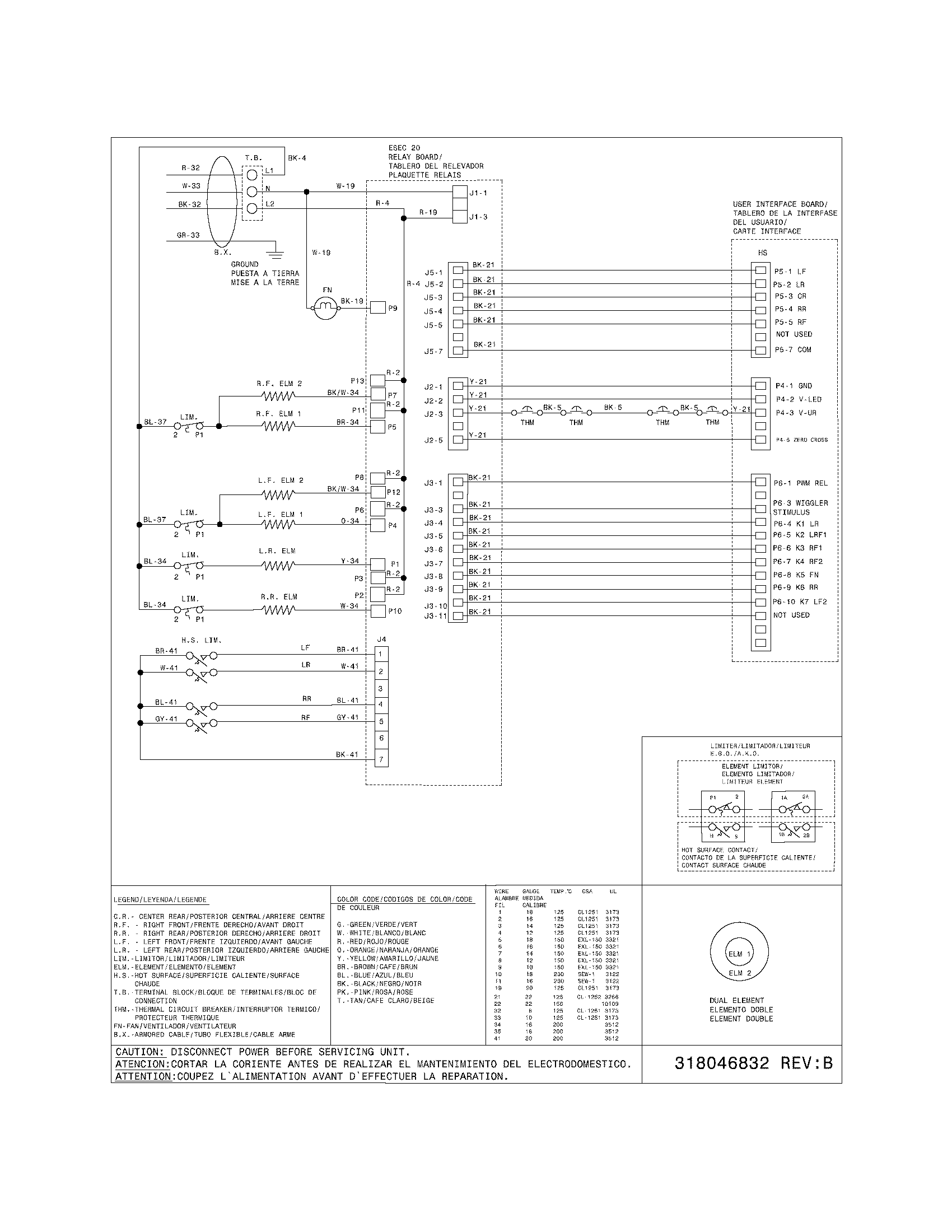

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Element 318198830
#15

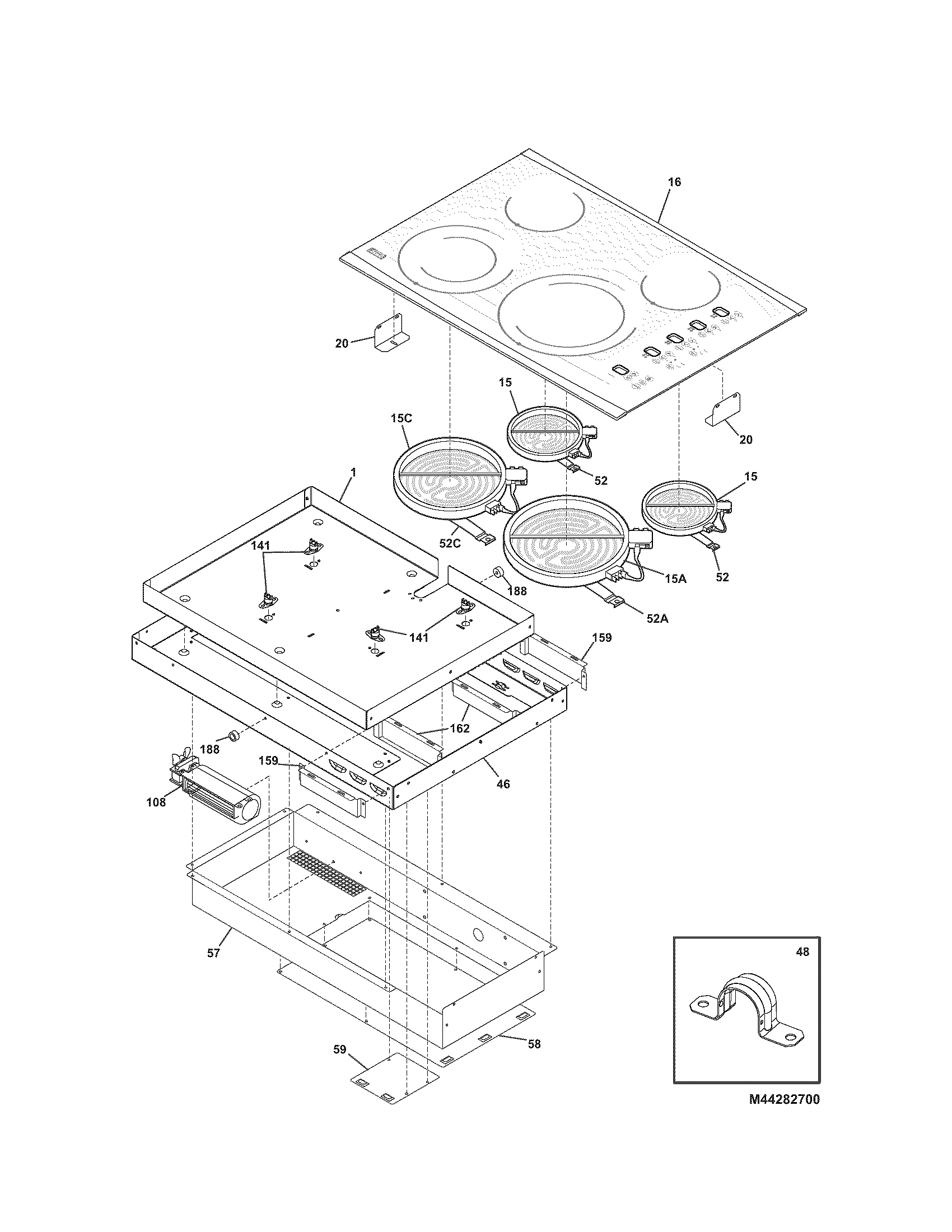

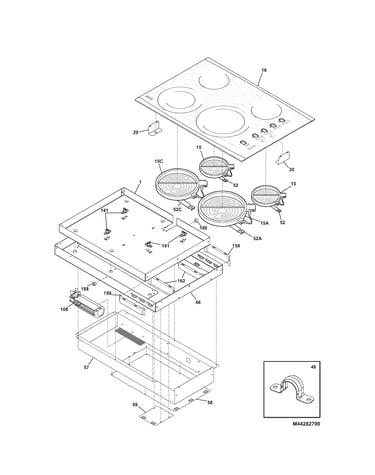

Maintop diagram

Element

Part #318198830

Replaced by #318178110

?
Manufacturer substitution
This part replaces 318198830. Substitute parts can look different from the original.
BEST SELLER
$149.34 |
7% OFF Phone Price : $161.34
In Stock
Range Dual Radiant Surface Element 316465001
#15C

Maintop diagram

Range dual radiant surface element

Part #316465001

Replaced by #316282000

?
Manufacturer substitution
This part replaces 316465001. Substitute parts can look different from the original.
BEST SELLER
$129.35 |
8% OFF Phone Price : $141.35
In Stock
Terminal Block 316056000
#62

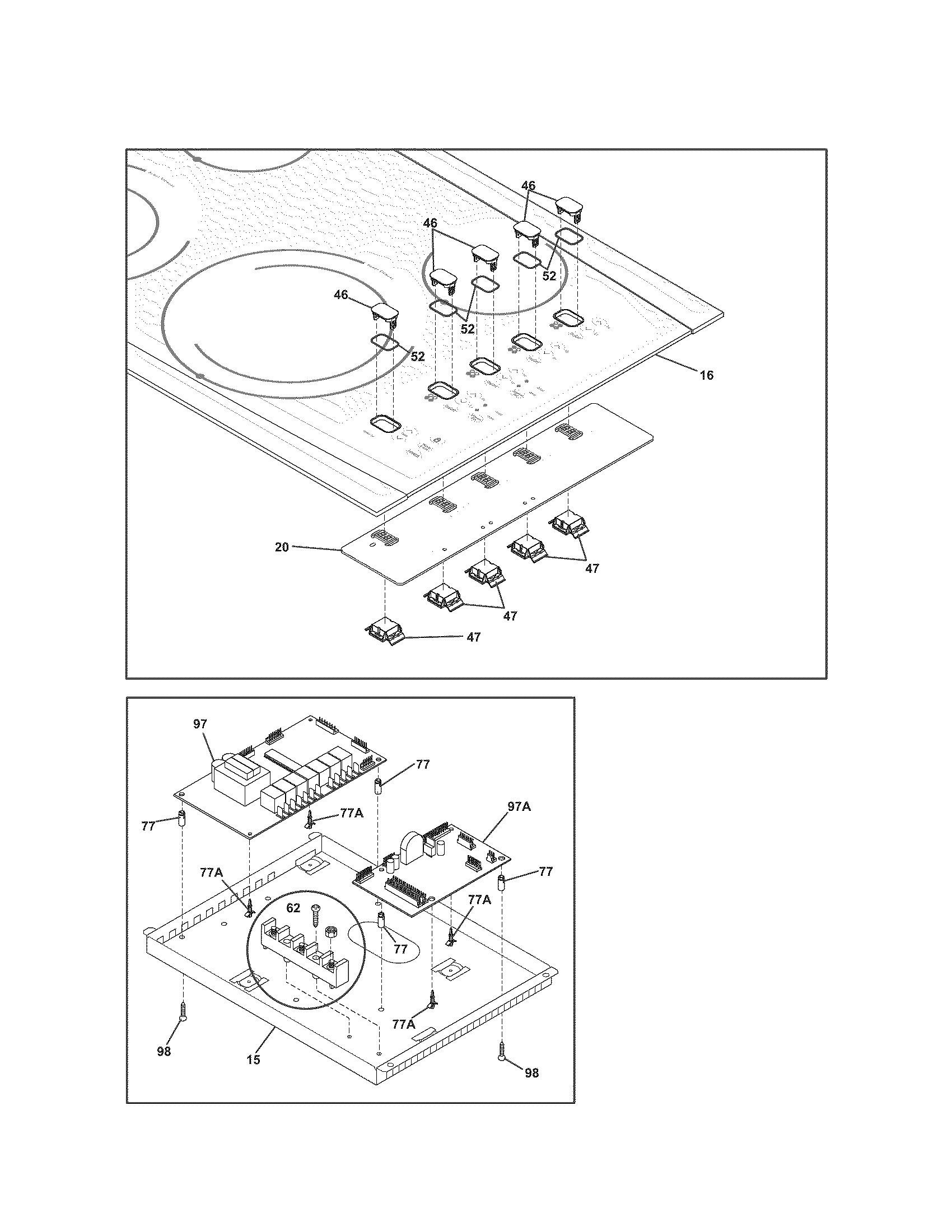

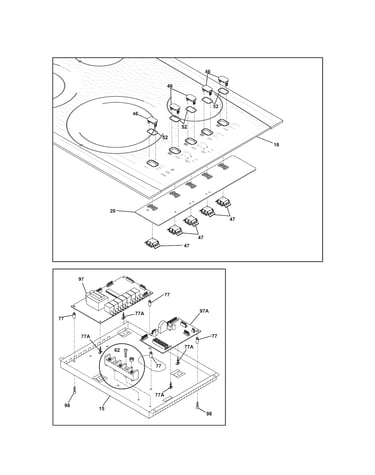

Controls diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Screw 5303300265
#NI

Maintop diagram

Range screw

Part #5303300265

This item is not returnable
$16.63
In Stock
Cooking Appliance Screw, 6-18 X 1-in 5304401490
#98

Controls diagram

Cooking appliance screw, 6-18 x 1-in

Part #5304401490

$11.89
In Stock
Range Power Control Board Support 316114100
#77A

Controls diagram

Range power control board support

Part #316114100

$52.42 |
10% OFF Phone Price : $58.42
In Stock
Appliance Cleaning Pad 316459400
#NI

Maintop diagram

Appliance cleaning pad

Part #316459400

This item is not returnable
$2.16
In Stock
Range Nut 5303323144
#NI

Controls diagram

Range nut

Part #5303323144

$8.83
In Stock
Cooking Appliance Control Board Spacer 316247900
#77

Controls diagram

Cooking appliance control board spacer

Part #316247900

$34.29
In Stock
Spring 318122011
#52C

Maintop diagram

Spring

Part #318122011

$42.47
In Stock
