Model # JGBS19GEP2 Official GE gas range

Here are the diagrams and repair parts for Official GE JGBS19GEP2 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

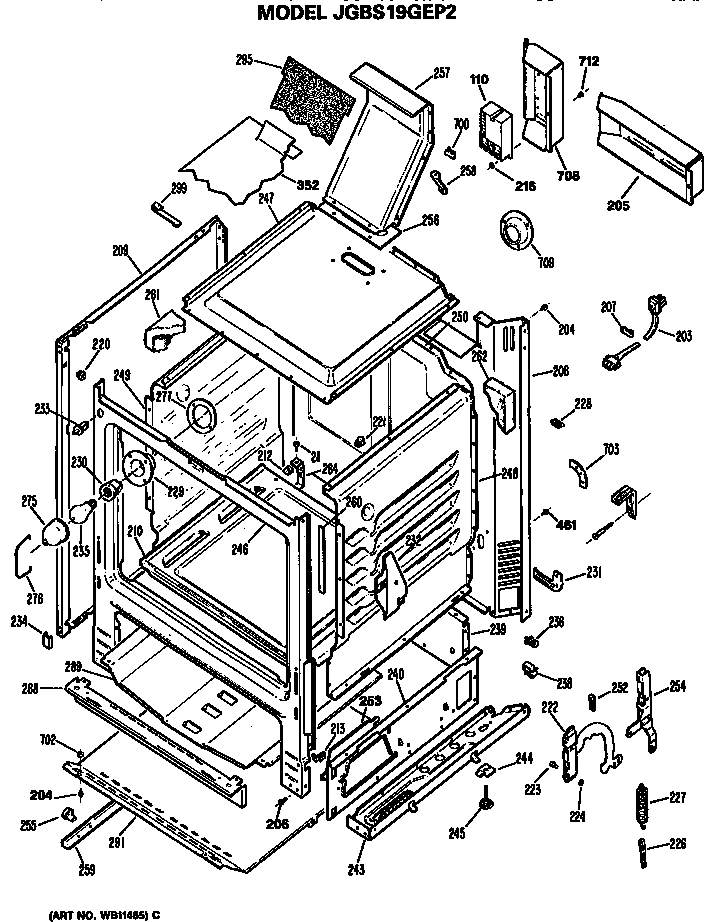

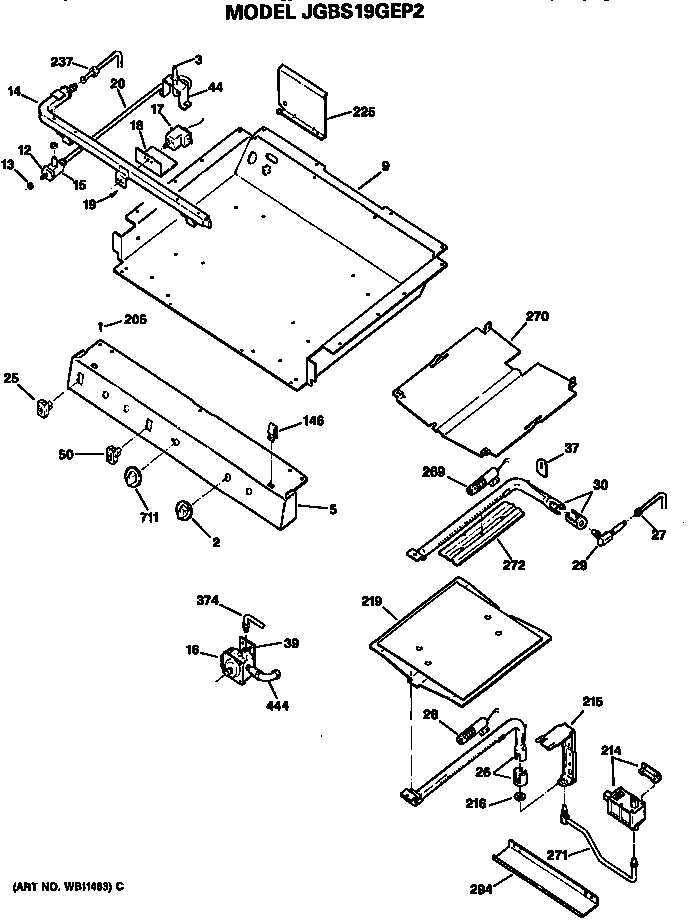

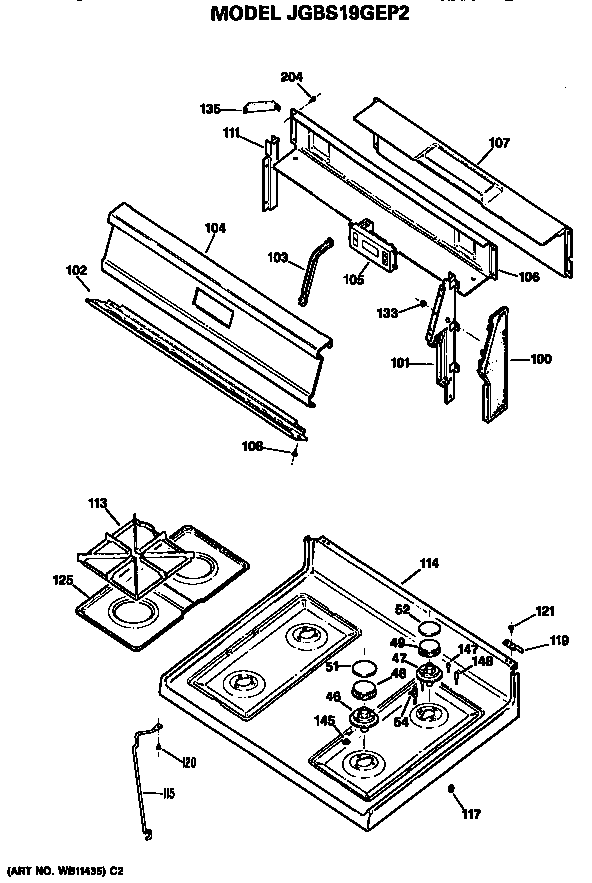

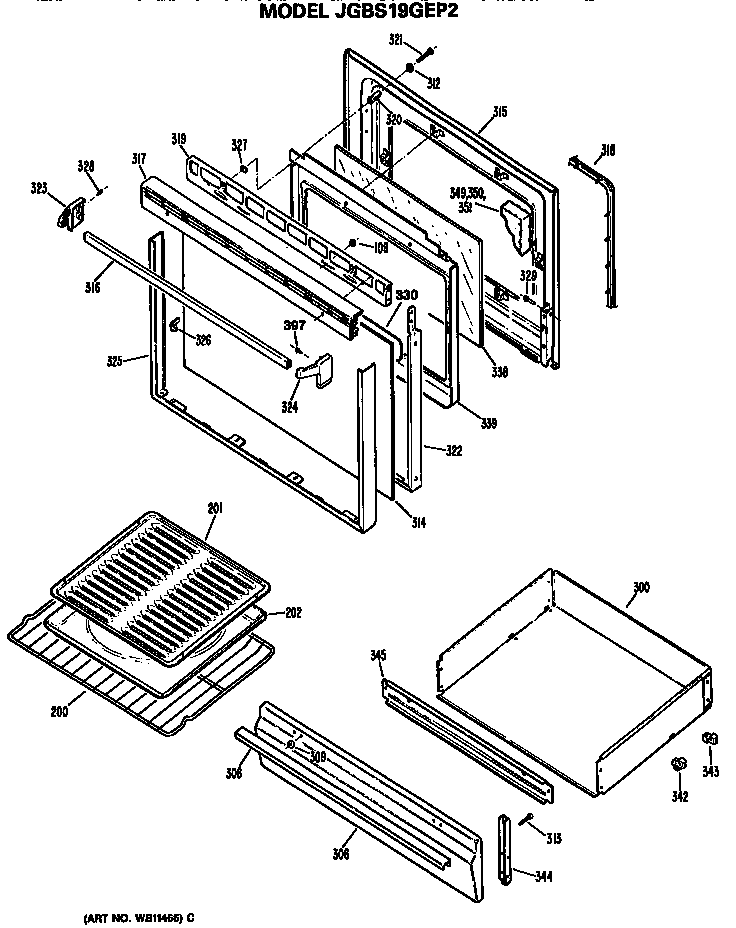

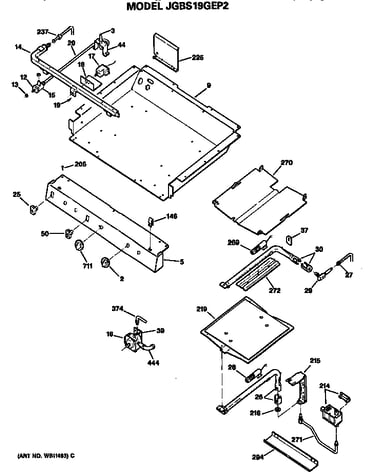

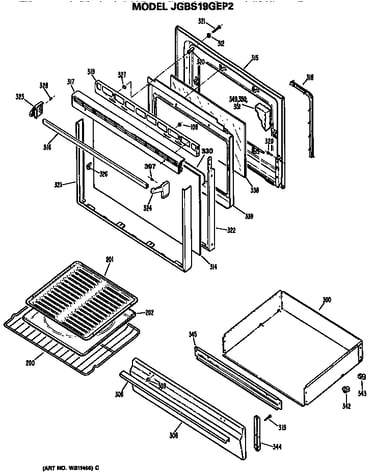

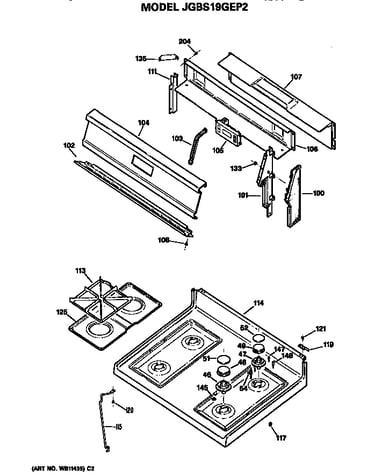

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 205 parts  |
Range Screw WB1X536
Range screw

Part #WB1X536

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB1X593

#461

All parts diagram

Screw

Part #WB1X593

Replaced by #WB1X536

?
Manufacturer substitution
This part replaces WB1X593. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Gas Valve (replaces Wb19k0014, Wb19k9) WB19K14

#214

All parts diagram

Range oven gas valve (replaces wb19k0014, wb19k9)

Part #WB19K14

$270.87 |
$12.00 OFF Phone Price : $282.87
In Stock
Range Screw (replaces Wb01k10018, Wb01x5364) WB1X5364

#108

All parts diagram

Range screw (replaces wb01k10018, wb01x5364)

Part #WB1X5364

$7.90 |
11% OFF Phone Price : $8.90
In Stock
Range Drawer Mounting Bracket WB39K20

#344

All parts diagram

Range drawer mounting bracket

Part #WB39K20

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Surface Burner Valve Guard WB2K24

#13

All parts diagram

Range surface burner valve guard

Part #WB2K24

This item is not returnable
$27.25 |
18% OFF Phone Price : $33.25
In Stock
Capillary Clip WB2K10

#221

All parts diagram

Capillary clip

Part #WB2K10

Replaced by #WB02K10073

?
Manufacturer substitution
This part replaces WB2K10. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Cable Clamp WB2K36

#207

All parts diagram

Cable clamp

Part #WB2K36

$7.39 |
12% OFF Phone Price : $8.39
In Stock
Guard WB63K16

#291

All parts diagram

Guard

Part #WB63K16

$69.69 |
8% OFF Phone Price : $75.69
In Stock
Screw WB1K37

#712

All parts diagram

Screw

Part #WB1K37

$8.11
In Stock
