Electrolux
Washer

Model # EFLS210TIS00 Official Electrolux washer

Here are the diagrams and repair parts for Official Electrolux EFLS210TIS00 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

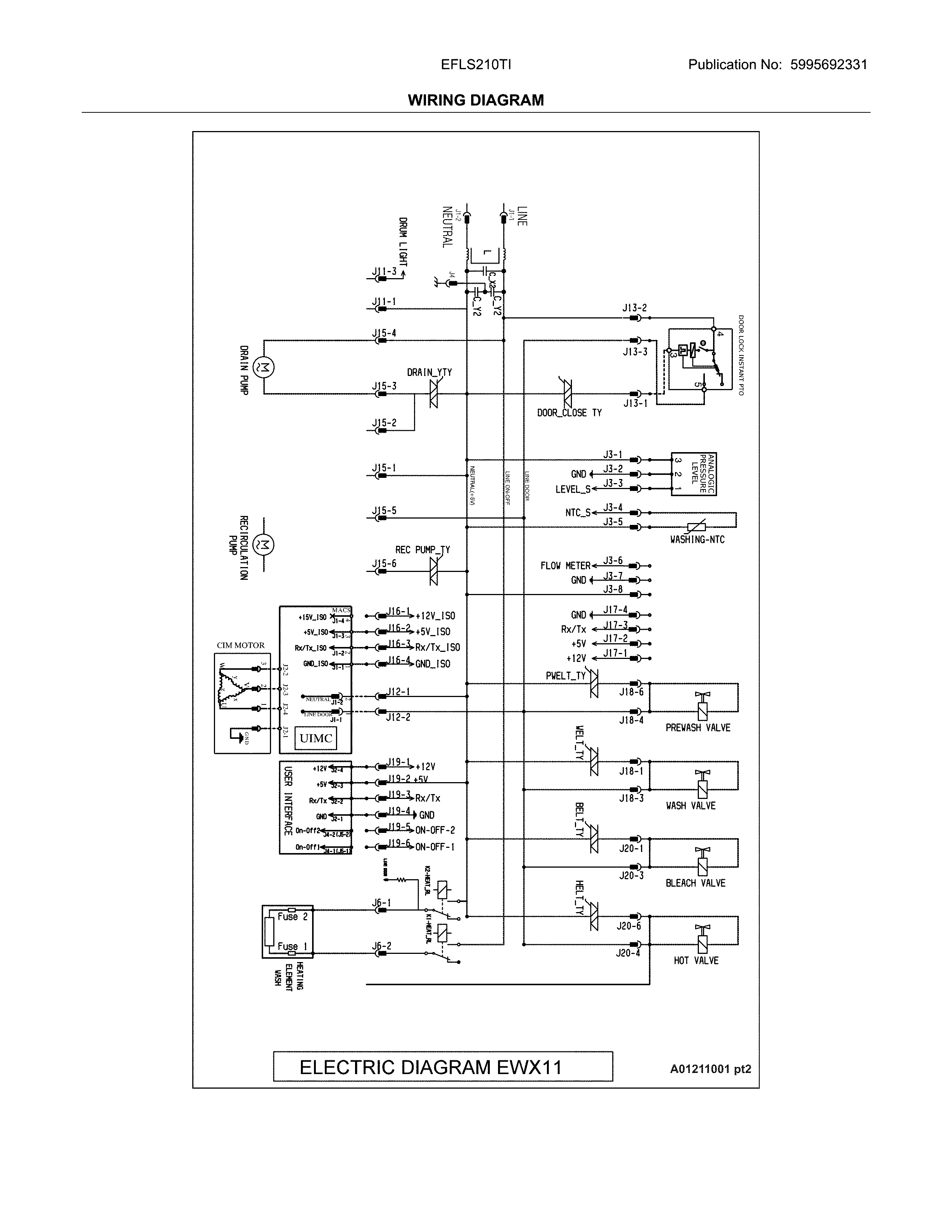

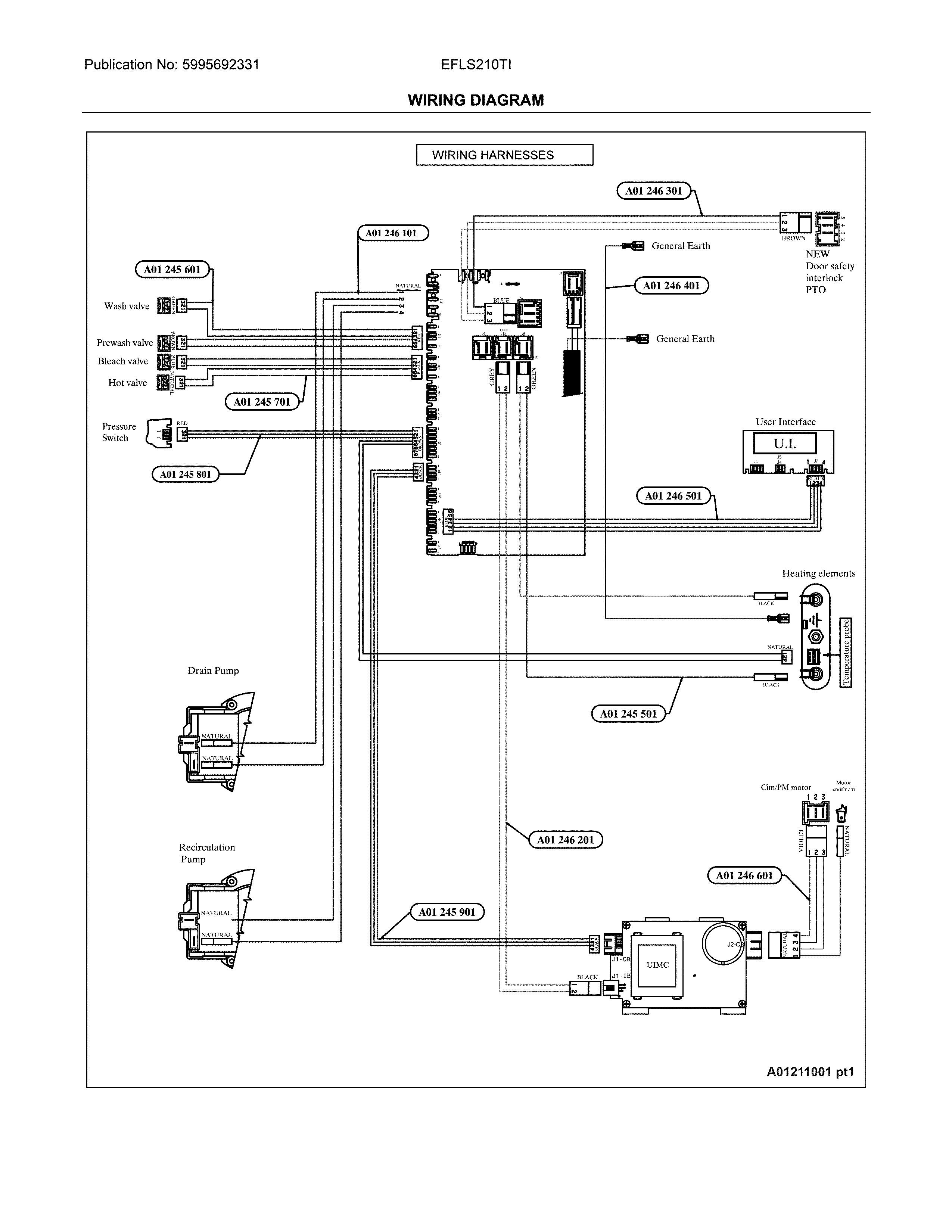

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |
Washer Door Boot 132724611
#608

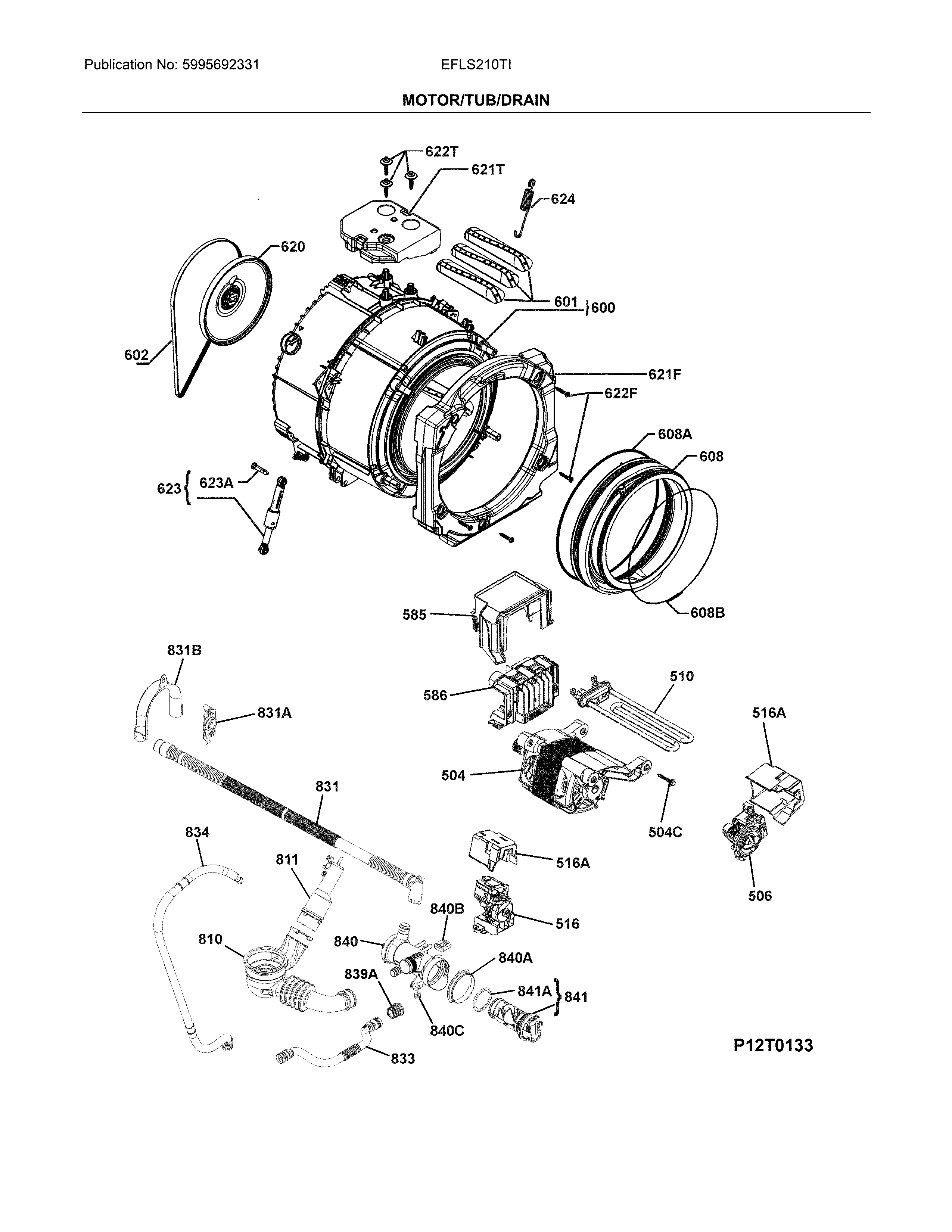

Motor/tub/drain diagram

Washer door boot

Part #132724611

$165.58 |
7% OFF Phone Price : $177.58
In Stock
Washer 3-way Water Inlet Valve 132518842
#507

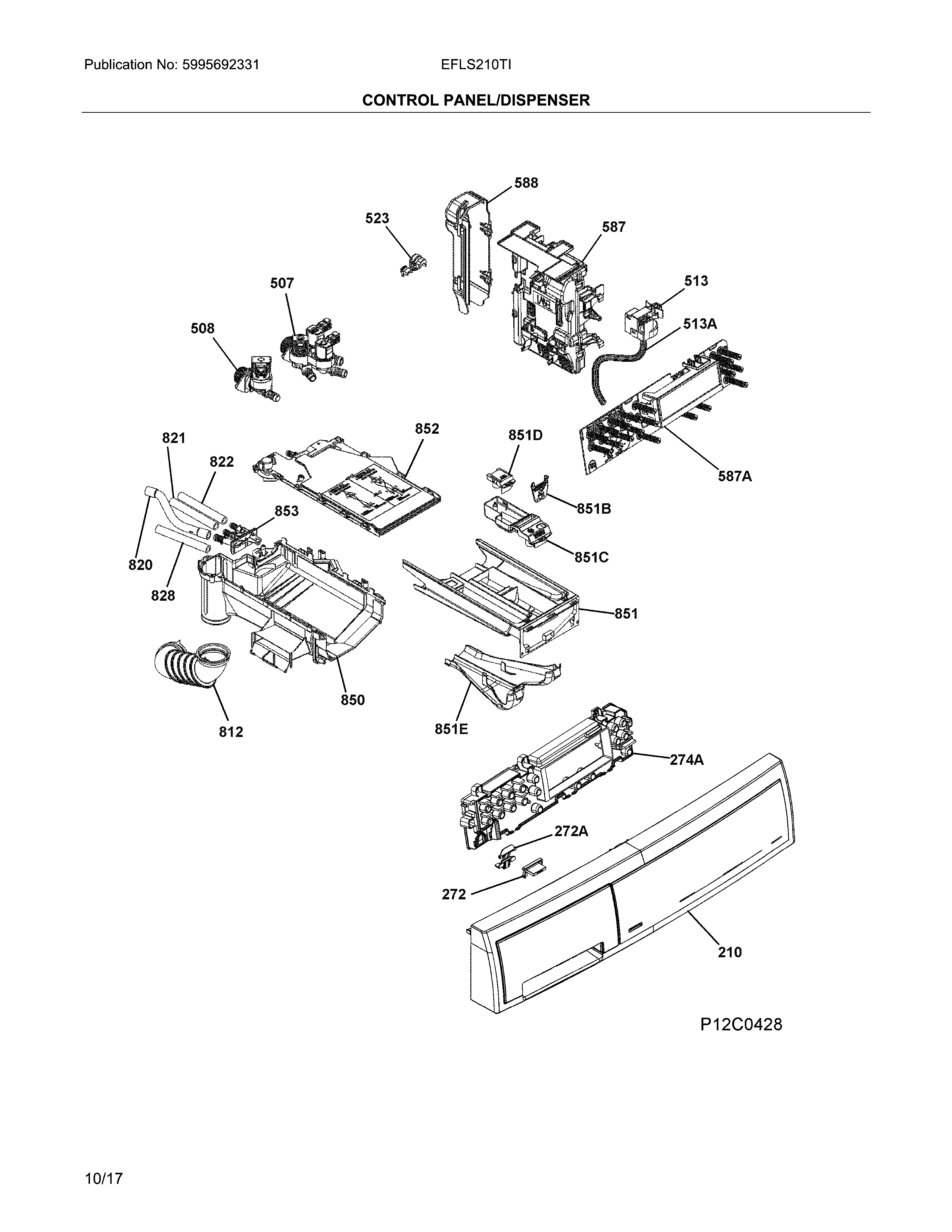

Control panel/dispenser diagram

Washer 3-way water inlet valve

Part #132518842

$76.70 |
7% OFF Phone Price : $82.70
In Stock
Washer Drain Pump 132611913
#506

Motor/tub/drain diagram

Washer drain pump

Part #132611913

$113.36 |
10% OFF Phone Price : $125.36
In Stock
Clamp 132556200
#608

Motor/tub/drain diagram

Clamp

Part #132556200

$57.73
In Stock
Switch 132819501
#513

Control panel/dispenser diagram

Switch

Part #132819501

Replaced by #379221604

?
Manufacturer substitution
This part replaces 132819501. Substitute parts can look different from the original.
$35.91
In Stock
Washer Dispenser Housing Assembly 132640843
#850

Control panel/dispenser diagram

Washer dispenser housing assembly

Part #132640843

$192.42
In Stock
Washer Door Catch 807654201
#370

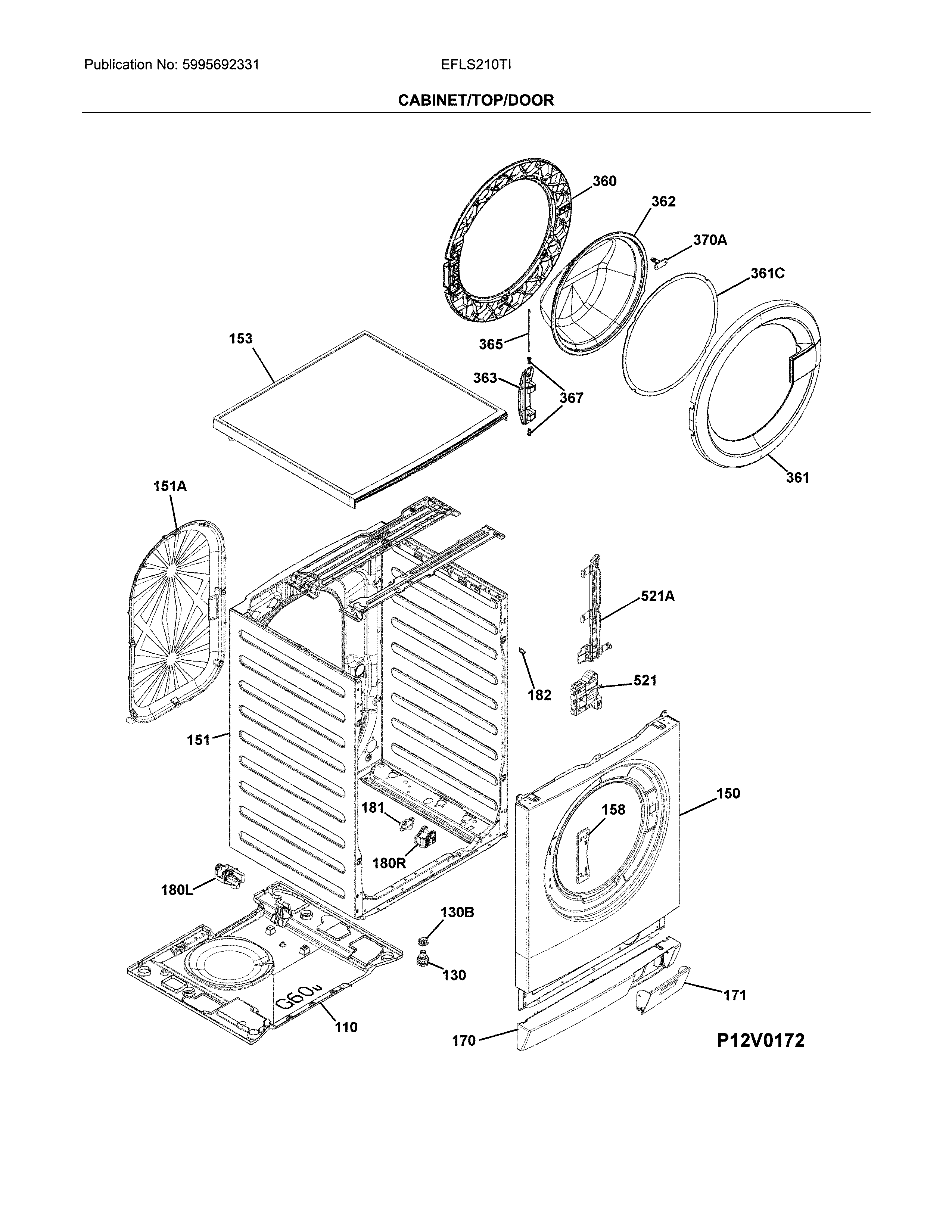

Cabinet/top/door diagram

Washer door catch

Part #807654201

$78.93
In Stock
Button 136658511
#272

Control panel/dispenser diagram

Button

Part #136658511

$66.96
In Stock
Washer Drain Pump Filter 132765801
#841

Motor/tub/drain diagram

Washer drain pump filter

Part #132765801

$101.59 |
11% OFF Phone Price : $113.59
In Stock
Washer Door Boot Spring Clamp, Large 132562100
#608

Motor/tub/drain diagram

Washer door boot spring clamp, large

Part #132562100

$102.09 |
11% OFF Phone Price : $114.09
In Stock
