Model # F-RP030N06 Official York evaporator coil

Here are the diagrams and repair parts for Official York F-RP030N06 evaporator coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Central Air Conditioner Electronic Control Board 031-01264-002
#4

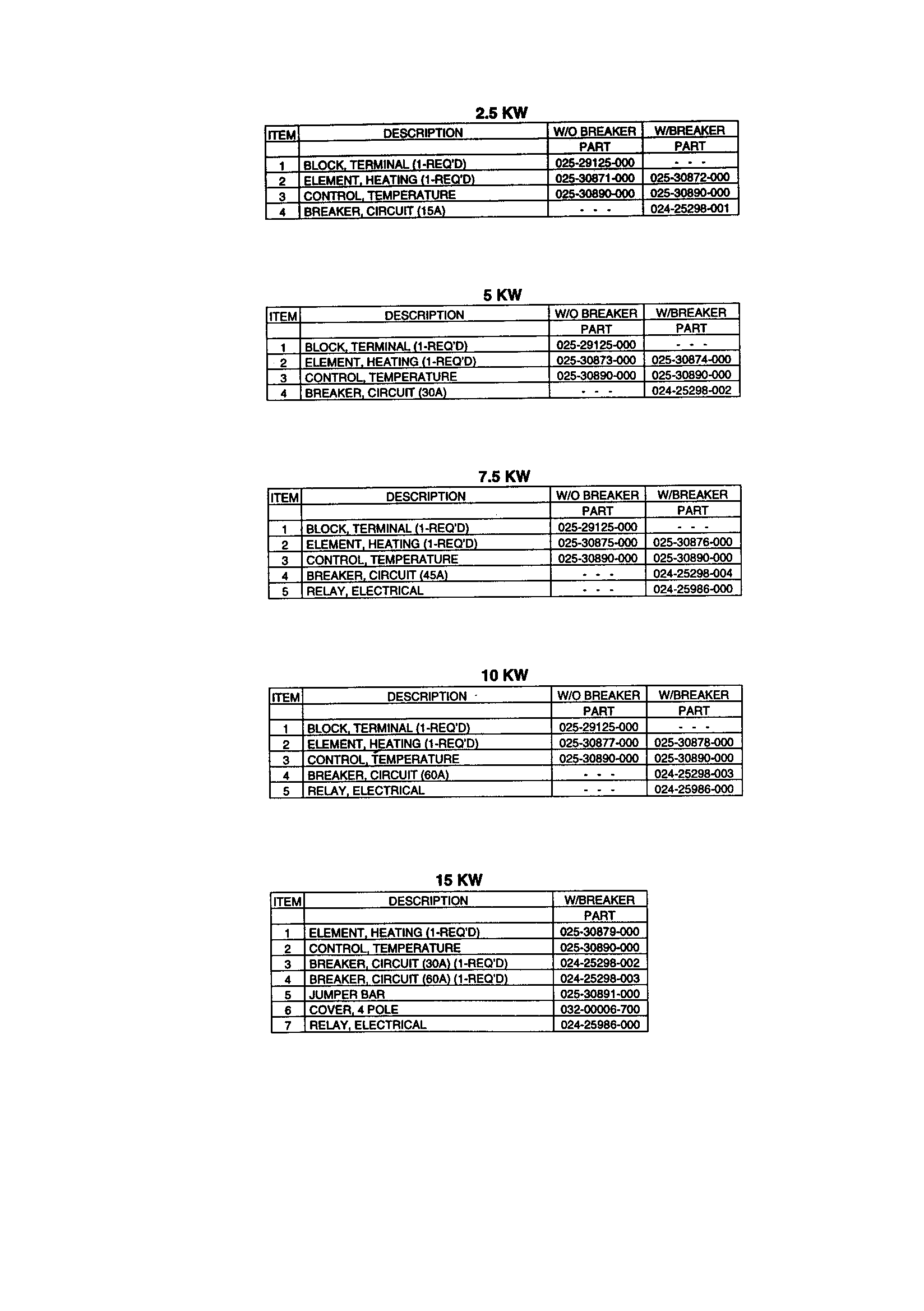

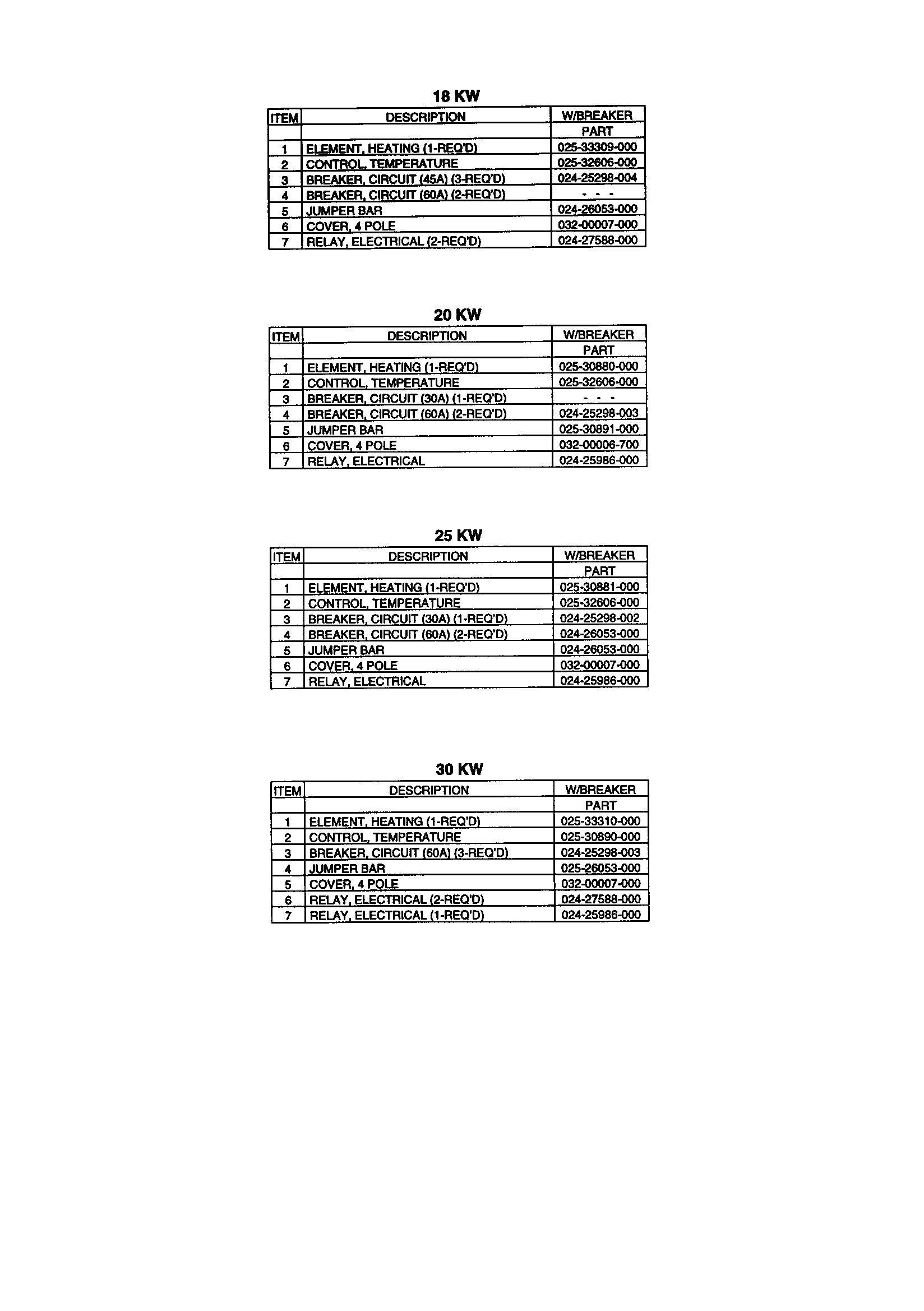

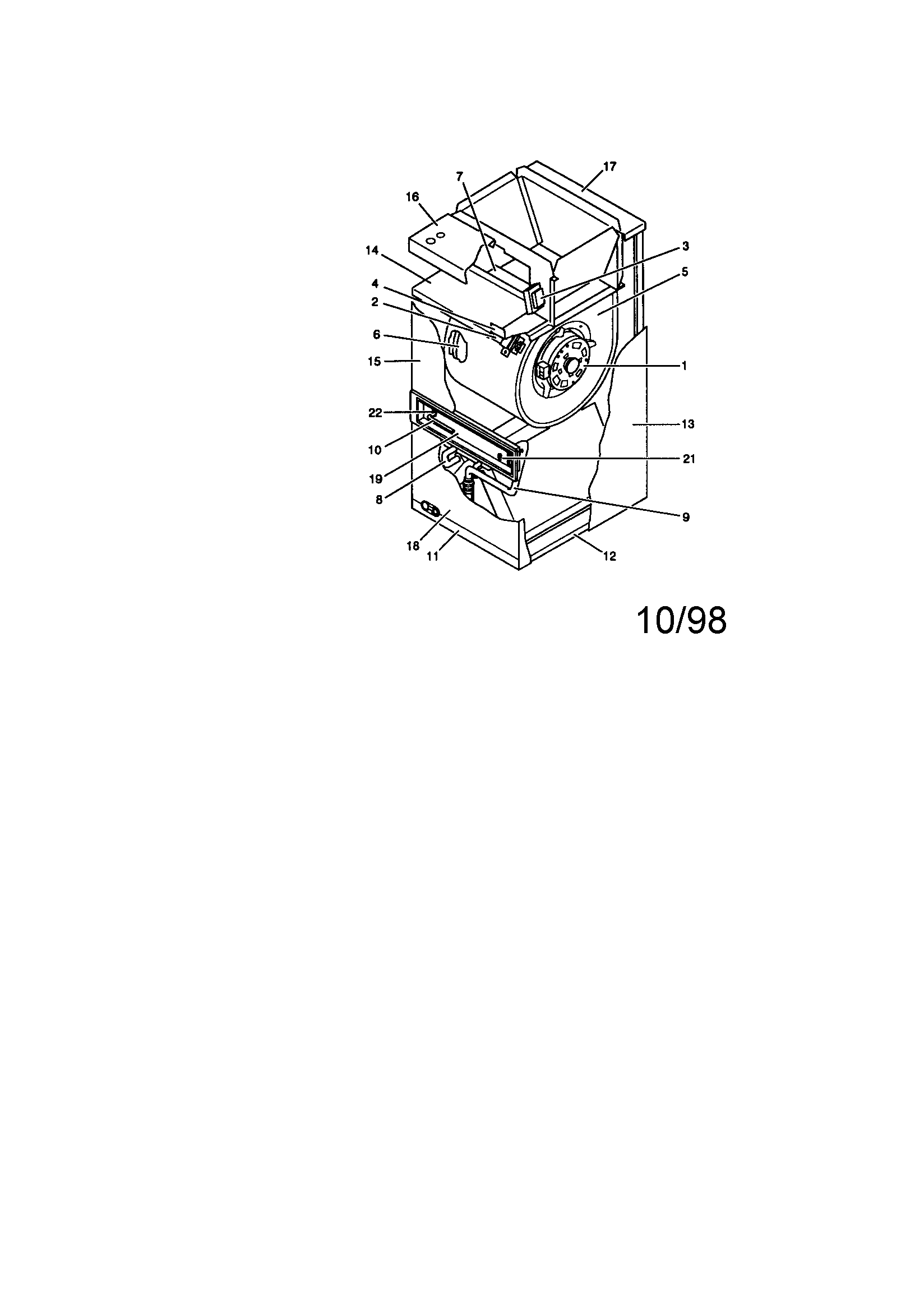

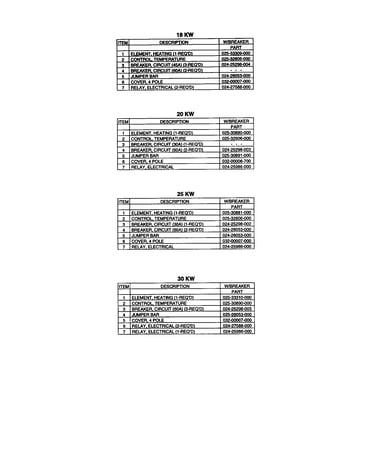

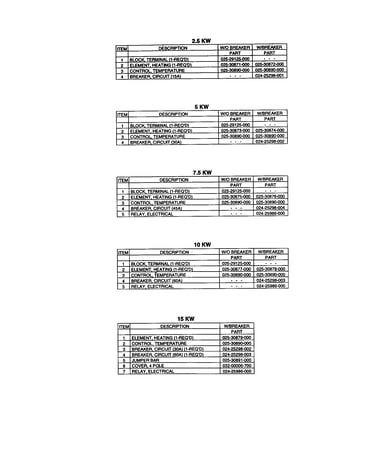

Blower evaporator coil diagram

Central air conditioner electronic control board

Part #031-01264-002

The manufacturer no longer makes this part, and there's no substitute part

Cap Run 024-20046-000
#2

Blower evaporator coil diagram

Cap run

Part #024-20046-000

Replaced by #12908

?
Manufacturer substitution
This part replaces 024-20046-000. Substitute parts can look different from the original.
This item is not returnable
$5.26 |
16% OFF Phone Price : $6.26
In Stock
Filter Door 073-14490-000
#11

Blower evaporator coil diagram

Filter door

Part #073-14490-000

The manufacturer no longer makes this part, and there's no substitute part

Grommet 3/4 028-13204-000
#22

Blower evaporator coil diagram

Grommet 3/4

Part #028-13204-000

The manufacturer no longer makes this part, and there's no substitute part

Distributor W/orifice 022-08972-065
#9

Blower evaporator coil diagram

Distributor w/orifice

Part #022-08972-065

The manufacturer no longer makes this part, and there's no substitute part

Manifold 373-14588-001
#10

Blower evaporator coil diagram

Manifold

Part #373-14588-001

The manufacturer no longer makes this part, and there's no substitute part

Plate, Circuit Breaker 032-00161-000
#20

Blower evaporator coil diagram

Plate, circuit breaker

Part #032-00161-000

The manufacturer no longer makes this part, and there's no substitute part

Panel, Door (top) 373-15383-001
#15

Blower evaporator coil diagram

Panel, door (top)

Part #373-15383-001

The manufacturer no longer makes this part, and there's no substitute part

Control Panel 073-17920-000
#14

Blower evaporator coil diagram

Control panel

Part #073-17920-000

The manufacturer no longer makes this part, and there's no substitute part

Air Moving-wheel, Blower 026-34005-000
#6

Blower evaporator coil diagram

Air moving-wheel, blower

Part #026-34005-000

The manufacturer no longer makes this part, and there's no substitute part
