Craftsman
Jointer/Planer

Model # 315175390 Official Craftsman biscuit joiner

Here are the diagrams and repair parts for Official Craftsman 315175390 biscuit joiner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

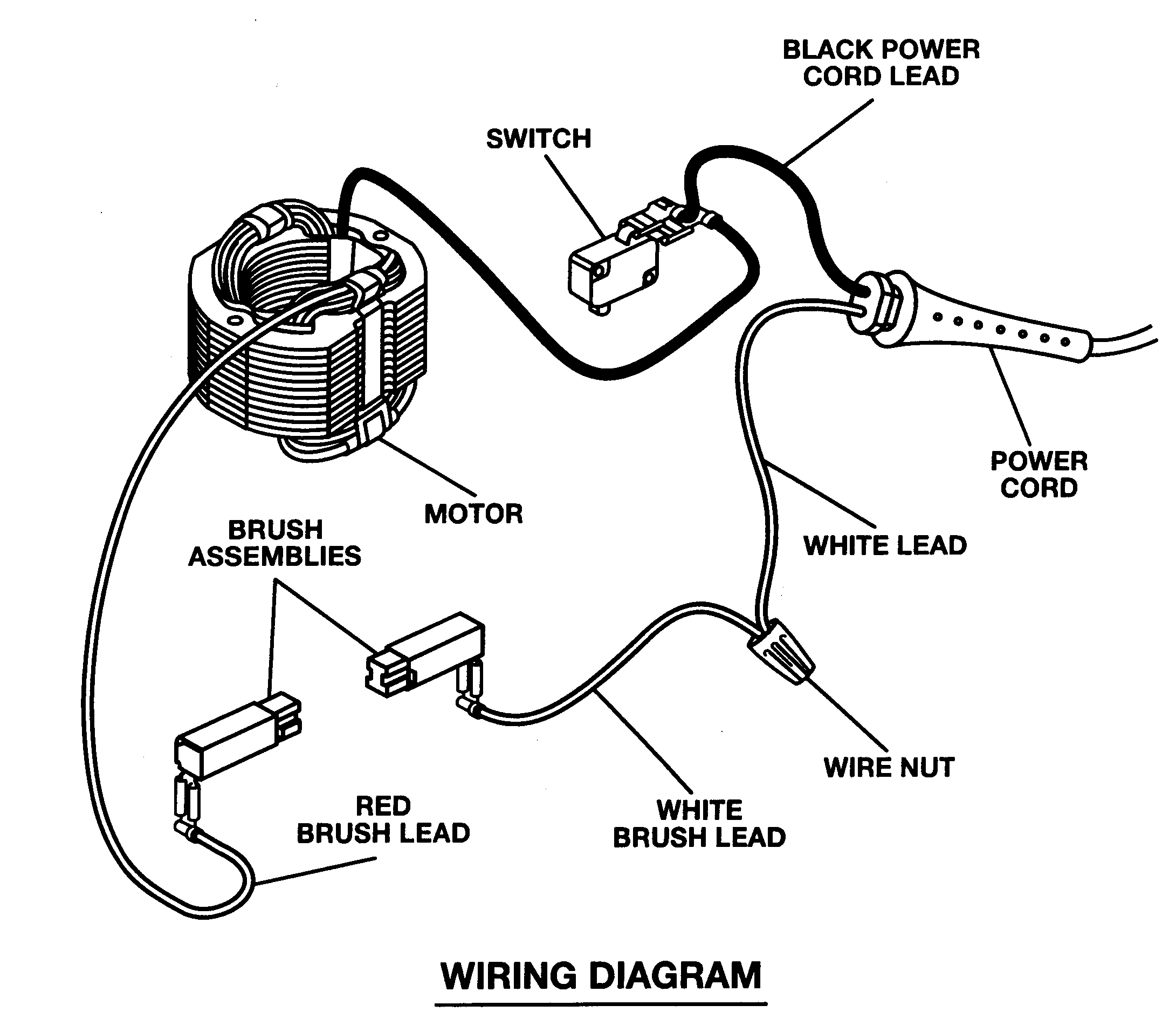

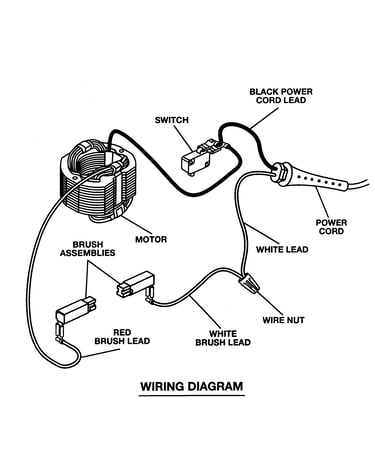

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |

Spring 690215001
#11

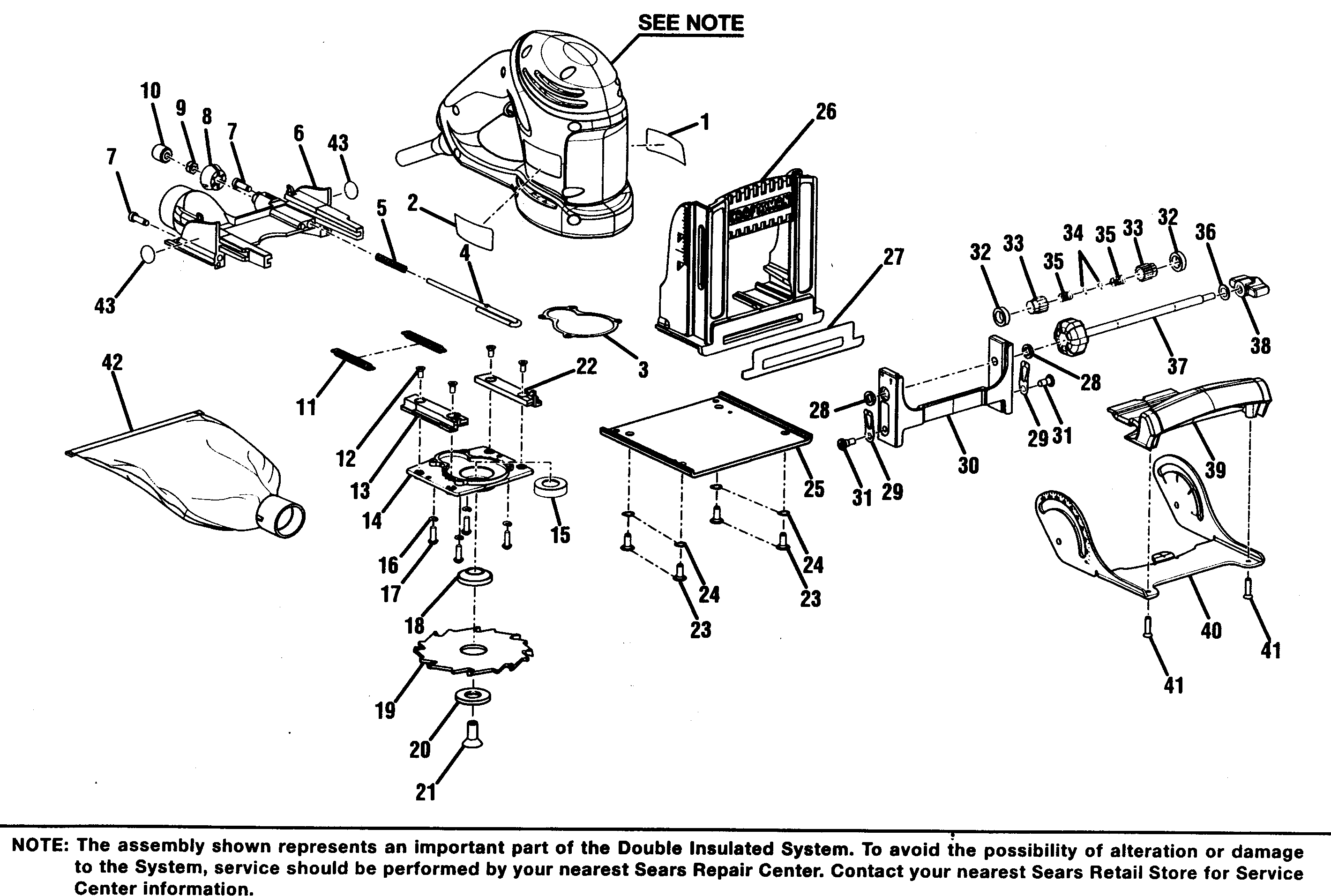

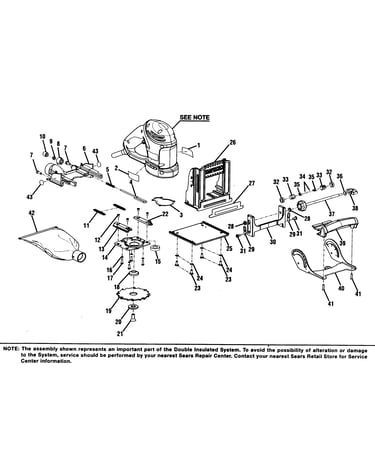

Joiner assy diagram

Spring

Part #690215001

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 671004001
#4

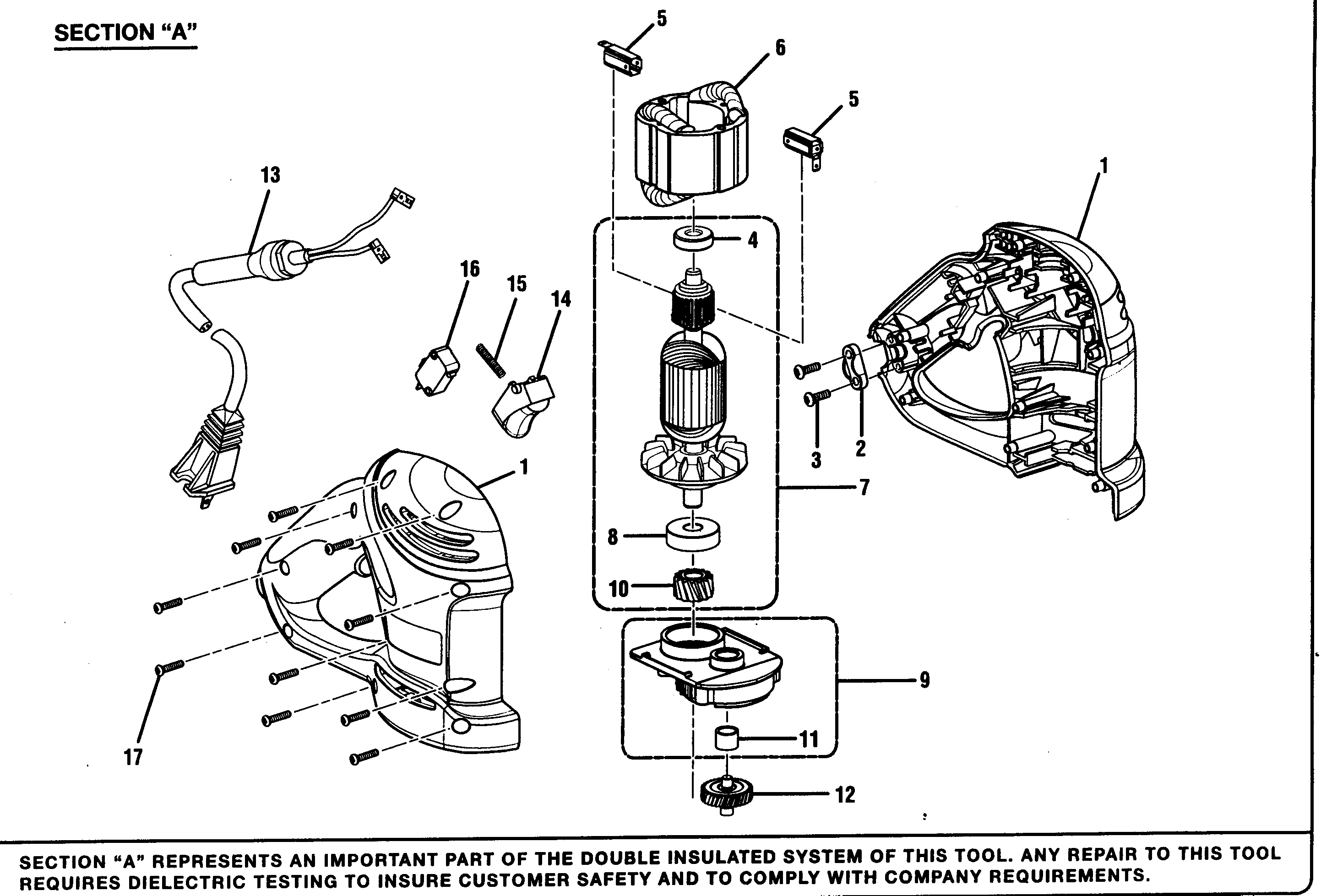

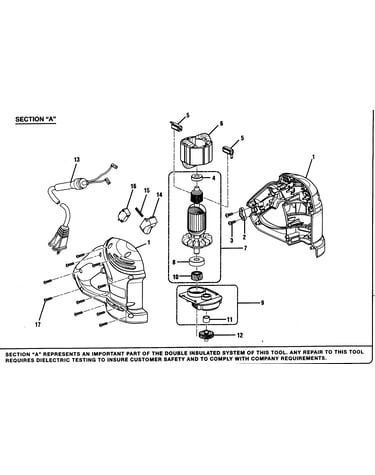

Motor assy diagram

Ball bearing

Part #671004001

The manufacturer no longer makes this part, and there's no substitute part

Gear Case 200281005
#9

Motor assy diagram

Gear case

Part #200281005

The manufacturer no longer makes this part, and there's no substitute part

Knob 512210001
#38

Joiner assy diagram

Knob

Part #512210001

The manufacturer no longer makes this part, and there's no substitute part

Track 512265001
#22

Joiner assy diagram

Track

Part #512265001

The manufacturer no longer makes this part, and there's no substitute part

Adjusting Fence 631151002
#40

Joiner assy diagram

Adjusting fence

Part #631151002

The manufacturer no longer makes this part, and there's no substitute part

Adj. Rod 630070001
#4

Joiner assy diagram

Adj. rod

Part #630070001

The manufacturer no longer makes this part, and there's no substitute part

Washer 570255001
#32

Joiner assy diagram

Washer

Part #570255001

The manufacturer no longer makes this part, and there's no substitute part

Screw 6620805
#3

Motor assy diagram

Screw

Part #6620805

The manufacturer no longer makes this part, and there's no substitute part

Bearing Plate 200294002
#14

Joiner assy diagram

Bearing plate

Part #200294002

The manufacturer no longer makes this part, and there's no substitute part
