Model # 489474141 Official Sears 26" 10-speed lightweight greenbriar bicycle

Here are the diagrams and repair parts for Official Sears 489474141 26" 10-speed lightweight greenbriar bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

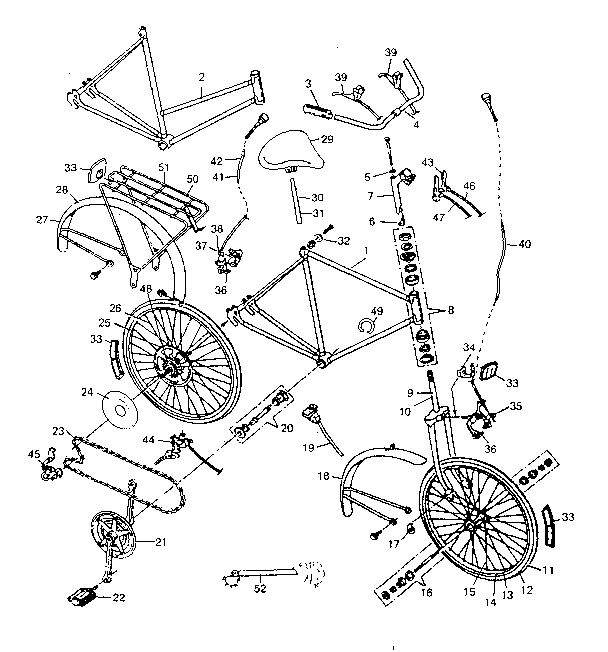

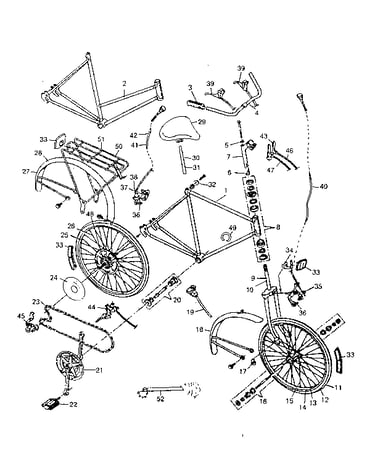

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |

Huffy Removal Tool 103004

#NI

All parts diagram

Huffy removal tool

Part #103004

The manufacturer no longer makes this part, and there's no substitute part

Ming Ta Bicycle Brake Shoe Set 104002
#36

Unit parts diagram

Ming ta bicycle brake shoe set

Part #104002

The manufacturer no longer makes this part, and there's no substitute part

Lifestyler Spoke/nipple 049016
#26

Unit parts diagram

Lifestyler spoke/nipple

Part #049016

The manufacturer no longer makes this part, and there's no substitute part

Pedal 070002
#22

Unit parts diagram

Pedal

Part #070002

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Tire 040002
#11

Unit parts diagram

Craftsman tire

Part #040002

The manufacturer no longer makes this part, and there's no substitute part

Rr Wheel Asm 045513
#25

Unit parts diagram

Rr wheel asm

Part #045513

The manufacturer no longer makes this part, and there's no substitute part

Bolt W/wedge 008001
#5

Unit parts diagram

Bolt w/wedge

Part #008001

The manufacturer no longer makes this part, and there's no substitute part

Drlr Cbl/csg 087003
#46

Unit parts diagram

Drlr cbl/csg

Part #087003

The manufacturer no longer makes this part, and there's no substitute part

Fork Assy 005053
#10

Unit parts diagram

Fork assy

Part #005053

The manufacturer no longer makes this part, and there's no substitute part

Saddle 030005
#29

Unit parts diagram

Saddle

Part #030005

The manufacturer no longer makes this part, and there's no substitute part
