Model # GSD6900J10BB Official GE dishwasher

Here are the diagrams and repair parts for Official GE GSD6900J10BB dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

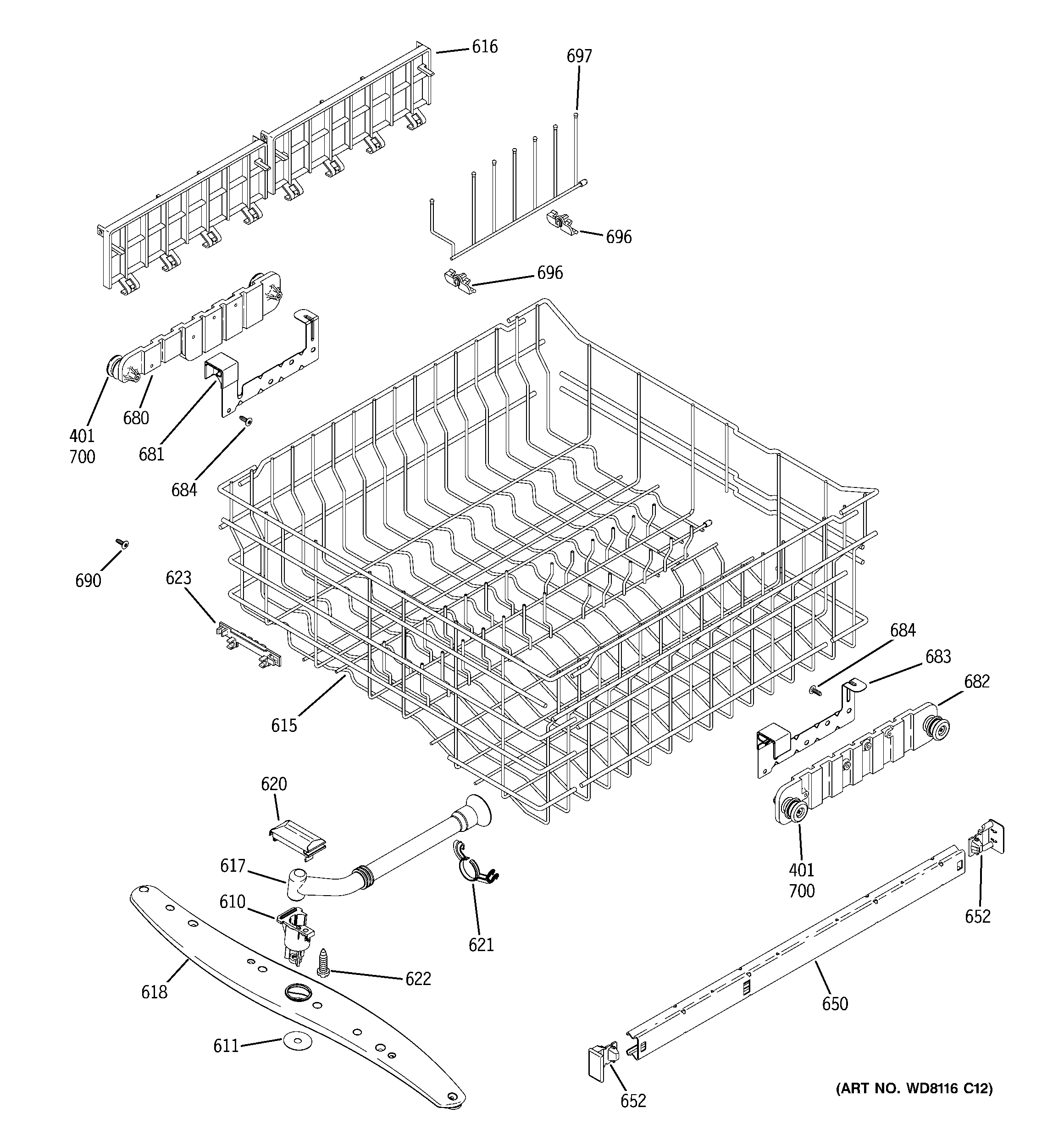

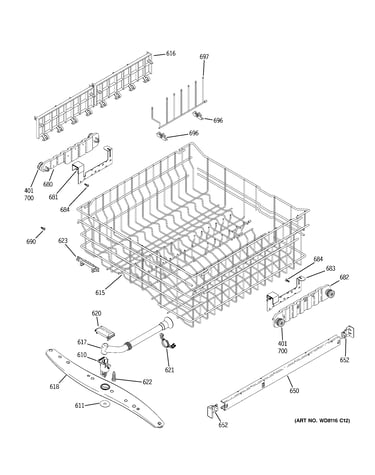

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Recess Sprng WR02X10585
#801

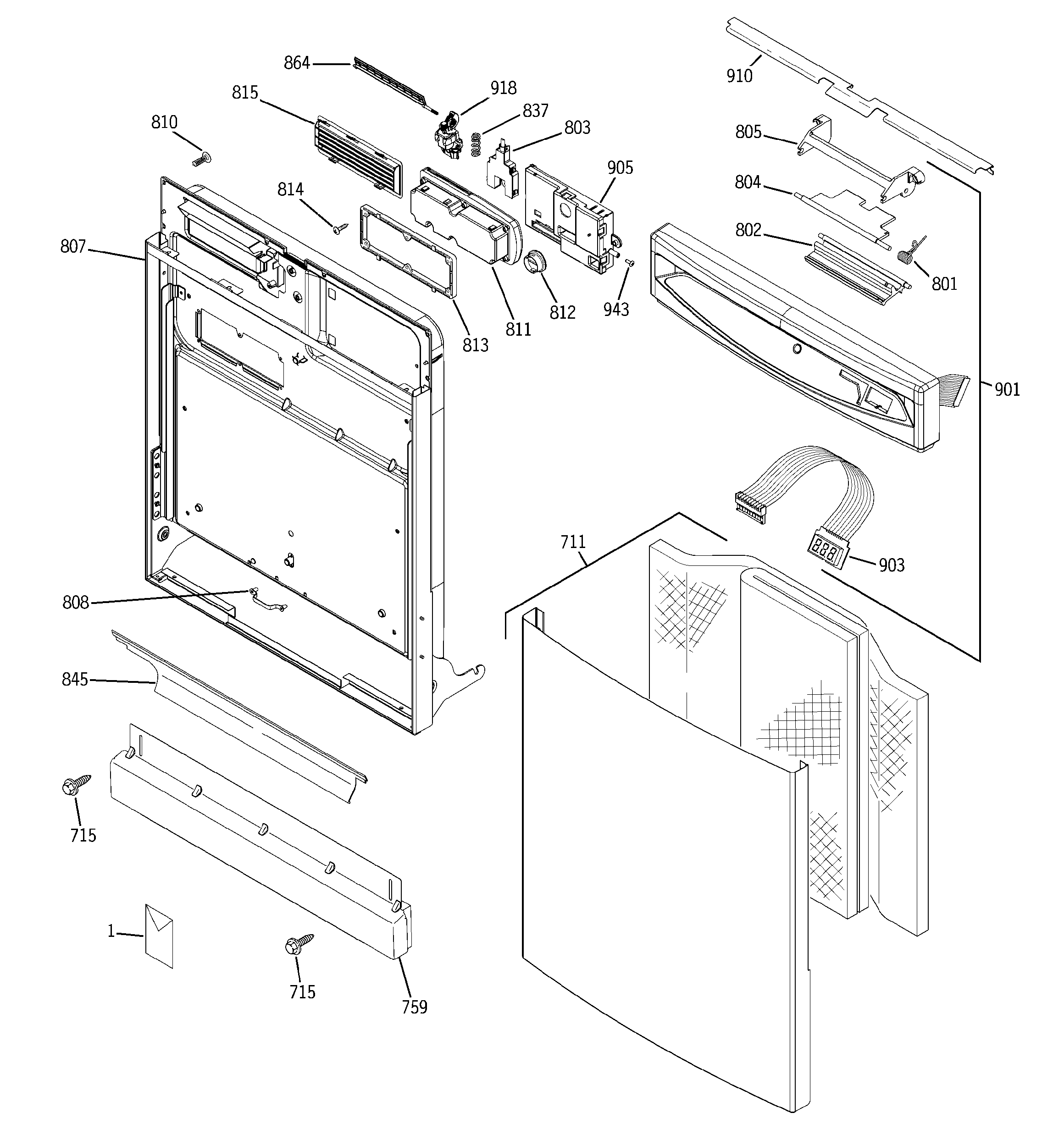

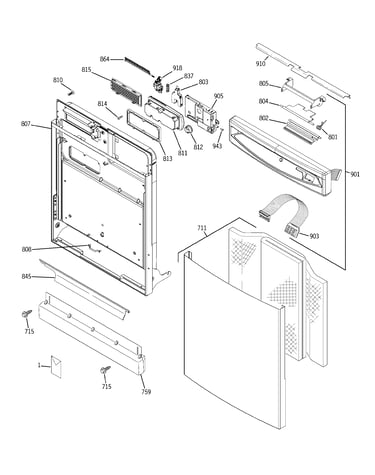

Escutcheon & door assembly diagram

Recess sprng

Part #WR02X10585

Replaced by #WR02X10585

?
Manufacturer substitution
This part replaces WR02X10585. Substitute parts can look different from the original.
BEST SELLER
$7.91 |
11% OFF Phone Price : $8.91
In Stock
Mechanism Assembly WD26X10022
#310

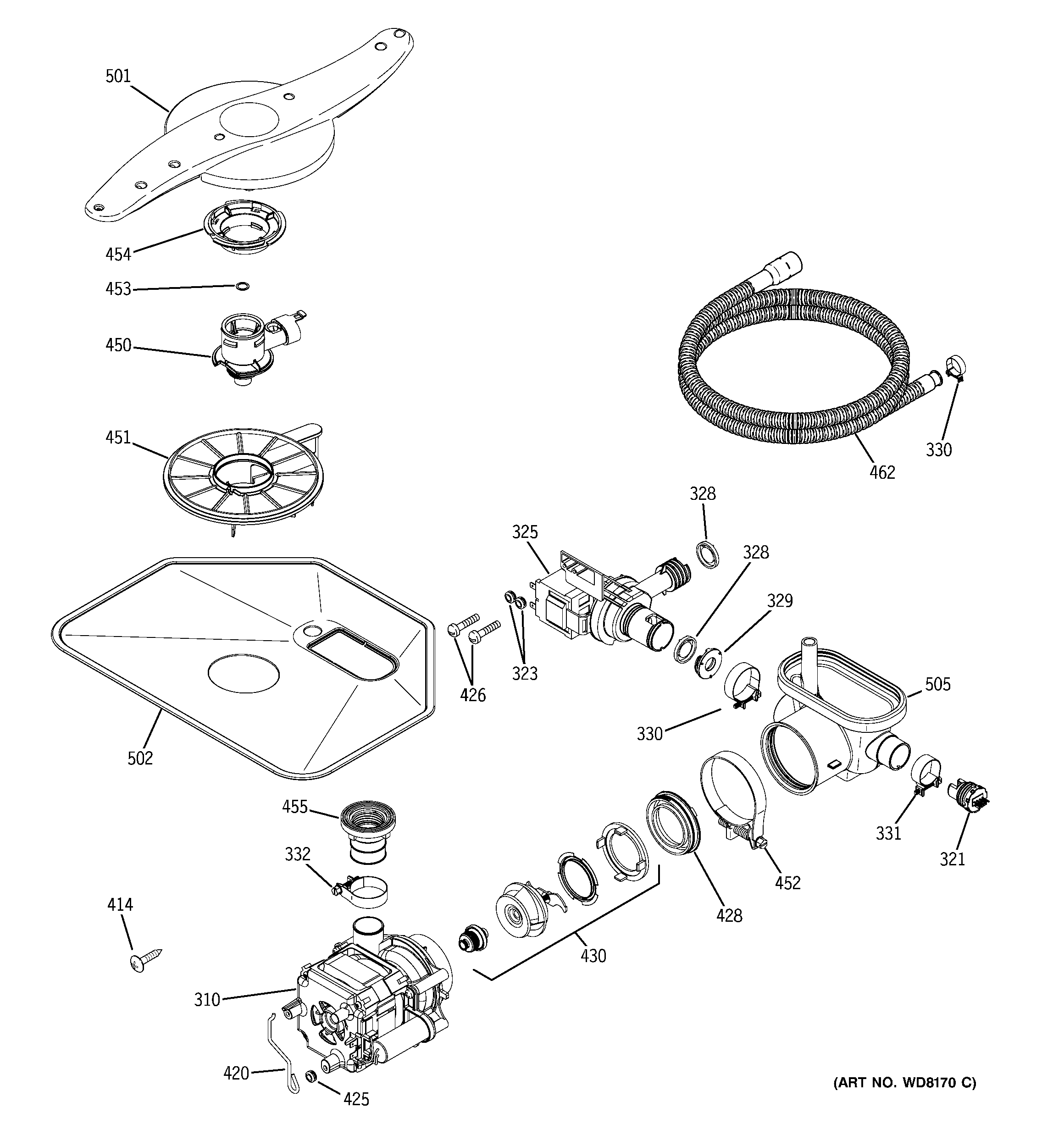

Motor-pump mechanism diagram

Mechanism assembly

Part #WD26X10022

Replaced by #WD26X10053

?
Manufacturer substitution
This part replaces WD26X10022. Substitute parts can look different from the original.
BEST SELLER
$276.05 |
$12.00 OFF Phone Price : $288.05
In Stock
Dishwasher Tub Gasket WD08X10018
#843

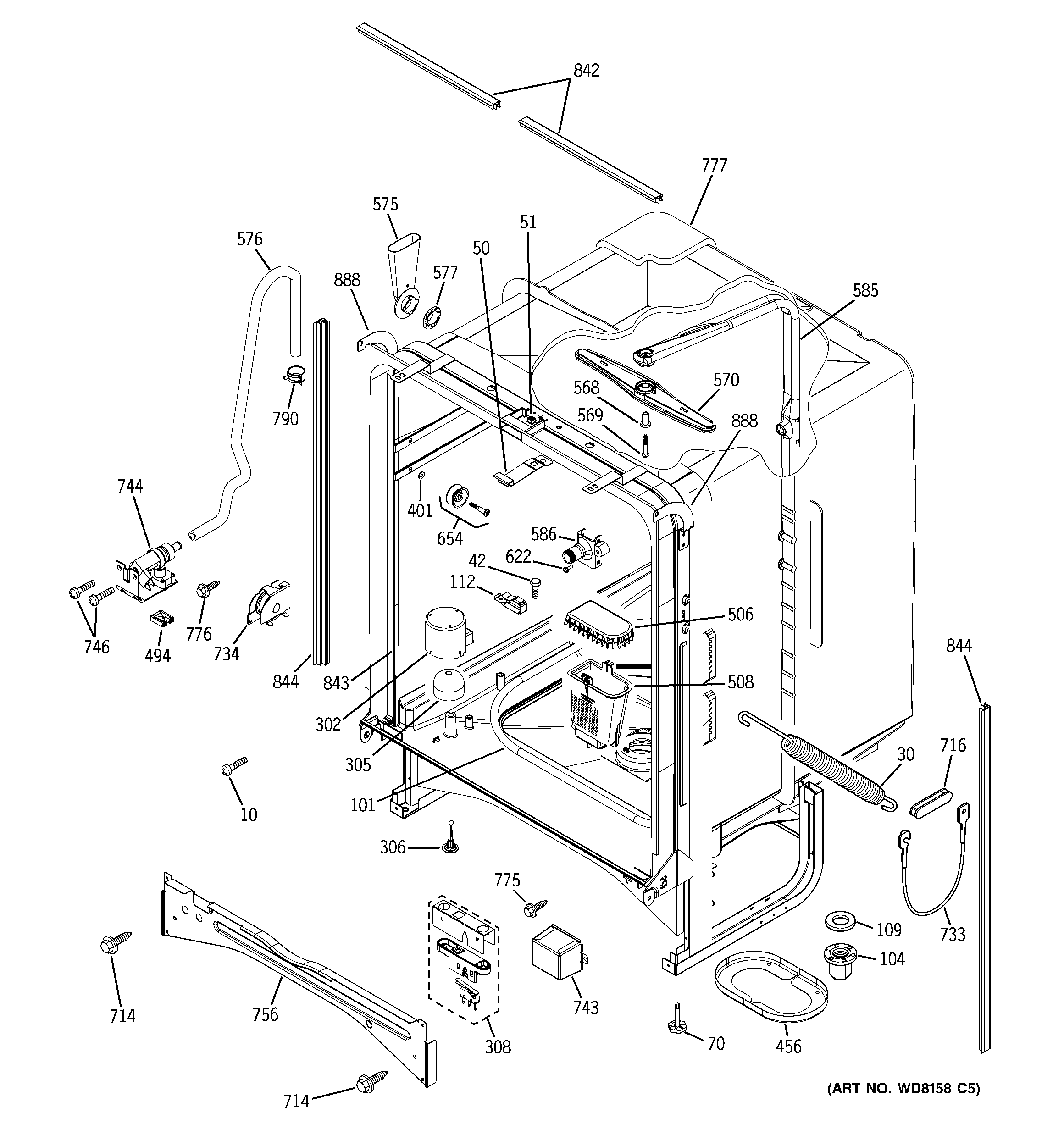

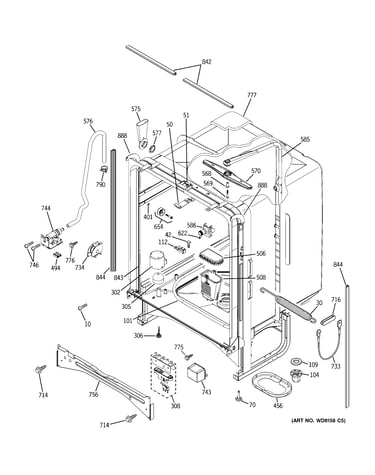

Body parts diagram

Dishwasher tub gasket

Part #WD08X10018

BEST SELLER
$33.32 |
15% OFF Phone Price : $39.32
In Stock
Dishwasher Pump Impeller Kit WD19X10038
#430

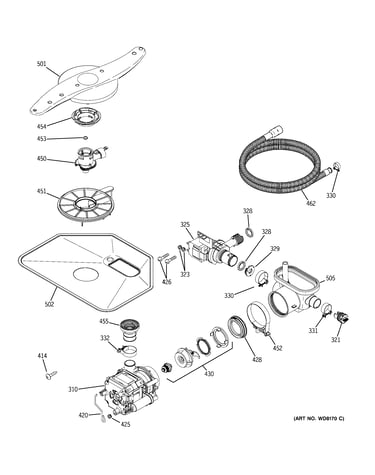

Motor-pump mechanism diagram

Dishwasher pump impeller kit

Part #WD19X10038

BEST SELLER
$46.86 |
11% OFF Phone Price : $52.86
In Stock
Dishwasher Basket Lid WD28X10068
#767

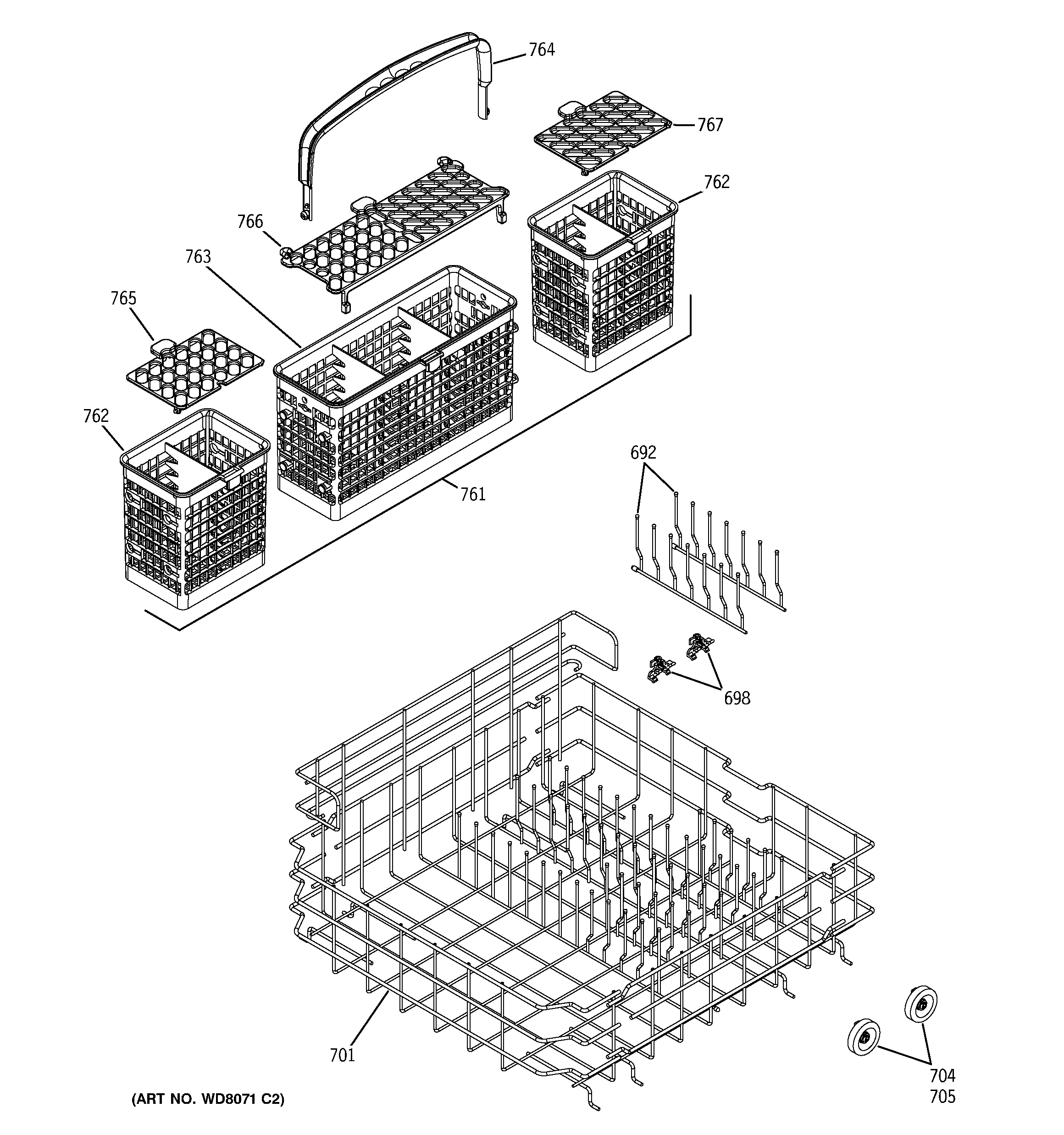

Lower rack assembly diagram

Dishwasher basket lid

Part #WD28X10068

Replaced by #WD28X24469

?
Manufacturer substitution
This part replaces WD28X10068. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$30.00 |
17% OFF Phone Price : $36.00
In Stock
Basket 7 Pc WD28X10058
#761

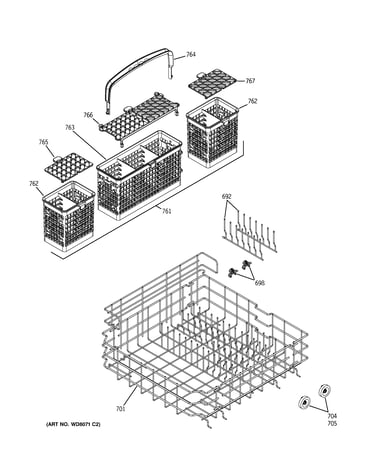

Lower rack assembly diagram

Basket 7 pc

Part #WD28X10058

Replaced by #WD28X24469

?
Manufacturer substitution
This part replaces WD28X10058. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$30.00 |
17% OFF Phone Price : $36.00
In Stock
Dishwasher Silverware Basket WD28X10037
#763

Lower rack assembly diagram

Dishwasher silverware basket

Part #WD28X10037

Replaced by #WD28X24469

?
Manufacturer substitution
This part replaces WD28X10037. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$30.00 |
17% OFF Phone Price : $36.00
In Stock
Dishwasher Silverware Basket WD28X10153
#762

Lower rack assembly diagram

Dishwasher silverware basket

Part #WD28X10153

Replaced by #WD28X24469

?
Manufacturer substitution
This part replaces WD28X10153. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$30.00 |
17% OFF Phone Price : $36.00
In Stock
Dishwasher Dishrack Roller And Stud WD12X10074
#705

Lower rack assembly diagram

Dishwasher dishrack roller and stud

Part #WD12X10074

Replaced by #WD35X21038

?
Manufacturer substitution
This part replaces WD12X10074. Substitute parts can look different from the original.
BEST SELLER
$32.91 |
15% OFF Phone Price : $38.91
In Stock
Low Roll Rack WD28X10073
#701

Lower rack assembly diagram

Low roll rack

Part #WD28X10073

Replaced by #WD28X25960

?
Manufacturer substitution
This part replaces WD28X10073. Substitute parts can look different from the original.
$157.66 |
7% OFF Phone Price : $169.66
In Stock
