Rival
Ice Cream Maker

Model # F69206 Official Rival 6-quart ice cream freezer

Here are the diagrams and repair parts for Official Rival F69206 6-quart ice cream freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |

Motor 517-067
#402

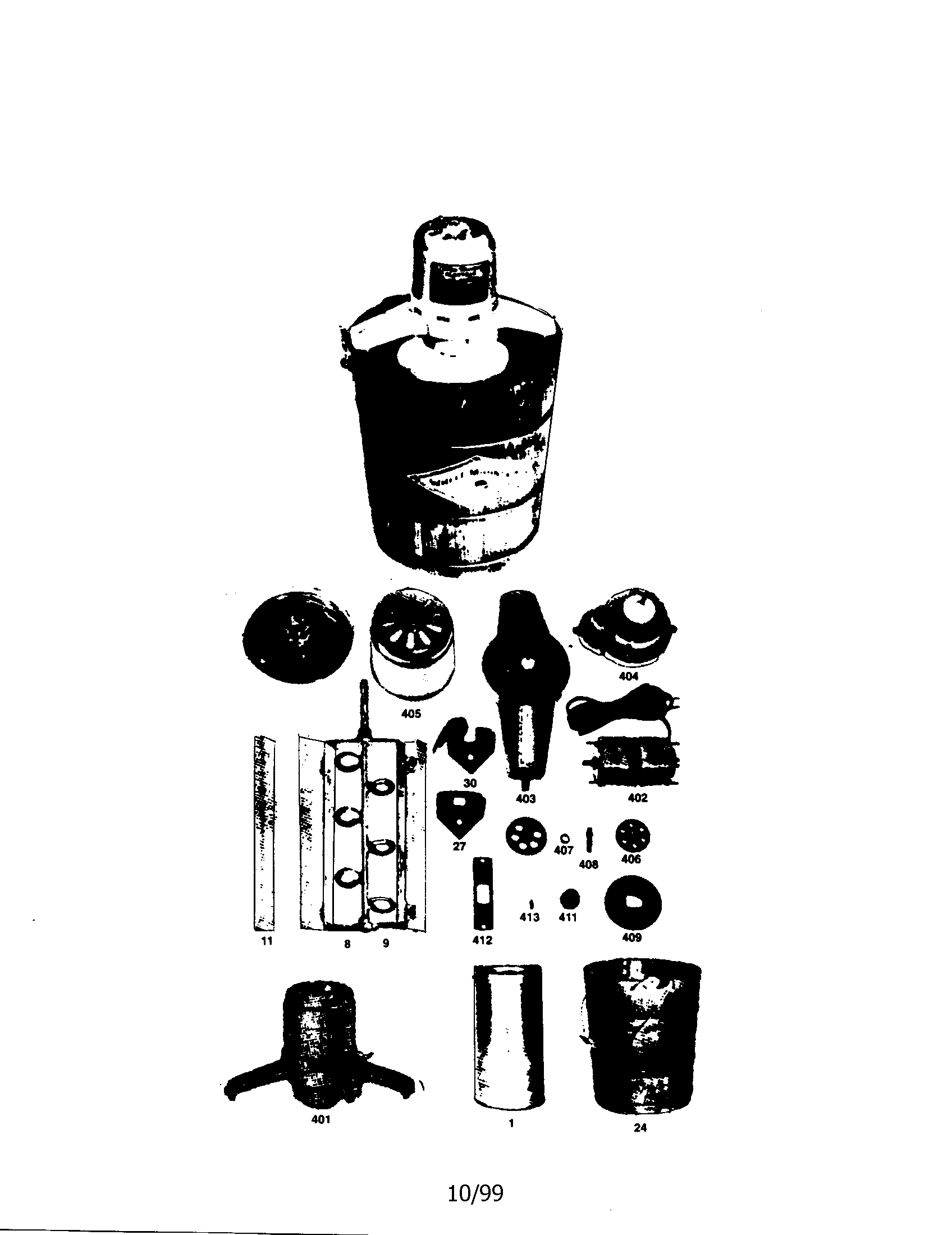

Ice cream freezer, 6 qt. diagram

Motor

Part #517-067

The manufacturer no longer makes this part, and there's no substitute part

Scrapers 668-003
#11

Ice cream freezer, 6 qt. diagram

Scrapers

Part #668-003

The manufacturer no longer makes this part, and there's no substitute part

Housing 404-147
#404

Ice cream freezer, 6 qt. diagram

Housing

Part #404-147

The manufacturer no longer makes this part, and there's no substitute part

Ear 093-350
#27

Ice cream freezer, 6 qt. diagram

Ear

Part #093-350

The manufacturer no longer makes this part, and there's no substitute part

Unit 997-861
#401

Ice cream freezer, 6 qt. diagram

Unit

Part #997-861

The manufacturer no longer makes this part, and there's no substitute part

Holder 766-063
#412

Ice cream freezer, 6 qt. diagram

Holder

Part #766-063

The manufacturer no longer makes this part, and there's no substitute part

Ring 639-048
#407

Ice cream freezer, 6 qt. diagram

Ring

Part #639-048

The manufacturer no longer makes this part, and there's no substitute part

Gear 997-896
#410

Ice cream freezer, 6 qt. diagram

Gear

Part #997-896

The manufacturer no longer makes this part, and there's no substitute part

Lid 230-316
#4

Ice cream freezer, 6 qt. diagram

Lid

Part #230-316

The manufacturer no longer makes this part, and there's no substitute part

Holder 407-048
#411

Ice cream freezer, 6 qt. diagram

Holder

Part #407-048

The manufacturer no longer makes this part, and there's no substitute part
