Model # 225581506 Official Craftsman outboard motor

Here are the diagrams and repair parts for Official Craftsman 225581506 outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

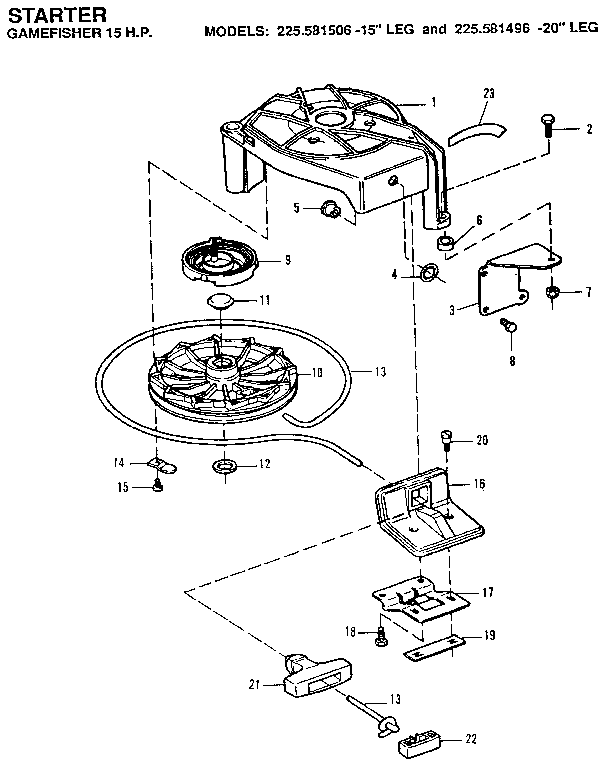

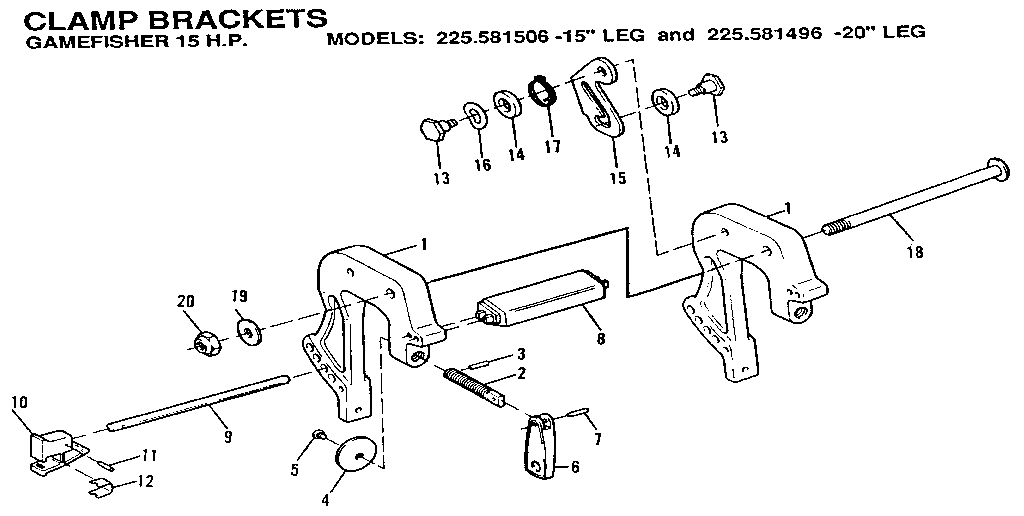

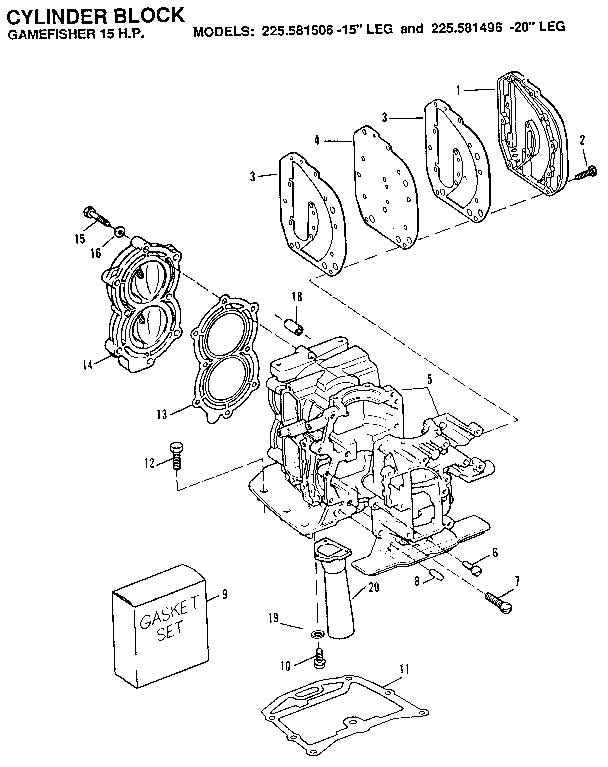

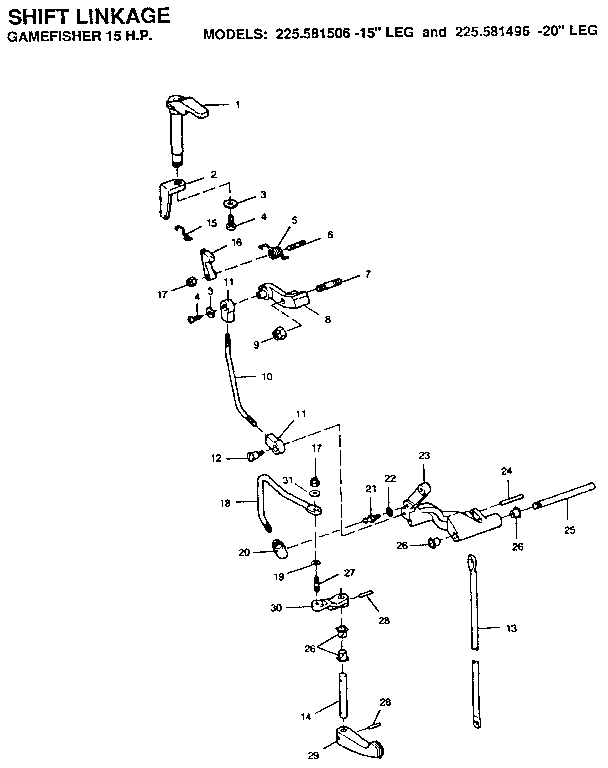

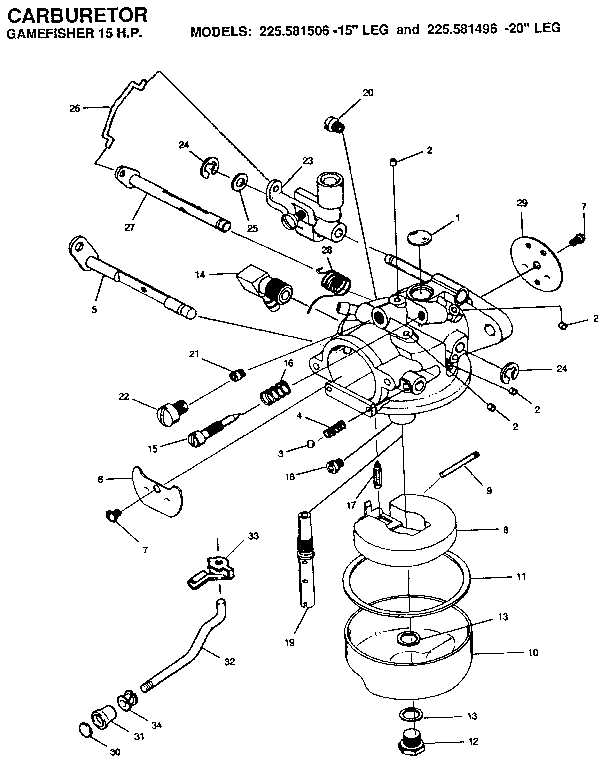

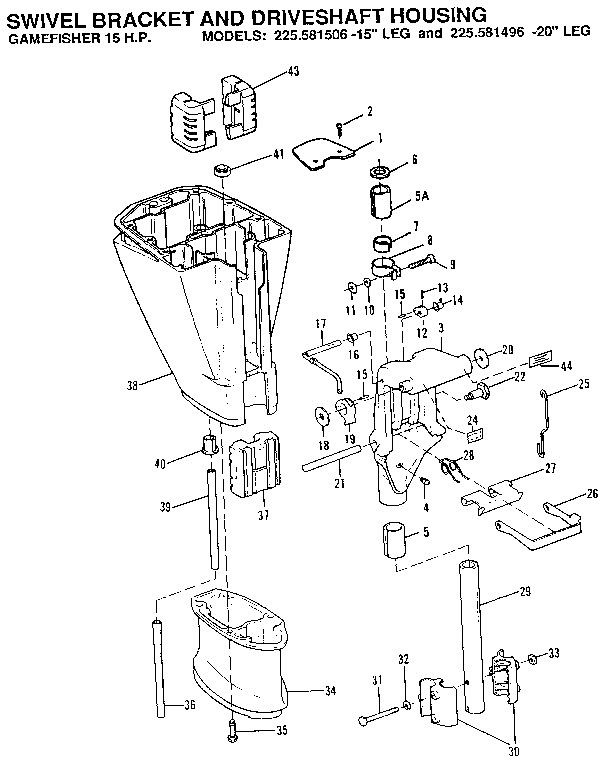

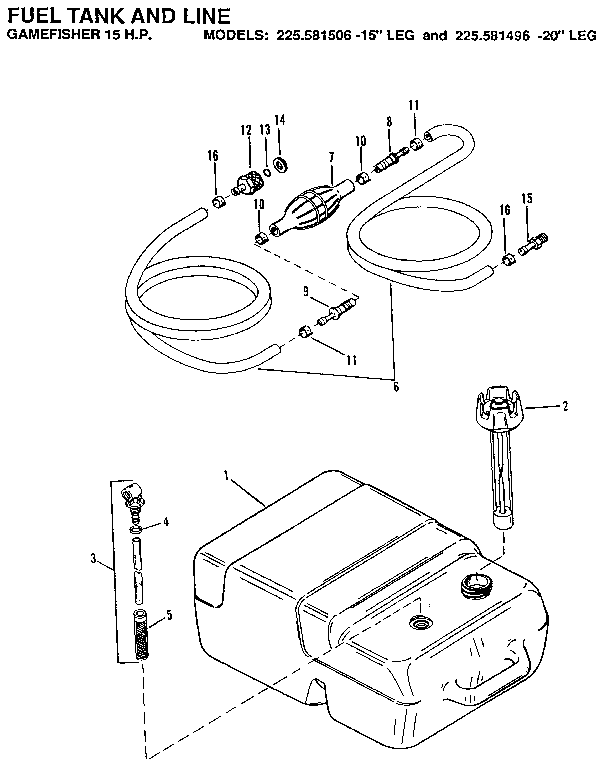

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 377 parts |

Thermostat diagram

Boat motor thermostat

Part #819550

The manufacturer no longer makes this part, and there's no substitute part

#10

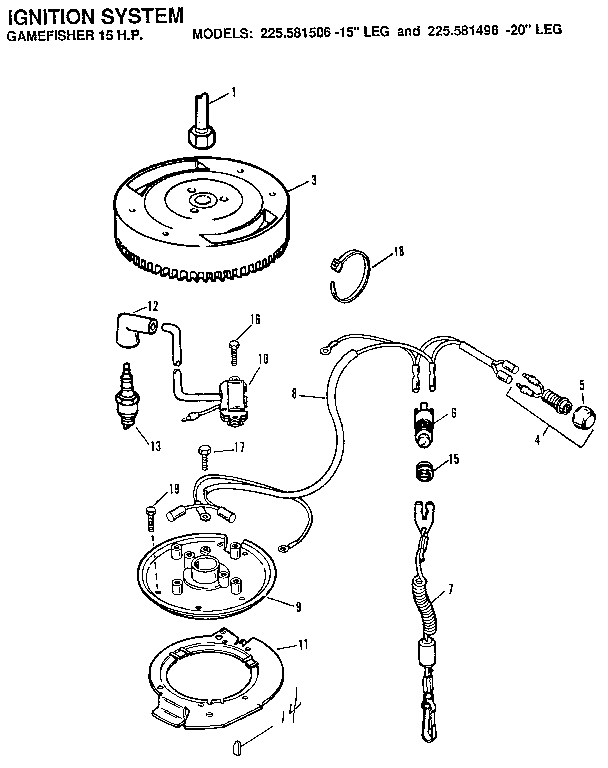

Ignition system diagram

Ignition module

Part #819156T

The manufacturer no longer makes this part, and there's no substitute part

#12A

Ignition system diagram

Boot kit

Part #FK1123

The manufacturer no longer makes this part, and there's no substitute part

#24

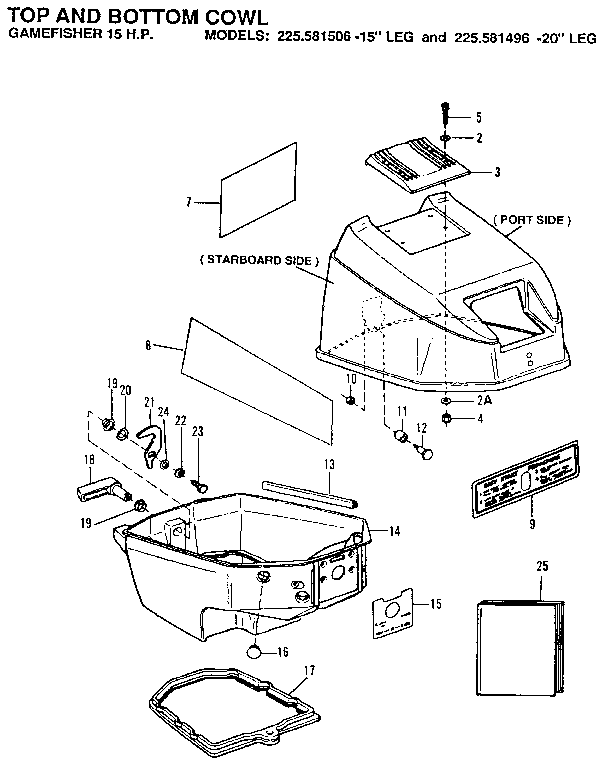

Top and bottom cowl diagram

Washer

Part #12-71055

The manufacturer no longer makes this part, and there's no substitute part

#43

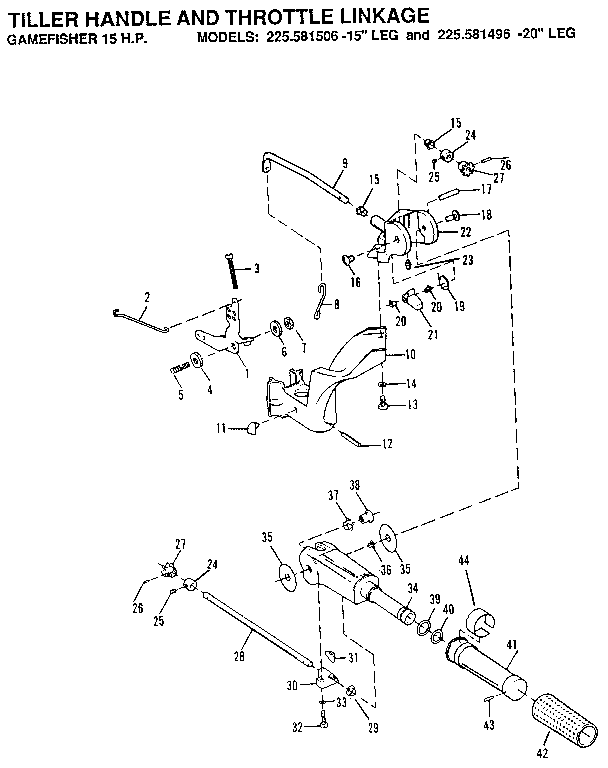

Tiller handle and throttle linkage diagram

Part #F8548

The manufacturer no longer makes this part, and there's no substitute part

#28

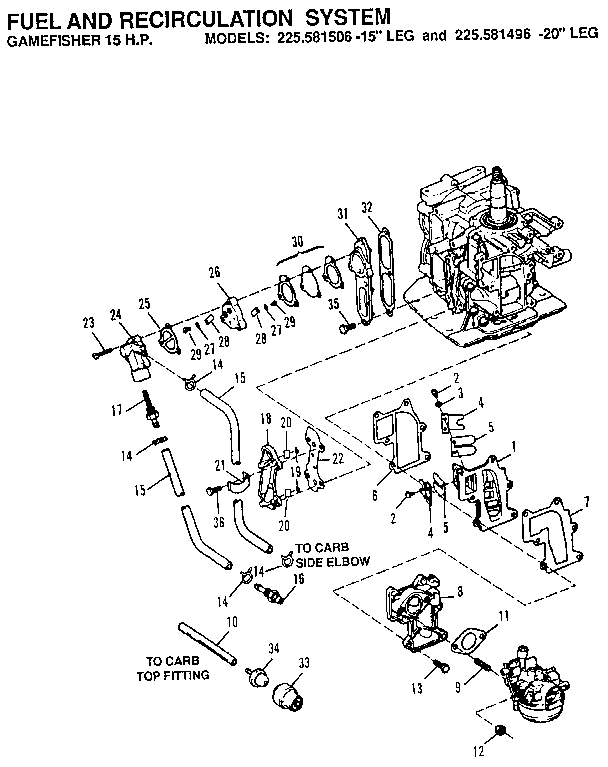

Fuel and recirculation system diagram

Reed

Part #34-F18160-3

The manufacturer no longer makes this part, and there's no substitute part

#33

Fuel and recirculation system diagram

Cover

Part #F681954-1

The manufacturer no longer makes this part, and there's no substitute part

#42

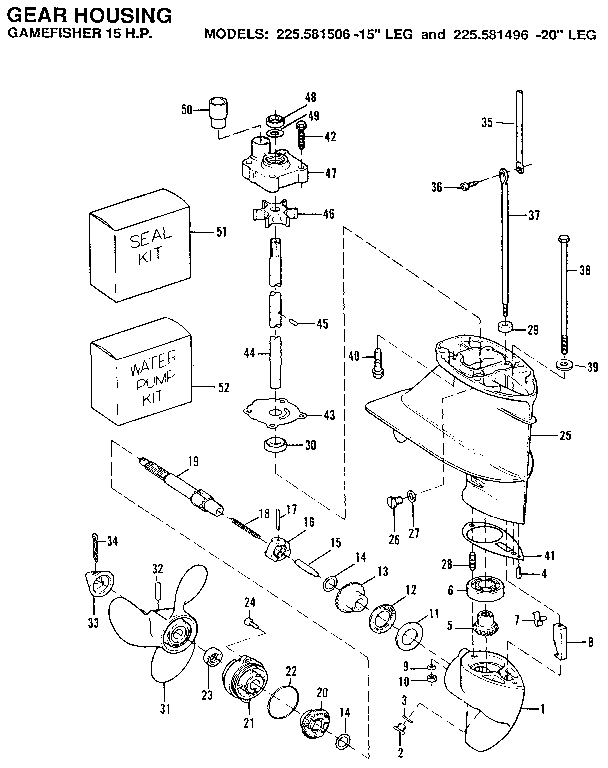

Gear housing diagram

Screw

Part #10-F2030

The manufacturer no longer makes this part, and there's no substitute part

Top and bottom cowl diagram

Nut

Part #11-F7009

The manufacturer no longer makes this part, and there's no substitute part

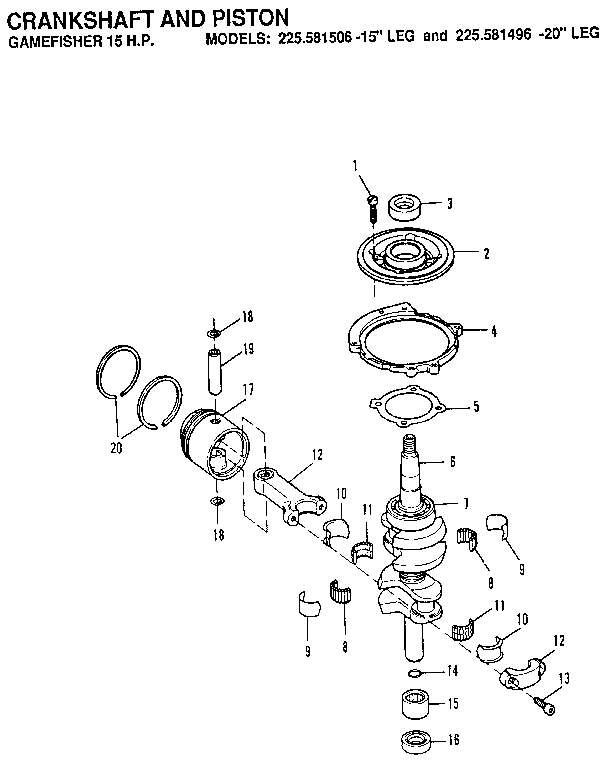

Crankshaft and piston diagram

Liner set

Part #FA286155

The manufacturer no longer makes this part, and there's no substitute part
