Model # 1068560 Official Kenmore ice maker kit
Here are the diagrams and repair parts for Official Kenmore 1068560 ice maker kit, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
1068560 Refrigerators
#27

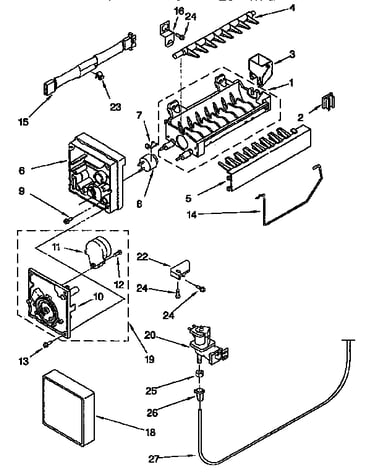

Icemaker diagram
Refrigerator tube
Part #653499
Replaced by #W10823511
?
Manufacturer substitution
This part replaces 653499. Substitute parts can look different from the original.
$28.03 |
18% OFF Phone Price : $34.03
In Stock
#NI
All parts diagram
Fitting (almond)
Part #836489
Replaced by #WP2196157
?
Manufacturer substitution
This part replaces 836489. Substitute parts can look different from the original.
$7.09 |
12% OFF Phone Price : $8.09
In Stock
#10
Icemaker diagram
Motor mold
Part #628399
Replaced by #W10190935
?
Manufacturer substitution
This part replaces 628399. Substitute parts can look different from the original.
$90.45 |
6% OFF Phone Price : $96.45
In Stock
#19
Icemaker diagram
Motor mold
Part #628366
The manufacturer no longer makes this part, and there's no substitute part
#11
Icemaker diagram
Motor mold
Part #628398
Replaced by #W10190935
?
Manufacturer substitution
This part replaces 628398. Substitute parts can look different from the original.
$90.45 |
6% OFF Phone Price : $96.45
In Stock
#25
Icemaker diagram
Refrigerator water tube fitting
Part #627018
Replaced by #WP627018
?
Manufacturer substitution
This part replaces 627018. Substitute parts can look different from the original.
This item is not returnable
$8.09 |
11% OFF Phone Price : $9.09
In Stock
#1
Icemaker diagram
Refrigerator ice mold
Part #628228
Replaced by #WPW10190929
?
Manufacturer substitution
This part replaces 628228. Substitute parts can look different from the original.
$160.41 |
7% OFF Phone Price : $172.41
In Stock
#6
Icemaker diagram
Housing
Part #627790
Replaced by #WP2195914
?
Manufacturer substitution
This part replaces 627790. Substitute parts can look different from the original.
$40.73 |
13% OFF Phone Price : $46.73
In Stock
#14
Icemaker diagram
Refrigerator ice maker shut-off arm
Part #627792
Replaced by #WP627792
?
Manufacturer substitution
This part replaces 627792. Substitute parts can look different from the original.
$39.44 |
13% OFF Phone Price : $45.44
In Stock
#18
Icemaker diagram
Refrigerator cover
Part #2174358
Replaced by #WPW10289690
?
Manufacturer substitution
This part replaces 2174358. Substitute parts can look different from the original.
This item is not returnable
$3.69 |
21% OFF Phone Price : $4.69
In Stock
