Kenmore
Canister Vacuum

Model # 72123425000 Official Kenmore vacuum

Here are the diagrams and repair parts for Official Kenmore 72123425000 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Holder 4930FI2231F
#G001

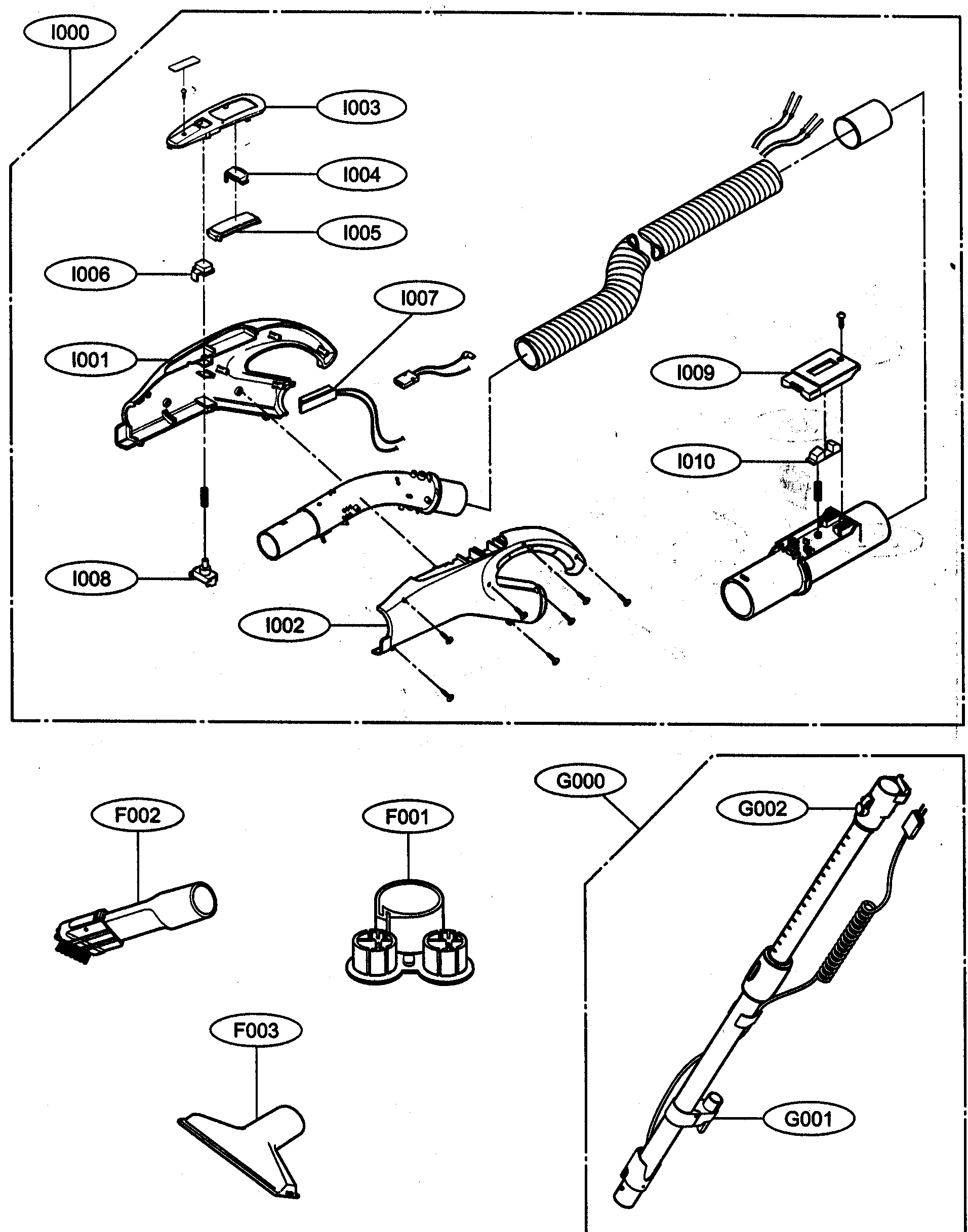

Accessory holder/hose assy diagram

Holder

Part #4930FI2231F

This item is not returnable
$2.16
In Stock
Us Pressed Steel Screw 1TPL0402818
#B010

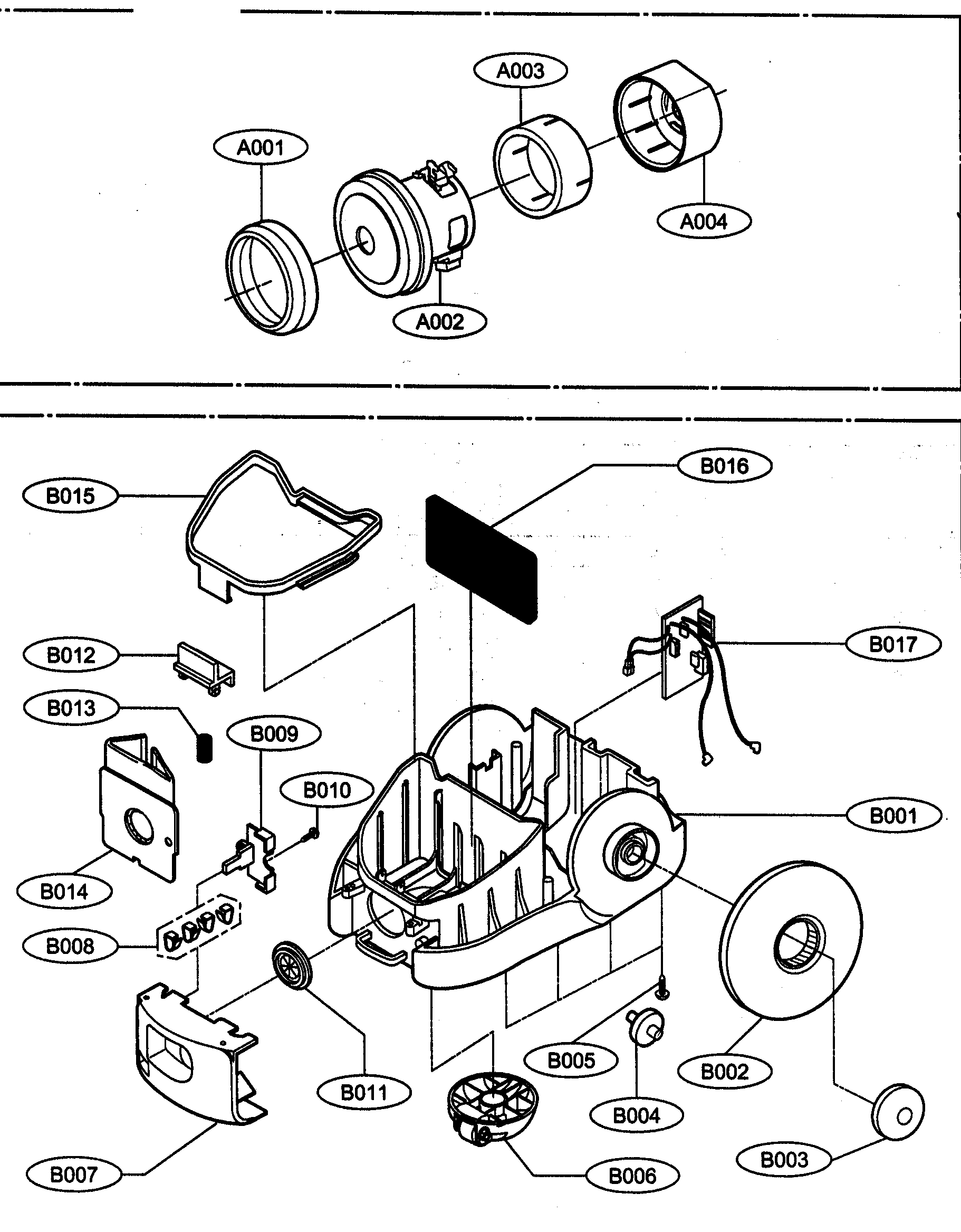

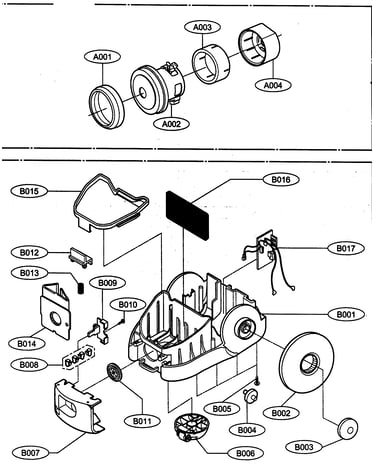

Motor assy/body base diagram

Us pressed steel screw

Part #1TPL0402818

This item is not returnable
$2.27
In Stock
Vacuum Screw 1TPL0302818
#D007

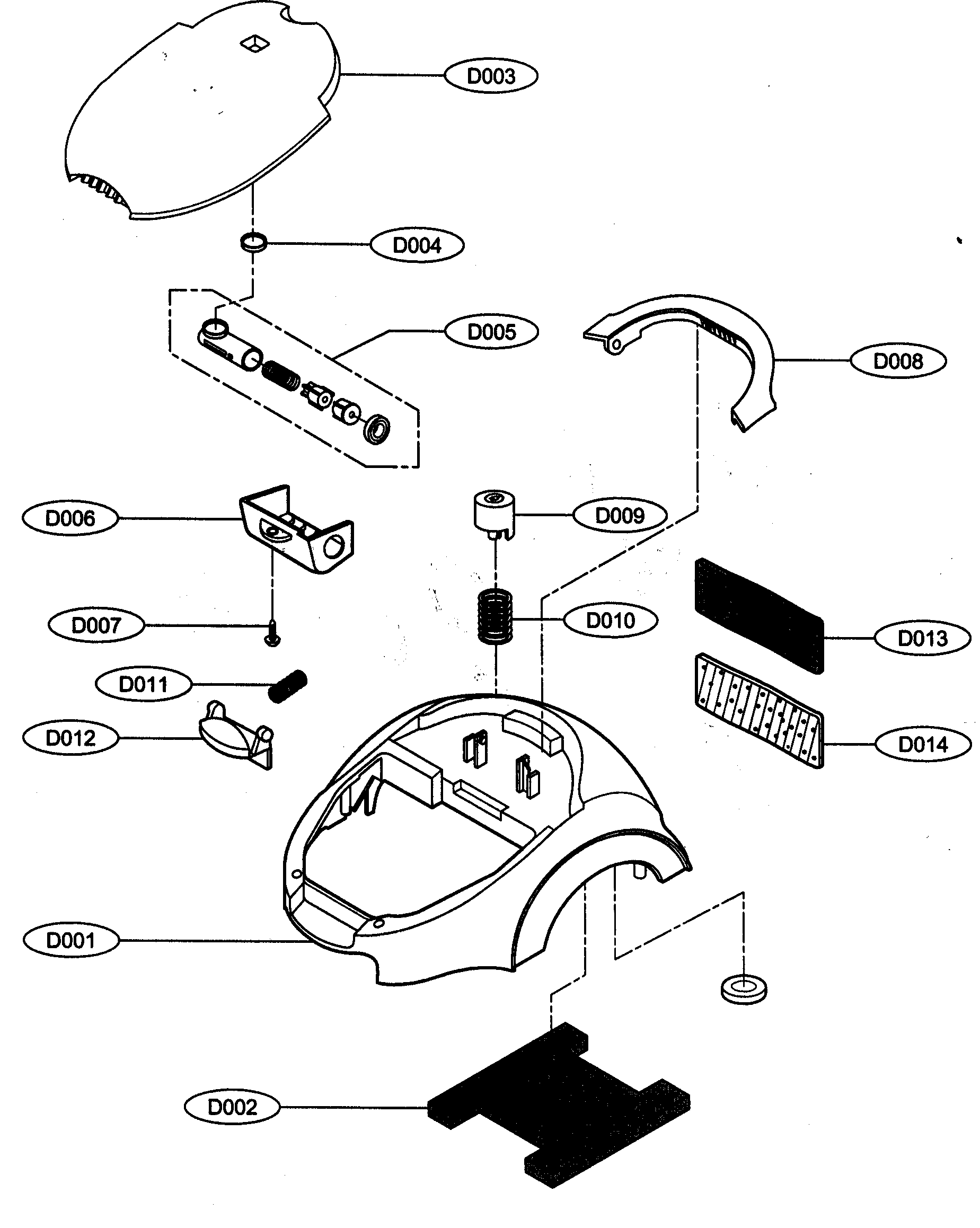

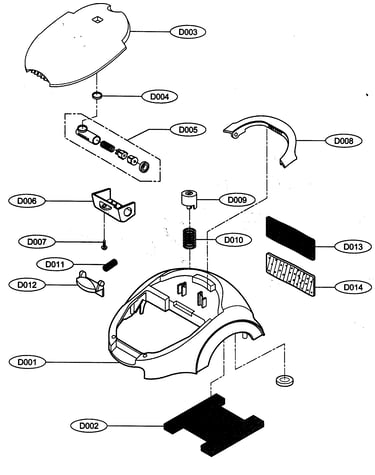

Body cover assy diagram

Vacuum screw

Part #1TPL0302818

This item is not returnable
$2.16
In Stock
Lever Supporter 4980FI2433A
#J023

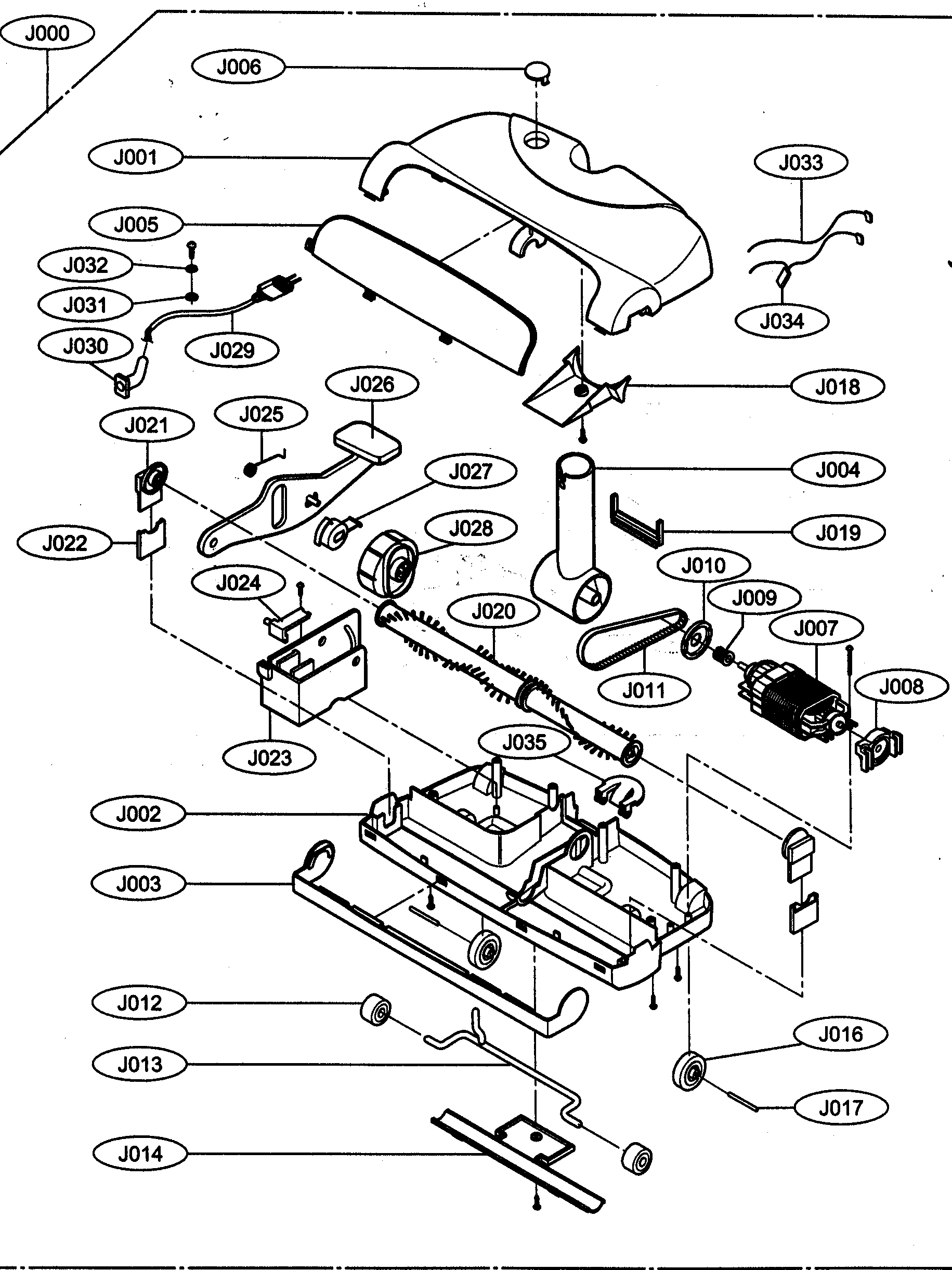

Power mate assy diagram

Lever supporter

Part #4980FI2433A

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Switch 6601FI3472A
#I008

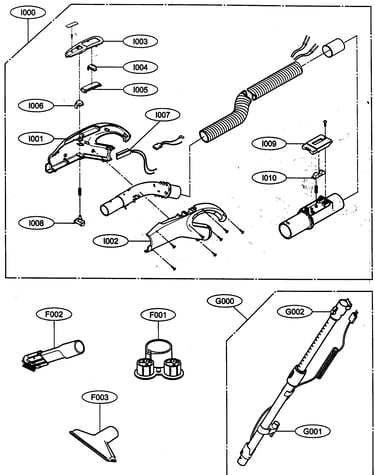

Accessory holder/hose assy diagram

Vacuum switch

Part #6601FI3472A

The manufacturer no longer makes this part, and there's no substitute part

Fuse 4I60037W
#C003

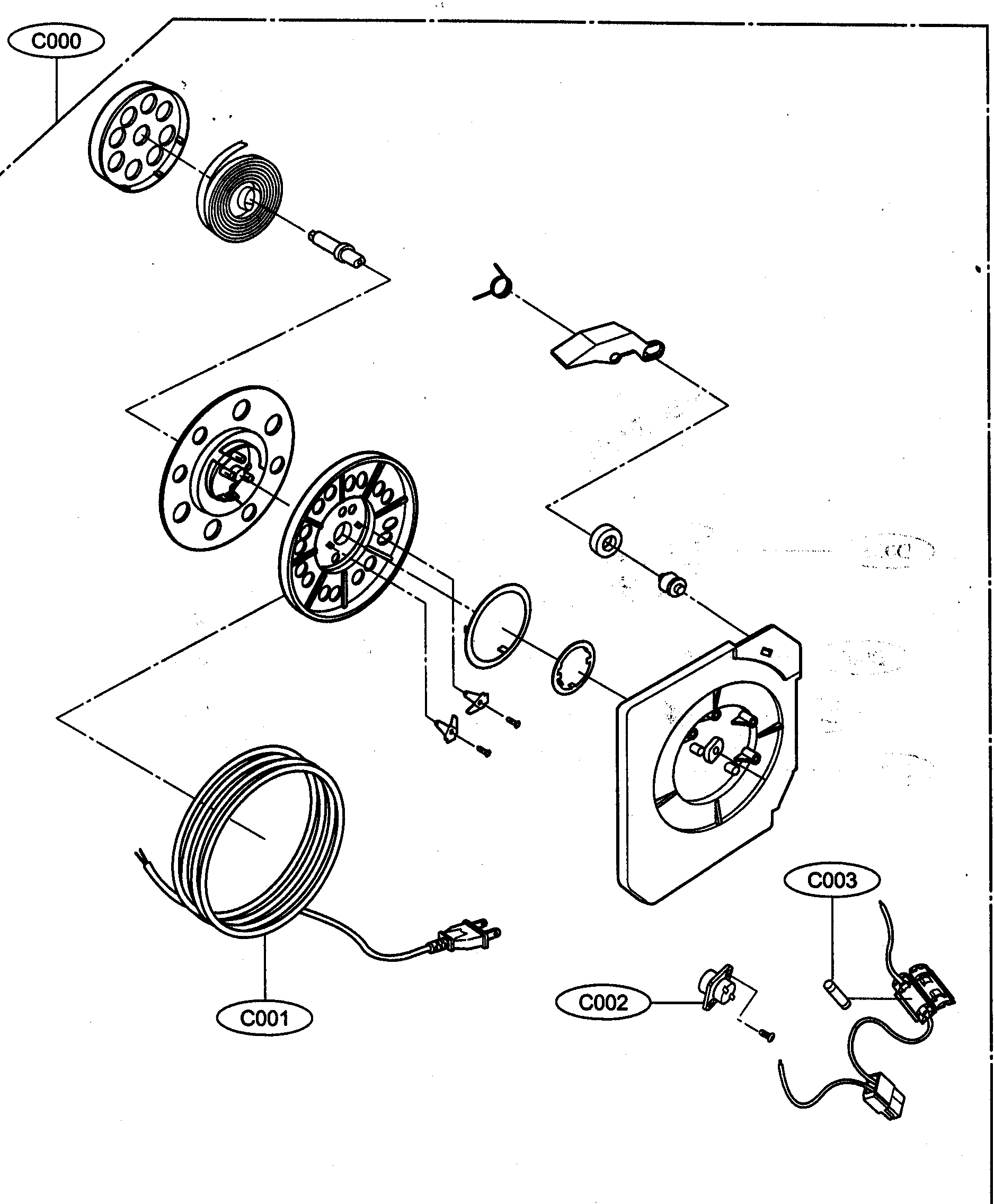

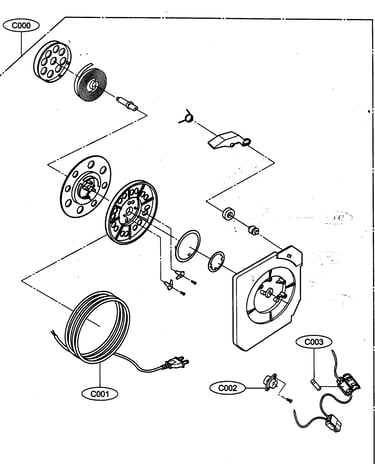

Cord reel assy diagram

Fuse

Part #4I60037W

The manufacturer no longer makes this part, and there's no substitute part

Nozzle Cover 3550FI1646A
#J001

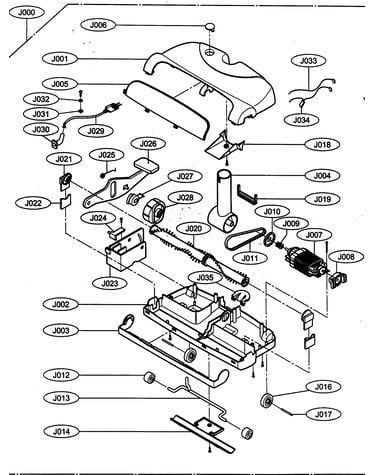

Power mate assy diagram

Nozzle cover

Part #3550FI1646A

The manufacturer no longer makes this part, and there's no substitute part

Protector 3740FI4259A
#J030

Power mate assy diagram

Protector

Part #3740FI4259A

The manufacturer no longer makes this part, and there's no substitute part

Window 3790FI1001A
#J005

Power mate assy diagram

Window

Part #3790FI1001A

The manufacturer no longer makes this part, and there's no substitute part

Knob 4940FI3727A
#I004

Accessory holder/hose assy diagram

Knob

Part #4940FI3727A

The manufacturer no longer makes this part, and there's no substitute part
