Model # 2582357671 Official Kenmore gas outdoor grill

Here are the diagrams and repair parts for Official Kenmore 2582357671 gas outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Cap Screw STD522507
#107

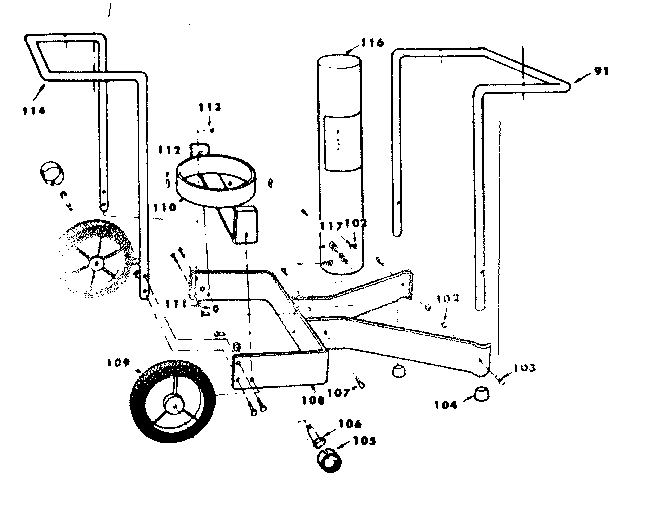

Portable cart assemblies diagram

Cap screw

Part #STD522507

The manufacturer no longer makes this part, and there's no substitute part

Hose Assembly 10111-4
#176

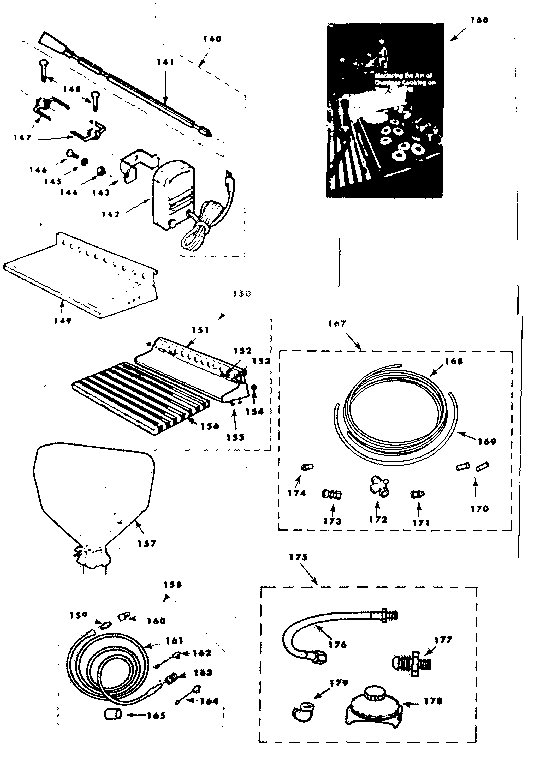

Optional accessories diagram

Hose assembly

Part #10111-4

The manufacturer no longer makes this part, and there's no substitute part

Rotisserie 10004-147
#140

Optional accessories diagram

Rotisserie

Part #10004-147

The manufacturer no longer makes this part, and there's no substitute part

Leg Cap Y-12288
#104

Portable cart assemblies diagram

Leg cap

Part #Y-12288

The manufacturer no longer makes this part, and there's no substitute part

Adapter 10345-2
#159

Optional accessories diagram

Adapter

Part #10345-2

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw STD522510
#113

Portable cart assemblies diagram

Cap screw

Part #STD522510

The manufacturer no longer makes this part, and there's no substitute part

Support 10186-30
#110

Portable cart assemblies diagram

Support

Part #10186-30

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut Y-11513
#4

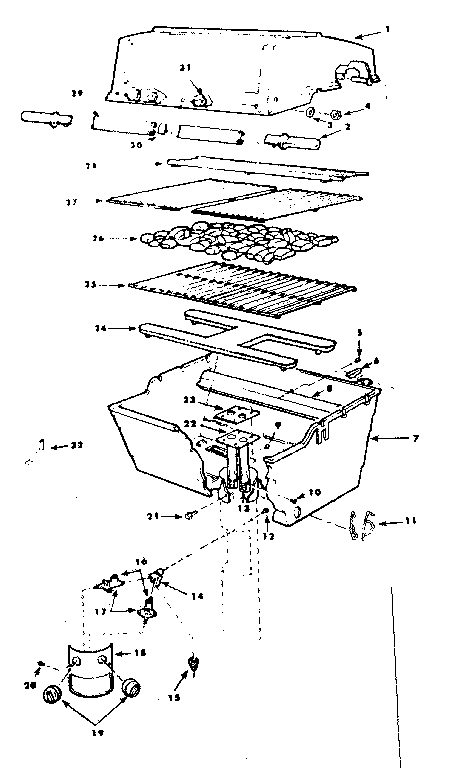

Grill and burner section diagram

Hex nut

Part #Y-11513

The manufacturer no longer makes this part, and there's no substitute part

Grid 10225-28
#27

Grill and burner section diagram

Grid

Part #10225-28

The manufacturer no longer makes this part, and there's no substitute part

Coupling Y-12438
#165

Optional accessories diagram

Coupling

Part #Y-12438

The manufacturer no longer makes this part, and there's no substitute part
