Model # 625384650 Official Kenmore water filter

Here are the diagrams and repair parts for Official Kenmore 625384650 water filter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 13 parts  |

Water Filtration System Filter O-ring 7223633
#2

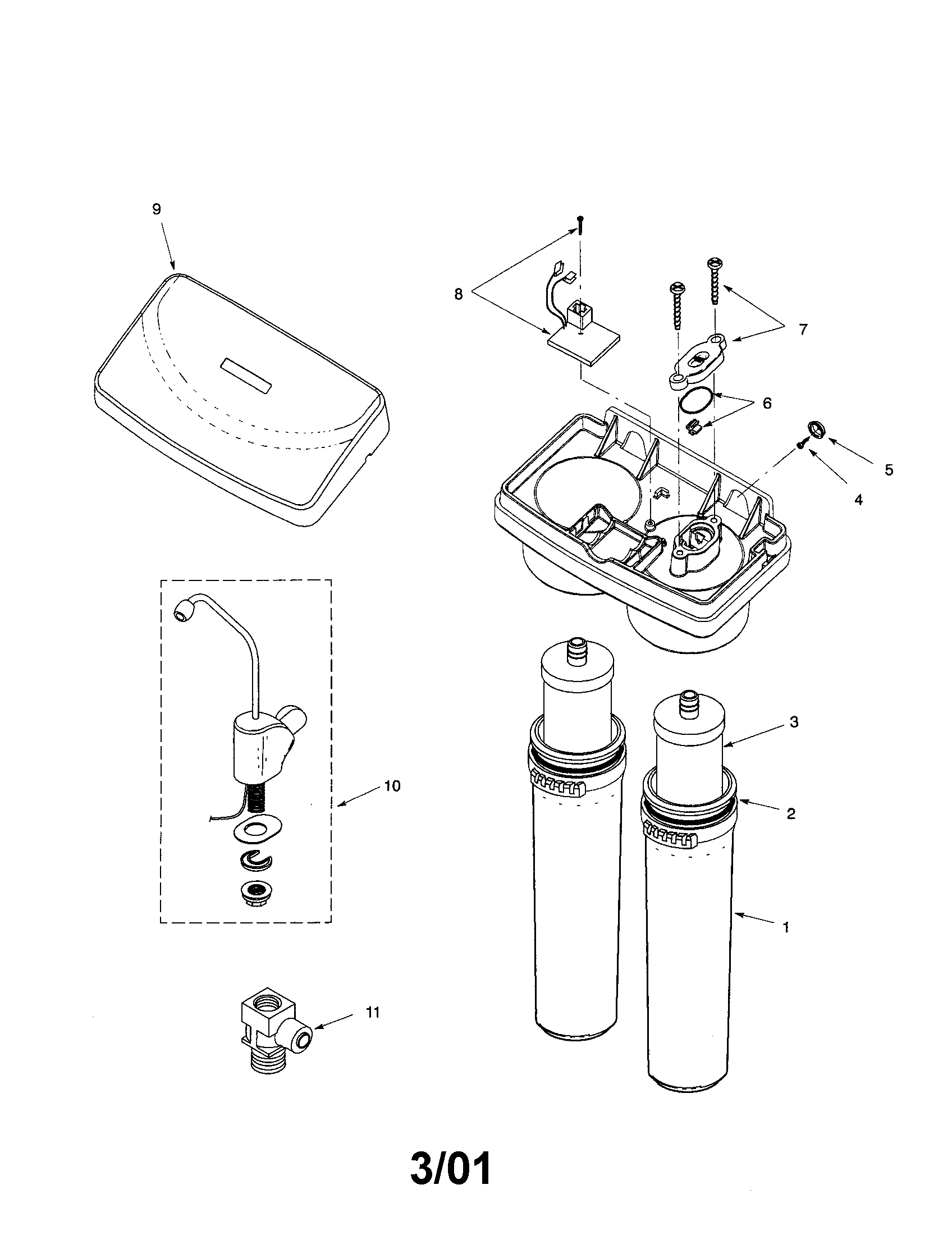

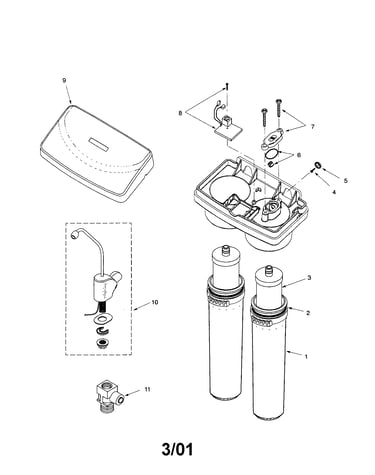

Undersink drinking water filter diagram

Water filtration system filter o-ring

Part #7223633

This item is not returnable
In Stock
Kenmore Repl Pwa 7234252
#8

Undersink drinking water filter diagram

Kenmore repl pwa

Part #7234252

In Stock
Faucet 7226495
#10

Undersink drinking water filter diagram

Faucet

Part #7226495

$83.39
7% OFF Phone Price : $89.39
In Stock
Cover Screw 7234228
#7

Undersink drinking water filter diagram

Cover screw

Part #7234228

In Stock
O-ring (black) 7234210
#6

Undersink drinking water filter diagram

O-ring (black)

Part #7234210

In Stock
Tubing (white) 7157280

#NI

All parts diagram

Tubing (white)

Part #7157280

In Stock
Reverse Osmosis System Filter Housing 7221128
#1

Undersink drinking water filter diagram

Reverse osmosis system filter housing

Part #7221128

In Stock
Water Filtration System Tee Adapter 7228536
#11

Undersink drinking water filter diagram

Water filtration system tee adapter

Part #7228536

$30.58
16% OFF Phone Price : $36.58
In Stock
Waterworks Hanger Washer 9041700
#5

Undersink drinking water filter diagram

Waterworks hanger washer

Part #9041700

In Stock
Filter 42-38466
#3

Undersink drinking water filter diagram

Filter

Part #42-38466

The manufacturer no longer makes this part, and there's no substitute part
