Model # 21AE682L766 Official Troybilt tiller

Here are the diagrams and repair parts for Official Troybilt 21AE682L766 tiller, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

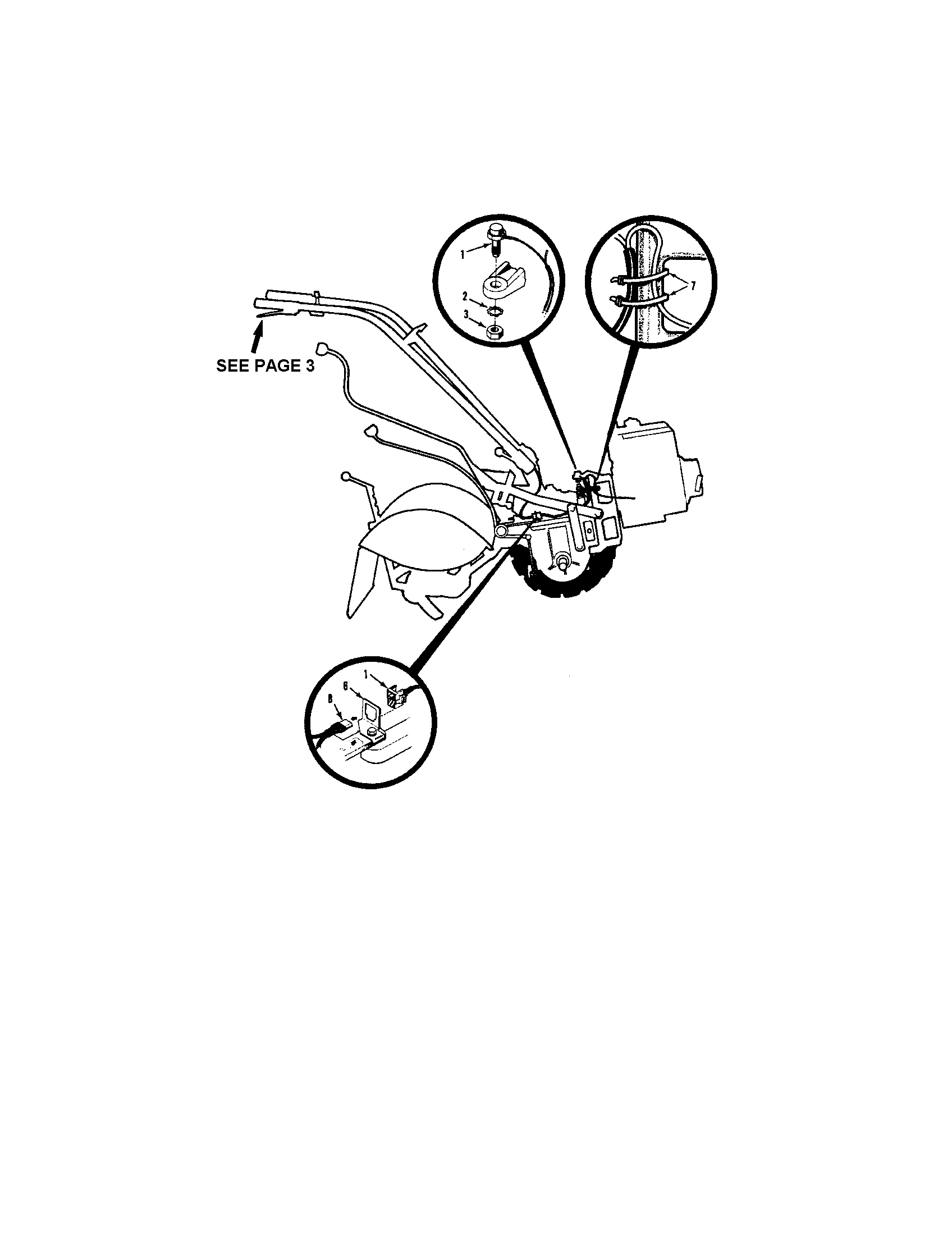

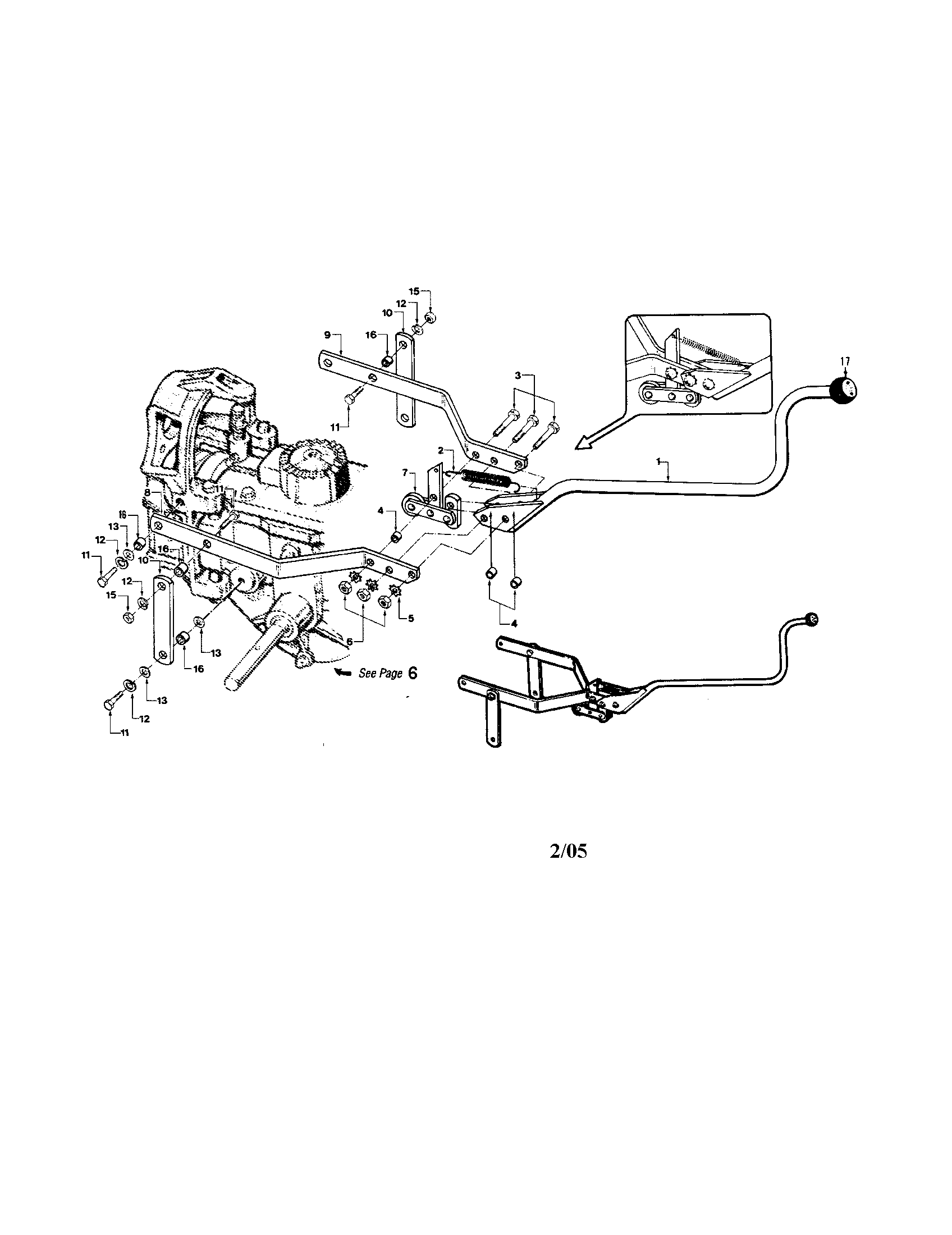

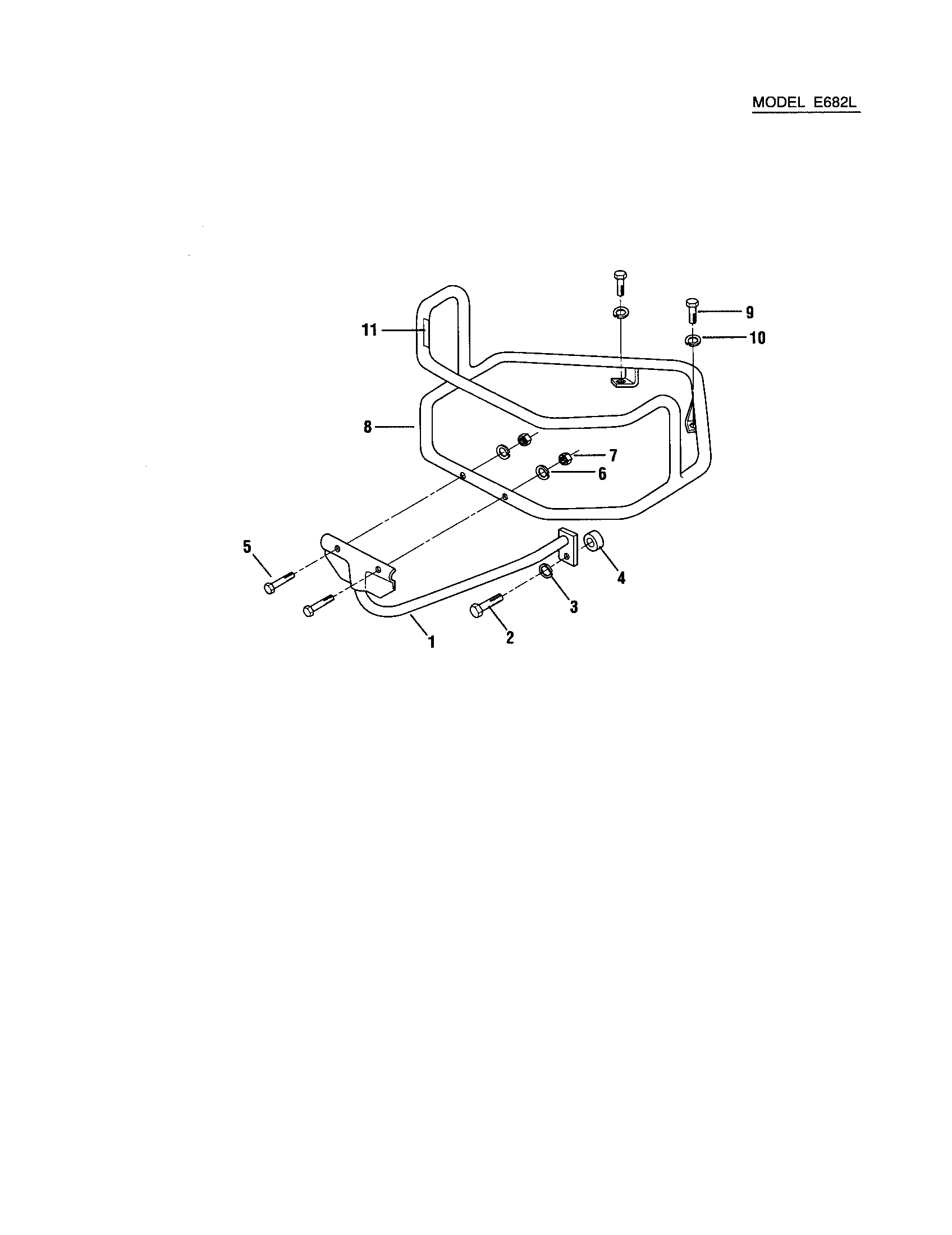

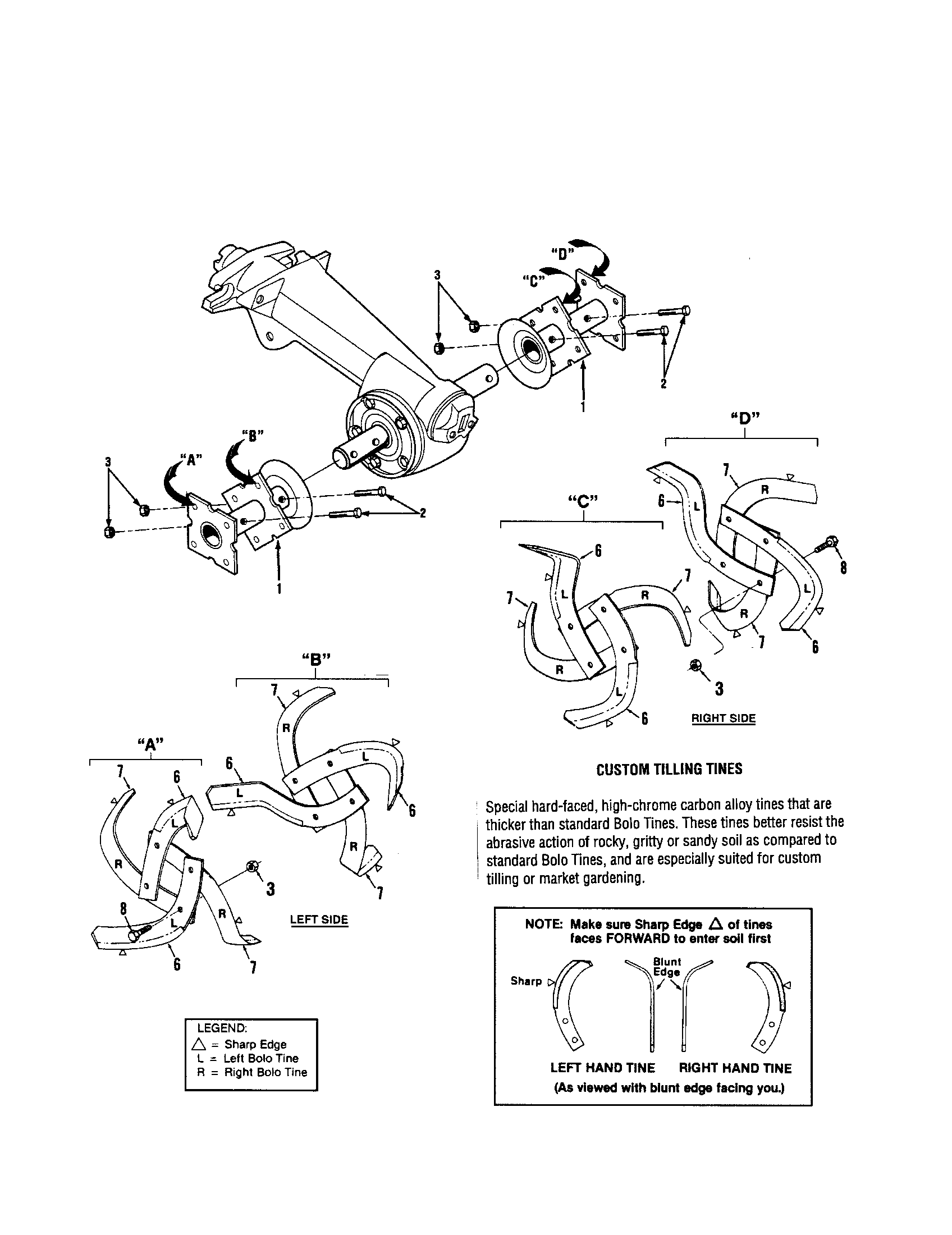

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 238 parts  |
Lawn Tractor Screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599) 710-0599
#9

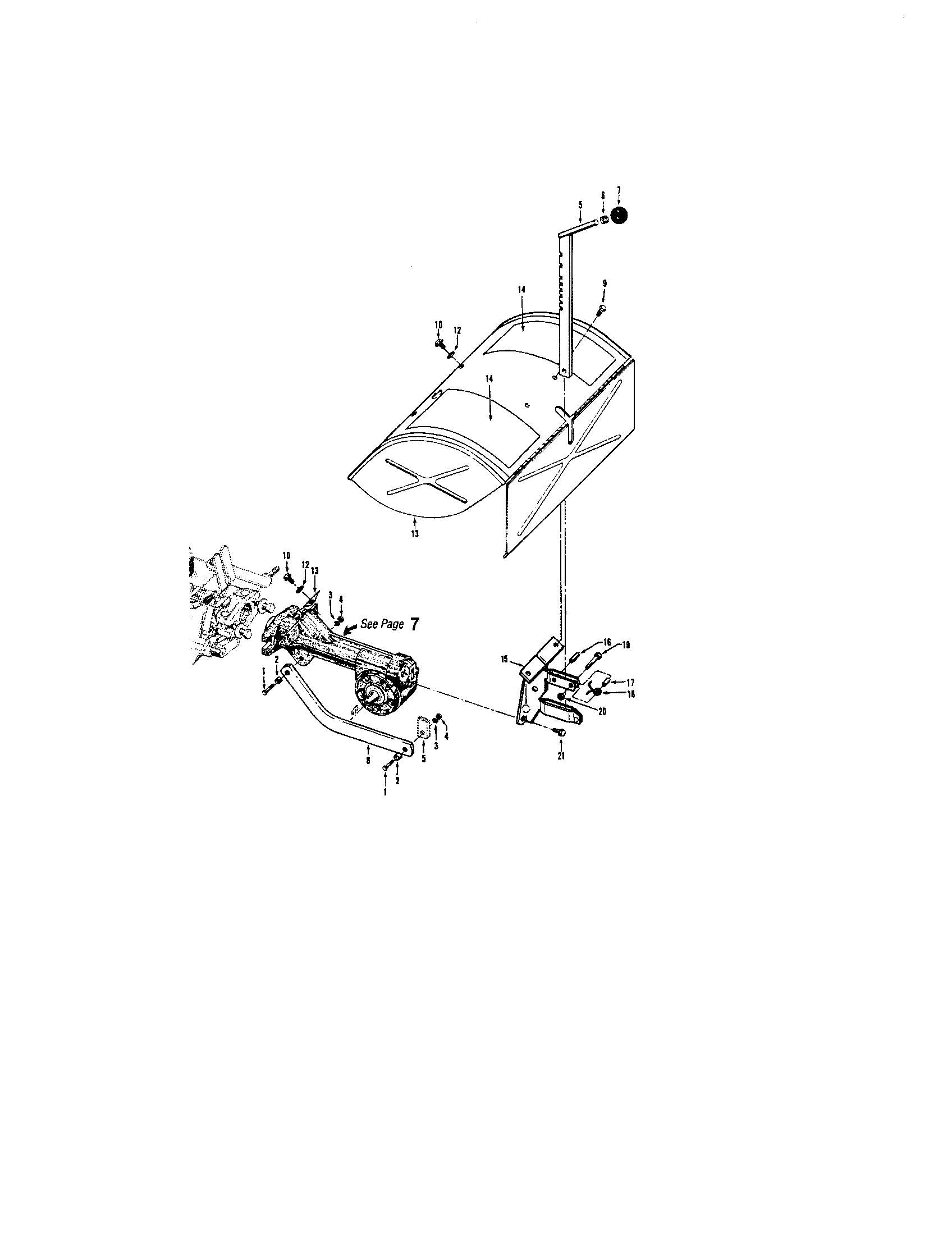

Depth regulator/tine hood diagram

Lawn tractor screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599)

Part #710-0599

BEST SELLER
This item is not returnable
$4.91 |
17% OFF Phone Price : $5.91
In Stock
Screw-hwh GW-9552
#3

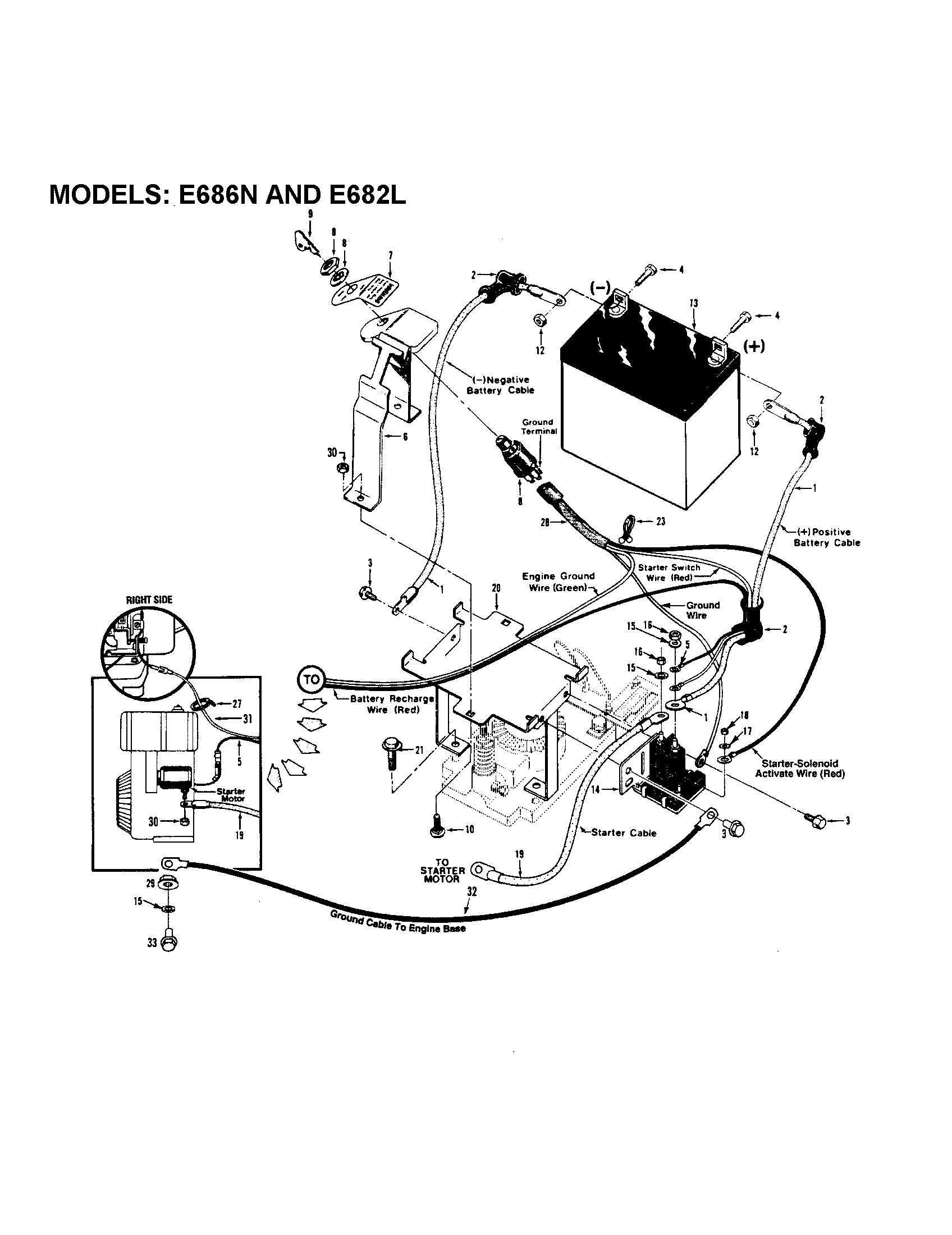

Electric start system diagram

Screw-hwh

Part #GW-9552

Replaced by #710-0599

?
Manufacturer substitution
This part replaces GW-9552. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.91 |
17% OFF Phone Price : $5.91
In Stock
Lock Washer 736-0119
Lock washer

Part #736-0119

Replaced by #936-0119

?
Manufacturer substitution
This part replaces 736-0119. Substitute parts can look different from the original.
This item is not returnable
$6.05 |
14% OFF Phone Price : $7.05
In Stock
Ryobi Lawn Tractor Bolt (replaces 01000369, 1509-091, 1509-117, 153015, 706-10123-20, 706-501277-1, 710-0342, 910-3005) 710-3005
Ryobi lawn tractor bolt (replaces 01000369, 1509-091, 1509-117, 153015, 706-10123-20, 706-501277-1, 710-0342, 910-3005)

Part #710-3005

This item is not returnable
$5.11 |
16% OFF Phone Price : $6.11
In Stock
Lawn & Garden Equipment Cable Tie 725-0157
Lawn & garden equipment cable tie

Part #725-0157

Replaced by #726-0178

?
Manufacturer substitution
This part replaces 725-0157. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Tiller Drive Belt (replaces 9245, Gw-56035) GW-9245
#24

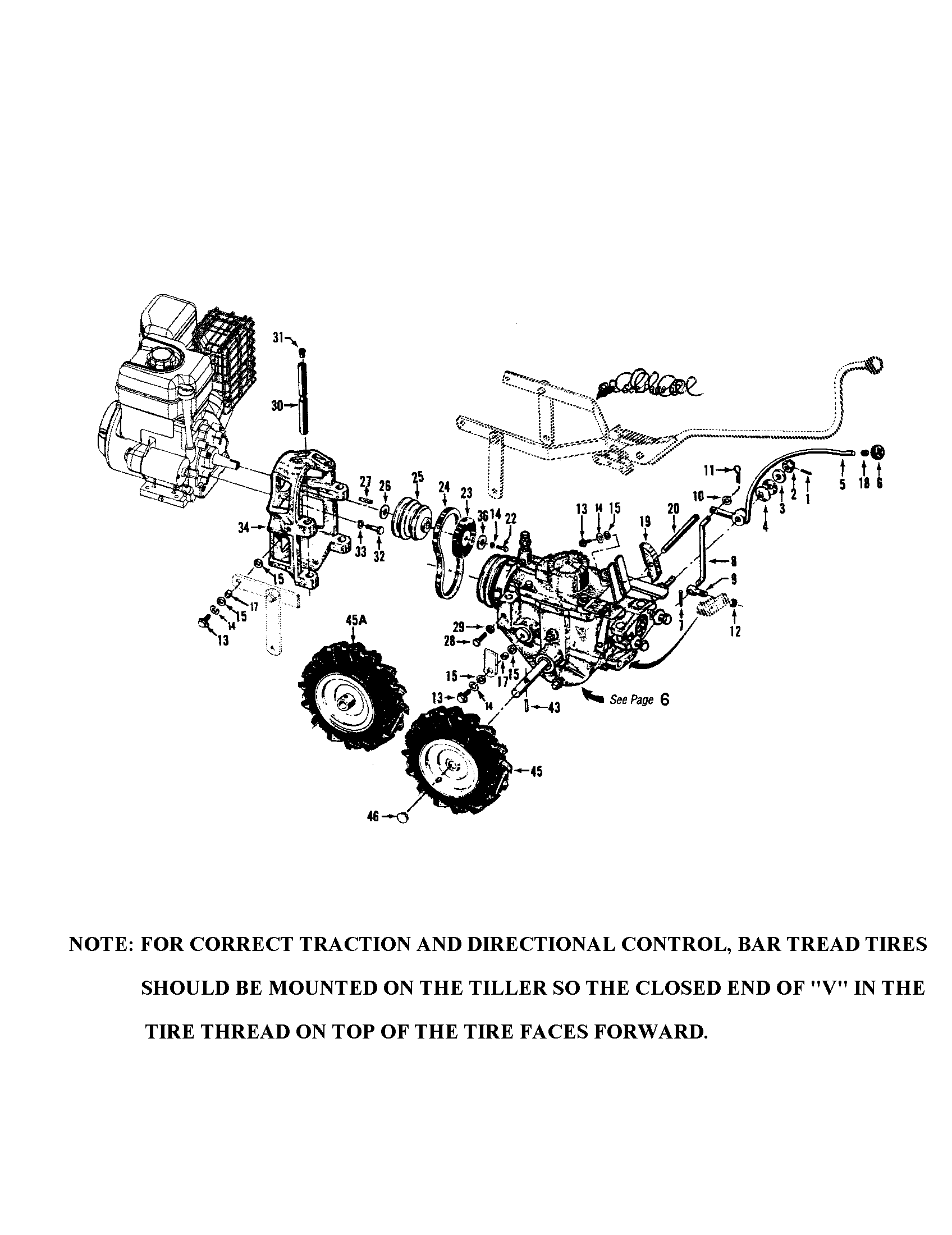

Wheel speed lever/belt drive/engines diagram

Tiller drive belt (replaces 9245, gw-56035)

Part #GW-9245

This item is not returnable

Get free shipping with Automatic Reorder

$25.64 |
19% OFF Phone Price : $31.64
In Stock
Oil Seal 721-04030
Oil seal

Part #721-04030

Replaced by #921-04030

?
Manufacturer substitution
This part replaces 721-04030. Substitute parts can look different from the original.
This item is not returnable
$15.89 |
11% OFF Phone Price : $17.89
In Stock
Nut-hex 1/2- 1186233
#5

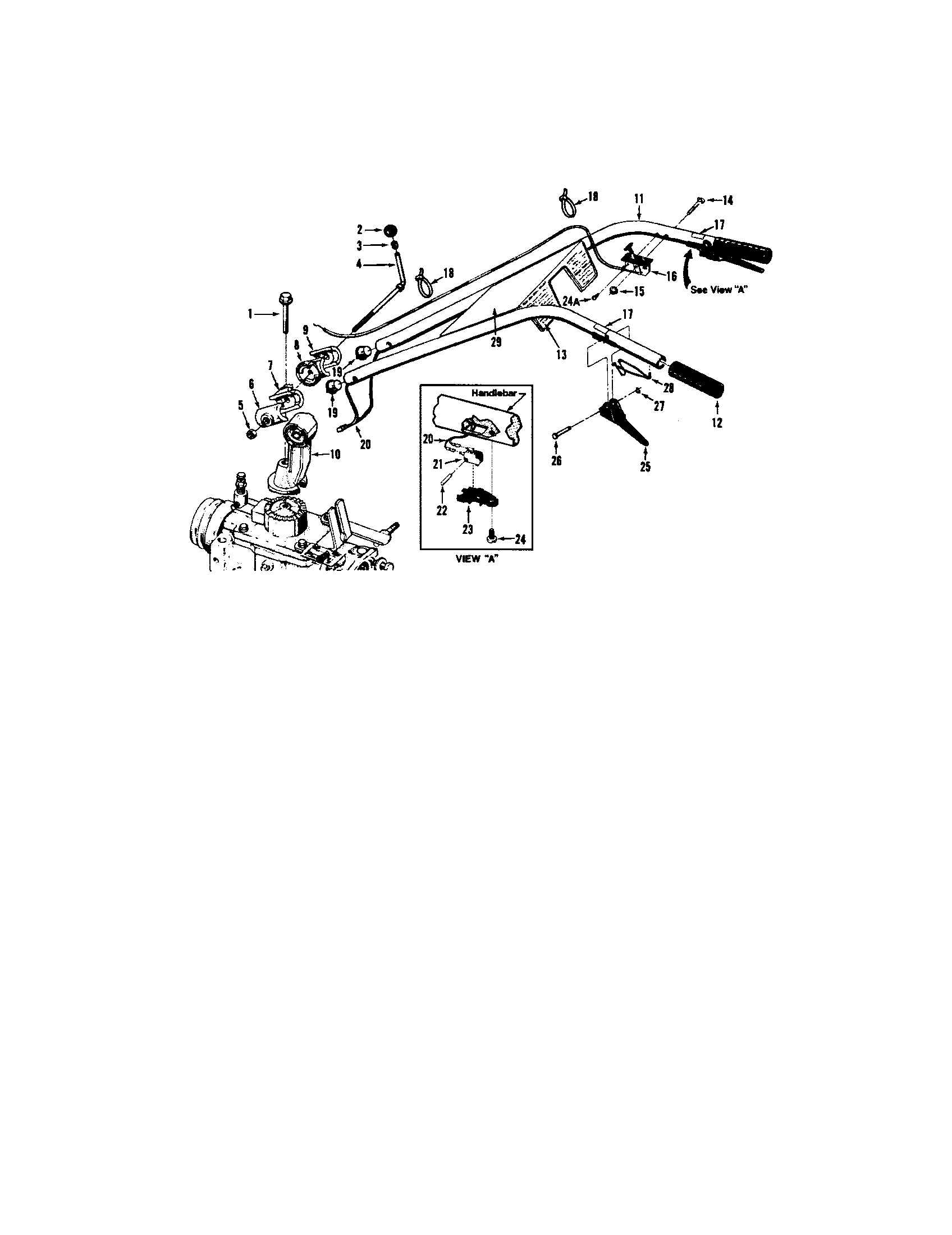

Handlebar assembly diagram

Nut-hex 1/2-

Part #1186233

Replaced by #712-0206

?
Manufacturer substitution
This part replaces 1186233. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Oil Seal 721-04044
#43

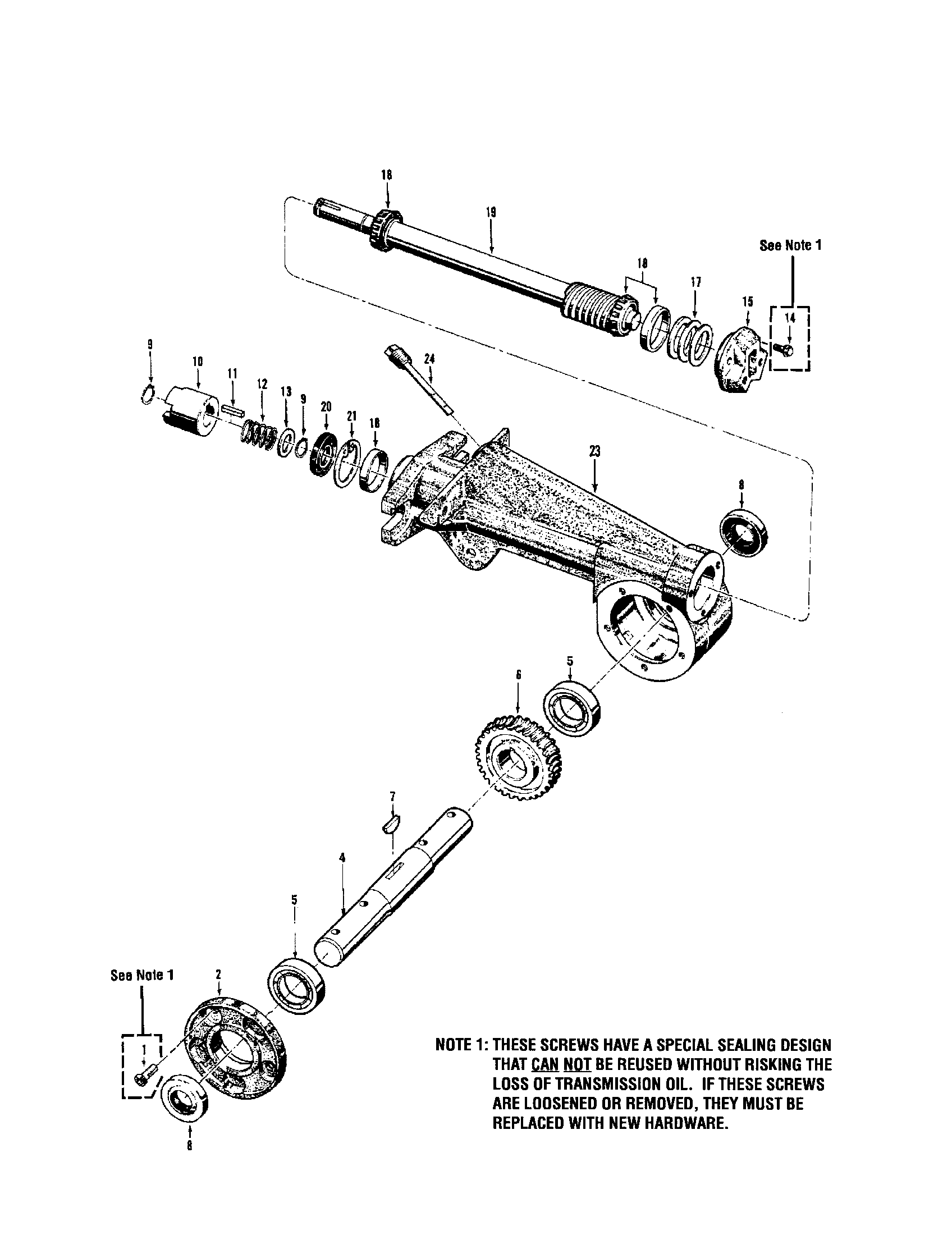

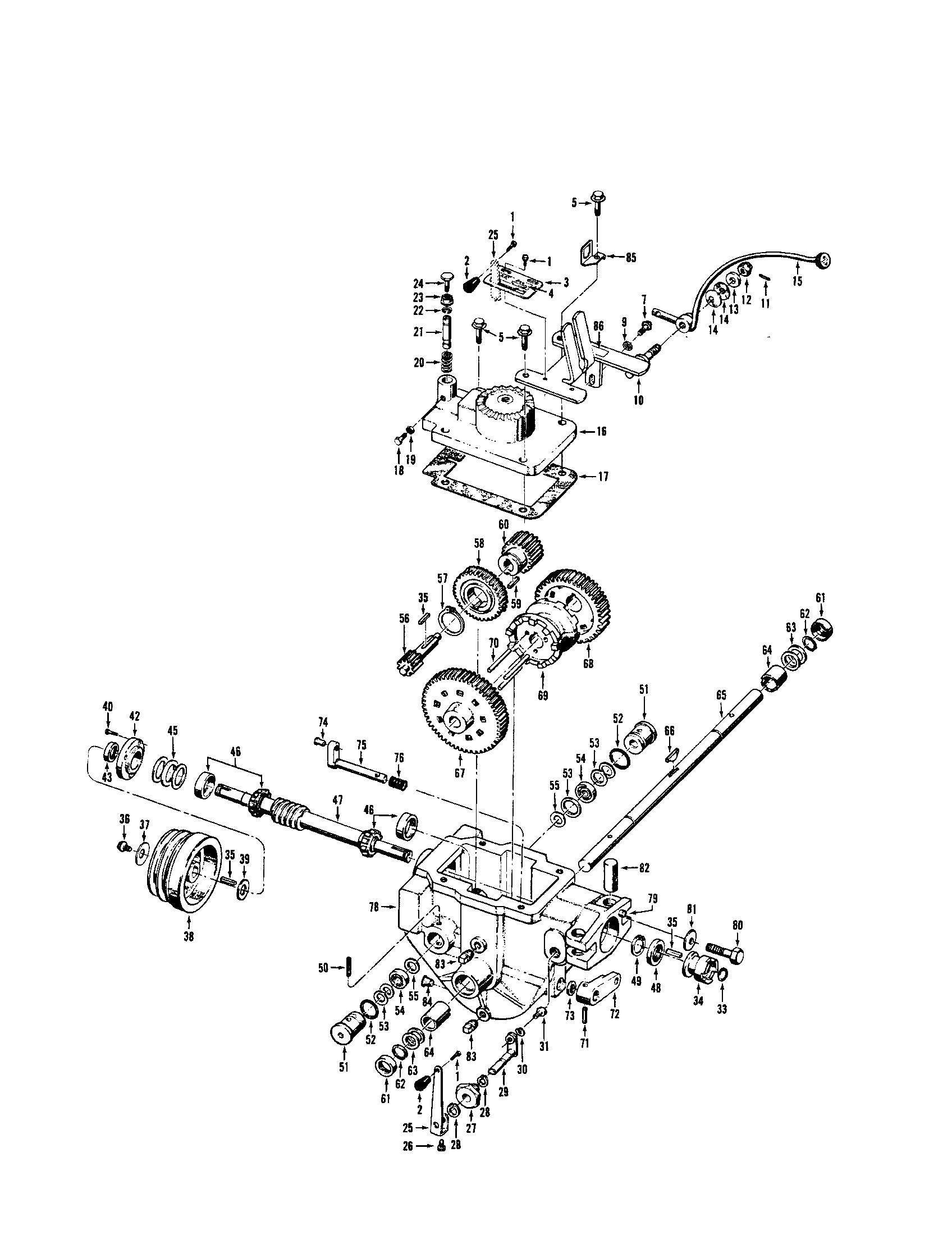

Power unit transmission diagram

Oil seal

Part #721-04044

Replaced by #921-04044

?
Manufacturer substitution
This part replaces 721-04044. Substitute parts can look different from the original.
$13.91
In Stock
Screw-hxskt GW-9672
#31

Power unit transmission diagram

Screw-hxskt

Part #GW-9672

Replaced by #710-04354

?
Manufacturer substitution
This part replaces GW-9672. Substitute parts can look different from the original.
This item is not returnable
$5.94 |
14% OFF Phone Price : $6.94
In Stock
