Craftsman
Table Saw

Model # 11329960 Official Craftsman 10" tilting arbor bench saw

Here are the diagrams and repair parts for Official Craftsman 11329960 10" tilting arbor bench saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

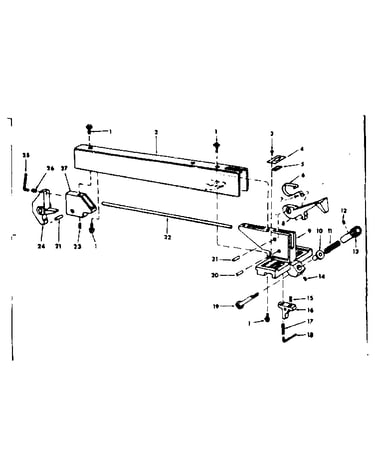

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 136 parts  |

Power Tool Bearing 3509
#62

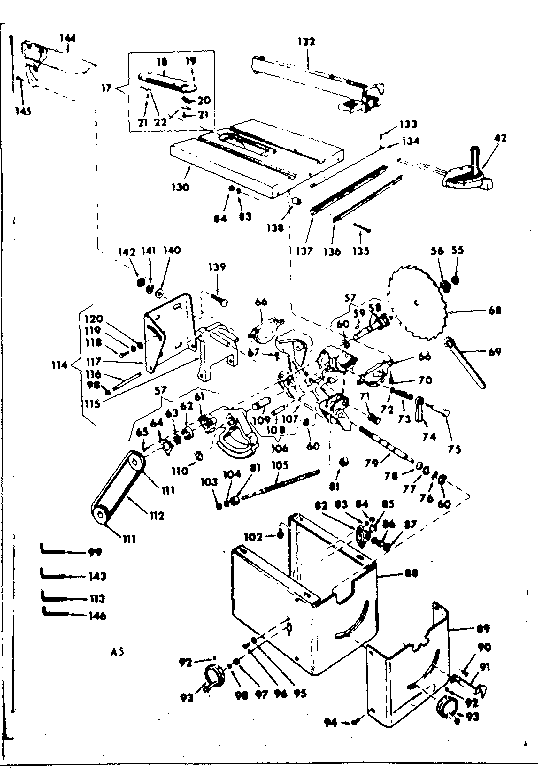

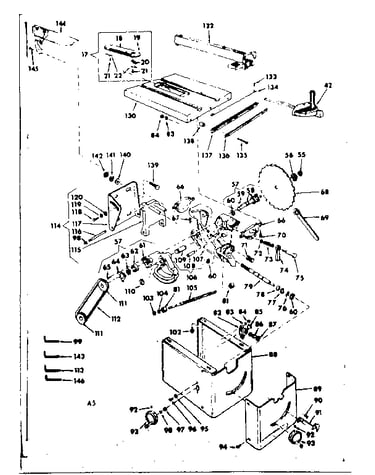

Unit diagram

Power tool bearing

Part #3509

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Screw 30628
#118

Unit diagram

Table saw screw

Part #30628

The manufacturer no longer makes this part, and there's no substitute part

Emerson Table Saw Arbor Nut 6362
#55

Unit diagram

Emerson table saw arbor nut

Part #6362

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Miter Gauge Clamp Stud 62225
#13

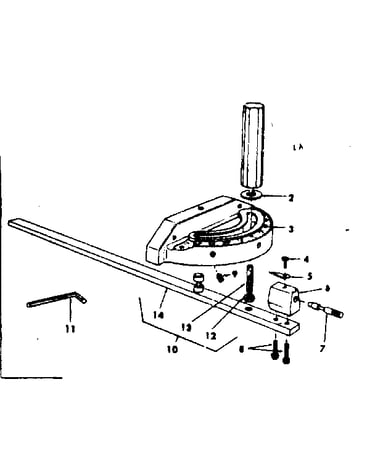

Miter gauge assembly diagram

Table saw miter gauge clamp stud

Part #62225

The manufacturer no longer makes this part, and there's no substitute part

Ryobi Table Saw Washer 37838
#77

Unit diagram

Ryobi table saw washer

Part #37838

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Hex Nut 120399
#142

Unit diagram

Radial arm saw hex nut

Part #120399

The manufacturer no longer makes this part, and there's no substitute part

Washer 60128
#2

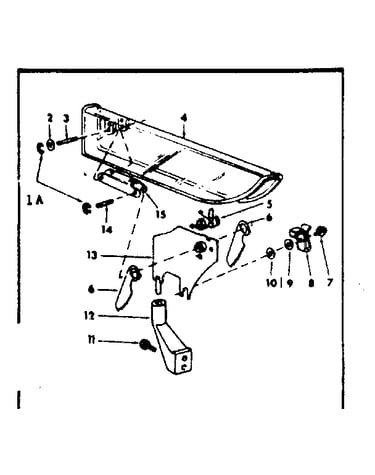

Guard assembly diagram

Washer

Part #60128

The manufacturer no longer makes this part, and there's no substitute part

Gauge Hdle 62068
#1A

Miter gauge assembly diagram

Gauge hdle

Part #62068

The manufacturer no longer makes this part, and there's no substitute part

Washer 60178
#76

Unit diagram

Washer

Part #60178

The manufacturer no longer makes this part, and there's no substitute part

Arbor Assembly 6532
#58

Unit diagram

Arbor assembly

Part #6532

The manufacturer no longer makes this part, and there's no substitute part
