Magic Chef
Gas Range

Model # 31FN-10KLX-ON Official Magic Chef gas range

Here are the diagrams and repair parts for Official Magic Chef 31FN-10KLX-ON gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Bake Igniter 7432P062-60
#6A

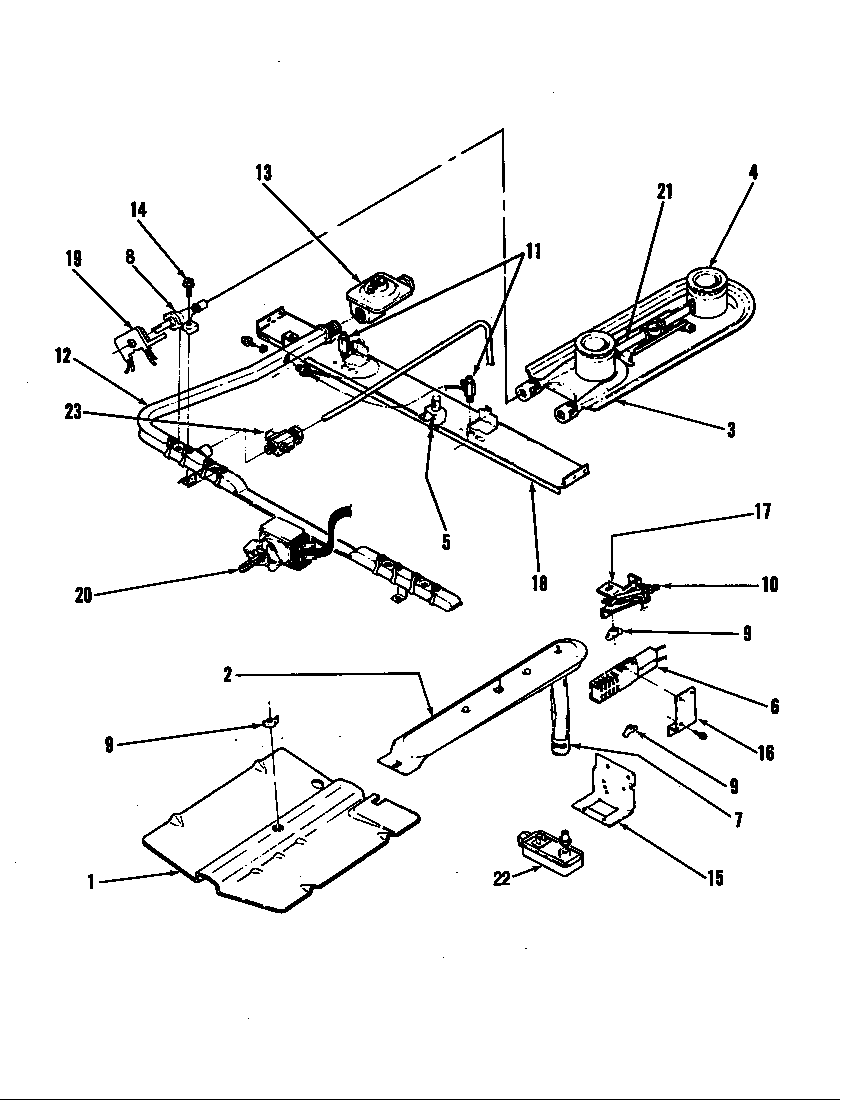

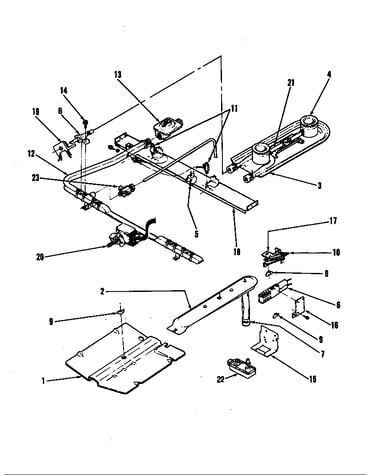

Control system diagram

Bake igniter

Part #7432P062-60

Replaced by #12400035

?
Manufacturer substitution
This part replaces 7432P062-60. Substitute parts can look different from the original.
BEST SELLER
$39.28 |
13% OFF Phone Price : $45.28
In Stock
Igniter 1482224
#6

Control system diagram

Igniter

Part #1482224

Replaced by #12400035

?
Manufacturer substitution
This part replaces 1482224. Substitute parts can look different from the original.
BEST SELLER
$39.28 |
13% OFF Phone Price : $45.28
In Stock
Panel Screw 7101P041-60
#4A

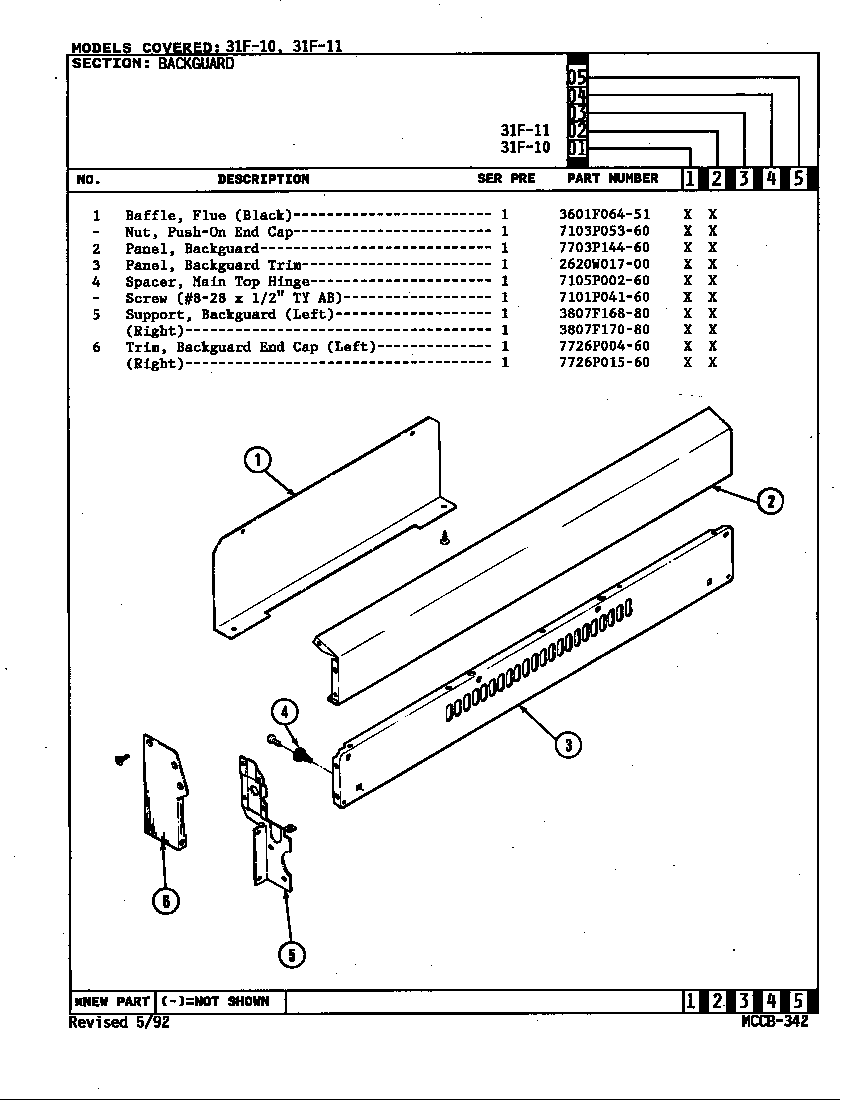

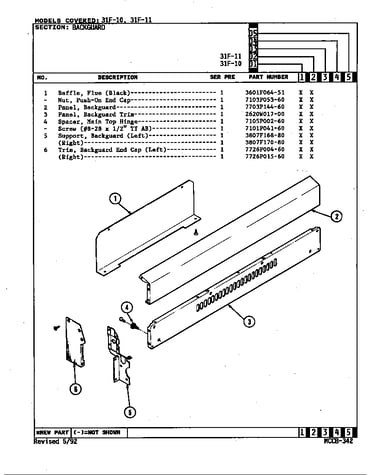

Control panel diagram

Panel screw

Part #7101P041-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P041-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Spring 7803P002-60
Spring

Part #7803P002-60

Replaced by #WP7803P058-60

?
Manufacturer substitution
This part replaces 7803P002-60. Substitute parts can look different from the original.
This item is not returnable
$11.16 |
15% OFF Phone Price : $13.16
In Stock
Seal 7208P011-60
#8

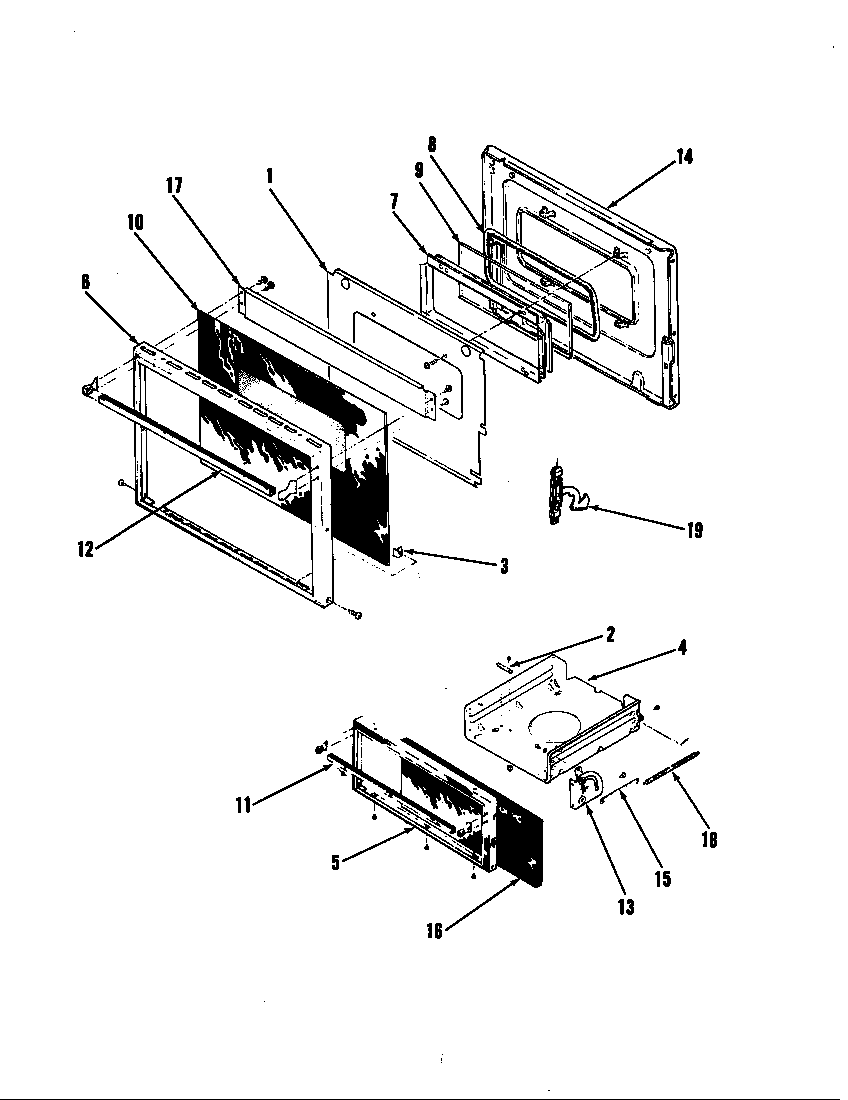

Door parts diagram

Seal

Part #7208P011-60

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 7208P011-60. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Thermostat Clip 7112P004-60
#8A

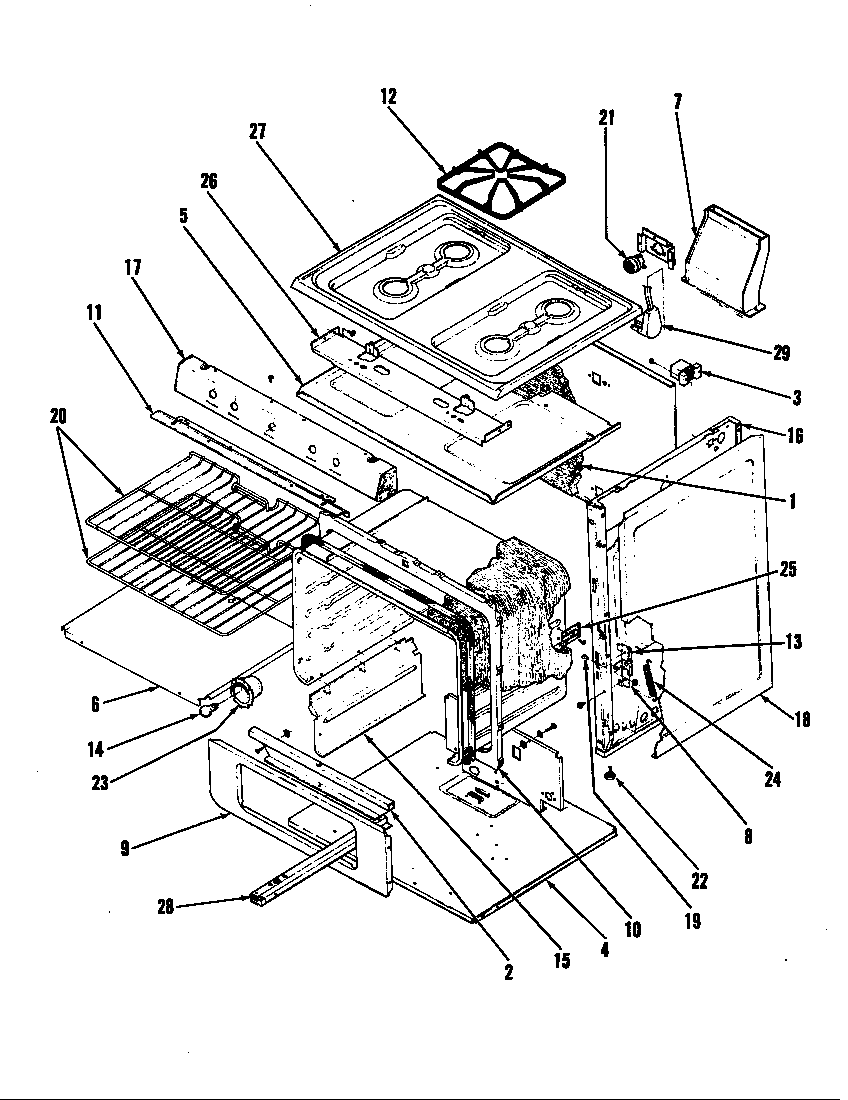

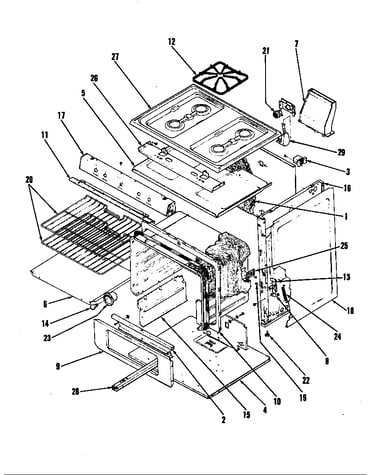

Body diagram

Thermostat clip

Part #7112P004-60

Replaced by #WP7112P004-60

?
Manufacturer substitution
This part replaces 7112P004-60. Substitute parts can look different from the original.
This item is not returnable
$8.99 |
10% OFF Phone Price : $9.99
In Stock
Switch 7403P041-60
#19

Control system diagram

Switch

Part #7403P041-60

Replaced by #WP7403P190-60

?
Manufacturer substitution
This part replaces 7403P041-60. Substitute parts can look different from the original.
$54.58 |
10% OFF Phone Price : $60.58
In Stock
Range Burner Control Knob 7711P135-60
#6B

Control system diagram

Range burner control knob

Part #7711P135-60

Replaced by #WP7711P135-60

?
Manufacturer substitution
This part replaces 7711P135-60. Substitute parts can look different from the original.
This item is not returnable
$27.33 |
18% OFF Phone Price : $33.33
In Stock
Broiler Pan 3401F004-11
#16A

Body diagram

Broiler pan

Part #3401F004-11

Replaced by #4396923

?
Manufacturer substitution
This part replaces 3401F004-11. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Insert 3413F002-11
#13B

Body diagram

Insert

Part #3413F002-11

Replaced by #4396923

?
Manufacturer substitution
This part replaces 3413F002-11. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
