Sony
Digital Camcorder

Model # HDR-XR550V Official Sony camcorder

Here are the diagrams and repair parts for Official Sony HDR-XR550V camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |
Screw 307889011
#11

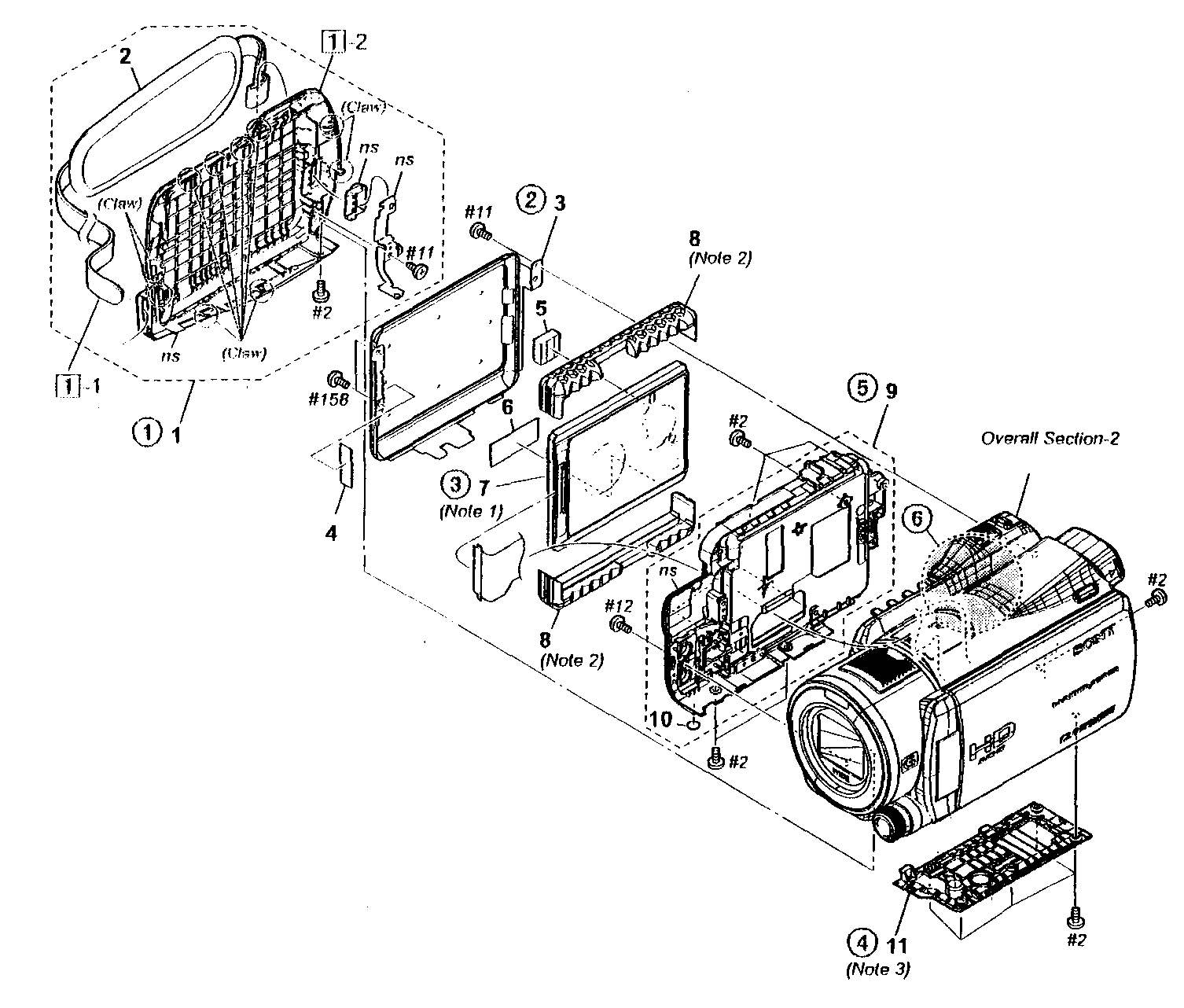

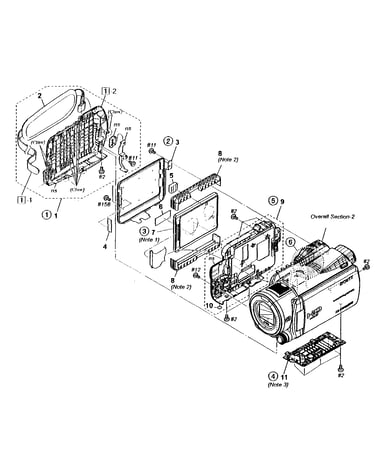

Left cabinet diagram

Screw

Part #307889011

The manufacturer no longer makes this part, and there's no substitute part

Damper 329814301
#8

Left cabinet diagram

Damper

Part #329814301

The manufacturer no longer makes this part, and there's no substitute part

Sheet 417796601
#312

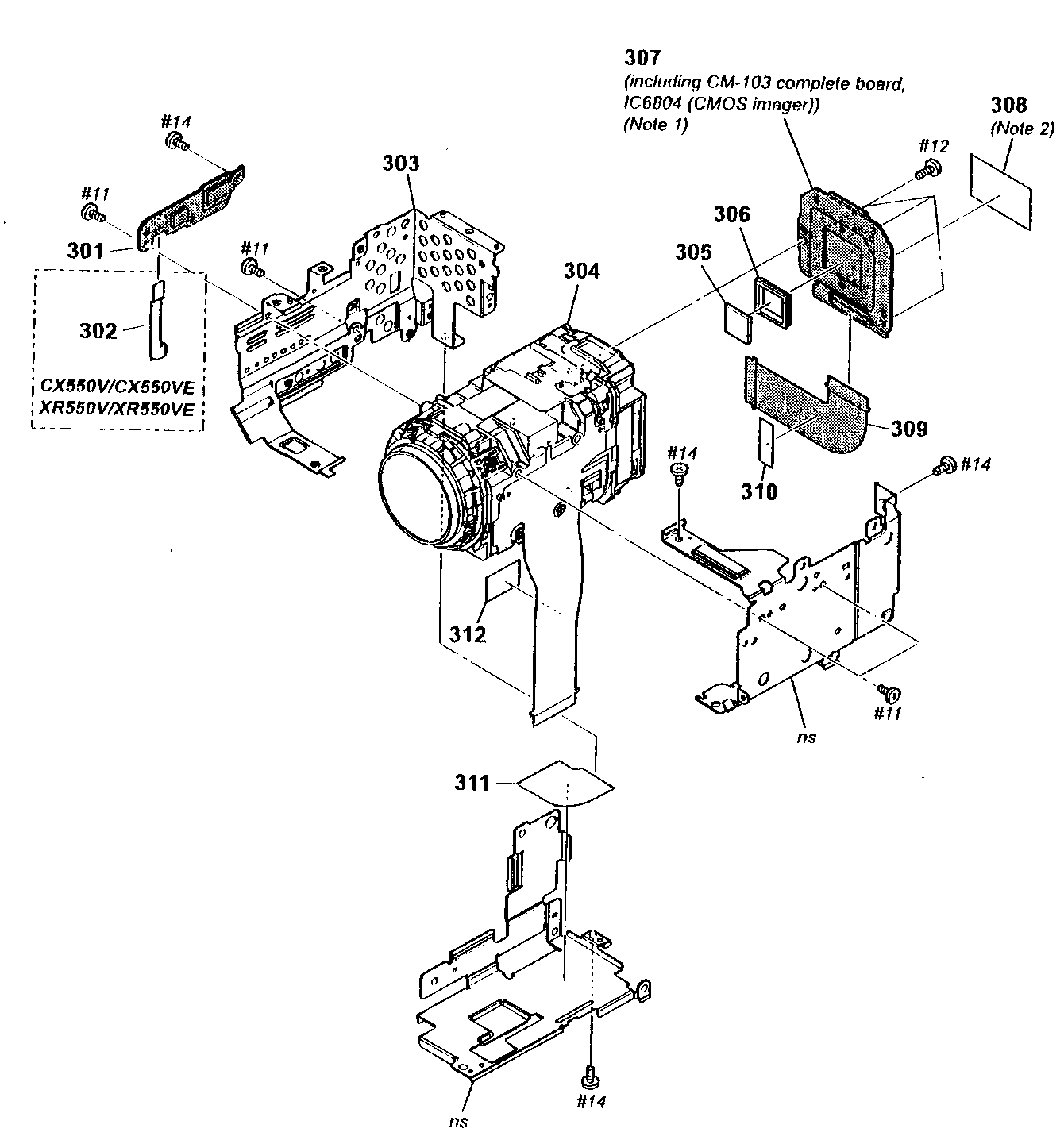

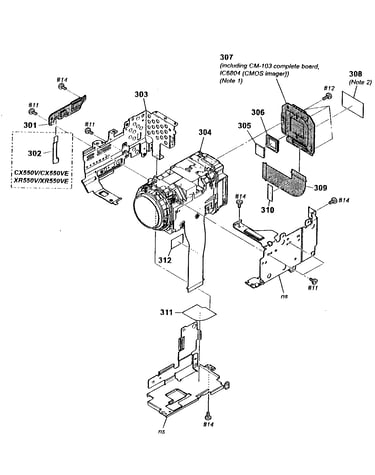

Lens assy diagram

Sheet

Part #417796601

The manufacturer no longer makes this part, and there's no substitute part

Holder X25470571
#354

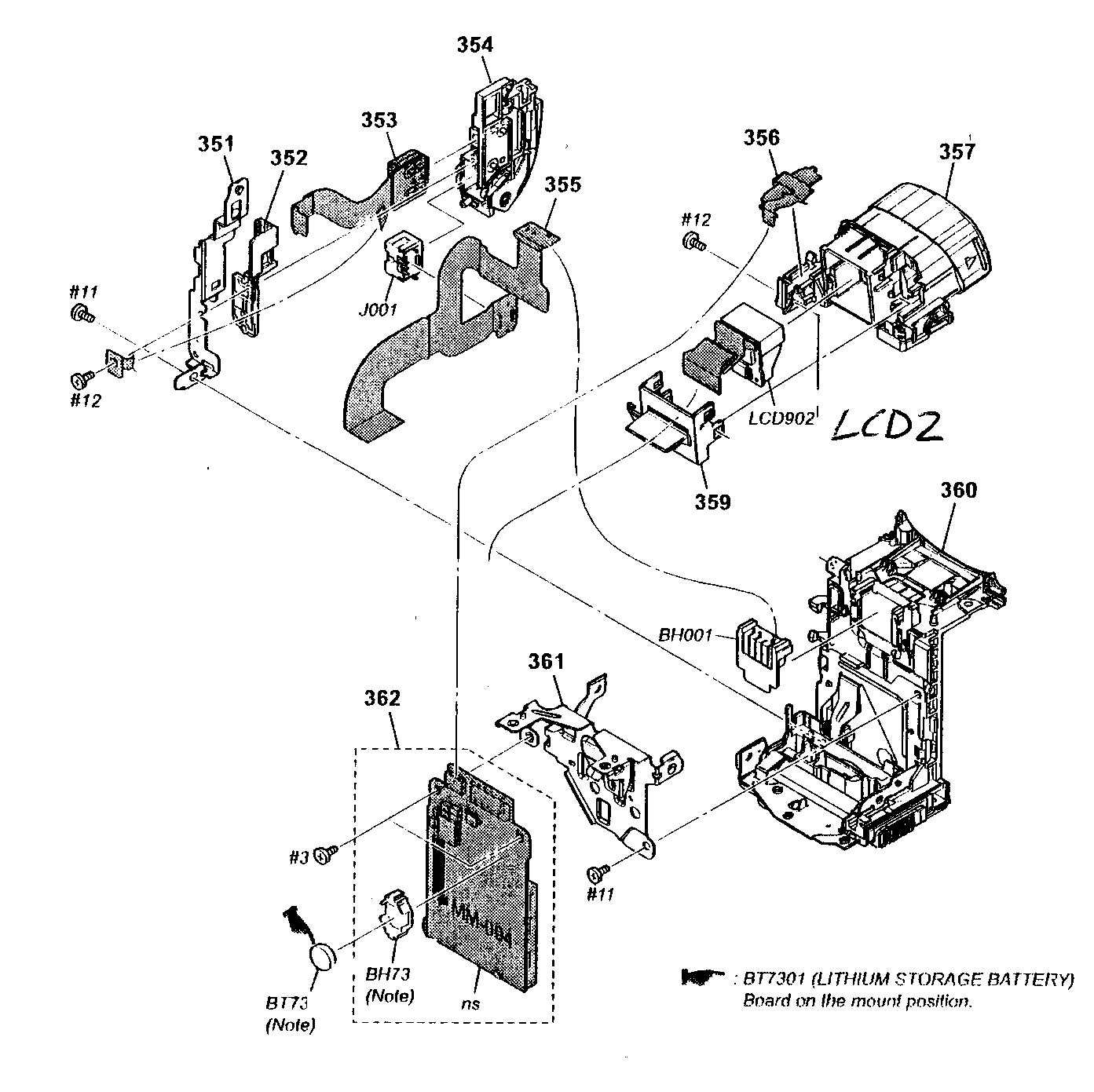

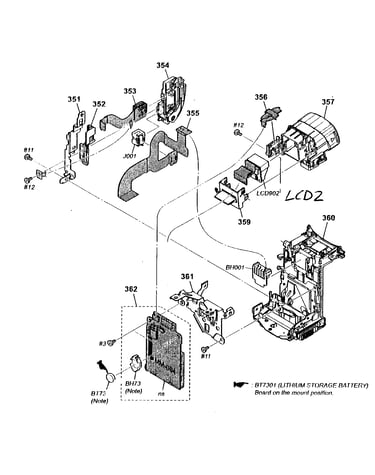

Evf asy diagram

Holder

Part #X25470571

The manufacturer no longer makes this part, and there's no substitute part

Fp-1200 Pc A1765110A
#268

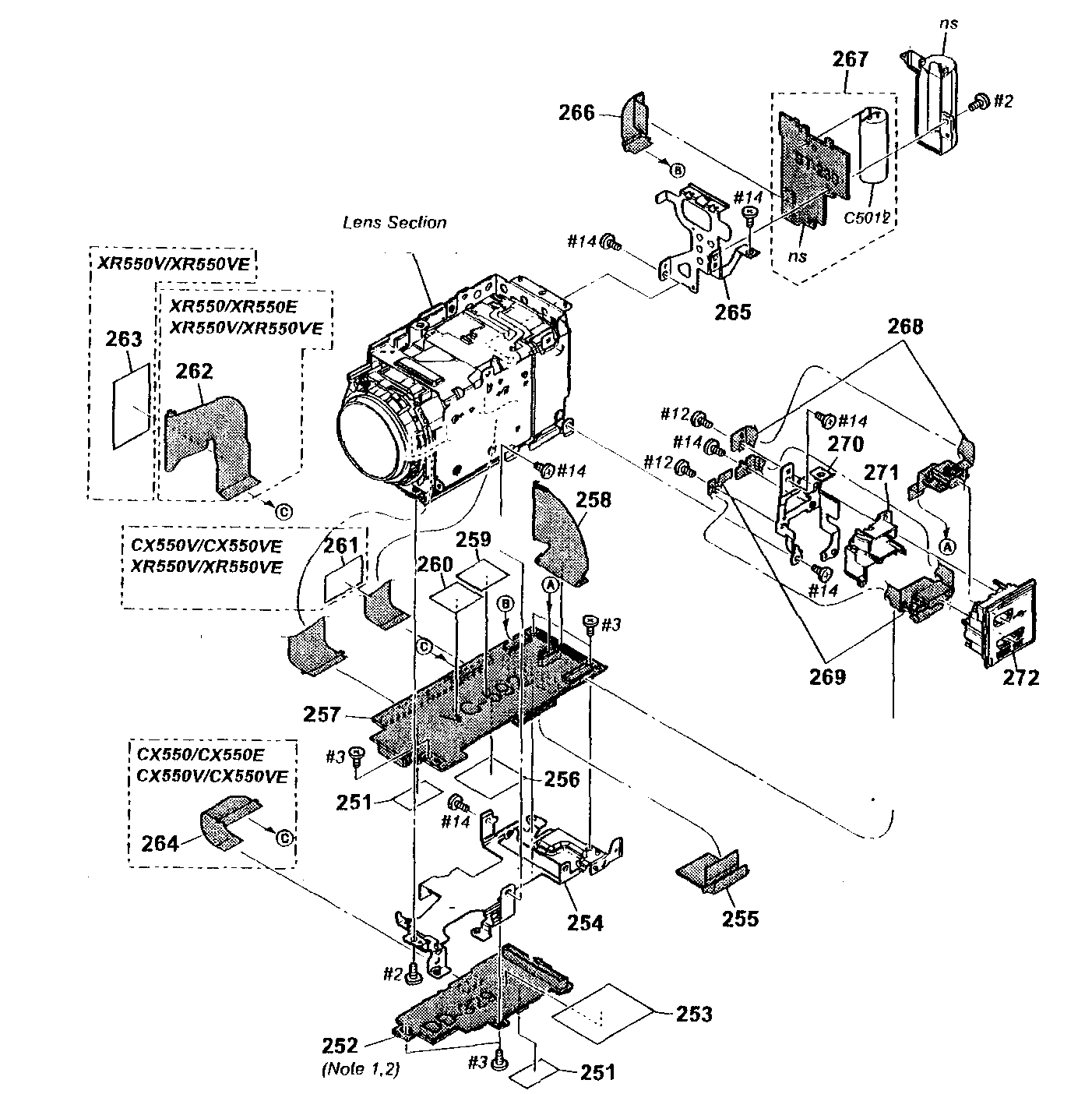

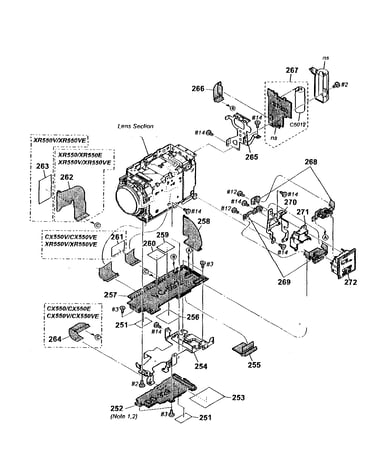

Main board diagram

Fp-1200 pc

Part #A1765110A

The manufacturer no longer makes this part, and there's no substitute part

Foot 258937601
#10

Left cabinet diagram

Foot

Part #258937601

The manufacturer no longer makes this part, and there's no substitute part

Usb Cable 183599331
#NI

Left cabinet diagram

Usb cable

Part #183599331

The manufacturer no longer makes this part, and there's no substitute part

Vc-592 Pcb A1765296A
#257

Main board diagram

Vc-592 pcb

Part #A1765296A

The manufacturer no longer makes this part, and there's no substitute part

Fp-1197 Pc A1765111A
#353

Evf asy diagram

Fp-1197 pc

Part #A1765111A

The manufacturer no longer makes this part, and there's no substitute part

Mm-094 Pcb A1765294A
#362

Evf asy diagram

Mm-094 pcb

Part #A1765294A

The manufacturer no longer makes this part, and there's no substitute part
