Craftsman
Front-Engine Lawn Tractor

Model # 91725620 Official Craftsman 14-hp tractor

Here are the diagrams and repair parts for Official Craftsman 91725620 14-hp tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

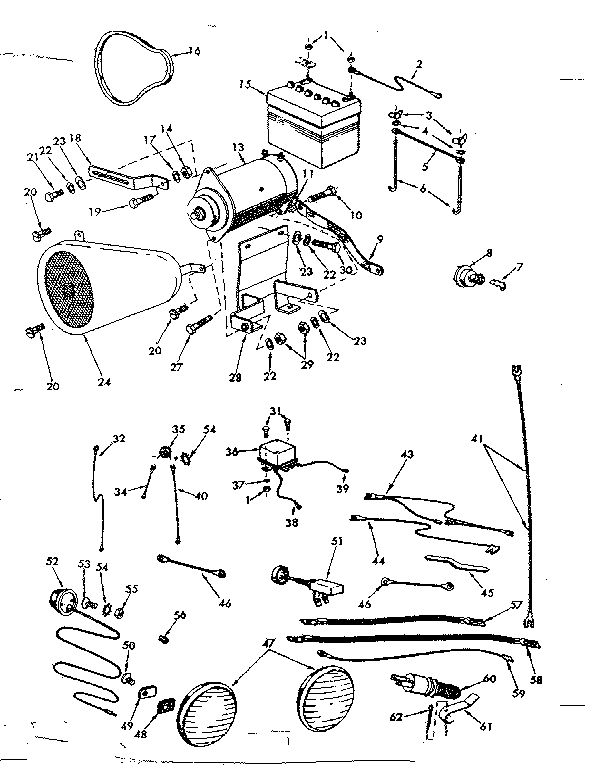

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 314 parts  |
Wizard Lawn Tractor Axle Flange Bearing (replaces 532009040, 5320090-40, 532124959, 577203109, 5920h, 5920h1, P-1246, P-1622) 9040H
#15

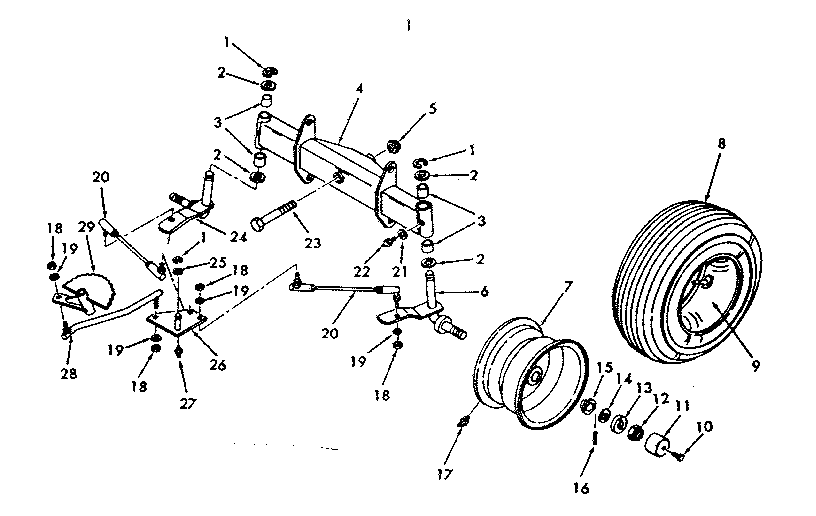

Front axle diagram

Wizard lawn tractor axle flange bearing (replaces 532009040, 5320090-40, 532124959, 577203109, 5920h, 5920h1, p-1246, p-1622)

Part #9040H

BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Thrust Bearing 1370H
#52

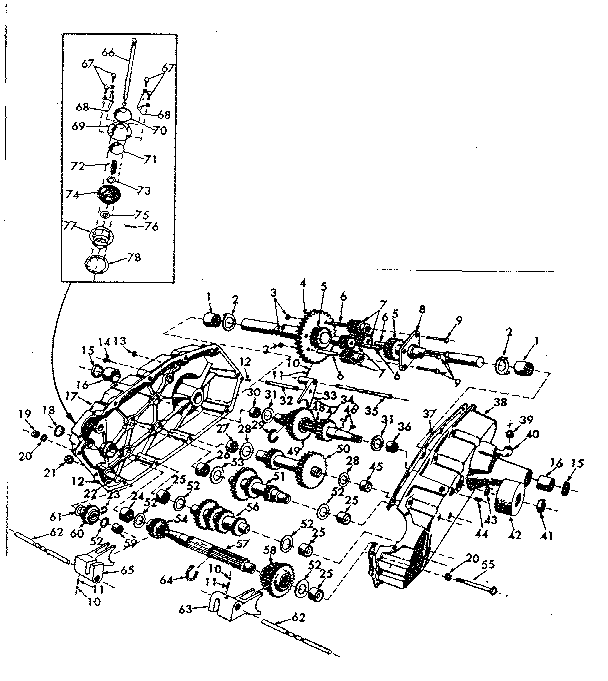

Transaxle diagram

Thrust bearing

Part #1370H

Replaced by #532001370

?
Manufacturer substitution
This part replaces 1370H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Hub Bolt 1304H
#63

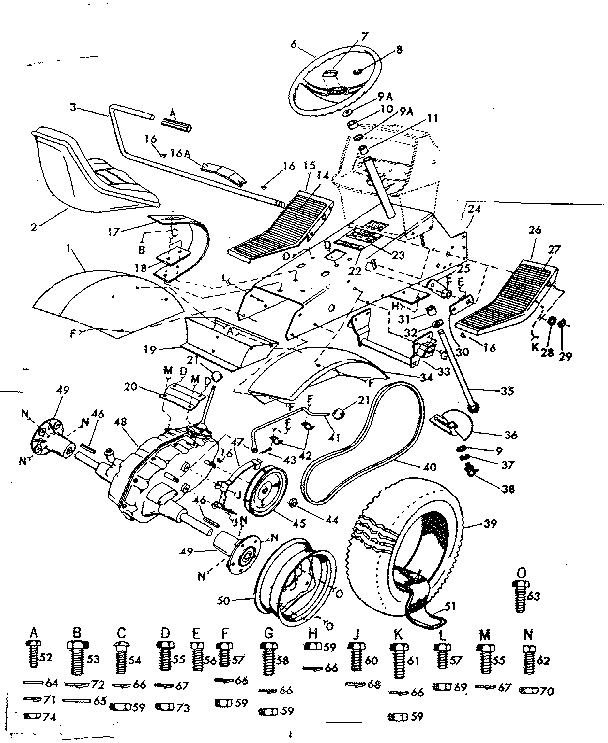

Drive assembly diagram

Hub bolt

Part #1304H

Replaced by #596218701

?
Manufacturer substitution
This part replaces 1304H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Needle Brg 4895H
#25

Transaxle diagram

Needle brg

Part #4895H

Replaced by #532004895

?
Manufacturer substitution
This part replaces 4895H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$13.31 |
13% OFF Phone Price : $15.31
In Stock
Ball 7392M
#10

Transaxle diagram

Ball

Part #7392M

Replaced by #532100482

?
Manufacturer substitution
This part replaces 7392M. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Hitch Pin, 2-pack 4939M
#23

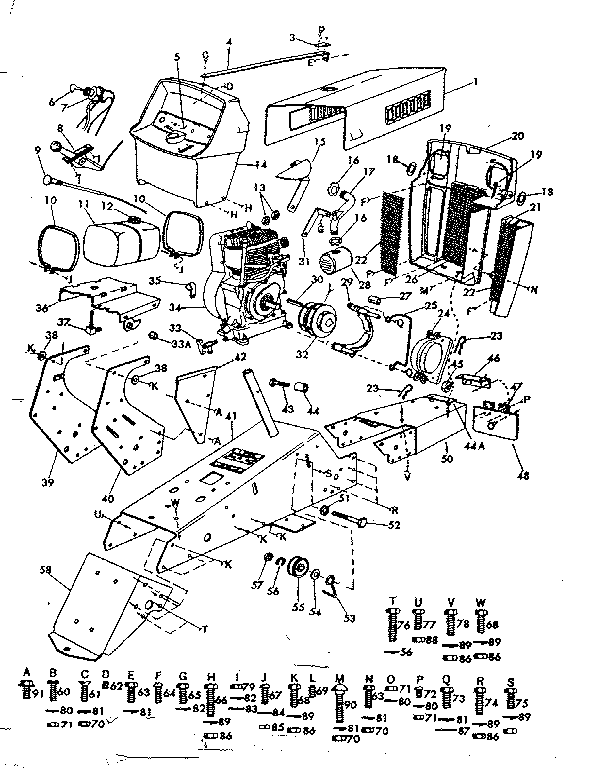

Top half diagram

Hitch pin, 2-pack

Part #4939M

Replaced by #596919601

?
Manufacturer substitution
This part replaces 4939M. Substitute parts can look different from the original.
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Flat Washer 1528P
#2

Front axle diagram

Flat washer

Part #1528P

Replaced by #819272016

?
Manufacturer substitution
This part replaces 1528P. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hex Fin Bolt 3159P
#41

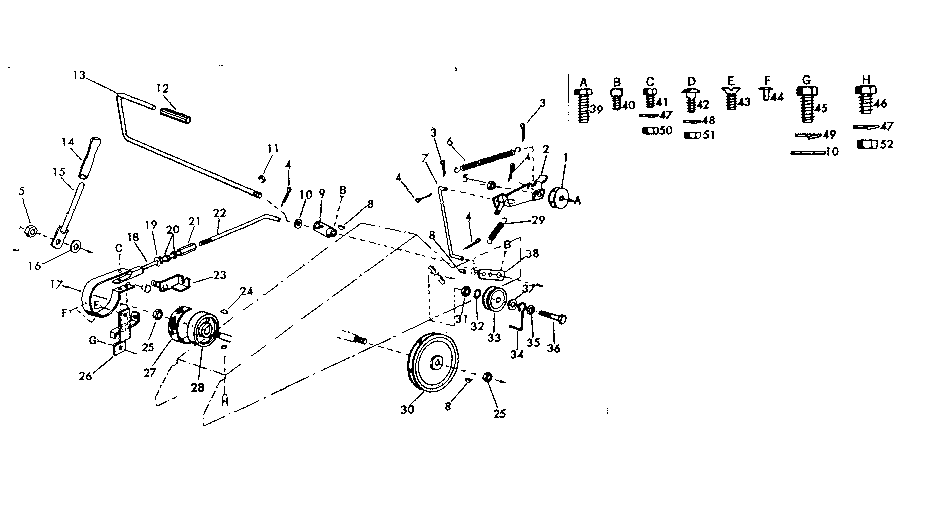

Lift assembly diagram

Hex fin bolt

Part #3159P

Replaced by #596322201

?
Manufacturer substitution
This part replaces 3159P. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Seal 6273H
#74

Transaxle diagram

Seal

Part #6273H

Replaced by #532110542

?
Manufacturer substitution
This part replaces 6273H. Substitute parts can look different from the original.
This item is not returnable
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Tube 338H
#9

Front axle diagram

Tube

Part #338H

Replaced by #583765701

?
Manufacturer substitution
This part replaces 338H. Substitute parts can look different from the original.
$39.98
In Stock
