Gas Range

Model # 79073232314 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 79073232314 gas range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for79073232314 Ranges

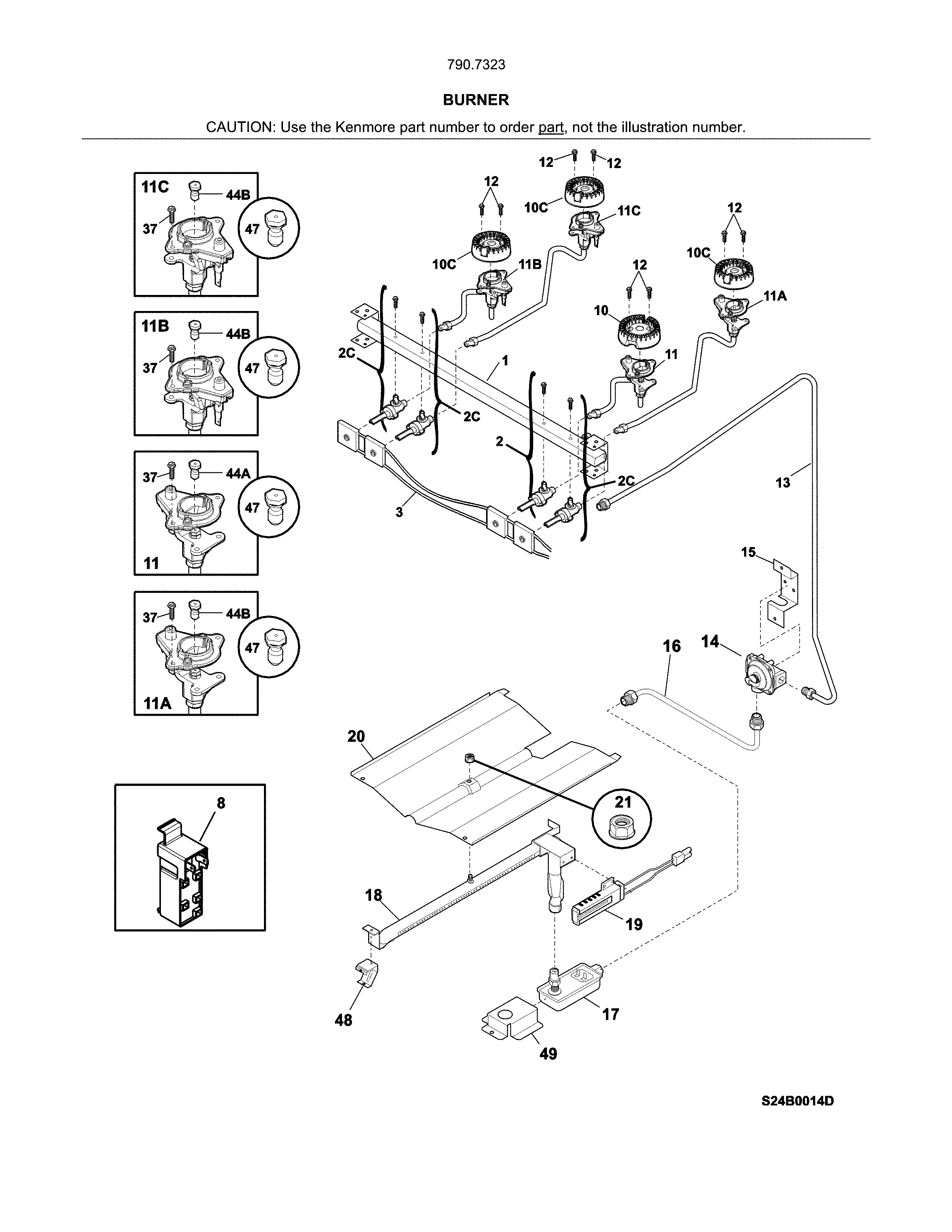

  • Range Oven Igniter 316489408
    #19

    Burner diagram

    Range oven igniter

    Part #316489408

    Replaced by #5304509706

    ?
    Manufacturer substitution
    This part replaces 316489408. Substitute parts can look different from the original.
    BEST SELLER
    $76.83
    7% OFF Phone Price : $82.83
    In Stock

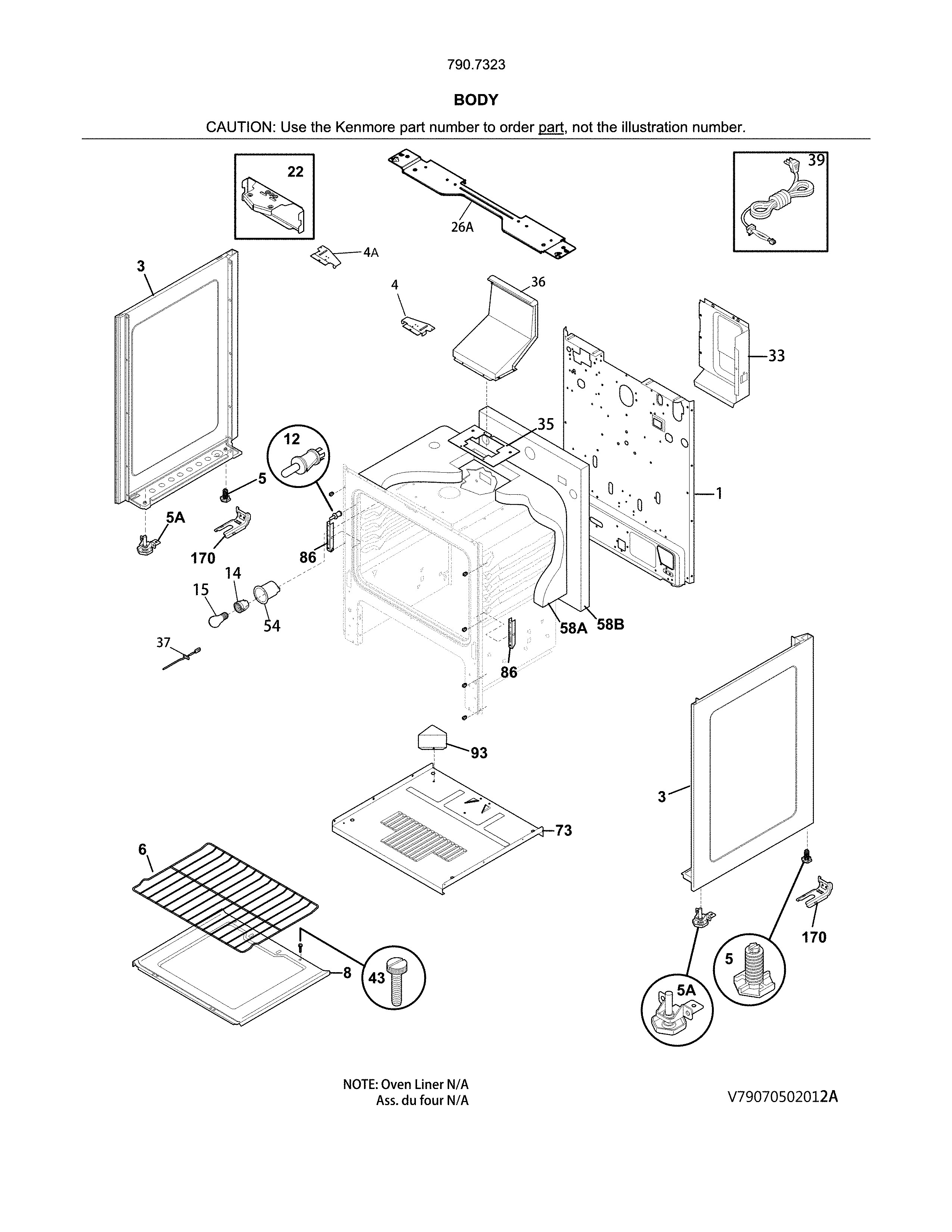

  • Appliance Light Bulb, 40-watt 316538901
    #15

    Body diagram

    Appliance light bulb, 40-watt

    Part #316538901

    Replaced by #316538904

    ?
    Manufacturer substitution
    This part replaces 316538901. Substitute parts can look different from the original.
    BEST SELLER
    $15.89
    11% OFF Phone Price : $17.89
    In Stock

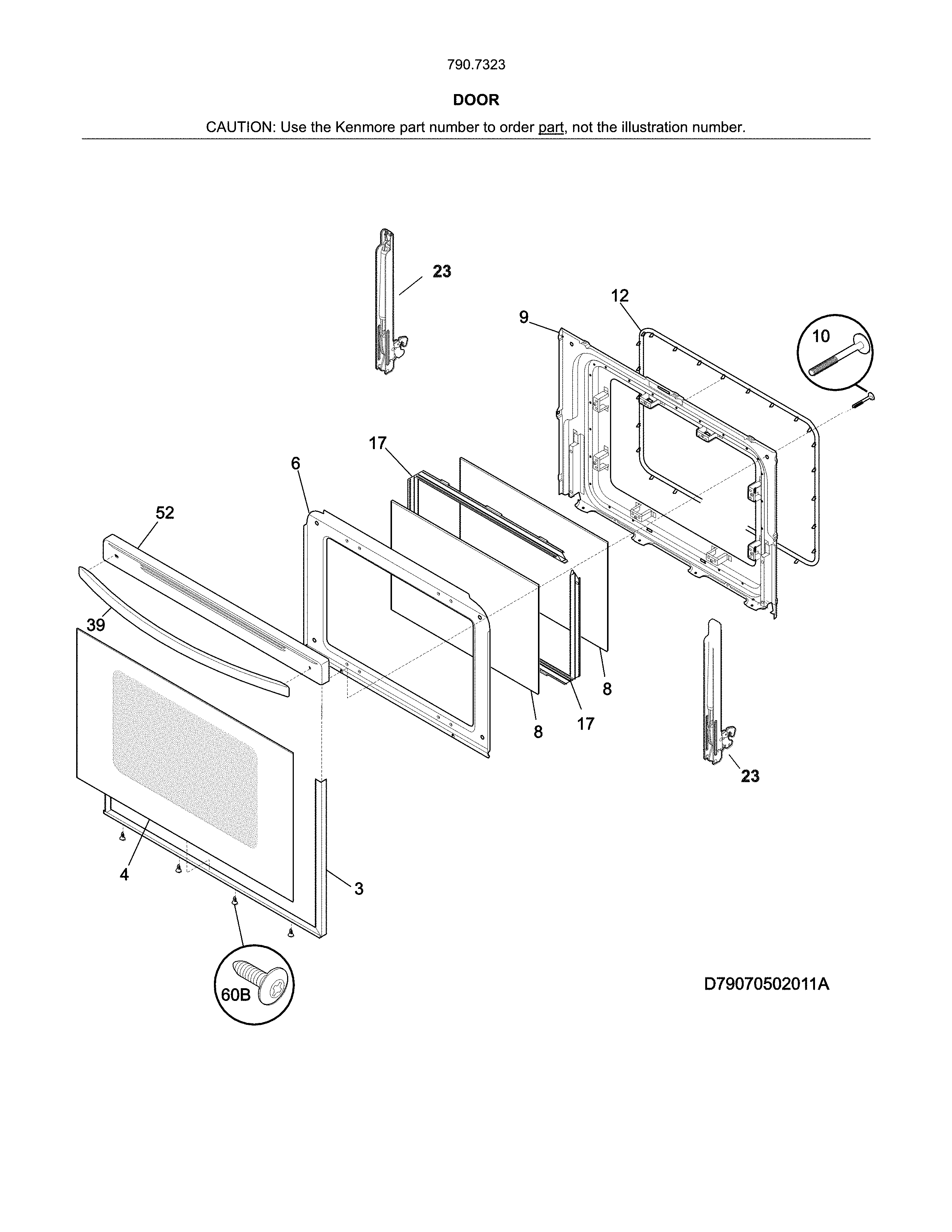

  • Frigidaire Range Oven Door Inner Glass 5304503232
    #8

    Door diagram

    Frigidaire range oven door inner glass

    Part #5304503232

    BEST SELLER
    $77.39
    7% OFF Phone Price : $83.39
    In Stock
  • Frigidaire Range Surface Burner Igniter And Orifice Holder 316536602
    #11B

    Burner diagram

    Frigidaire range surface burner igniter and orifice holder

    Part #316536602

    BEST SELLER
    $77.52
    7% OFF Phone Price : $83.52
    In Stock

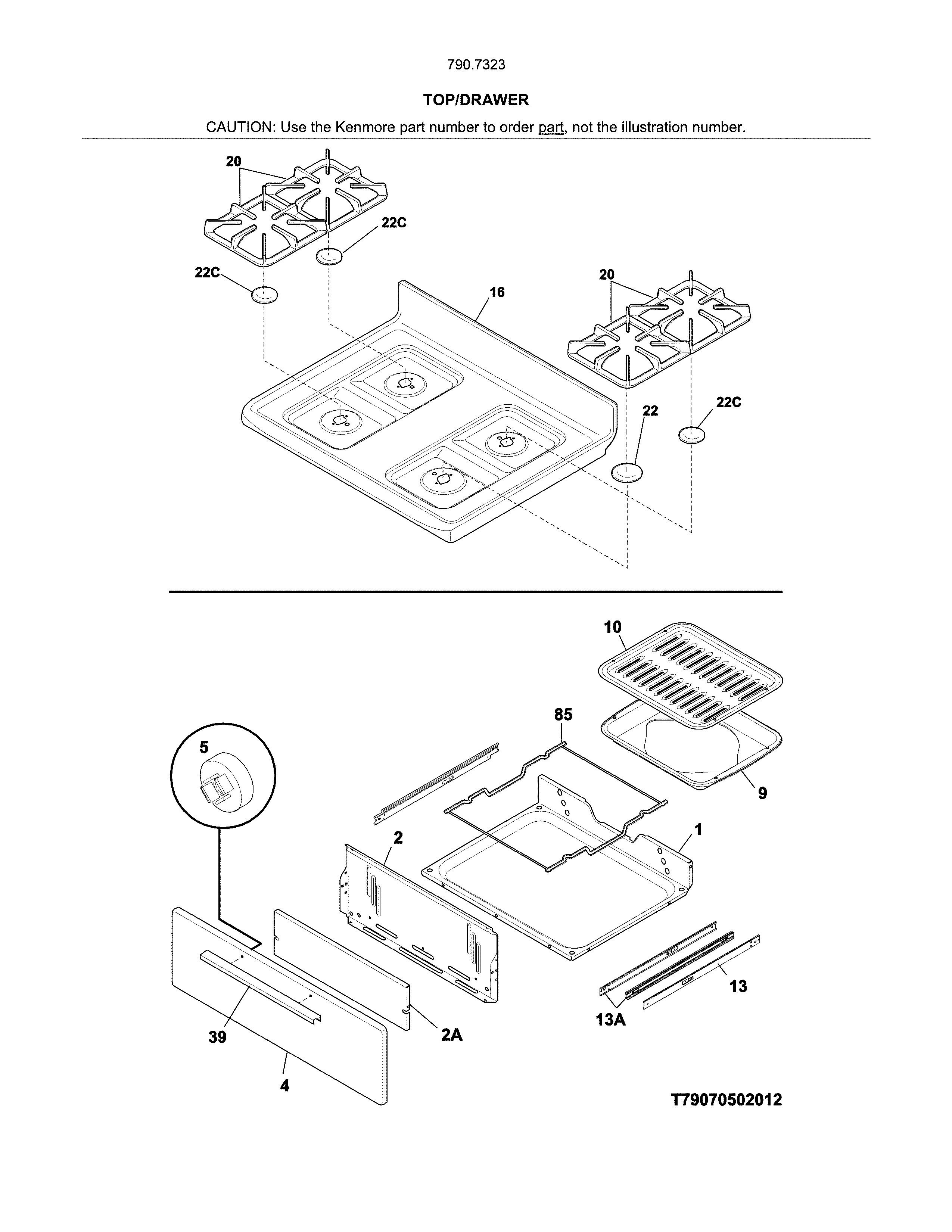

  • Range Surface Burner Cap, 9,500-btu (matte Black) 316261804
    #22C

    Top/drawer diagram

    Range surface burner cap, 9,500-btu (matte black)

    Part #316261804

    Replaced by #5304508442

    ?
    Manufacturer substitution
    This part replaces 316261804. Substitute parts can look different from the original.
    BEST SELLER
    $30.34
    17% OFF Phone Price : $36.34
    In Stock
  • Range Surface Burner Cap 316262004
    #22

    Top/drawer diagram

    Range surface burner cap

    Part #316262004

    Replaced by #5304508443

    ?
    Manufacturer substitution
    This part replaces 316262004. Substitute parts can look different from the original.
    BEST SELLER
    $30.94
    16% OFF Phone Price : $36.94
    In Stock

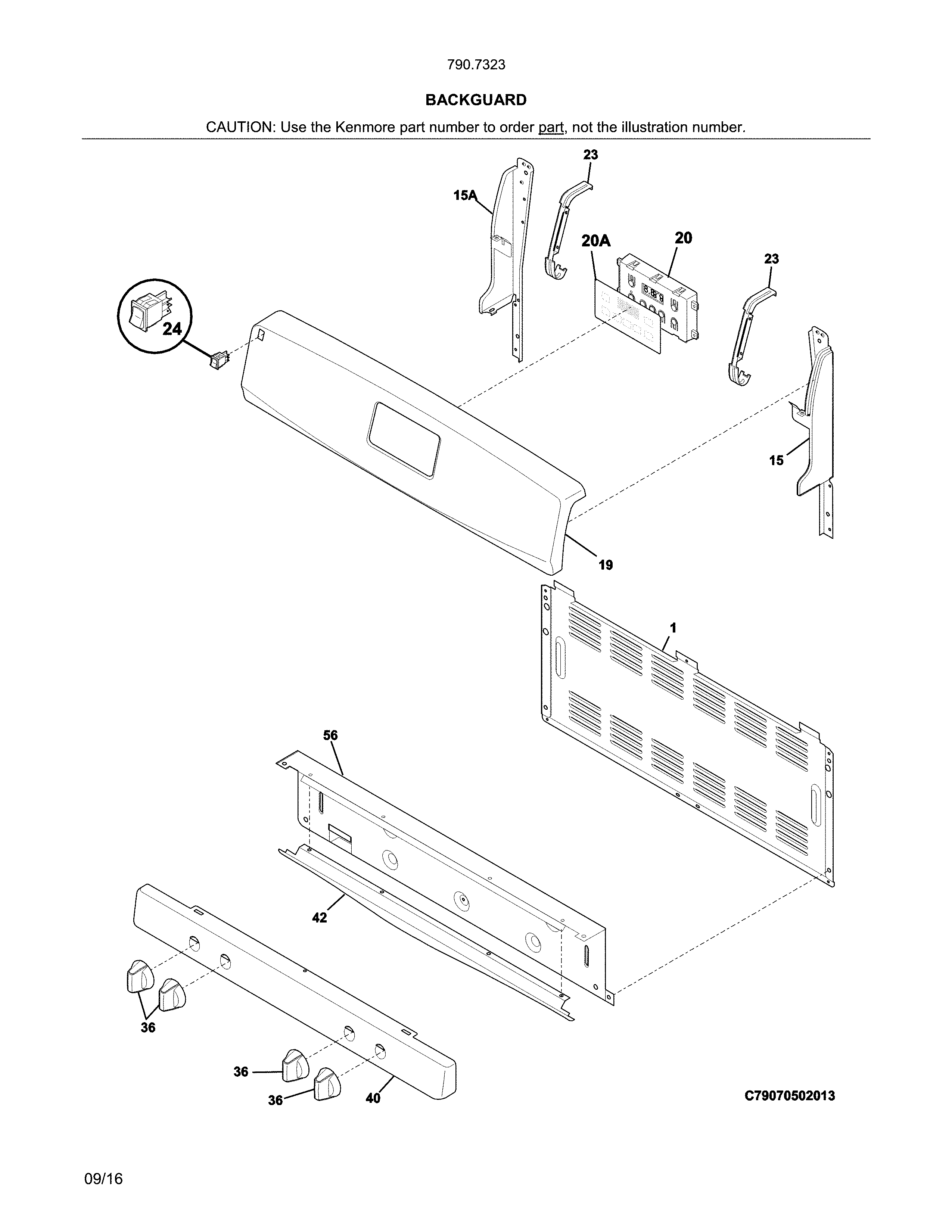

  • Range Oven Control Overlay 316354402
    #20A

    Backguard diagram

    Range oven control overlay

    Part #316354402

    BEST SELLER
    $31.93
    16% OFF Phone Price : $37.93
    In Stock
  • Range Pressure Regulator 316091706
    #14

    Burner diagram

    Range pressure regulator

    Part #316091706

    Replaced by #5304521339

    ?
    Manufacturer substitution
    This part replaces 316091706. Substitute parts can look different from the original.
    BEST SELLER
    $63.27
    9% OFF Phone Price : $69.27
    In Stock
  • Range Surface Burner Orifice 316527500
    #44B

    Burner diagram

    Range surface burner orifice

    Part #316527500

    BEST SELLER
    $19.13
    9% OFF Phone Price : $21.13
    In Stock
  • Frigidaire Range Oven Gas Valve 3203459
    #17

    Burner diagram

    Frigidaire range oven gas valve

    Part #3203459

    BEST SELLER
    $199.36
    6% OFF Phone Price : $211.36
    In Stock
