Model # 1165318090 Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 1165318090 powermate attachment, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
1165318090 Vacuum Cleaners
Protector 742332
#22

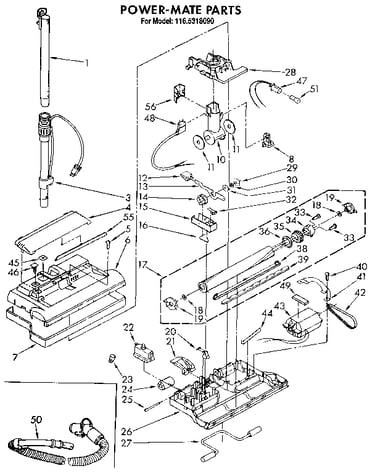

Power mate diagram

Protector

Part #742332

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor  Brush N/P
(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Housng-blb 4156431
#4

Power mate diagram

Housng-blb

Part #4156431

The manufacturer no longer makes this part, and there's no substitute part

End Brush (black) 742509
#34

Power mate diagram

End brush (black)

Part #742509

The manufacturer no longer makes this part, and there's no substitute part

Swivel 4156162
#10

Power mate diagram

Swivel

Part #4156162

The manufacturer no longer makes this part, and there's no substitute part

Lifter 742013
#20

Power mate diagram

Lifter

Part #742013

The manufacturer no longer makes this part, and there's no substitute part

Adjustment Lever 747287
#13

Power mate diagram

Adjustment lever

Part #747287

The manufacturer no longer makes this part, and there's no substitute part

Wire Connector (tan) 4154460
#23

Power mate diagram

Wire connector (tan)

Part #4154460

The manufacturer no longer makes this part, and there's no substitute part

Release 4148391
#21

Power mate diagram

Release

Part #4148391

The manufacturer no longer makes this part, and there's no substitute part

Axle (silver) 744029
#27

Power mate diagram

Axle (silver)

Part #744029

The manufacturer no longer makes this part, and there's no substitute part
