Model # T24ID80NLP/31 Official Thermador built-in freezer column

Here are the diagrams and repair parts for Official Thermador T24ID80NLP-31 built-in freezer column, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

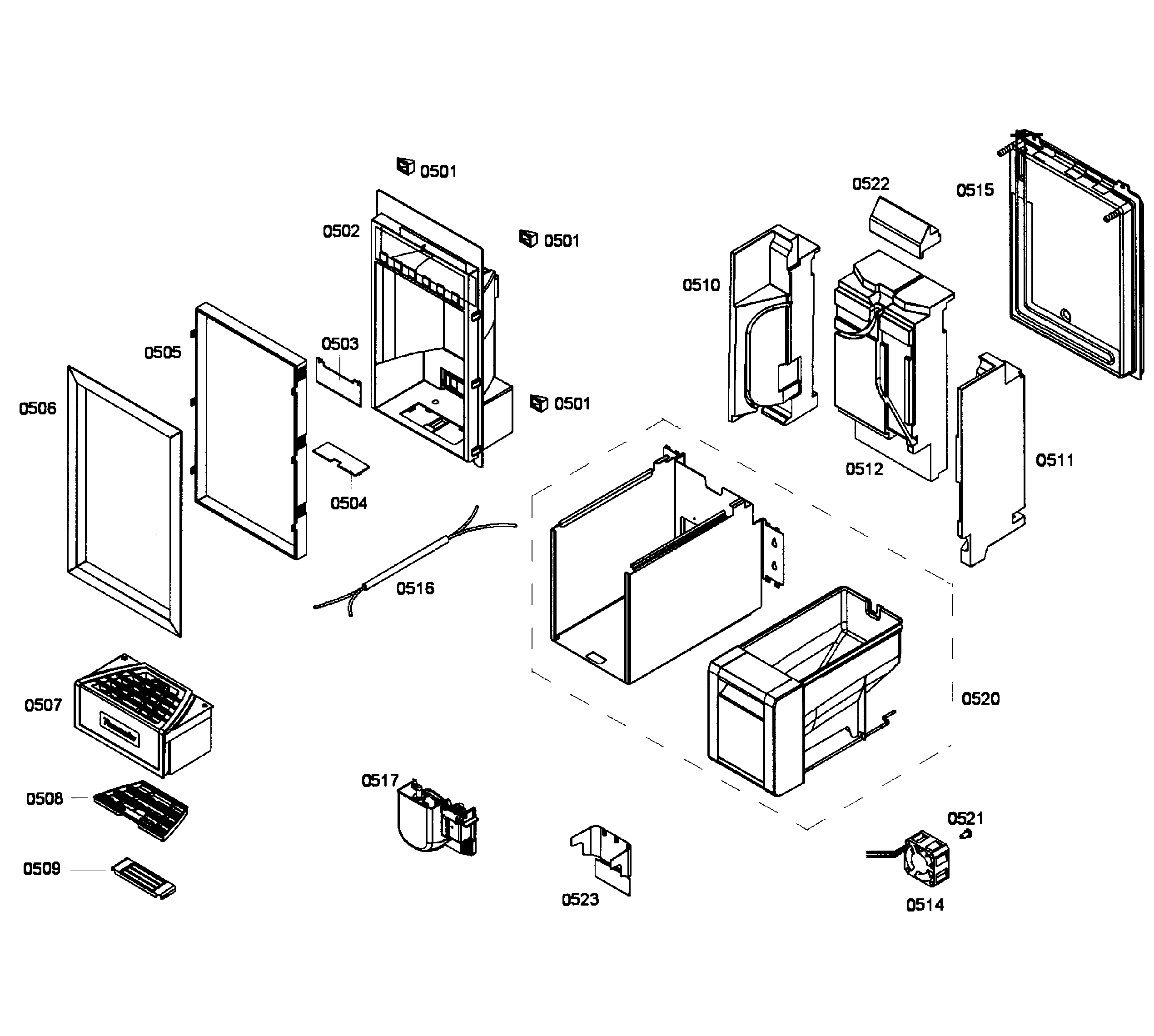

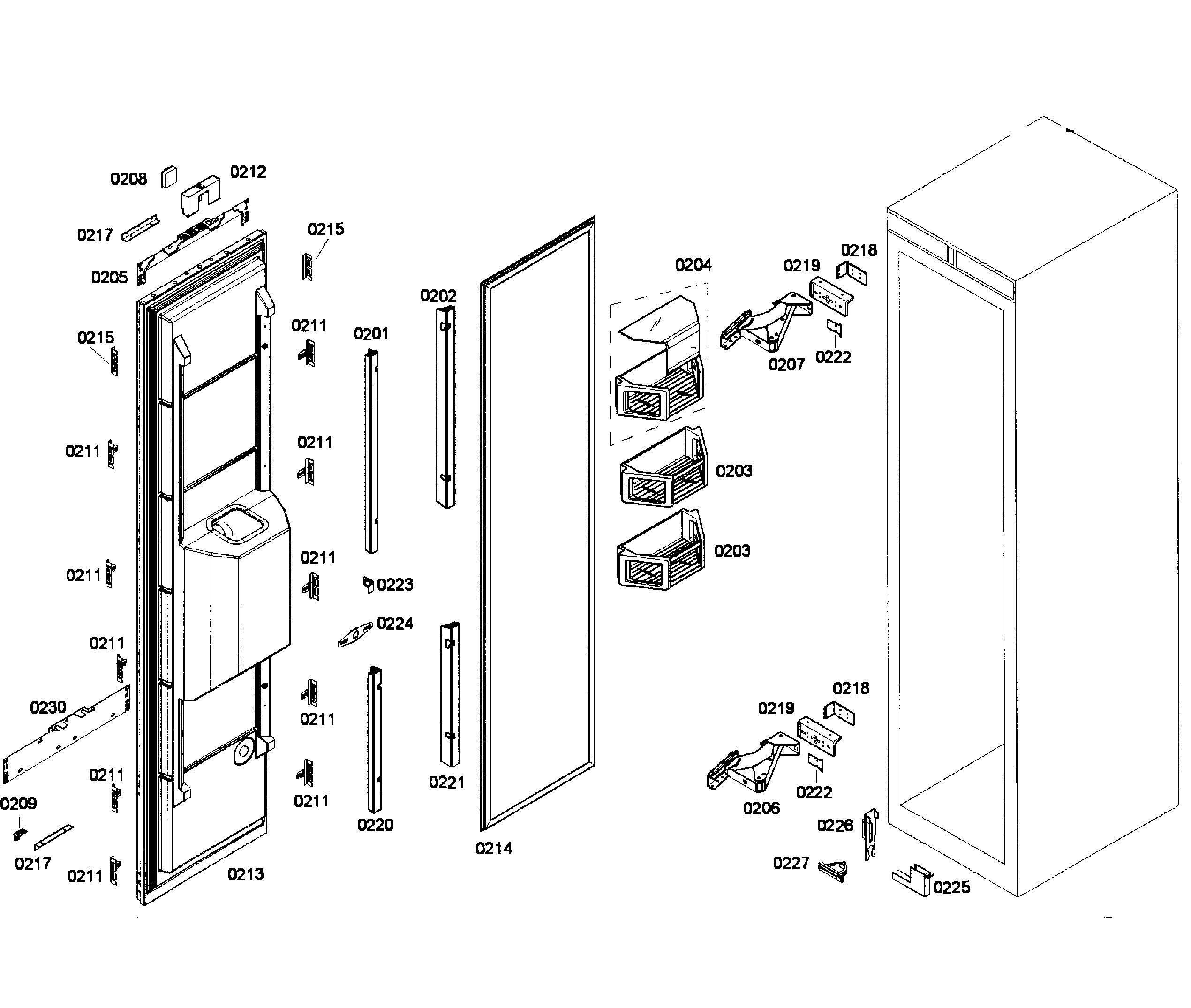

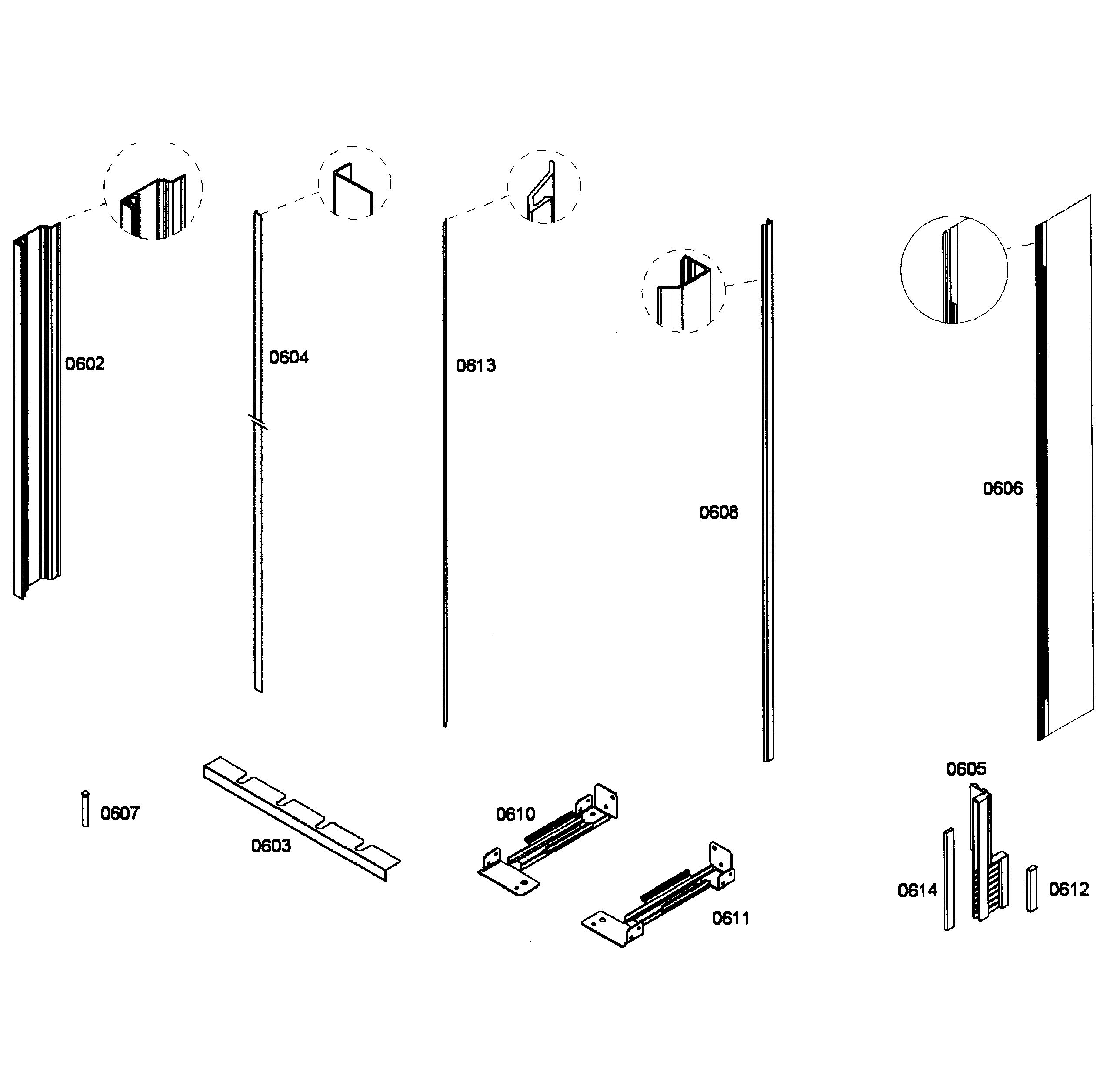

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 181 parts  |
Refrigerator Water Filter 641425
#411

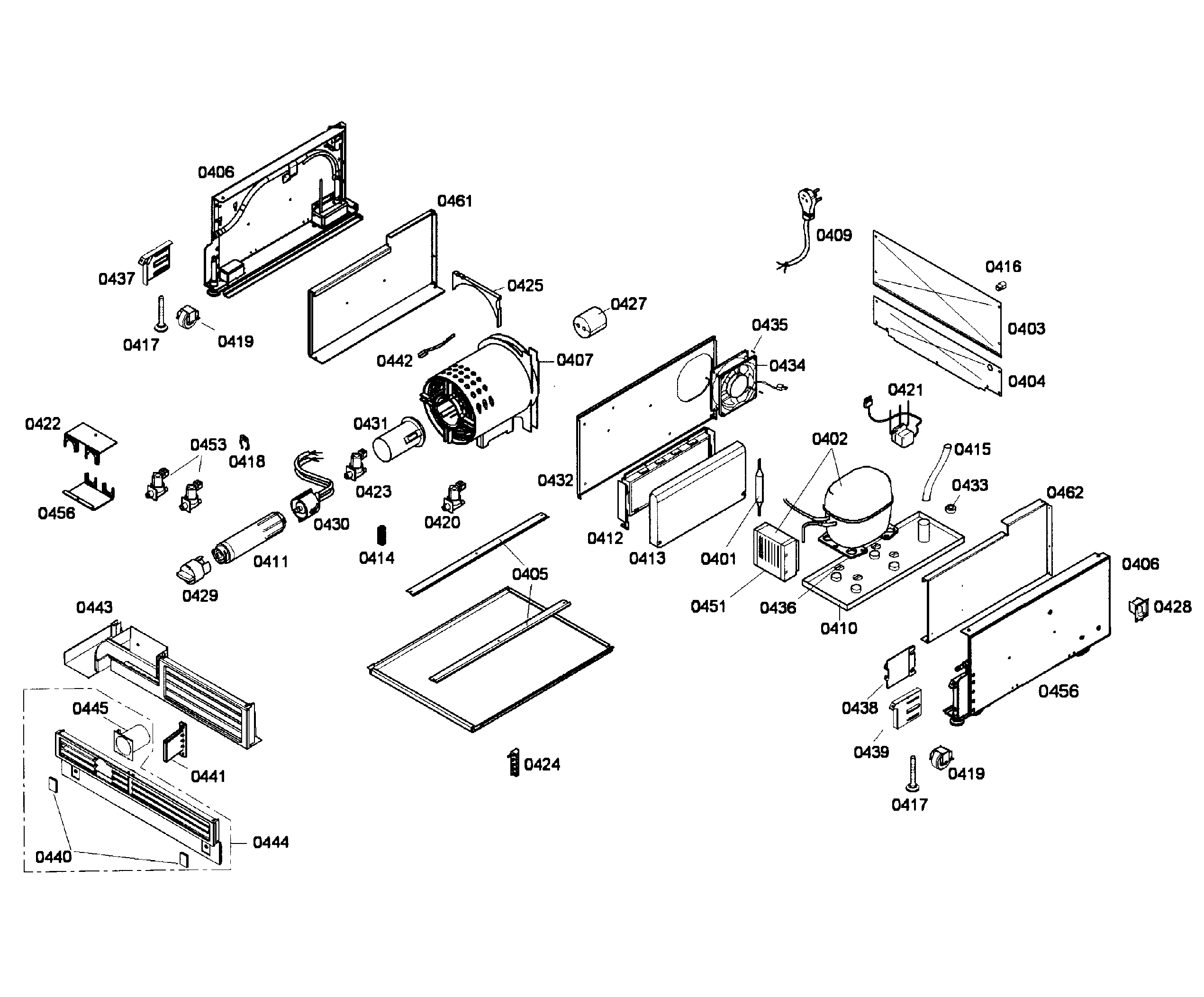

Compressor diagram

Refrigerator water filter

Part #641425

Replaced by #11034151

?
Manufacturer substitution
This part replaces 641425. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$89.19 |
6% OFF Phone Price : $95.19
In Stock
Sensor 617203
#130

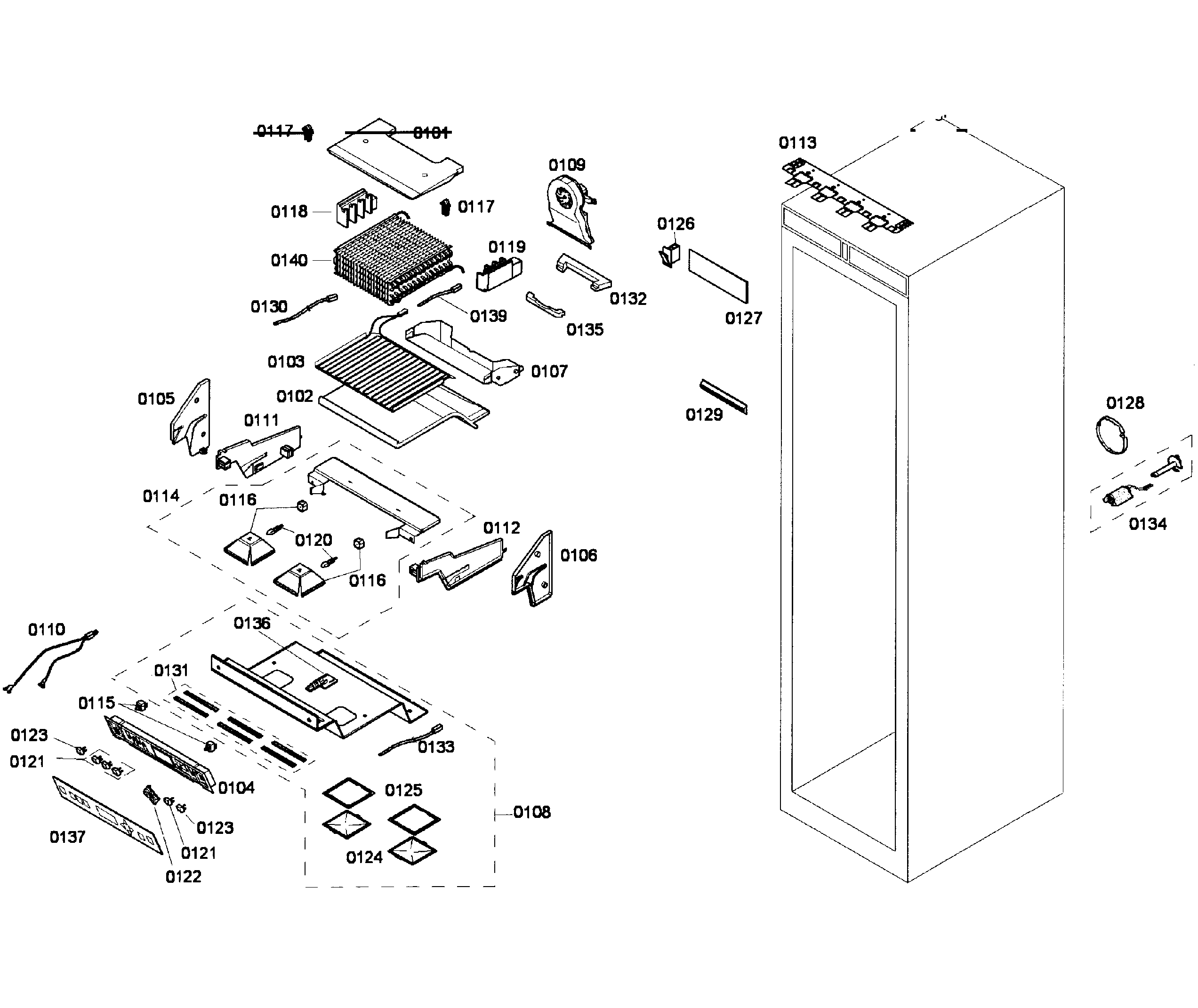

Cabinet parts diagram

Sensor

Part #617203

Replaced by #00617203

?
Manufacturer substitution
This part replaces 617203. Substitute parts can look different from the original.
This item is not returnable
$23.59 |
20% OFF Phone Price : $29.59
In Stock
Freezer Water Filter Cap 604684
#429

Compressor diagram

Freezer water filter cap

Part #604684

Replaced by #00604684

?
Manufacturer substitution
This part replaces 604684. Substitute parts can look different from the original.
$11.49 |
15% OFF Phone Price : $13.49
In Stock
Freezer Water Valve 603967
#423

Compressor diagram

Freezer water valve

Part #603967

Replaced by #00639065

?
Manufacturer substitution
This part replaces 603967. Substitute parts can look different from the original.
$39.19 |
13% OFF Phone Price : $45.19
In Stock
Cover 499853
#413

Compressor diagram

Cover

Part #499853

Replaced by #00499853

?
Manufacturer substitution
This part replaces 499853. Substitute parts can look different from the original.
$50.89 |
11% OFF Phone Price : $56.89
In Stock
Operating 667838
#104

Cabinet parts diagram

Operating

Part #667838

Replaced by #11041652

?
Manufacturer substitution
This part replaces 667838. Substitute parts can look different from the original.
$239.70 |
5% OFF Phone Price : $251.70
In Stock
Panel 664225
Panel

Part #664225

Replaced by #00700539

?
Manufacturer substitution
This part replaces 664225. Substitute parts can look different from the original.
$242.39 |
5% OFF Phone Price : $254.39
In Stock
Housing 605602
#445

Compressor diagram

Housing

Part #605602

Replaced by #00605602

?
Manufacturer substitution
This part replaces 605602. Substitute parts can look different from the original.
This item is not returnable
$6.06
In Stock
Clip 603970
#322

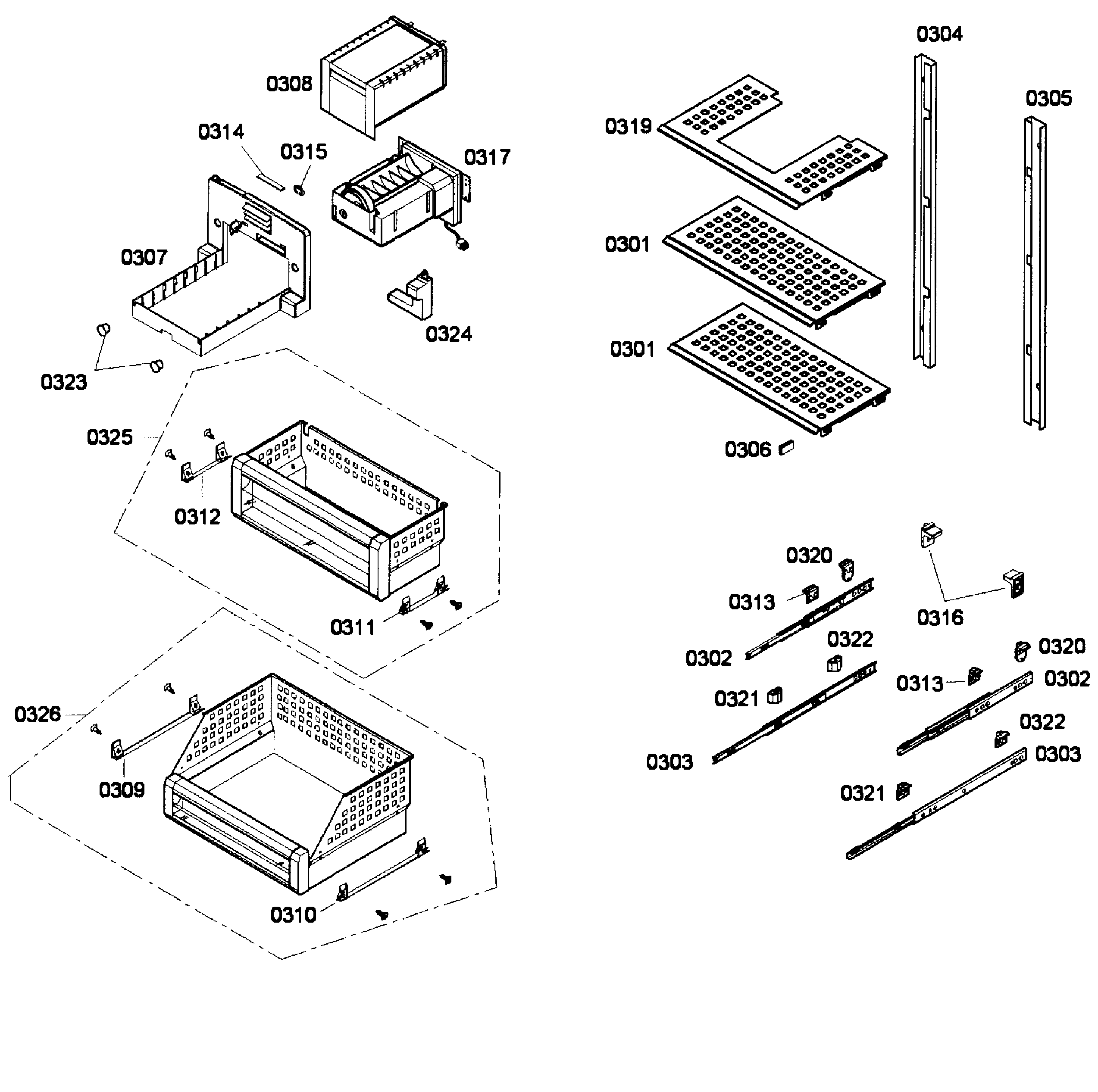

Shelfs diagram

Clip

Part #603970

Replaced by #00603970

?
Manufacturer substitution
This part replaces 603970. Substitute parts can look different from the original.
This item is not returnable
$6.31
In Stock
Support 604116
#132

Cabinet parts diagram

Support

Part #604116

Replaced by #10003831

?
Manufacturer substitution
This part replaces 604116. Substitute parts can look different from the original.
$25.91
In Stock
