Model # LHC4900W1 Official Whirlpool washer

Here are the diagrams and repair parts for Official Whirlpool LHC4900W1 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

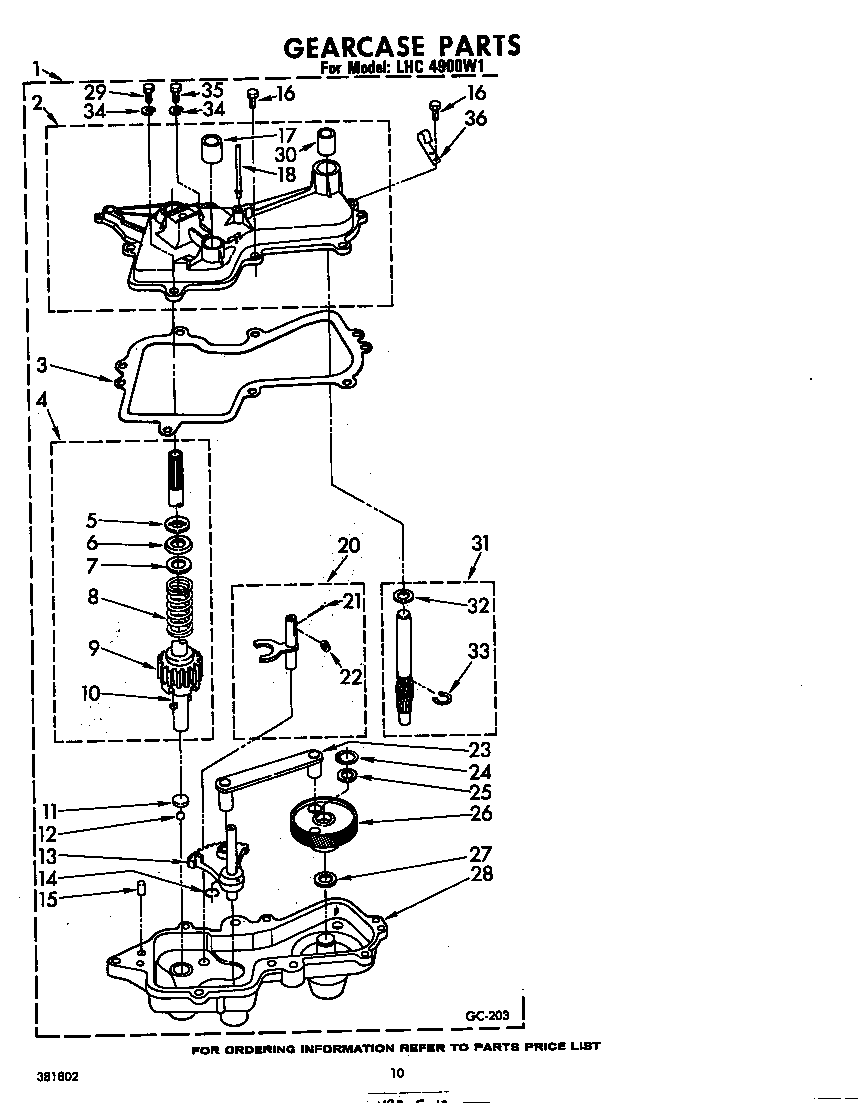

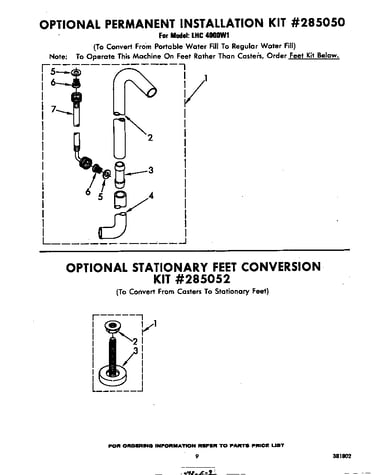

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 296 parts  |
Washer Agitator Bolt 358237
#28

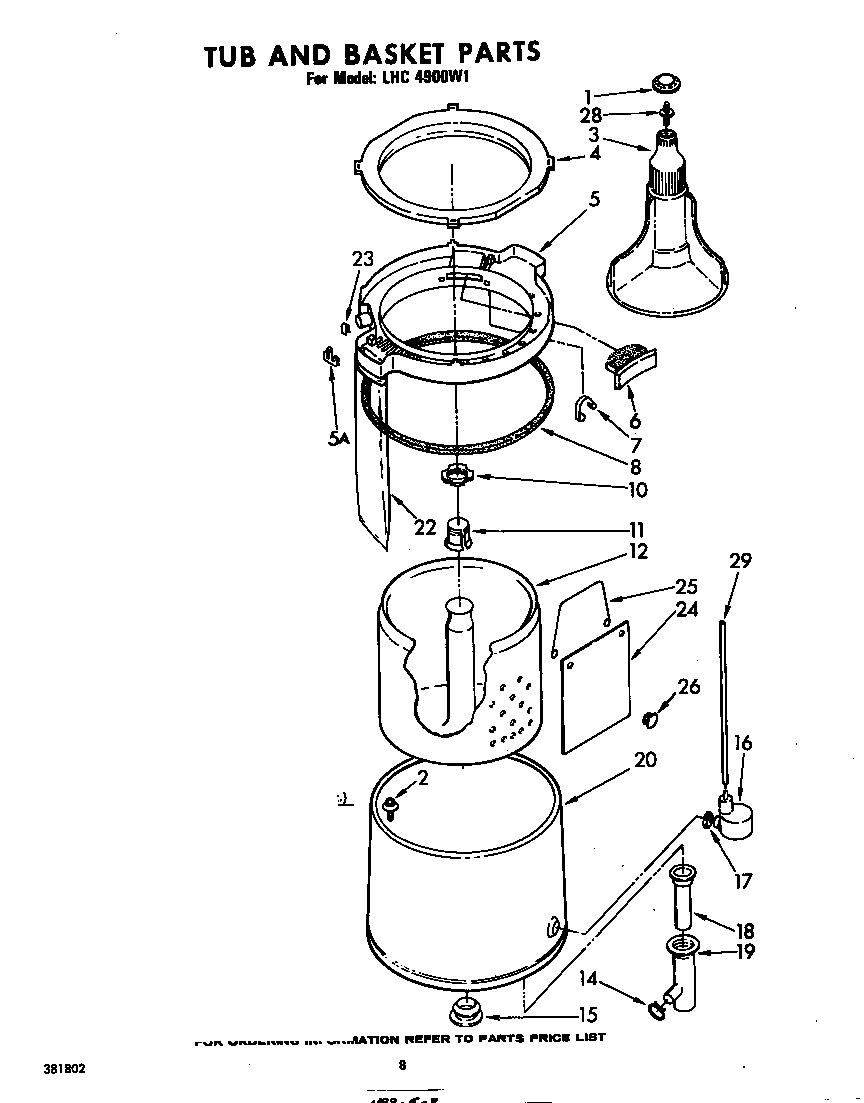

Tub and basket diagram

Washer agitator bolt

Part #358237

Replaced by #WP358237

?
Manufacturer substitution
This part replaces 358237. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.75 |
15% OFF Phone Price : $6.75
In Stock
Gasket 96690
#15

Tub and basket diagram

Gasket

Part #96690

Replaced by #W10814296

?
Manufacturer substitution
This part replaces 96690. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.69 |
21% OFF Phone Price : $4.69
In Stock
Valve 358992
#43

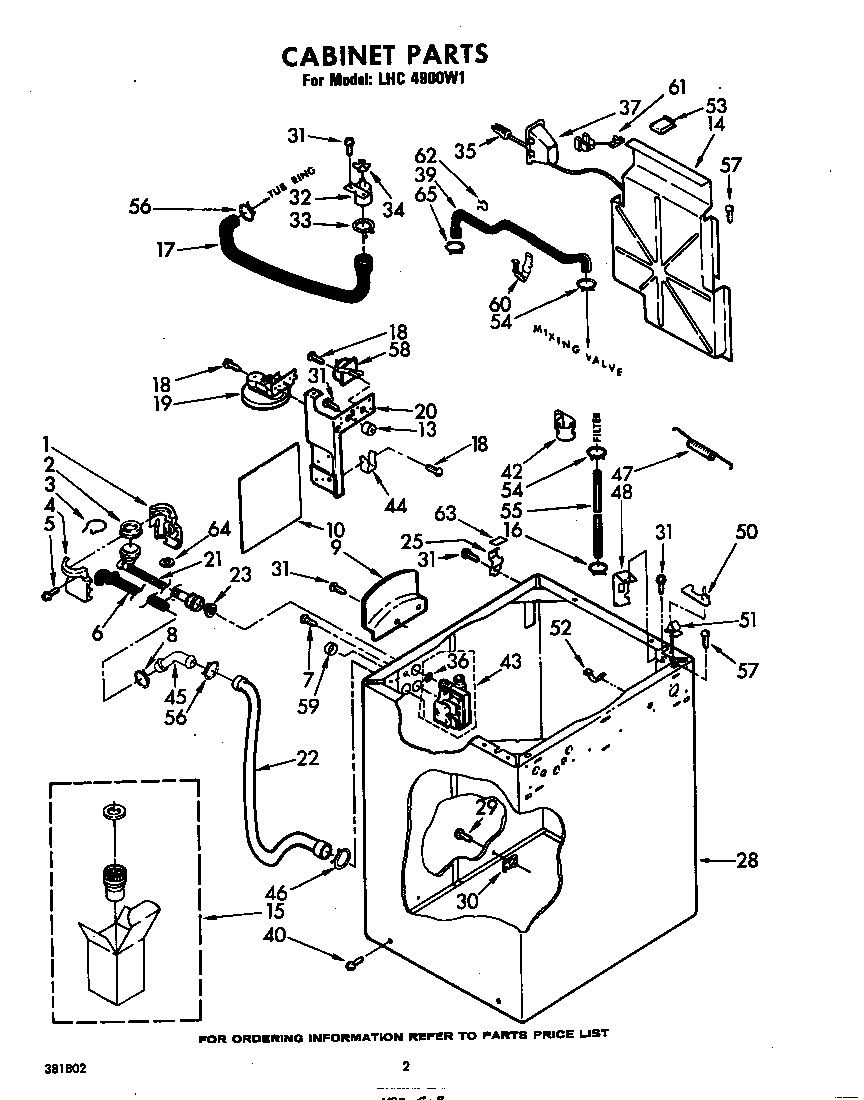

Cabinet diagram

Valve

Part #358992

Replaced by #285805

?
Manufacturer substitution
This part replaces 358992. Substitute parts can look different from the original.
BEST SELLER
$26.34 |
19% OFF Phone Price : $32.34
In Stock
Lid Switch 364090
#23

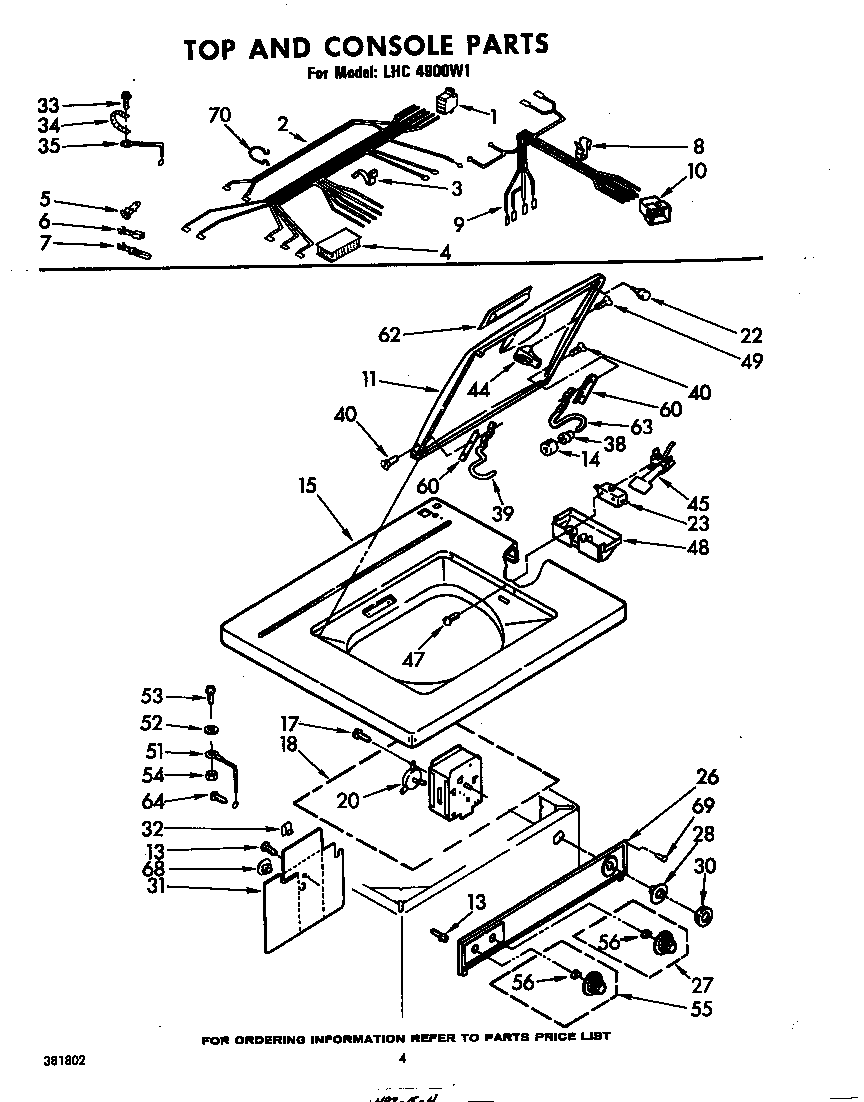

Top and console diagram

Lid switch

Part #364090

Replaced by #W10820036

?
Manufacturer substitution
This part replaces 364090. Substitute parts can look different from the original.
BEST SELLER
$24.22 |
20% OFF Phone Price : $30.22
In Stock
Hose 353161
#29

Tub and basket diagram

Hose

Part #353161

Replaced by #WP353244

?
Manufacturer substitution
This part replaces 353161. Substitute parts can look different from the original.
BEST SELLER
$43.73 |
12% OFF Phone Price : $49.73
In Stock
Clamp 371501
#65

Cabinet diagram

Clamp

Part #371501

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 371501. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock

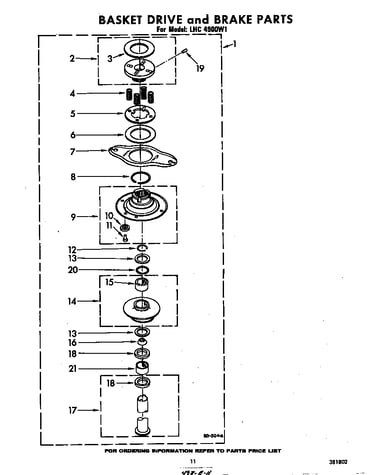

Seal, Center Post 356934
#1

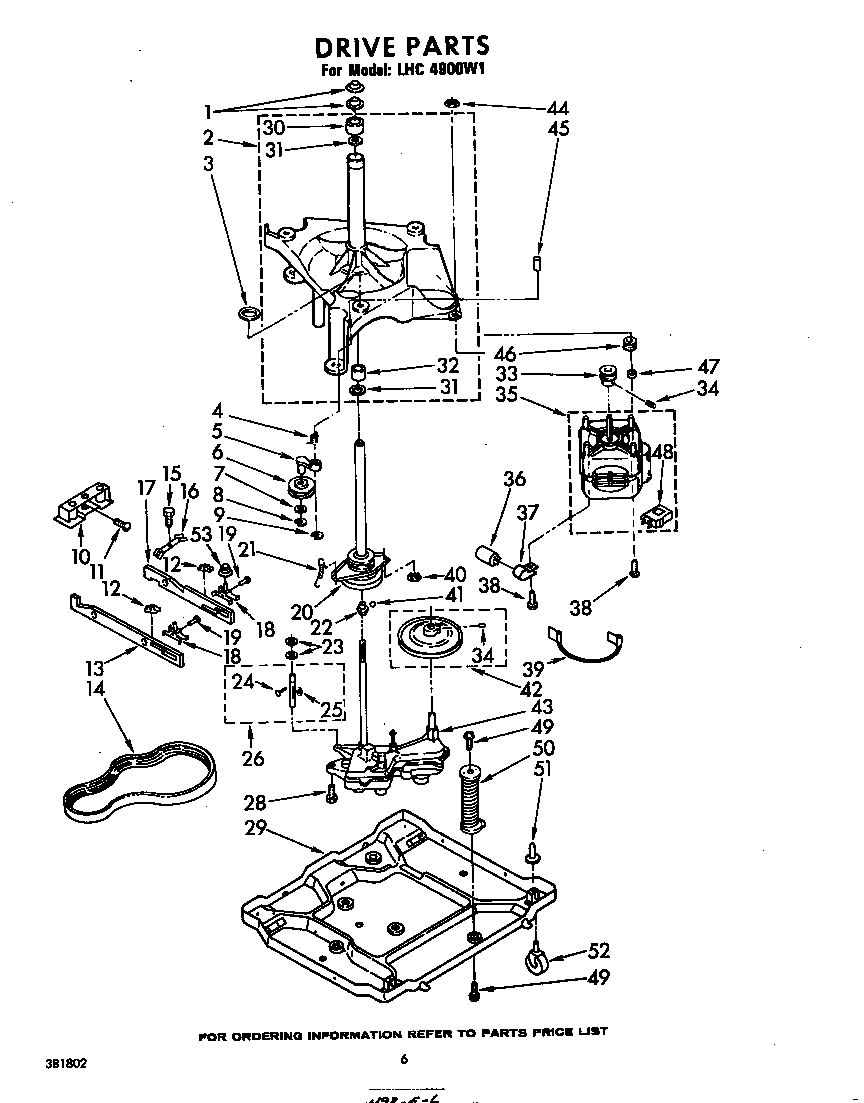

Drive diagram

Seal, center post

Part #356934

Replaced by #WP8577376

?
Manufacturer substitution
This part replaces 356934. Substitute parts can look different from the original.
BEST SELLER
$9.89 |
9% OFF Phone Price : $10.89
In Stock
Adapter 300446
#15

Cabinet diagram

Adapter

Part #300446

Replaced by #WPW10254672

?
Manufacturer substitution
This part replaces 300446. Substitute parts can look different from the original.
BEST SELLER
$37.70 |
14% OFF Phone Price : $43.70
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#29G

Tub and basket diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Clamp 353097
Clamp

Part #353097

The manufacturer no longer makes this part, and there's no substitute part
