Model # FUM21DMARWH Official GE freezer - a series

Here are the diagrams and repair parts for Official GE FUM21DMARWH freezer - a series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Dryer Filter WR86X0096
#740

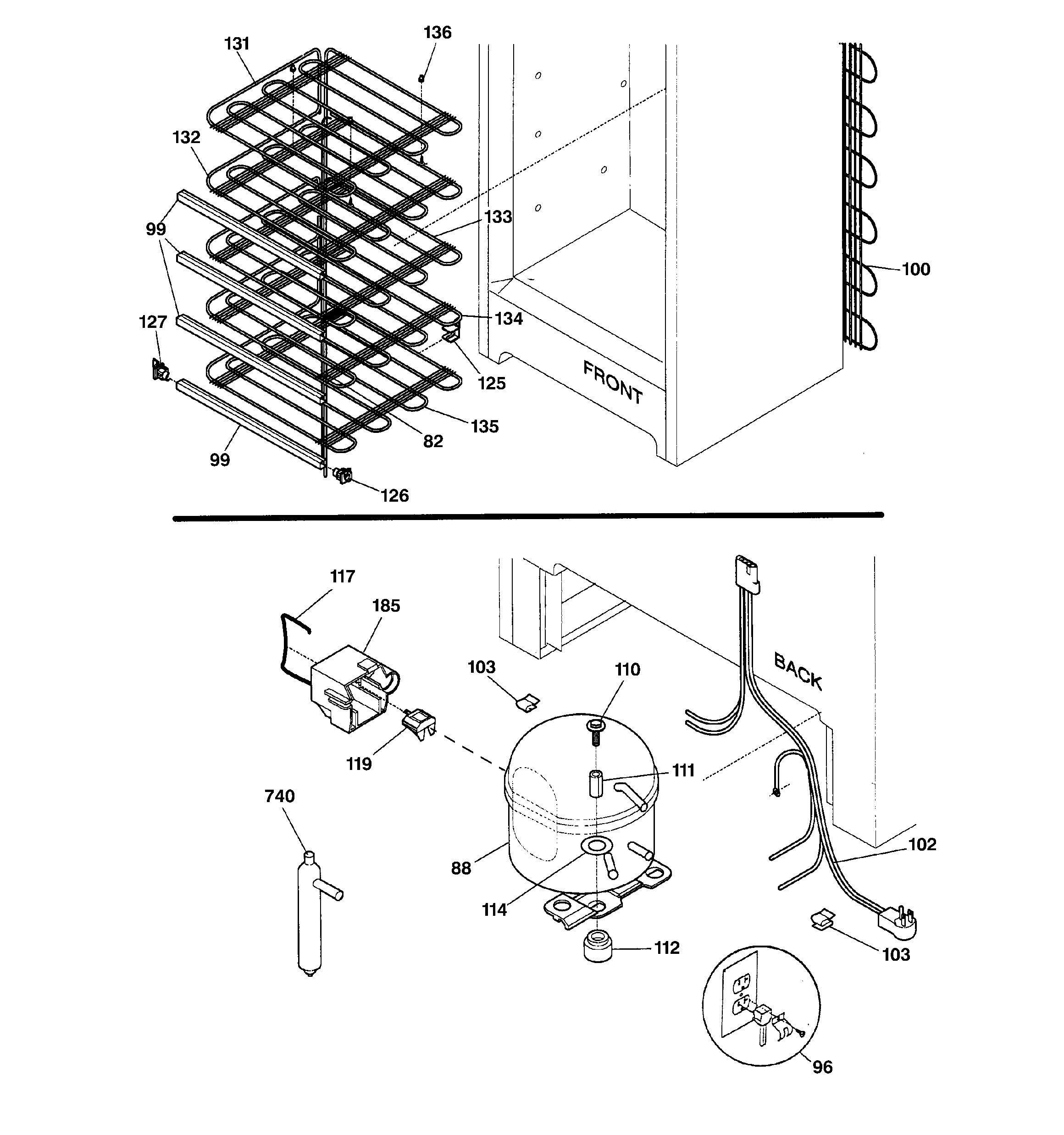

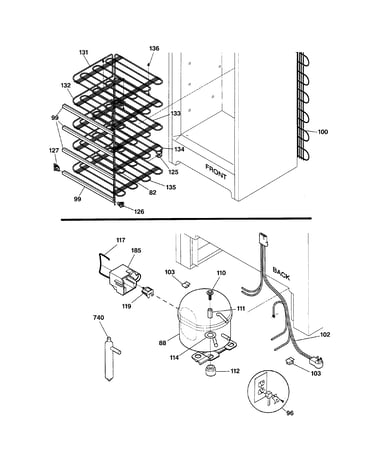

System diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Freezer Door Gasket WR24X10010
#8

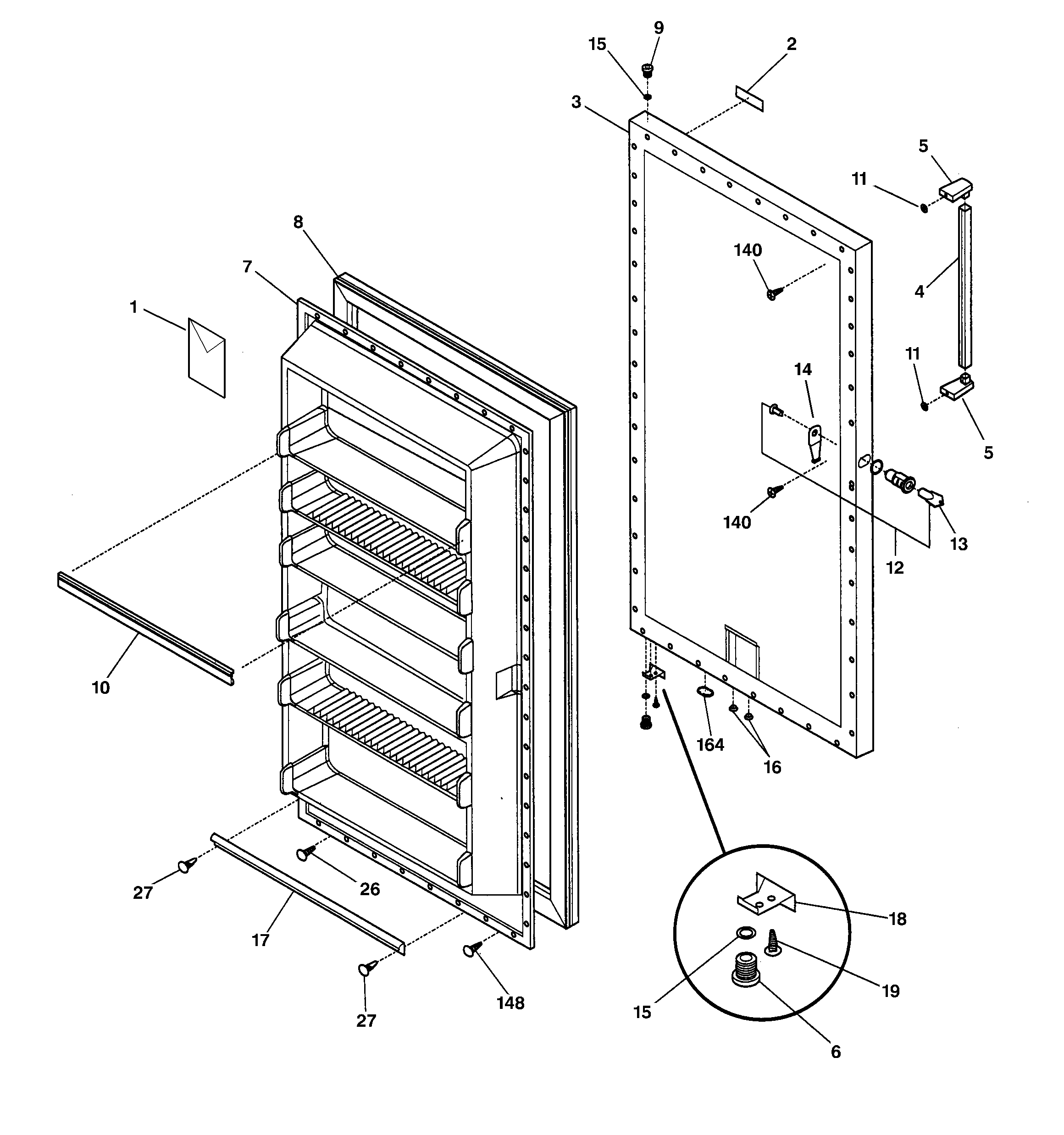

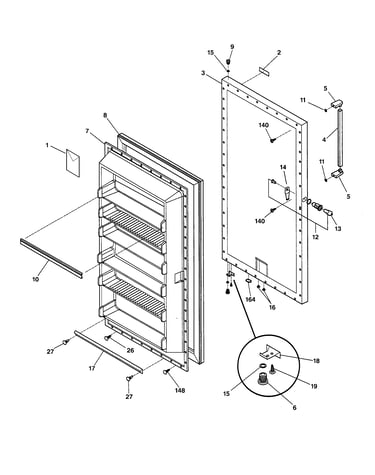

Door diagram

Freezer door gasket

Part #WR24X10010

$186.70 |
6% OFF Phone Price : $198.70
In Stock
Power Cord WR23X0108
#102

System diagram

Power cord

Part #WR23X0108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X0108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Temperature Complete Knob WR02X10860
#45

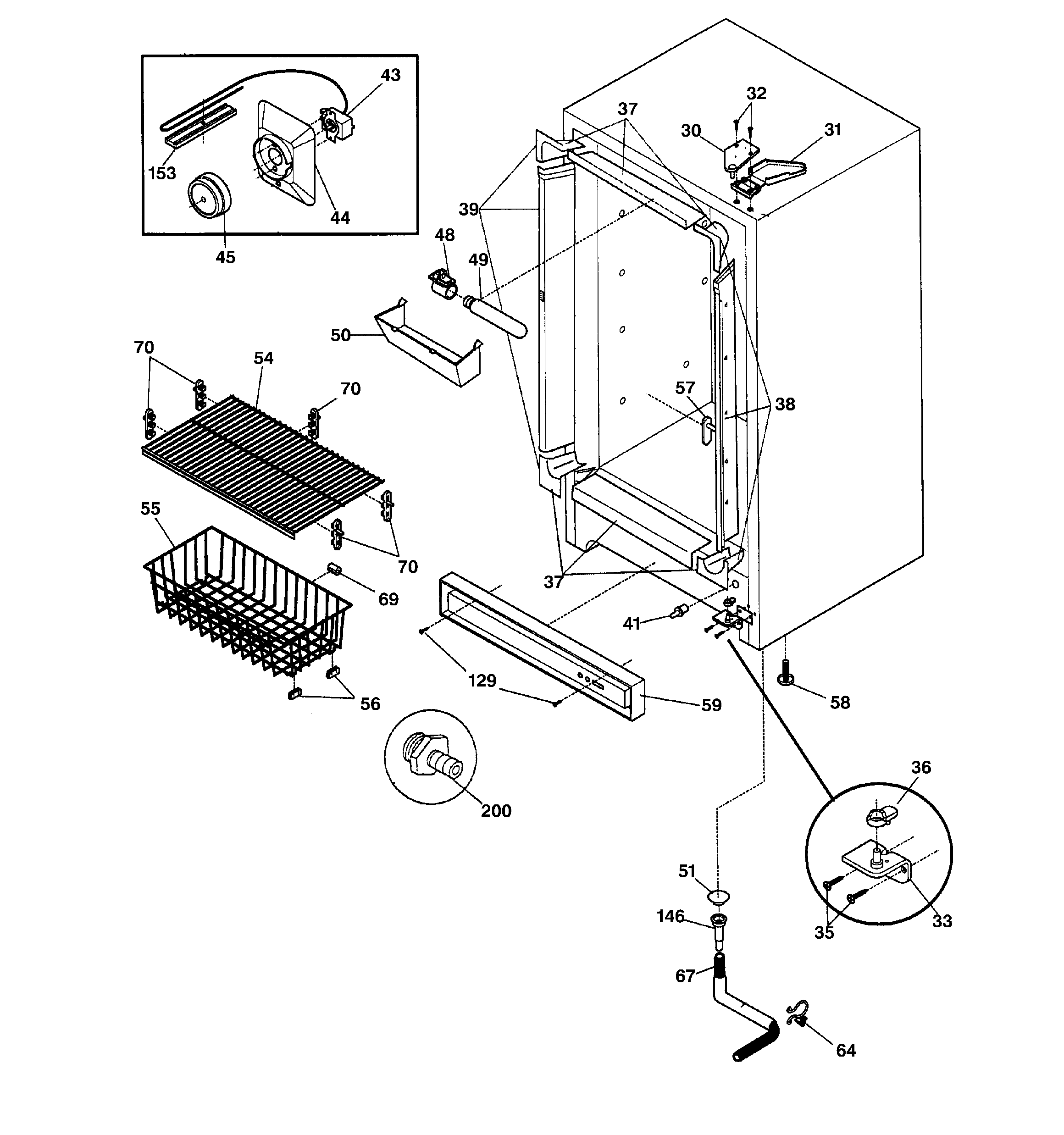

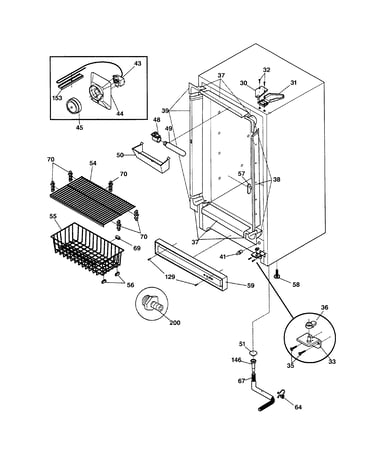

Cabinet diagram

Temperature complete knob

Part #WR02X10860

$38.89 |
13% OFF Phone Price : $44.89
In Stock
Condenser WR84X5007
#100

System diagram

Condenser

Part #WR84X5007

$279.53
In Stock
Shoulder Screw WR01X5405
#26

Door diagram

Shoulder screw

Part #WR01X5405

Replaced by #WR01X10623

?
Manufacturer substitution
This part replaces WR01X5405. Substitute parts can look different from the original.
$8.11
In Stock
Grommet Spacer WR01X2182
#136

System diagram

Grommet spacer

Part #WR01X2182

Replaced by #WR1X2182

?
Manufacturer substitution
This part replaces WR01X2182. Substitute parts can look different from the original.
This item is not returnable
$4.35
In Stock
Glide WR02X6808
#56

Cabinet diagram

Glide

Part #WR02X6808

Replaced by #WR02X11444

?
Manufacturer substitution
This part replaces WR02X6808. Substitute parts can look different from the original.
$81.57 |
7% OFF Phone Price : $87.57
In Stock
Shelf Trim WR38X10088
#99

System diagram

Shelf trim

Part #WR38X10088

Replaced by #WR38X32250

?
Manufacturer substitution
This part replaces WR38X10088. Substitute parts can look different from the original.
$111.07
In Stock
Mounting Sleeve WR02X9497
#111

System diagram

Mounting sleeve

Part #WR02X9497

Replaced by #WR2X9497

?
Manufacturer substitution
This part replaces WR02X9497. Substitute parts can look different from the original.
$45.51
In Stock
