Model # RF3750XPW0 Official Whirlpool electric range

Here are the diagrams and repair parts for Official Whirlpool RF3750XPW0 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

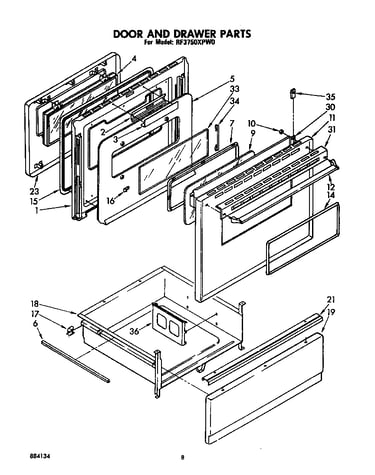

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 223 parts  |
Light Bulb 311255
#11

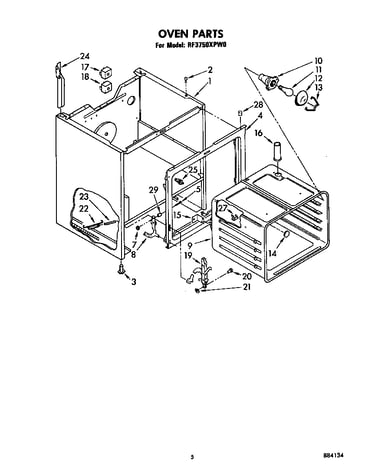

Oven diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Infinite Switch 311859
#17A

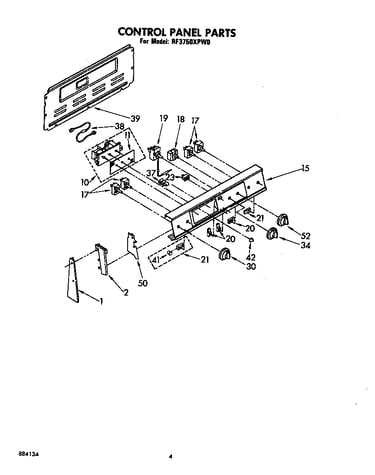

Control panel diagram

Infinite switch

Part #311859

Replaced by #WP3149400

?
Manufacturer substitution
This part replaces 311859. Substitute parts can look different from the original.
BEST SELLER
$36.70 |
14% OFF Phone Price : $42.70
In Stock
Range Bake Element 308180
#4

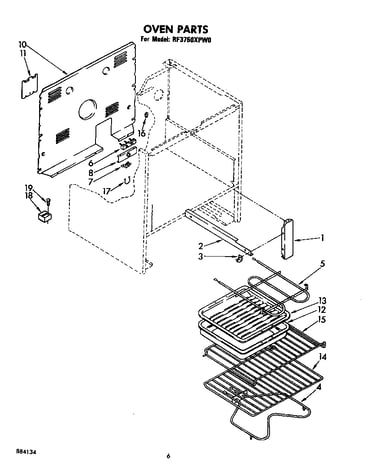

Lit/optional diagram

Range bake element

Part #308180

Replaced by #WP308180

?
Manufacturer substitution
This part replaces 308180. Substitute parts can look different from the original.
BEST SELLER
$41.44 |
13% OFF Phone Price : $47.44
In Stock
Clip 688805
#52A

Control panel diagram

Clip

Part #688805

Replaced by #WP688805

?
Manufacturer substitution
This part replaces 688805. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Receptacle Element 258858
#16

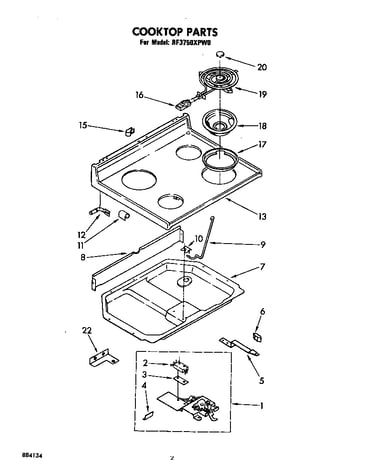

Cooktop diagram

Receptacle element

Part #258858

Replaced by #330031

?
Manufacturer substitution
This part replaces 258858. Substitute parts can look different from the original.
BEST SELLER
$10.13 |
16% OFF Phone Price : $12.13
In Stock
Infinite Switch 311857
#17B

Control panel diagram

Infinite switch

Part #311857

Replaced by #3149404

?
Manufacturer substitution
This part replaces 311857. Substitute parts can look different from the original.
BEST SELLER
$43.02
In Stock
Spray W 350930

#NI

All parts diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Touchup Al 72107

#NI

All parts diagram

Touchup al

Part #72107

Replaced by #WB32X106

?
Manufacturer substitution
This part replaces 72107. Substitute parts can look different from the original.
BEST SELLER
$13.87 |
13% OFF Phone Price : $15.87
In Stock
Element 309250
#19A

Cooktop diagram

Element

Part #309250

Replaced by #WP660532

?
Manufacturer substitution
This part replaces 309250. Substitute parts can look different from the original.
BEST SELLER
$29.18 |
17% OFF Phone Price : $35.18
In Stock
Element 309334
#19B

Cooktop diagram

Element

Part #309334

Replaced by #WP660532

?
Manufacturer substitution
This part replaces 309334. Substitute parts can look different from the original.
BEST SELLER
$29.18 |
17% OFF Phone Price : $35.18
In Stock
