Model # 1555256740 Official Kenmore range hood
Here are the diagrams and repair parts for Official Kenmore 1555256740 range hood, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for1555256740 Range Hood
- #10

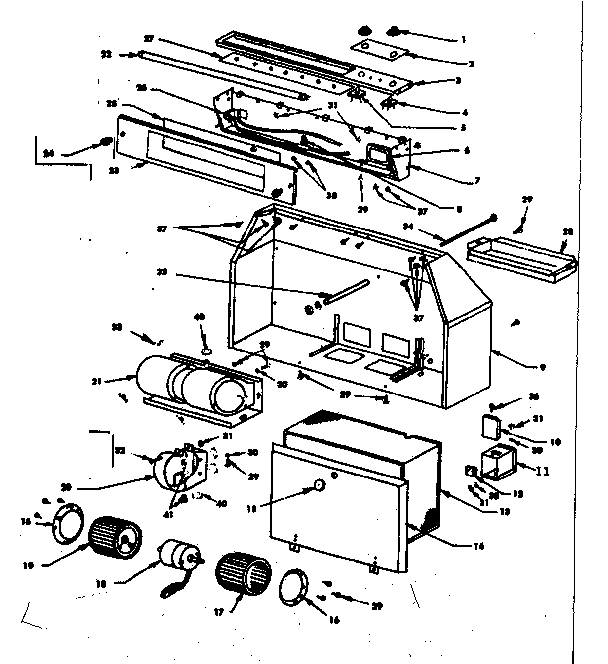

Range hood assembly diagram
CoverPart #Y11484
The manufacturer no longer makes this part, and there's no substitute part
- #34
Range hood assembly diagram
ScrewPart #K12227
The manufacturer no longer makes this part, and there's no substitute part
- #27B
Range hood assembly diagram
GlassPart #K13217
The manufacturer no longer makes this part, and there's no substitute part
- #22B
Range hood assembly diagram
BulbPart #K13428
The manufacturer no longer makes this part, and there's no substitute part
- #13
Range hood assembly diagram
FilterPart #K13458
The manufacturer no longer makes this part, and there's no substitute part
- #9D
Range hood assembly diagram
CanopyPart #Y11436
The manufacturer no longer makes this part, and there's no substitute part
- #23B
Range hood assembly diagram
Lens holderPart #T15559-2
The manufacturer no longer makes this part, and there's no substitute part
- #36
Range hood assembly diagram
Tap screwPart #GM162874
The manufacturer no longer makes this part, and there's no substitute part
- #9A
Range hood assembly diagram
CanopyPart #Y11435
The manufacturer no longer makes this part, and there's no substitute part
- #33
Range hood assembly diagram
Wing nutPart #GM148309
The manufacturer no longer makes this part, and there's no substitute part
