Model # PER5510BAQ Official Maytag range
Here are the diagrams and repair parts for Official Maytag PER5510BAQ range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

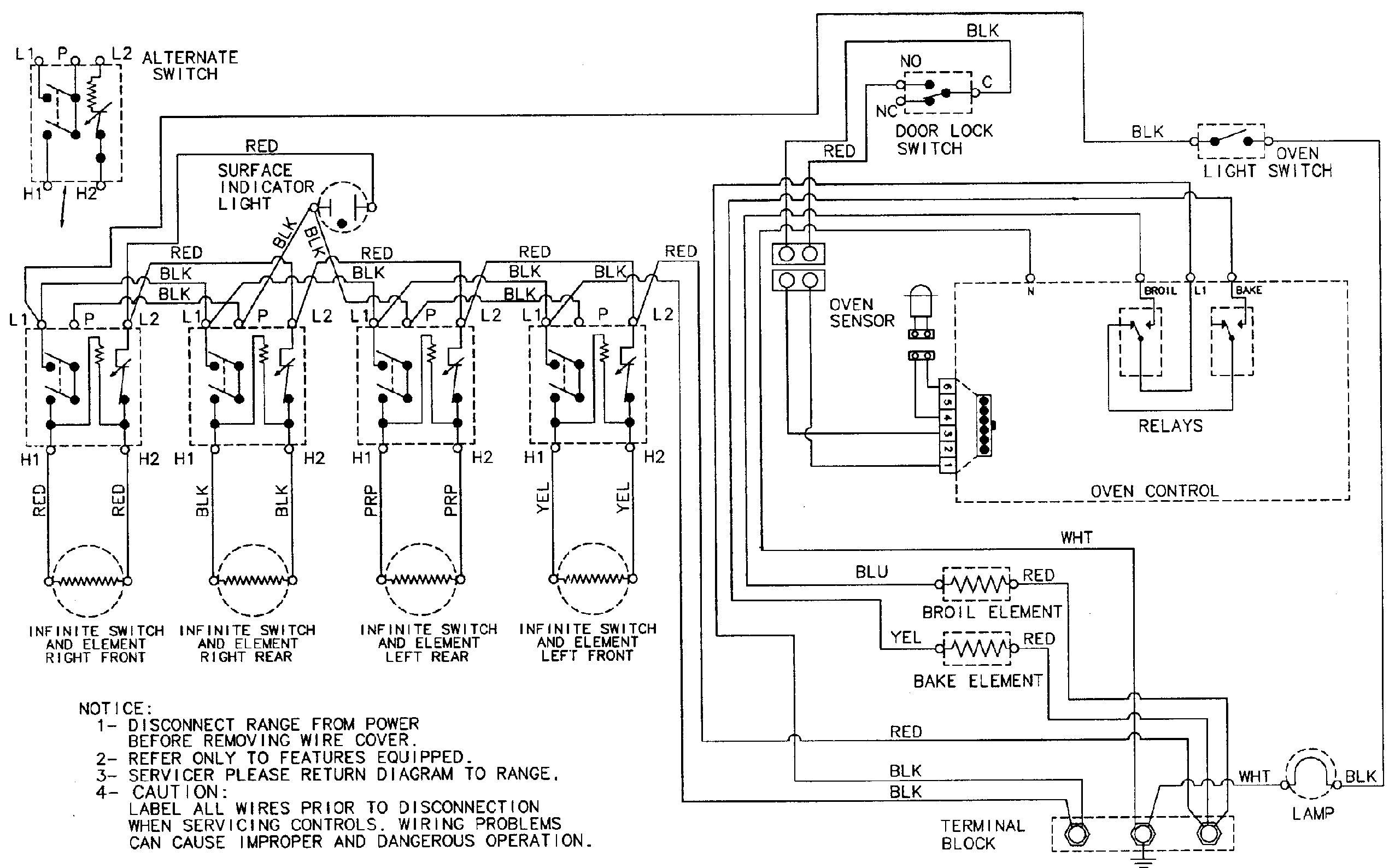

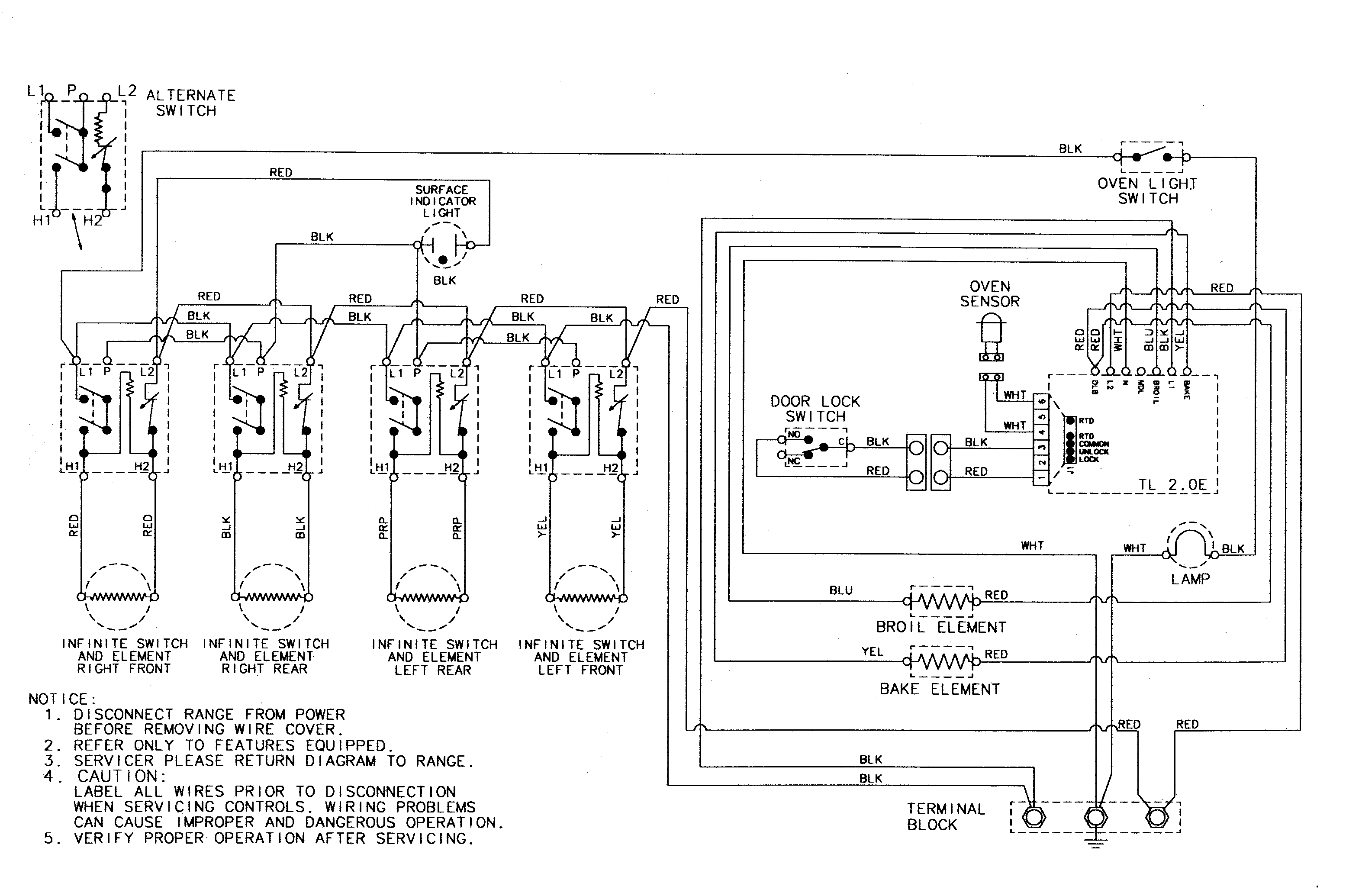

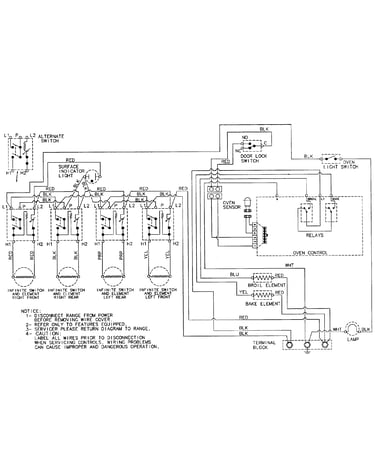

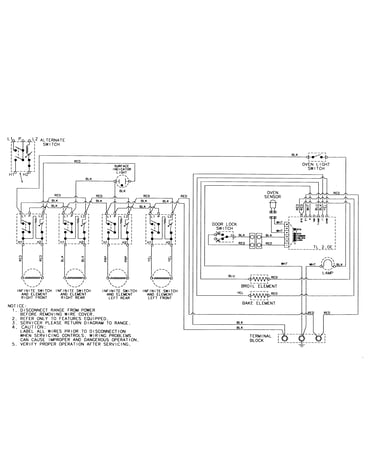

SELECT DIAGRAM
Browse Parts for
PER5510BAQ Ranges
#16

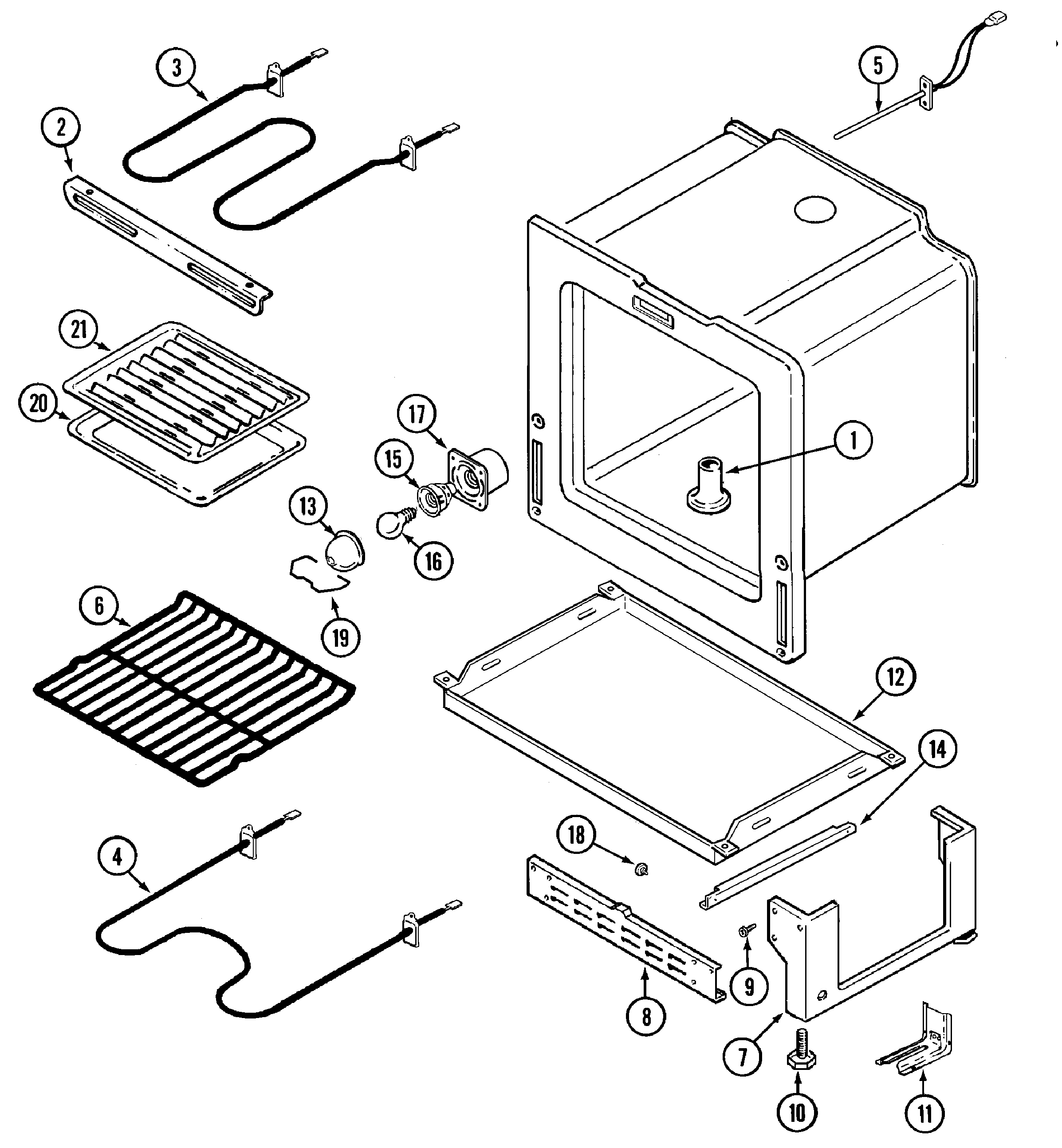

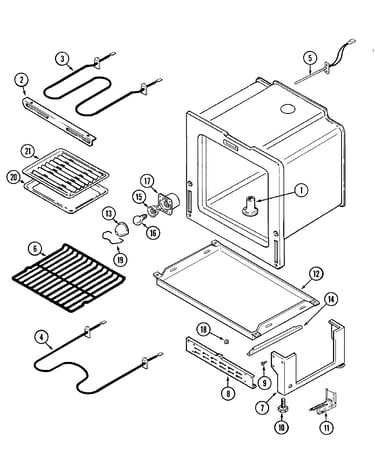

Oven/base diagram
Oven bulb
Part #7407P103-60
Replaced by #40A15
?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
$15.31 |
20% OFF Phone Price : $19.23
In Stock
#17

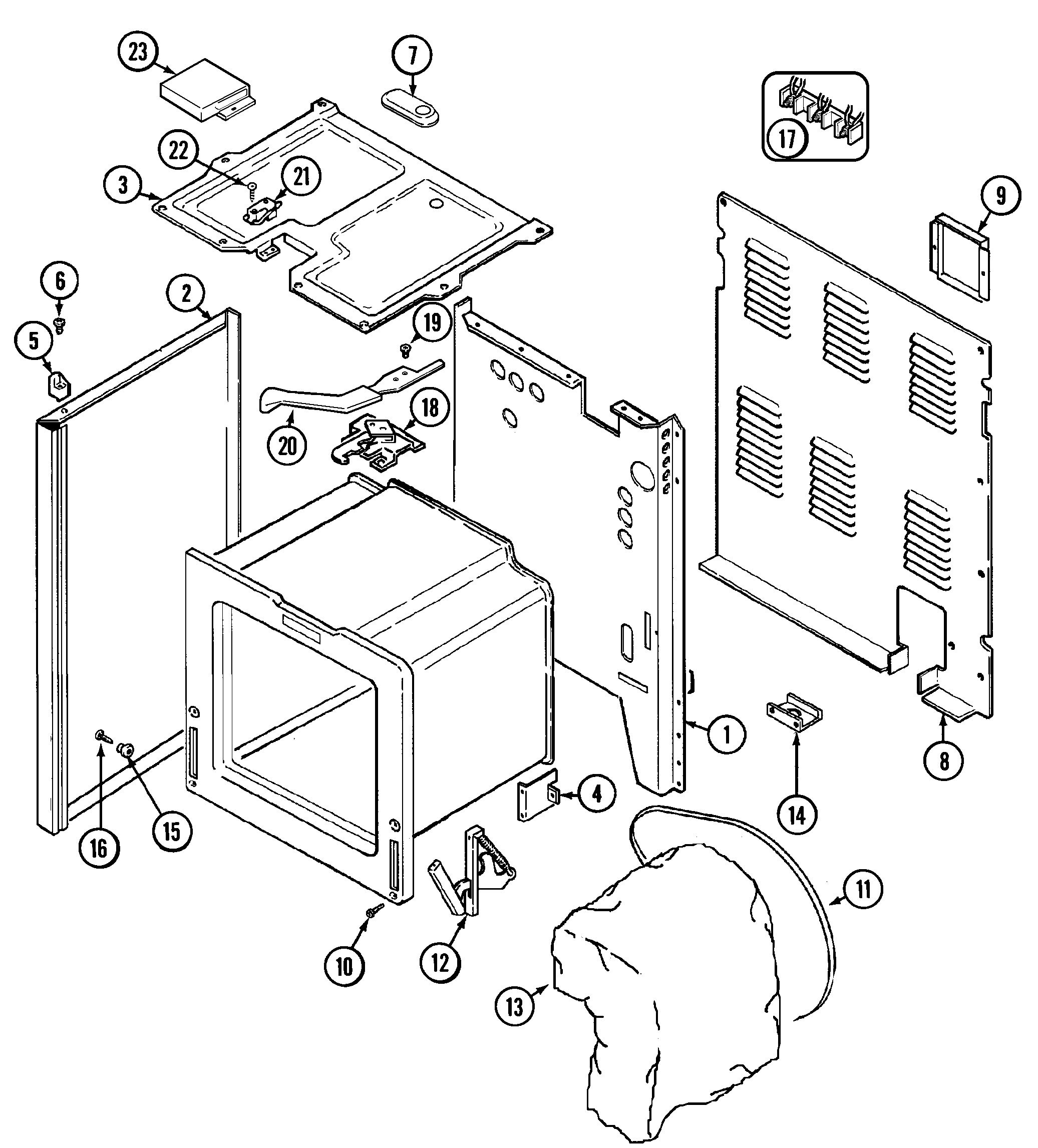

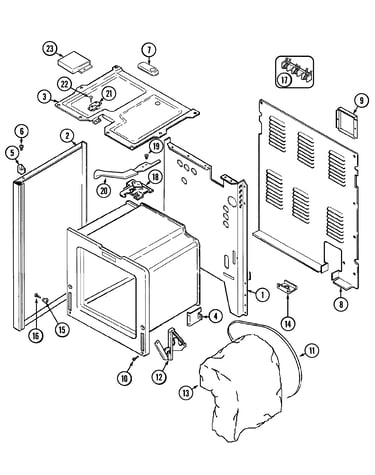

Body diagram
Terminal block
Part #7401P039-60
Replaced by #WPW10245259
?
Manufacturer substitution
This part replaces 7401P039-60. Substitute parts can look different from the original.
$34.10 |
15% OFF Phone Price : $40.10
In Stock
#5
Oven/base diagram
Oven sensor
Part #74004943
Replaced by #12001656
?
Manufacturer substitution
This part replaces 74004943. Substitute parts can look different from the original.
$31.25 |
14% OFF Phone Price : $36.34
In Stock
#4

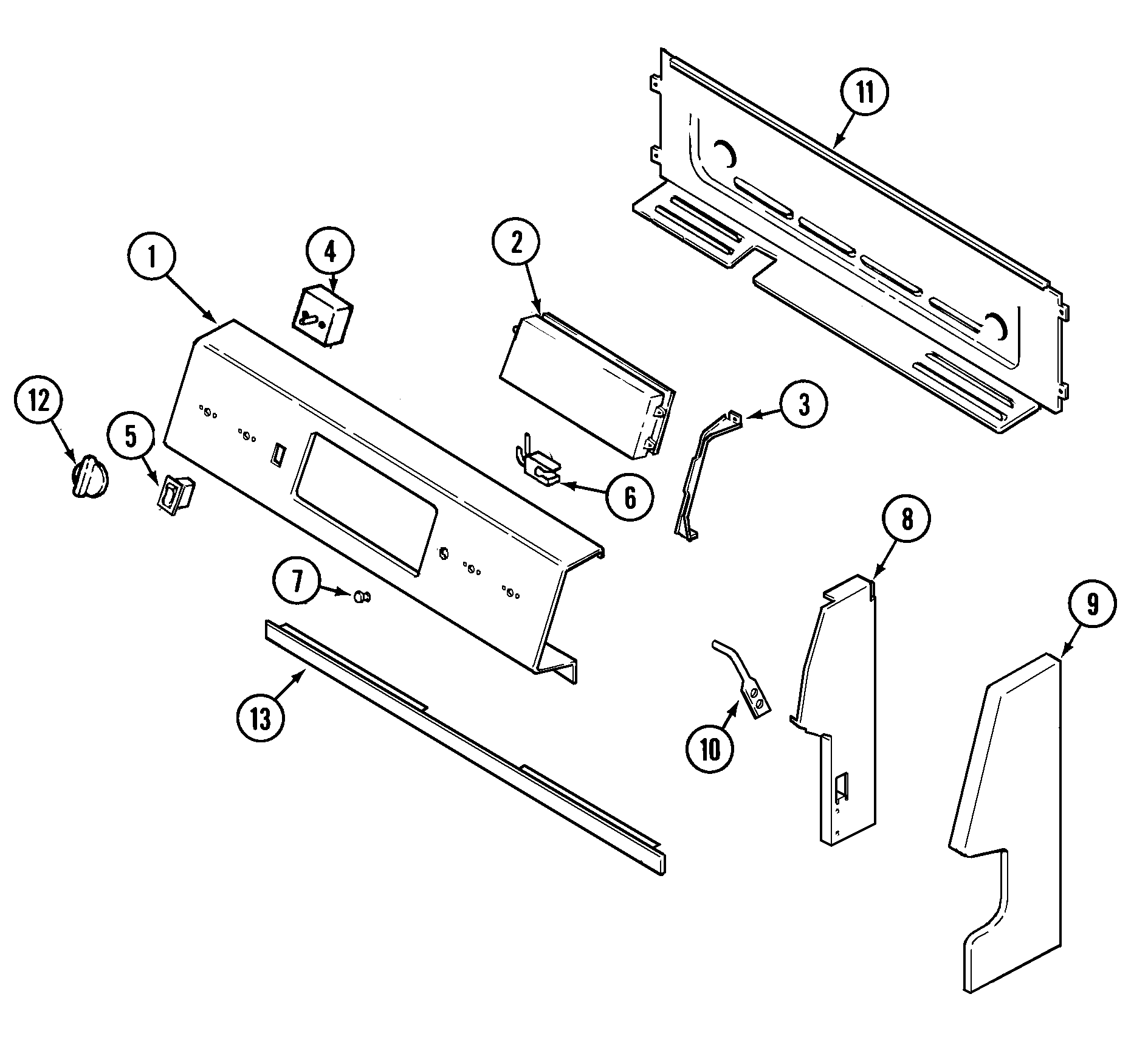

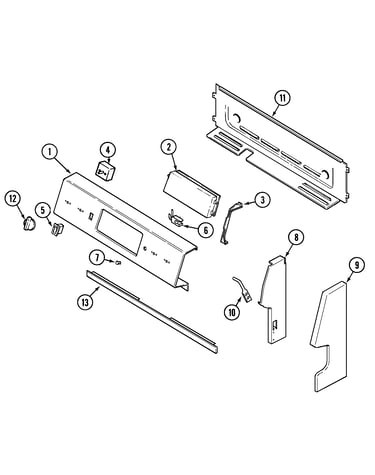

Control panel diagram
Range surface element control switch
Part #7403P238-60
Replaced by #WP7403P238-60
?
Manufacturer substitution
This part replaces 7403P238-60. Substitute parts can look different from the original.
$50.39 |
11% OFF Phone Price : $56.39
In Stock
#4
Oven/base diagram
Bake element
Part #74003039
Replaced by #WP74010750
?
Manufacturer substitution
This part replaces 74003039. Substitute parts can look different from the original.
$31.55 |
19% OFF Phone Price : $39.19
In Stock
#2

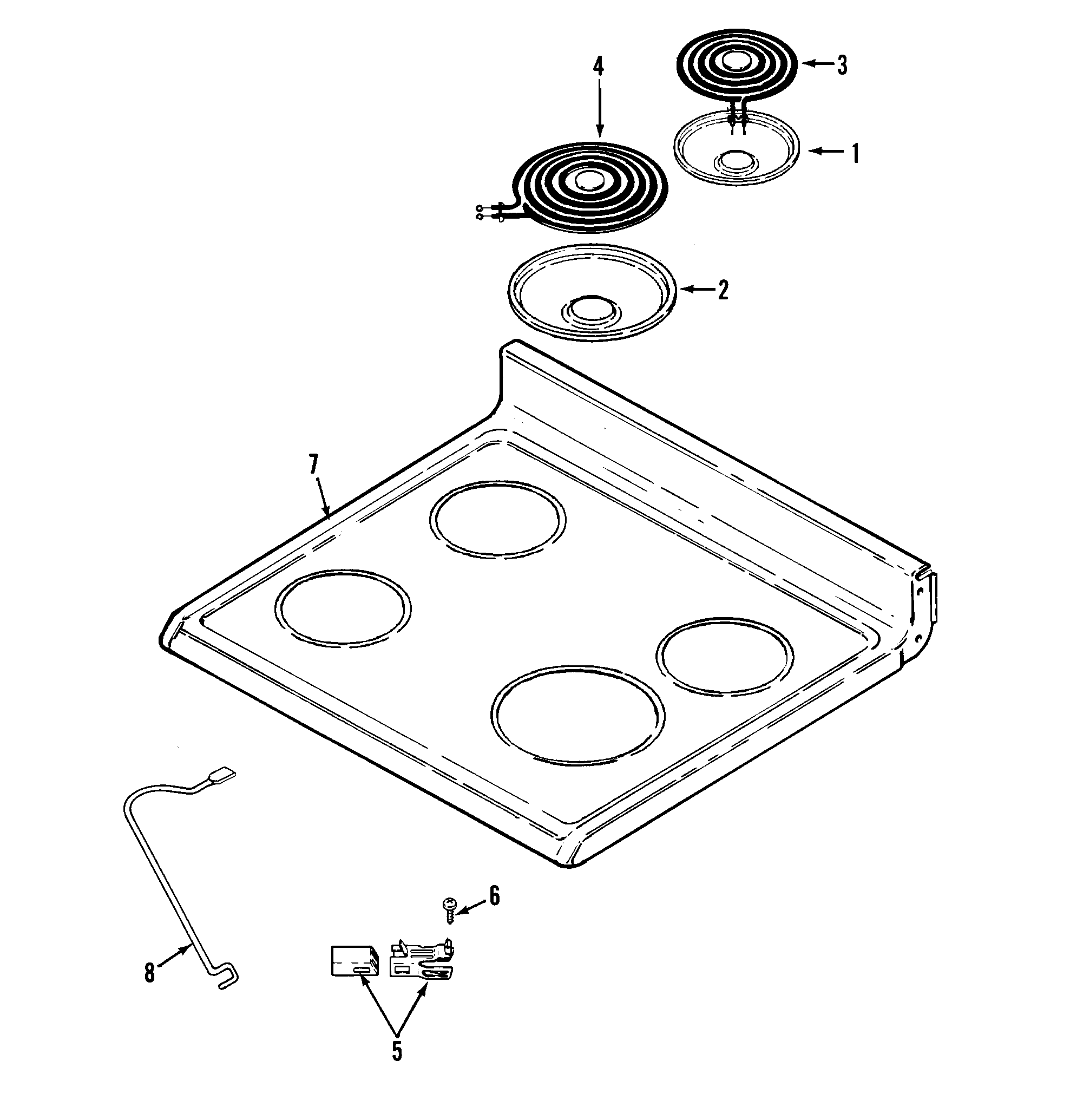

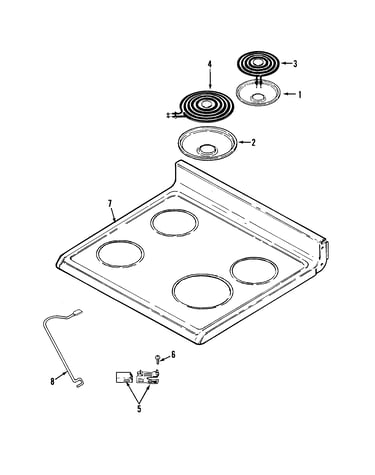

Top assembly diagram
Drip bowl
Part #74001213
Replaced by #WPW10196405
?
Manufacturer substitution
This part replaces 74001213. Substitute parts can look different from the original.
$8.52 |
11% OFF Phone Price : $9.52
In Stock
#15

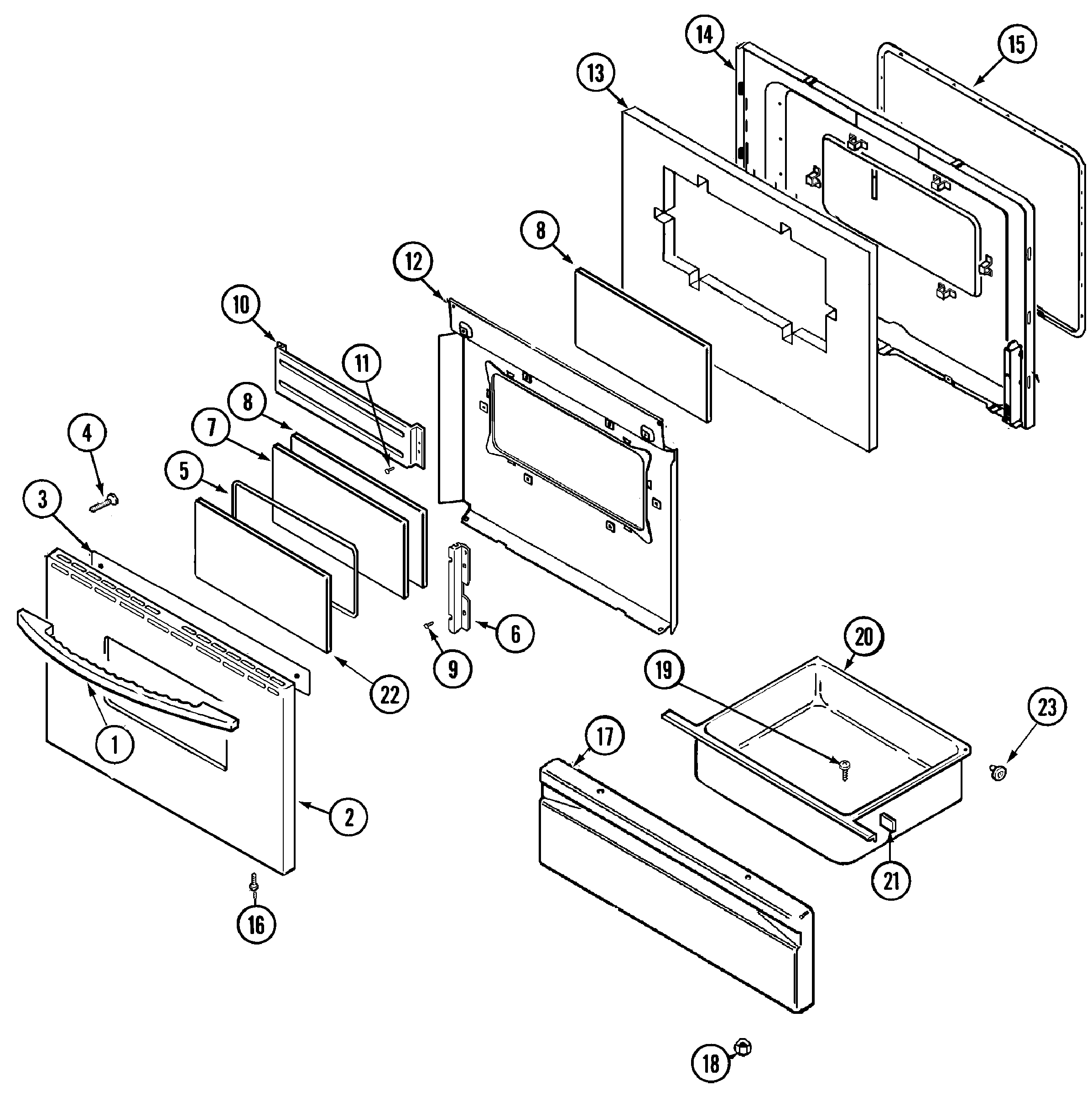

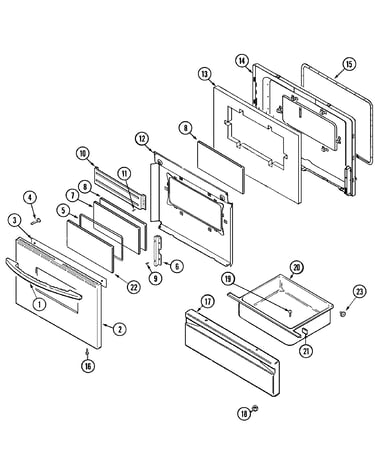

Door/drawer diagram
Door gasket
Part #7201P046-60
Replaced by #WPW10162384
?
Manufacturer substitution
This part replaces 7201P046-60. Substitute parts can look different from the original.
$61.16 |
9% OFF Phone Price : $67.16
In Stock
#6
Body diagram
Screw (#8ab)
Part #71001183
Replaced by #W11233072
?
Manufacturer substitution
This part replaces 71001183. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw
Part #74001530
Replaced by #W11233072
?
Manufacturer substitution
This part replaces 74001530. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw
Part #7101P338-60
Replaced by #W11233072
?
Manufacturer substitution
This part replaces 7101P338-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
