Model # CRG9600AAW Official Maytag gas range

Here are the diagrams and repair parts for Official Maytag CRG9600AAW gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

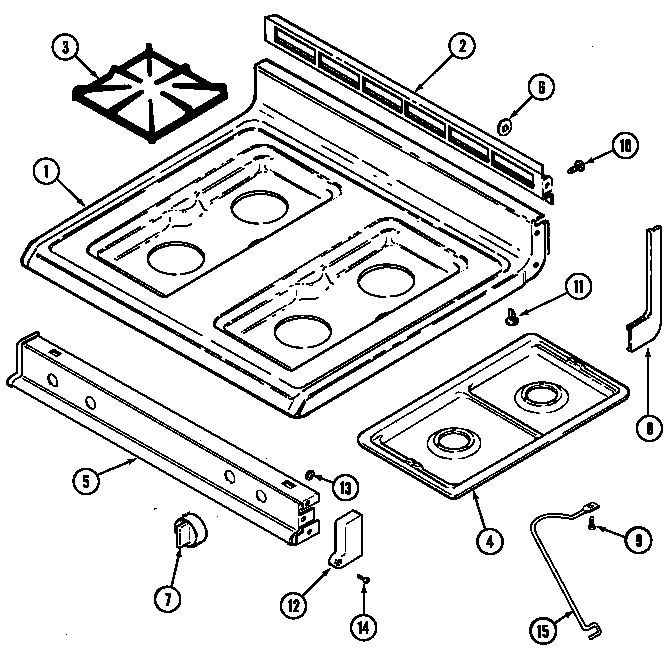

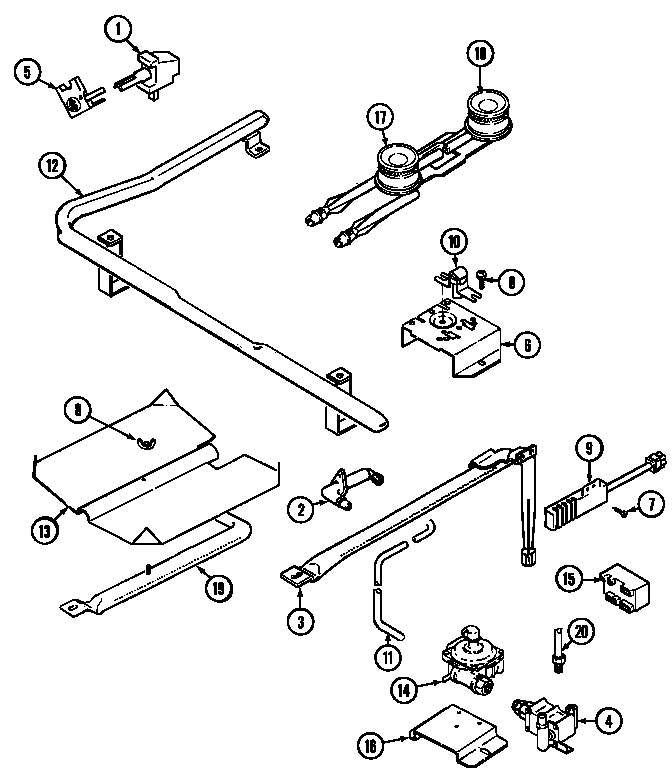

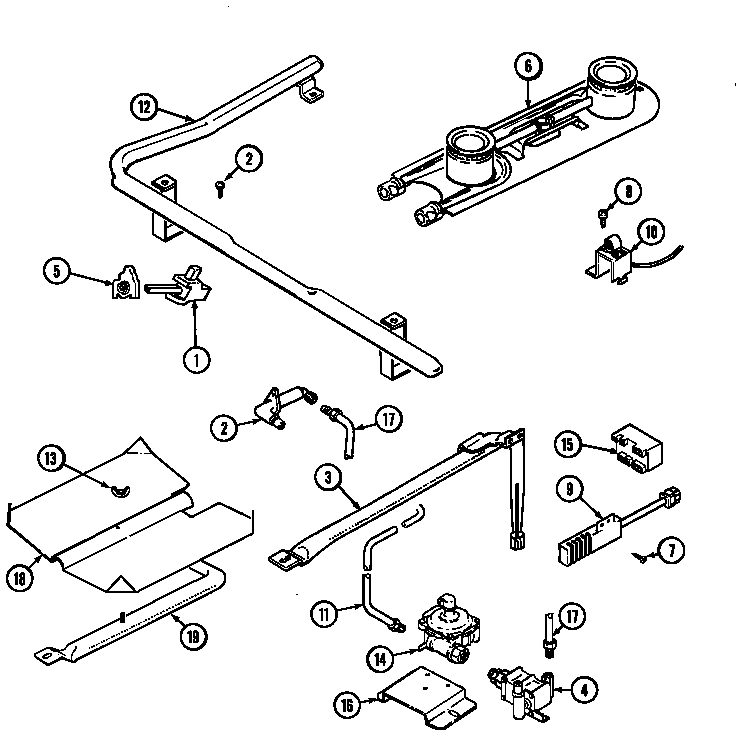

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 187 parts  |
Oven Igniter 7432P076-60
Oven igniter

Part #7432P076-60

Replaced by #12400035

?
Manufacturer substitution
This part replaces 7432P076-60. Substitute parts can look different from the original.
BEST SELLER
$39.28 |
13% OFF Phone Price : $45.28
In Stock
Screw, #10 X 7101P274-60
#20

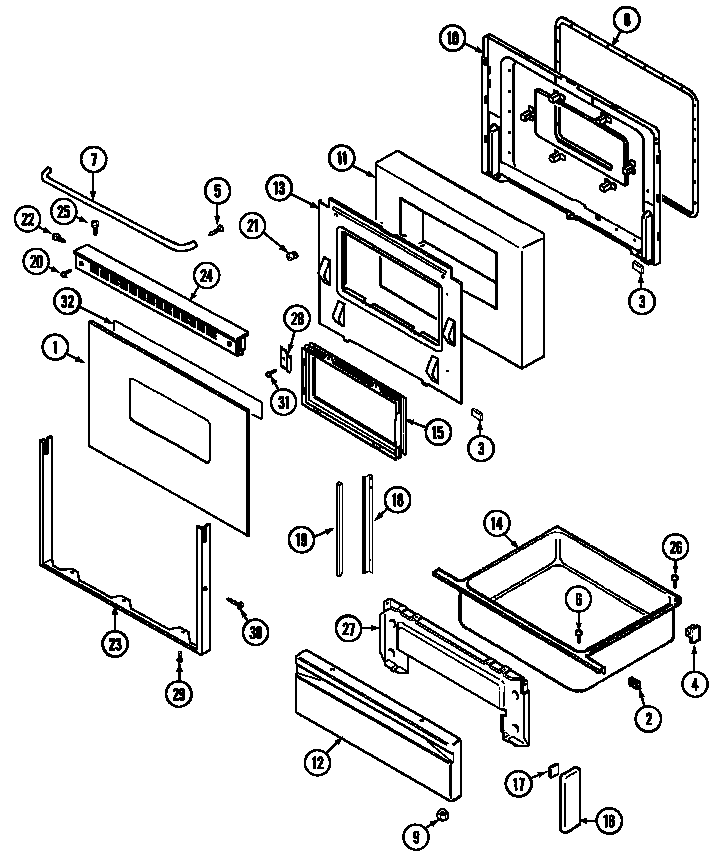

Door/drawer diagram

Screw, #10 x

Part #7101P274-60

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 7101P274-60. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Oven Probe 7430P009-60
#5

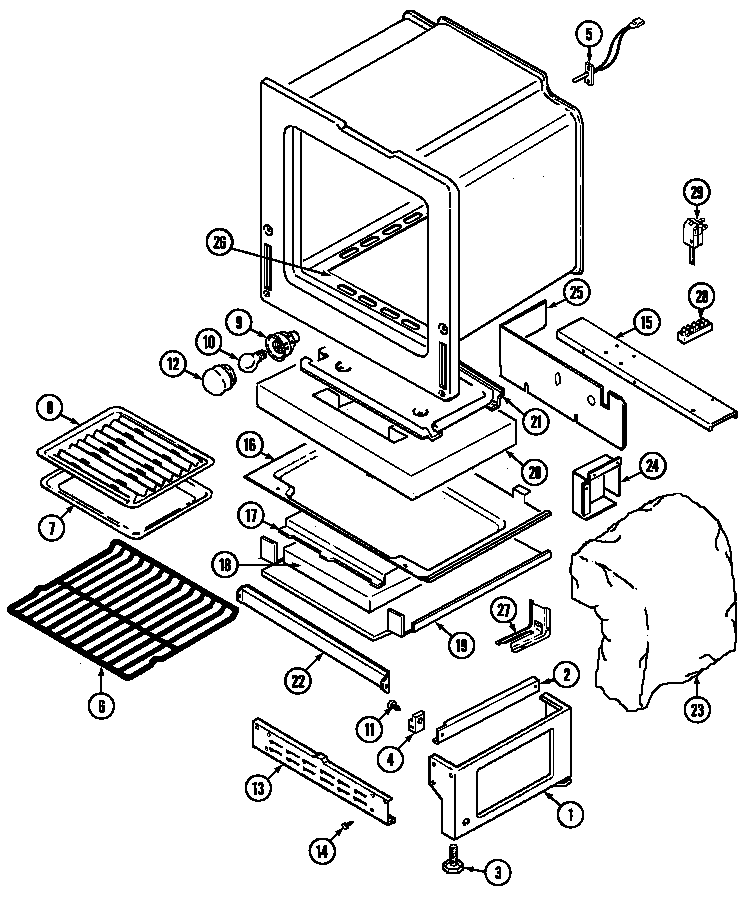

Oven/base diagram

Oven probe

Part #7430P009-60

Replaced by #12001655

?
Manufacturer substitution
This part replaces 7430P009-60. Substitute parts can look different from the original.
BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Door Gasket 7201P046-60
#8

Door/drawer diagram

Door gasket

Part #7201P046-60

Replaced by #WPW10162384

?
Manufacturer substitution
This part replaces 7201P046-60. Substitute parts can look different from the original.
$64.38 |
9% OFF Phone Price : $70.38
In Stock
Bracket Screw 7101P040-60
#25

Door/drawer diagram

Bracket screw

Part #7101P040-60

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 7101P040-60. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Rack 7801P039-60
#6

Oven/base diagram

Rack

Part #7801P039-60

Replaced by #WPW10282492

?
Manufacturer substitution
This part replaces 7801P039-60. Substitute parts can look different from the original.
$56.89 |
10% OFF Phone Price : $62.89
In Stock
"bracket, Ant" 3801F218-51
#27

Oven/base diagram

"bracket, ant"

Part #3801F218-51

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 3801F218-51. Substitute parts can look different from the original.
This item is not returnable
$5.03 |
17% OFF Phone Price : $6.03
In Stock
Screw 7101P077-60
Screw

Part #7101P077-60

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 7101P077-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Cooktop Washer Screw 7101P124-60
#6B

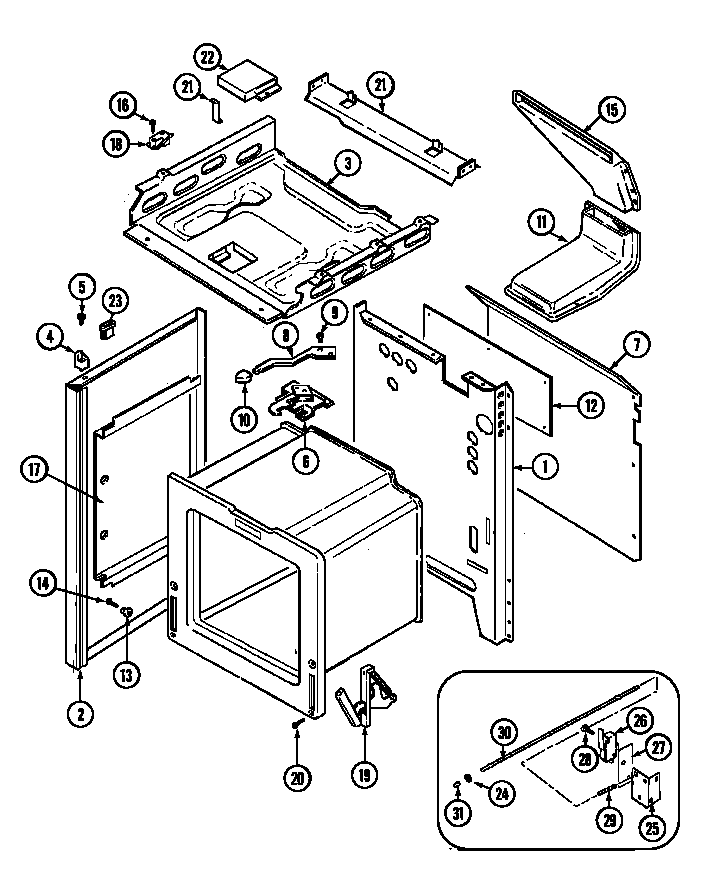

Body diagram

Cooktop washer screw

Part #7101P124-60

Replaced by #WP74003976

?
Manufacturer substitution
This part replaces 7101P124-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Receptacle 7407P088-60
#9

Oven/base diagram

Receptacle

Part #7407P088-60

Replaced by #WP7407P182-60

?
Manufacturer substitution
This part replaces 7407P088-60. Substitute parts can look different from the original.
$42.19 |
12% OFF Phone Price : $48.19
In Stock
