Model # 5KEK1322ESS0 Official KitchenAid electric kettle

Here are the diagrams and repair parts for Official KitchenAid 5KEK1322ESS0 electric kettle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

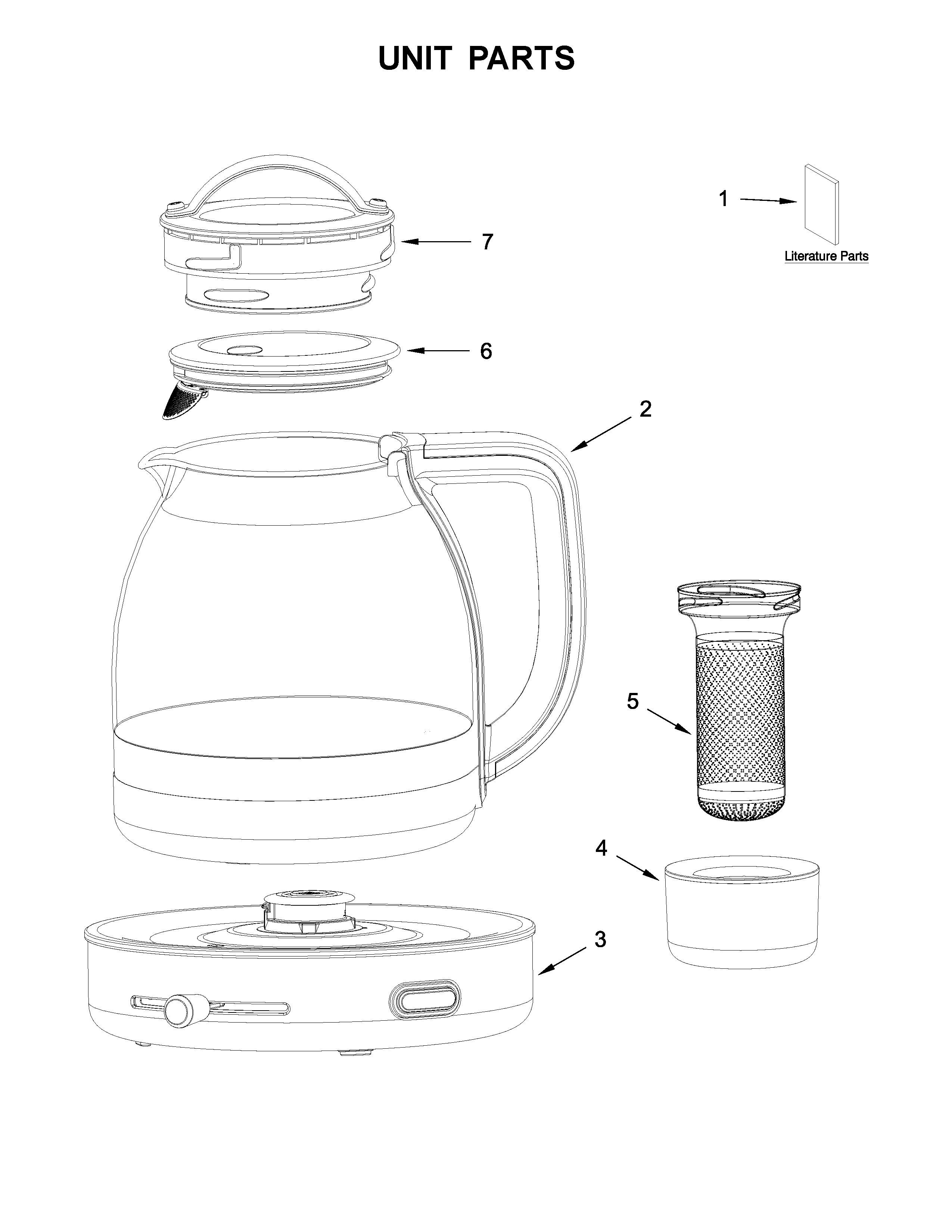

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |
Blender Power Base W10854176
#3A

Unit parts diagram

Blender power base

Part #W10854176

$126.73
In Stock
Blender Power Base W10854174
#3B

Unit parts diagram

Blender power base

Part #W10854174

$126.73
In Stock
Blender Power Base W10854172
#3

Unit parts diagram

Blender power base

Part #W10854172

$126.73
In Stock
Blender Power Base W10854173
#3C

Unit parts diagram

Blender power base

Part #W10854173

$126.73
In Stock
Steeper Hold W10854180
#4

Unit parts diagram

Steeper hold

Part #W10854180

$62.65
In Stock
Outer Lid As W10854177
#7

Unit parts diagram

Outer lid as

Part #W10854177

Replaced by #W11087513

?
Manufacturer substitution
This part replaces W10854177. Substitute parts can look different from the original.
$60.29 |
9% OFF Phone Price : $66.29
In Stock
Steeper W10854179
#5

Unit parts diagram

Steeper

Part #W10854179

Replaced by #W11731848

?
Manufacturer substitution
This part replaces W10854179. Substitute parts can look different from the original.
$55.73
In Stock
Inner Lid As W10854178
#6

Unit parts diagram

Inner lid as

Part #W10854178

Replaced by #W11087513

?
Manufacturer substitution
This part replaces W10854178. Substitute parts can look different from the original.
$60.29 |
9% OFF Phone Price : $66.29
In Stock
Use & Care Guide (united States) W10837034
#1

Unit parts diagram

Use & care guide (united states)

Part #W10837034

The manufacturer no longer makes this part, and there's no substitute part

Kettle (united Kingdom) W10870523
#2B

Unit parts diagram

Kettle (united kingdom)

Part #W10870523

The manufacturer no longer makes this part, and there's no substitute part
