KitchenAid
Gas Cooktop

Model # KGCR025BBL0 Official KitchenAid create-a-cooktop

Here are the diagrams and repair parts for Official KitchenAid KGCR025BBL0 create-a-cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

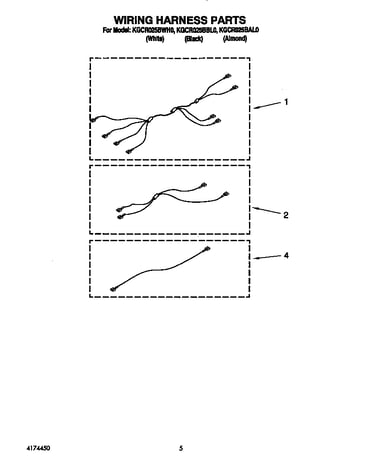

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Screw 3148107
Screw

Part #3148107

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 3148107. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 4159450
Screw

Part #4159450

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 4159450. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Cooktop Bracket 3183401
#19

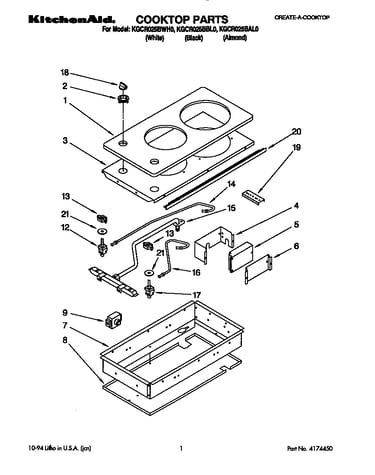

Cooktop diagram

Cooktop bracket

Part #3183401

Replaced by #8186533

?
Manufacturer substitution
This part replaces 3183401. Substitute parts can look different from the original.
$32.89 |
15% OFF Phone Price : $38.89
In Stock
Gasket Switch 3185430
#21

Cooktop diagram

Gasket switch

Part #3185430

Replaced by #WP3188425

?
Manufacturer substitution
This part replaces 3185430. Substitute parts can look different from the original.
$32.89 |
15% OFF Phone Price : $38.89
In Stock
Range Burner Control Knob 3182569
#18C

Cooktop diagram

Range burner control knob

Part #3182569

Replaced by #WP3182569

?
Manufacturer substitution
This part replaces 3182569. Substitute parts can look different from the original.
This item is not returnable
$23.48 |
20% OFF Phone Price : $29.48
In Stock
Range Burner Control Knob 3182568
#18B

Cooktop diagram

Range burner control knob

Part #3182568

Replaced by #WP3182568

?
Manufacturer substitution
This part replaces 3182568. Substitute parts can look different from the original.
This item is not returnable
$22.35 |
21% OFF Phone Price : $28.35
In Stock
Grommet-wh 3180081
#2C

Cooktop diagram

Grommet-wh

Part #3180081

Replaced by #WP3180081

?
Manufacturer substitution
This part replaces 3180081. Substitute parts can look different from the original.
This item is not returnable
$6.70 |
13% OFF Phone Price : $7.70
In Stock
Range Surface Burner Igniter 3185804
#11

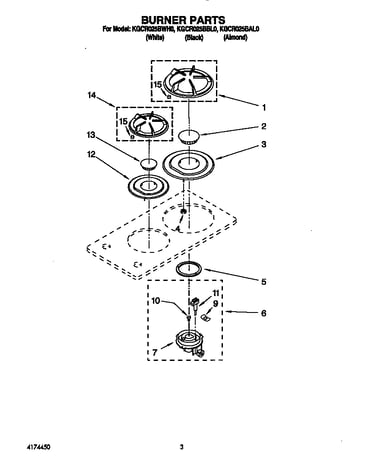

Burner diagram

Range surface burner igniter

Part #3185804

Replaced by #WP3185804

?
Manufacturer substitution
This part replaces 3185804. Substitute parts can look different from the original.
This item is not returnable
$34.99 |
15% OFF Phone Price : $40.99
In Stock
Grommet-bl 3180079
#2A

Cooktop diagram

Grommet-bl

Part #3180079

Replaced by #W10854242

?
Manufacturer substitution
This part replaces 3180079. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Cooktop Burner Control Knob 3182567
#18A

Cooktop diagram

Cooktop burner control knob

Part #3182567

Replaced by #WP3182567

?
Manufacturer substitution
This part replaces 3182567. Substitute parts can look different from the original.
This item is not returnable
$25.57 |
19% OFF Phone Price : $31.57
In Stock
