Poulan
Gas Line Trimmer

Model # P3500 Official Poulan trimmer

Here are the diagrams and repair parts for Official Poulan P3500 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

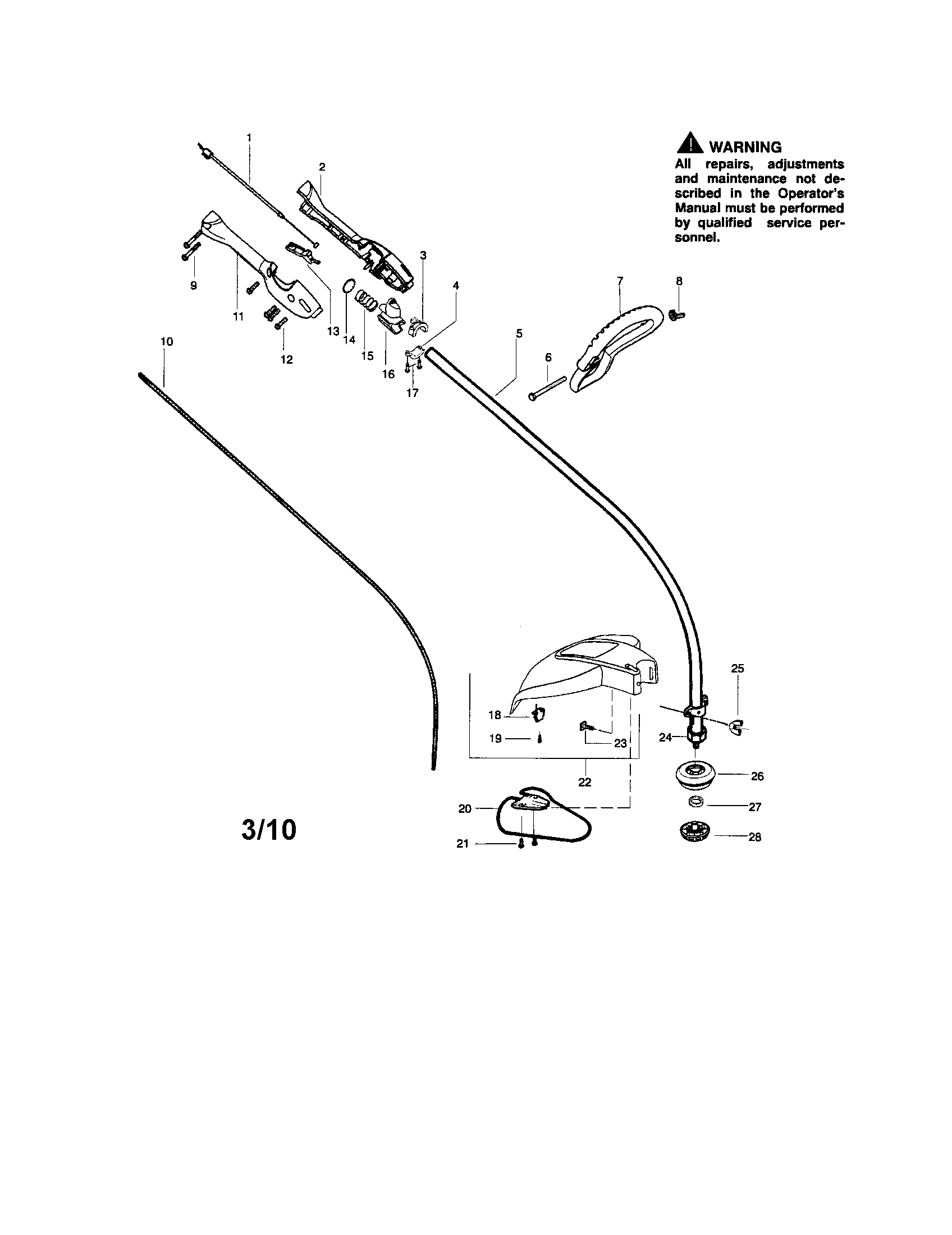

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Lawn & Garden Equipment Engine Fuel Filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649) 530095646
#56

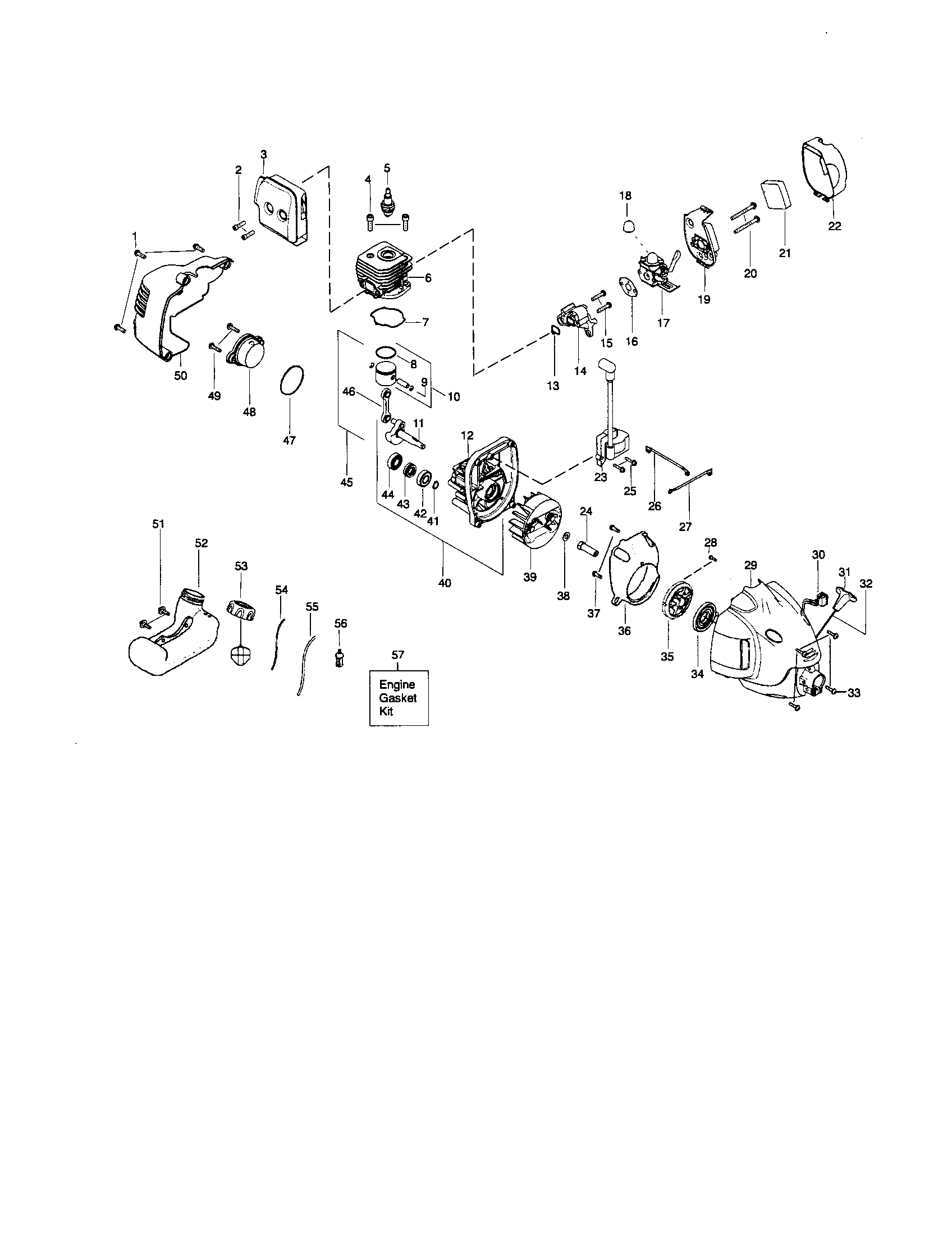

Cylinder/crankshaft/crankcase diagram

Lawn & garden equipment engine fuel filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649)

Part #530095646

BEST SELLER
$9.20 |
10% OFF Phone Price : $10.20
In Stock
Lawn & Garden Equipment Fuel Line, Small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404) 530069247
#54

Cylinder/crankshaft/crankcase diagram

Lawn & garden equipment fuel line, small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404)

Part #530069247

BEST SELLER
$10.11 |
17% OFF Phone Price : $12.11
In Stock
Lawn & Garden Equipment Fuel Line, Large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216) 530069216
#55

Cylinder/crankshaft/crankcase diagram

Lawn & garden equipment fuel line, large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216)

Part #530069216

BEST SELLER
$14.44 |
12% OFF Phone Price : $16.44
In Stock
Lawn & Garden Equipment Flywheel 530054115
#39

Cylinder/crankshaft/crankcase diagram

Lawn & garden equipment flywheel

Part #530054115

Replaced by #545221701

?
Manufacturer substitution
This part replaces 530054115. Substitute parts can look different from the original.
This item is not returnable
$27.08 |
18% OFF Phone Price : $33.08
In Stock
Lawn & Garden Equipment Screw 530015814
Lawn & garden equipment screw

Part #530015814

Replaced by #503210619

?
Manufacturer substitution
This part replaces 530015814. Substitute parts can look different from the original.
This item is not returnable
$4.31 |
19% OFF Phone Price : $5.31
In Stock
Piston Kit 530071357
#10

Cylinder/crankshaft/crankcase diagram

Piston kit

Part #530071357

Replaced by #530071833

?
Manufacturer substitution
This part replaces 530071357. Substitute parts can look different from the original.
$30.33 |
17% OFF Phone Price : $36.33
In Stock
Line Trimmer Carburetor (replaces 530035593, 545081807, 545081808) 530071822
#17

Cylinder/crankshaft/crankcase diagram

Line trimmer carburetor (replaces 530035593, 545081807, 545081808)

Part #530071822

$41.17 |
13% OFF Phone Price : $47.17
In Stock
Carburetor 545081807
#17A

Cylinder/crankshaft/crankcase diagram

Carburetor

Part #545081807

Replaced by #530071822

?
Manufacturer substitution
This part replaces 545081807. Substitute parts can look different from the original.
$41.17 |
13% OFF Phone Price : $47.17
In Stock
Lawn & Garden Equipment Head Bolt 530015953
#4

Cylinder/crankshaft/crankcase diagram

Lawn & garden equipment head bolt

Part #530015953

This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Lawn & Garden Equipment Screw 530016429
#20

Cylinder/crankshaft/crankcase diagram

Lawn & garden equipment screw

Part #530016429

This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
