Model # CFES355ES2 Official Frigidaire electric range
Here are the diagrams and repair parts for Official Frigidaire CFES355ES2 electric range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forCFES355ES2 Ranges
- #15

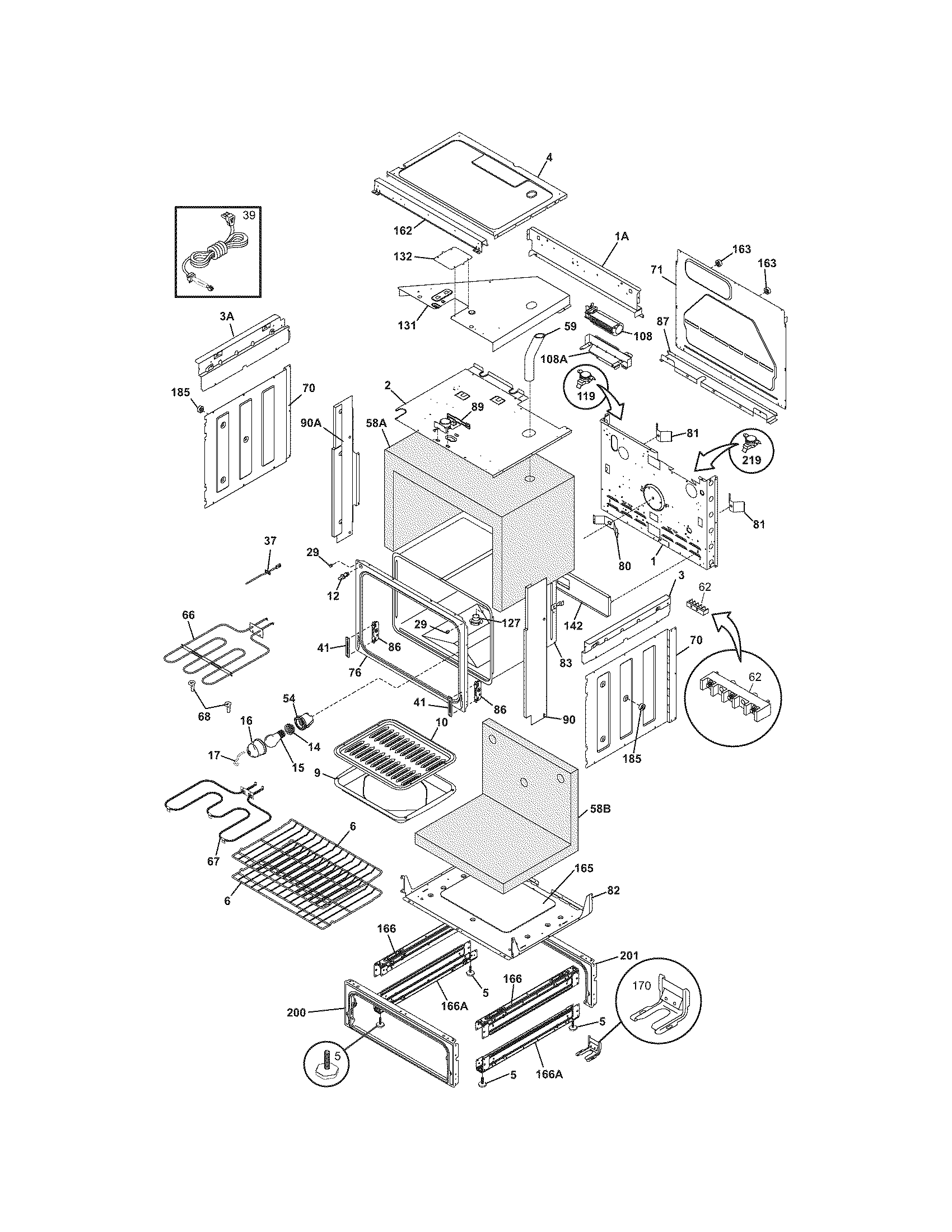

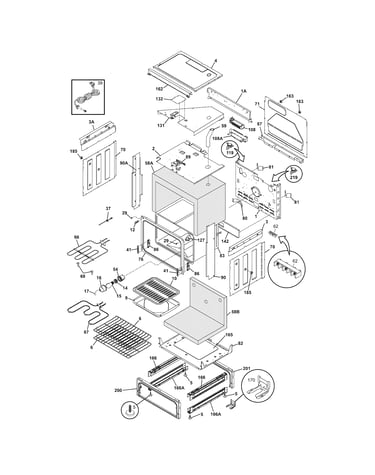

Body diagram
Range oven light bulbPart #5303013071
Replaced by #316538904
?Manufacturer substitutionThis part replaces 5303013071. Substitute parts can look different from the original.$15.89 |11% OFF Phone Price : $17.89In Stock - #15

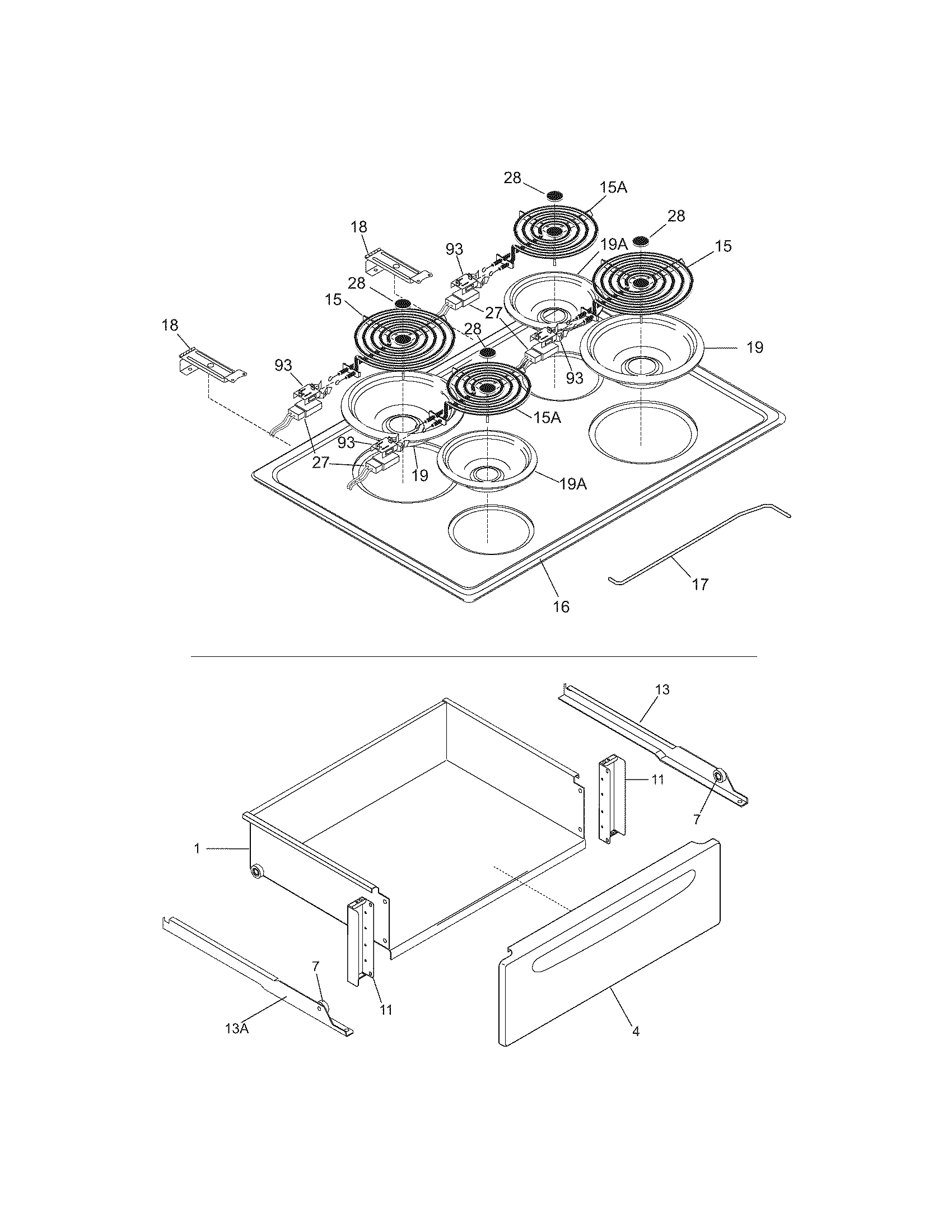

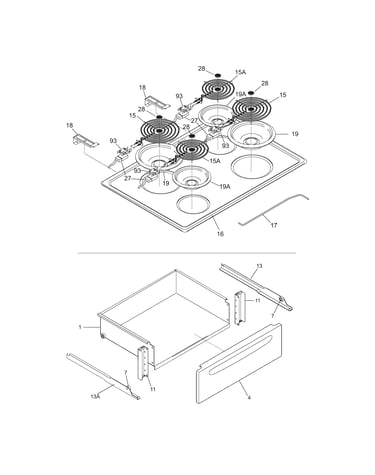

Top/drawer diagram
Range surface element, 8-inPart #5303012223
Replaced by #316442301
?Manufacturer substitutionThis part replaces 5303012223. Substitute parts can look different from the original.$68.09 |8% OFF Phone Price : $74.09In Stock - #27
Top/drawer diagram
BlockPart #5303912666
Replaced by #5303935058
?Manufacturer substitutionThis part replaces 5303912666. Substitute parts can look different from the original.$9.24 |10% OFF Phone Price : $10.24In Stock - #37
Body diagram
Frigidaire range oven temperature sensorPart #316217002
$50.56 |11% OFF Phone Price : $56.56In Stock - #19
Top/drawer diagram
Pan elementPart #318067056
Replaced by #316048413
?Manufacturer substitutionThis part replaces 318067056. Substitute parts can look different from the original.$13.06 |13% OFF Phone Price : $15.06In Stock - #8

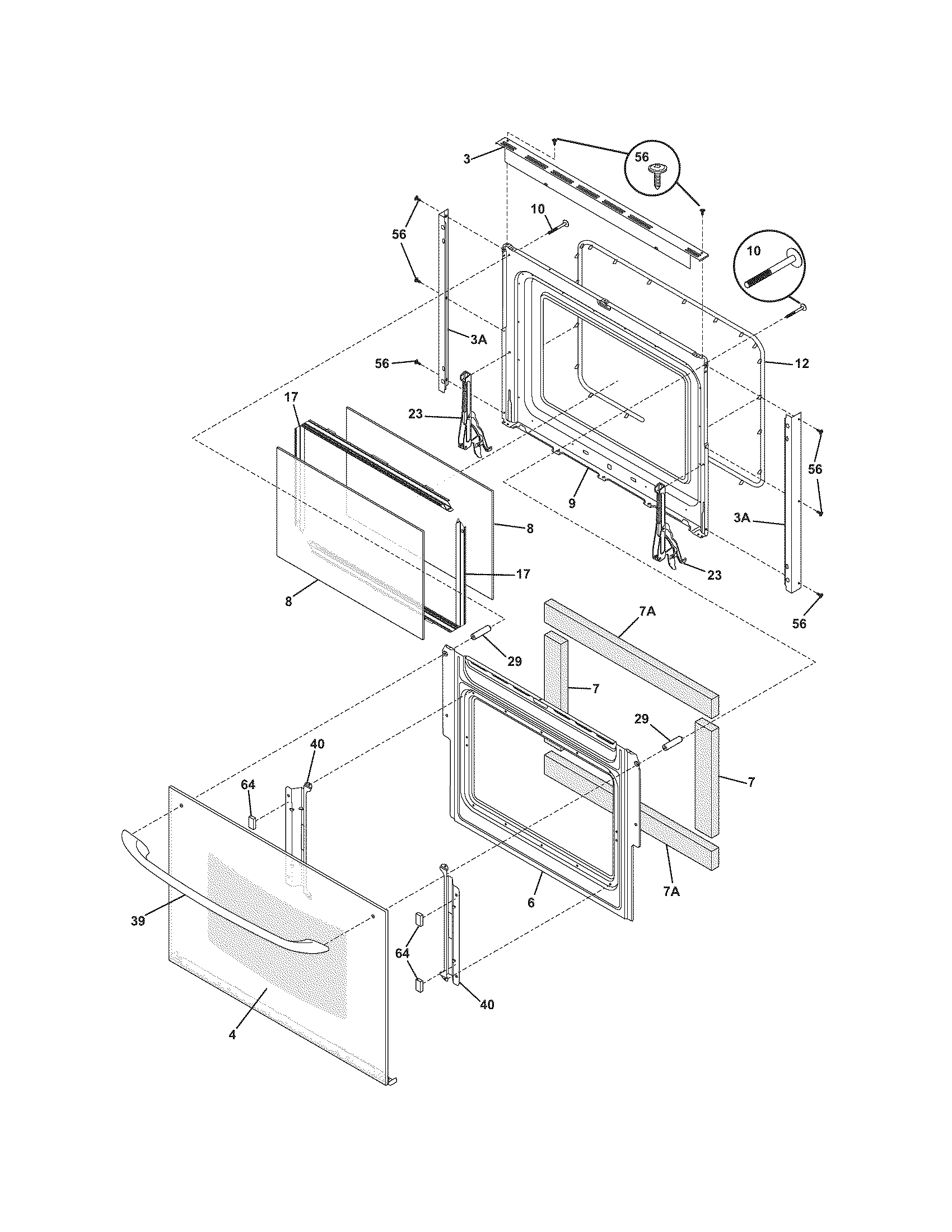

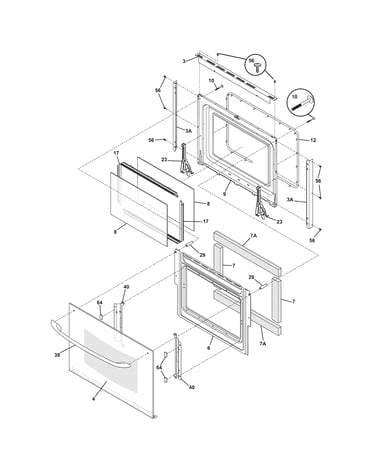

Door diagram
Range oven door inner glassPart #316117500
Replaced by #5304503232
?Manufacturer substitutionThis part replaces 316117500. Substitute parts can look different from the original.$77.39 |7% OFF Phone Price : $83.39In Stock - #19A
Top/drawer diagram
Pan elementPart #318067046
Replaced by #316048414
?Manufacturer substitutionThis part replaces 318067046. Substitute parts can look different from the original.$10.03 |17% OFF Phone Price : $12.03In Stock - #NI

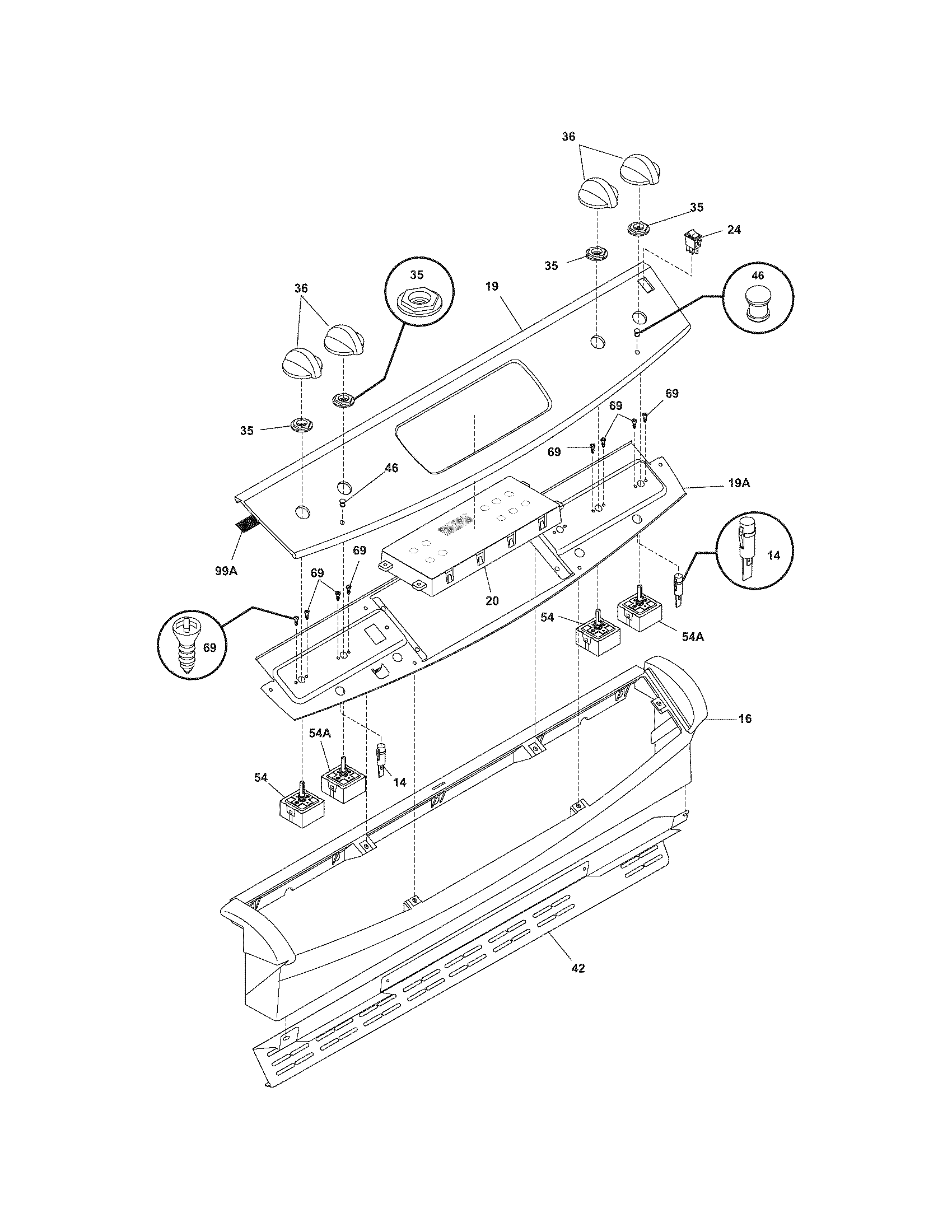

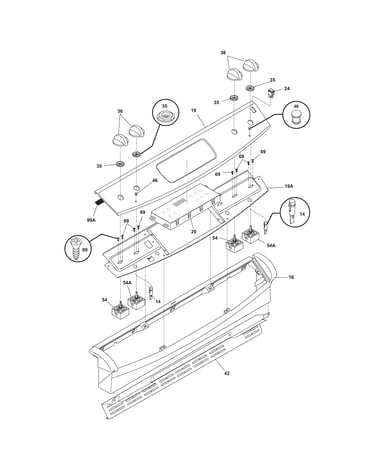

Backguard diagram
OverlayPart #318214514
Replaced by #316419141
?Manufacturer substitutionThis part replaces 318214514. Substitute parts can look different from the original.$35.38 |14% OFF Phone Price : $41.38In Stock - #54A
Backguard diagram
Oven switchPart #318220081
Replaced by #903136-9020
?Manufacturer substitutionThis part replaces 318220081. Substitute parts can look different from the original.$66.35 |8% OFF Phone Price : $72.35In Stock - #NI
Backguard diagram
OverlayPart #318214512
Replaced by #316419137
?Manufacturer substitutionThis part replaces 318214512. Substitute parts can look different from the original.$24.64 |20% OFF Phone Price : $30.64In Stock
Most common symptoms to help you fix your ranges
Choose a symptom to see related range repairs.
Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
