Model # 1554546721 Official Kenmore electric drop-in range
Here are the diagrams and repair parts for Official Kenmore 1554546721 electric drop-in range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for1554546721 Ranges
- #10

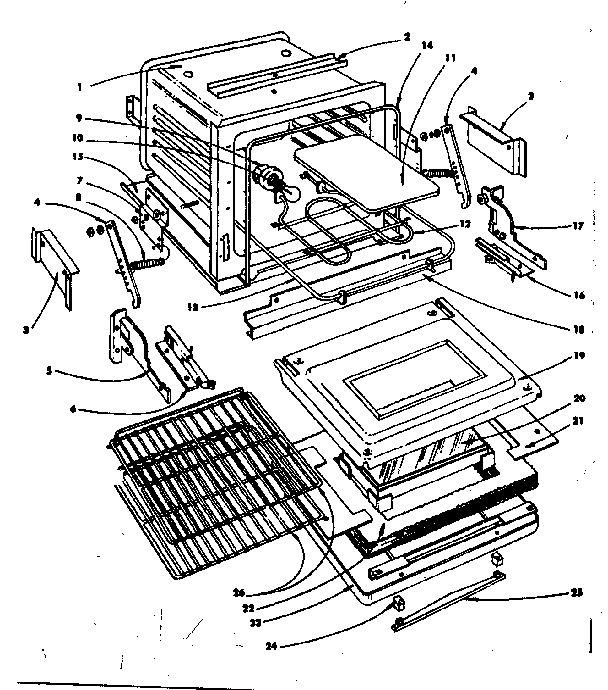

Oven parts diagram
Light bulbPart #K5864
The manufacturer no longer makes this part, and there's no substitute part
- #11

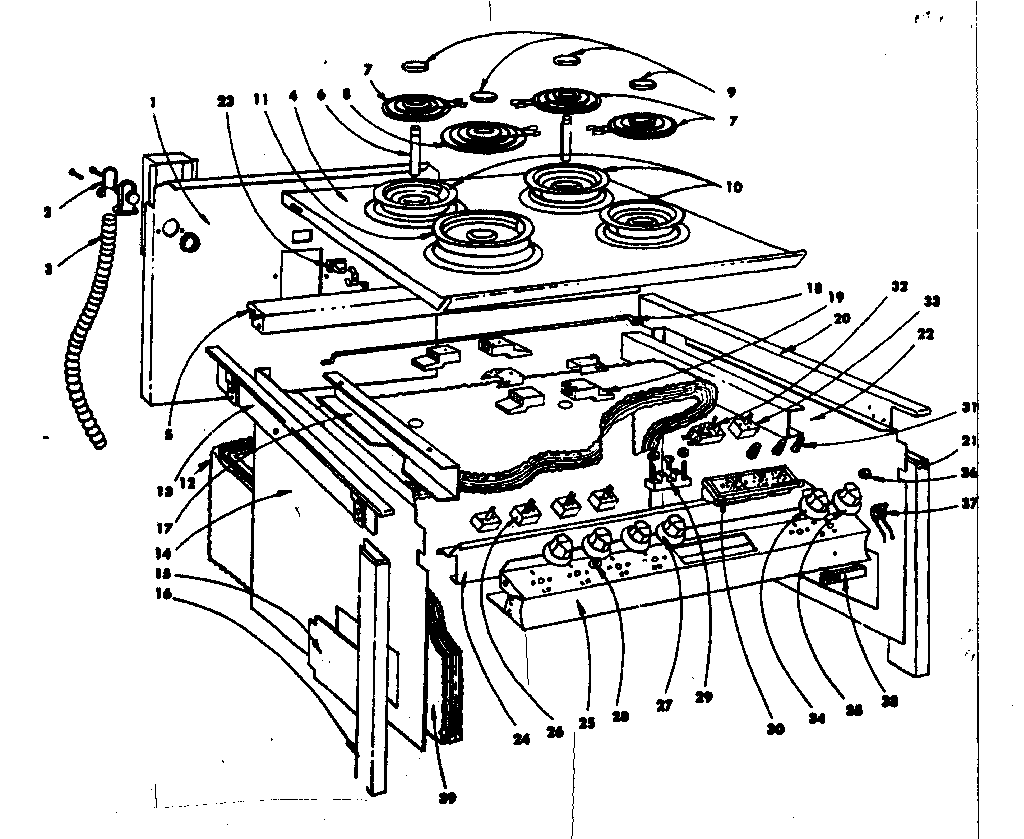

Top section and outer body parts diagram
Large bowlPart #K13847
The manufacturer no longer makes this part, and there's no substitute part
- #10
Top section and outer body parts diagram
BowlPart #K13846
The manufacturer no longer makes this part, and there's no substitute part
- #32
Top section and outer body parts diagram
ThermostatPart #K10884
The manufacturer no longer makes this part, and there's no substitute part
- #9
Top section and outer body parts diagram
MedallionPart #K13851
The manufacturer no longer makes this part, and there's no substitute part
- #12
Oven parts diagram
Broil unitPart #K11581
The manufacturer no longer makes this part, and there's no substitute part
- #13
Oven parts diagram
Bake unitPart #K11250
The manufacturer no longer makes this part, and there's no substitute part
- #2

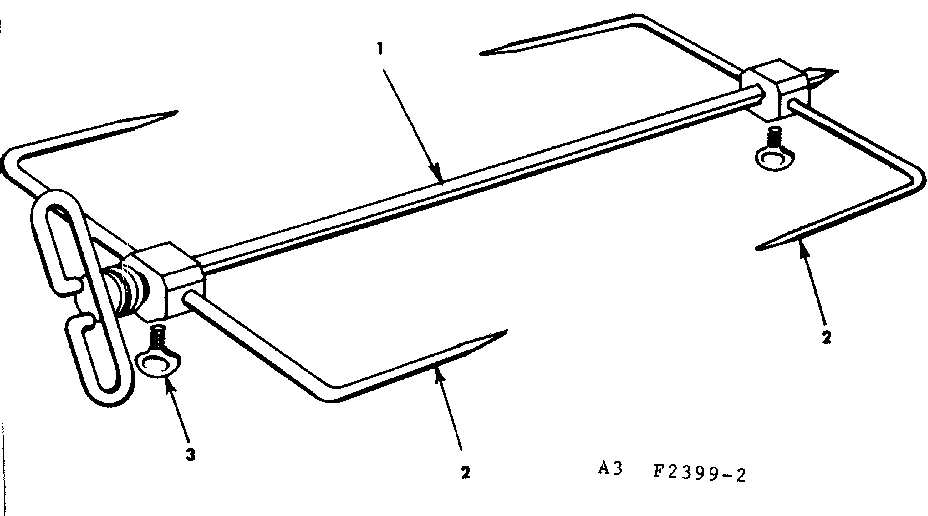

Accessory/ rotisserie kit diagram
SkewerPart #K11788
The manufacturer no longer makes this part, and there's no substitute part
- #2
Top section and outer body parts diagram
ConnectorPart #K6150
The manufacturer no longer makes this part, and there's no substitute part
- #24
Oven parts diagram
SpacerPart #K11830
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your ranges
Choose a symptom to see related range repairs.
Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
Most common repair guides to help fix your ranges
These step-by-step repair guides will help you safely fix what’s broken on your range.
How to replace a range oven door switch
The oven door switch detects whether the oven door is closed and helps control the oven light. Replace the switch if it …
Repair difficulty
Time required
30 minutes or less
How to replace a range oven door lock assembly
Oven door not locking? You can replace the lock assembly in less than 30 minutes. Here's how.…
Repair difficulty
Time required
15 minutes or less
Effective articles & videos to help repair your ranges
Use the advice and tips in these articles and videos to get the most out of your range.
Learn how the self-clean cycle works in an oven.…
You might be surprised by these 4 tips for using your oven better.…
Learn how to troubleshoot problems with your range that cause an F10 error to be displayed.…
